XHUMANA NATHIIncazelo Yomkhiqizo

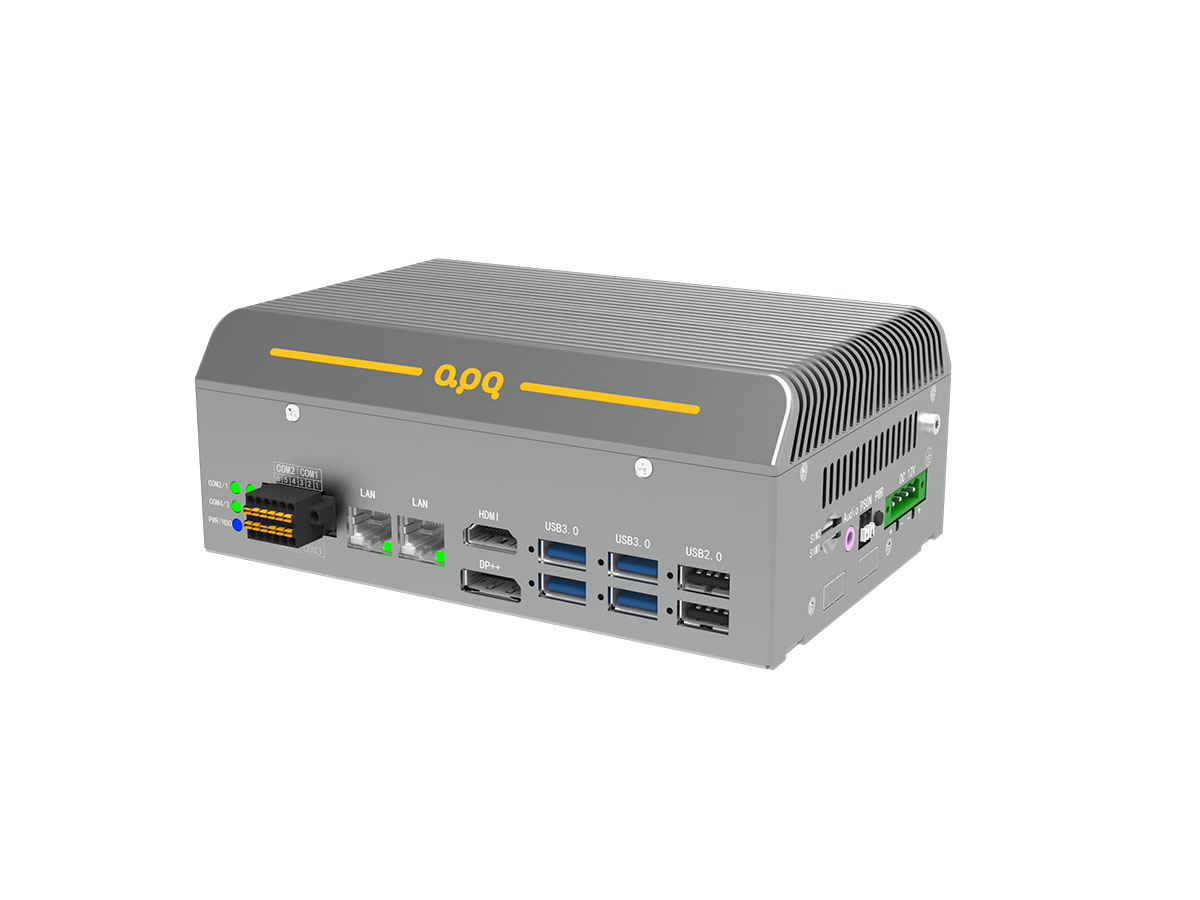

Uchungechunge lwe-APQ Robot Controller TAC-6000 luyipulatifomu yokubala ye-AI esebenza kahle kakhulu eyenzelwe ngqo izinhlelo zokusebenza zamarobhothi. Lusebenzisa ama-CPU e-Intel® 8th/11th Gen Core™ i3/i5/i7 Mobile-U, olunikeza ukusebenza okunamandla kwekhompyutha kanye nokusebenza kahle ukuze kuhlangatshezwane nezidingo zokubala ezisebenza kahle kakhulu zamarobhothi. Ngokusekelwa kwe-15/28W TDP, luqinisekisa ukusebenza okuzinzile ngaphansi kwemithwalo yemisebenzi eyahlukahlukene. Luhlonyiswe ngesikhala esingu-1 se-DDR4 SO-DIMM, lusekela kufika ku-32GB yememori, luqinisekisa ukucutshungulwa kwedatha okubushelelezi. Izixhumi ze-Intel® Gigabit Ethernet ezimbili zinikeza ukuxhumana kwenethiwekhi okusheshayo nokuzinzile, okuhlangabezana nezidingo zokudlulisa idatha phakathi kwamarobhothi namadivayisi angaphandle noma ifu. Lolu chungechunge lwabalawuli lusekela imiphumela yokubonisa ephindwe kabili, kufaka phakathi izixhumi ze-HDMI kanye ne-DP++, okwenza kube lula ukubona isimo sokusebenza kwerobhothi kanye nedatha. Lunikeza amachweba afinyelela ku-8 alandelanayo, ayisithupha awo asekela amaphrothokholi e-RS232/485, okwenza ukuxhumana nezinzwa ezahlukahlukene, ama-actuator, namadivayisi angaphandle kube lula. Isekela ukunwetshwa kwemojula ye-APQ MXM kanye ne-aDoor, ivumelana nezidingo zezimo ezahlukahlukene zohlelo lokusebenza eziyinkimbinkimbi. Ukunwetshwa kokusebenza okungenantambo kwe-WiFi/4G kuqinisekisa ukuxhumana okuzinzile ezindaweni ezahlukene. Yakhelwe ngogesi we-12~24V DC, ivumelana nezimo zamandla ezahlukene. Ukwakheka komzimba okuqinile kakhulu kanye nezinketho eziningi zokufaka kwenza kube lula ukukufaka ezindaweni ezinesikhala esilinganiselwe.
Ifakwe ipulatifomu yokusebenza nokugcinwa okuhlakaniphile ye-QDevEyes- (IPC) egxile ezimweni zohlelo lokusebenza lwe-IPC, ipulatifomu ihlanganisa izinhlelo zokusebenza ezicebile ezicini ezine zokuphatha, ukulawula, ukunakekela, kanye nokusebenza. Ihlinzeka ngokuphathwa kweqembu elikude, ukuqapha idivayisi, kanye nemisebenzi yokusebenza nokugcinwa okukude kwama-IPC, ihlangabezana nezidingo zokusebenza ezimweni ezahlukene.
| Imodeli | I-TAC-6010 | I-TAC-6020 | |
| I-CPU | I-CPU | I-Intel 8/11thI-Generation Core™ i3/i5/i7 Mobile -U CPU, TDP=15/28W | |
| I-Chipset | I-SOC | ||
| I-BIOS | I-BIOS | I-AMI UEFI BIOS | |
| Inkumbulo | Isokhethi | Isikhala se-SO-DIMM esingu-1 * DDR4-2400/2666/3200 MHz | |
| Umthamo Omkhulu | 32GB | ||
| Ihluzo | Isilawuli | I-Intel®Ihluzo ze-UHD/Intel®Iris®Ihluzo ze-Xe Qaphela: Uhlobo lwesilawuli sezithombe luncike kumodeli ye-CPU | |
| I-Ethernet | Isilawuli | 1 * Intel®i-i210-AT (10/100/1000 Mbps, RJ45) 1 * Intel®i-i219 (10/100/1000 Mbps, RJ45) | |
| Isitoreji | M.2 | 1 * M.2 Key-M Slot (PCIe x4 NVMe/ SATA SSD, i-auto detect, 2242/2280) | |
| Izikhala Zokunweba | M.2 | Isikhala esingu-1 * M.2 Key-B (USB2.0, Ukusekela i-4G, 3042, senguqulo engu-12V kuphela) I-1 * Mini PCIe Slot (i-PCIe+USB2.0, inguqulo engu-12~24V kuphela) | |
| I-Mini PCIe | Isikhala se-PCIe esincane esingu-1 * (SATA/PCIe+USB2.0) | ||
| I-MXM/aDoor | Akukho | 1 * MXM (isekela ikhadi lokunweba le-APQ MXM 4 * LAN/6 * COM/16 * GPIO) Inothi: 11thI-CPU ayisekeli ukunwetshwa kwe-MXM 1 * Ukwandiswa kwe-aDoor I/O | |

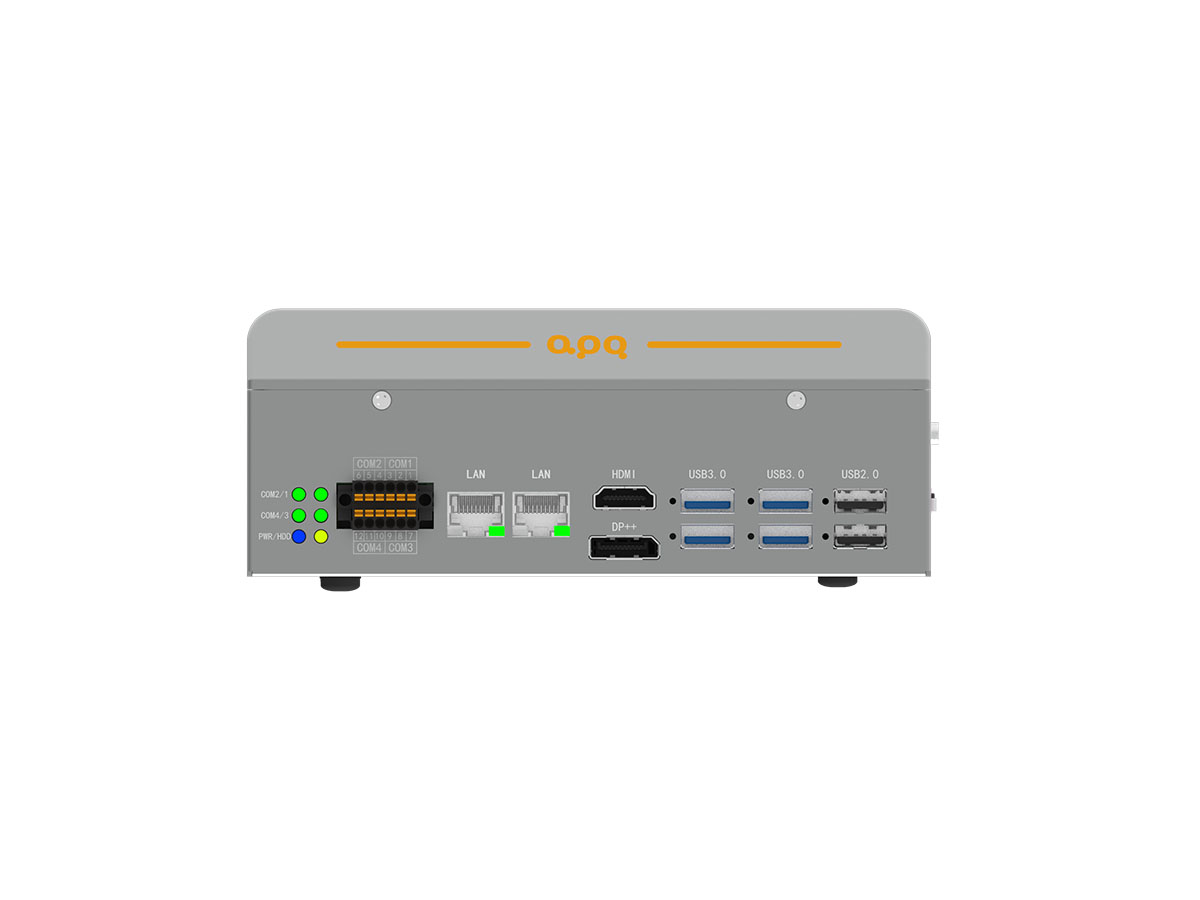

| I-I/O yangaphambili | I-USB | 4 * USB3.0 (Uhlobo-A) 2 * USB2.0 (Uhlobo-A) | |
| I-Ethernet | 2 * RJ45 | ||
| Isibonisi | 1 * DP: ukulungiswa okuphezulu kufika ku-3840*2160@24Hz 1 * I-HDMI (Uhlobo-A): ukulungiswa okuphezulu kufika ku-3840*2160@24Hz | ||
| Uchungechunge | 4 * RS232/485 (COM1/2/3/4, ukulawula i-jumper) | 4 * RS232/485 (COM1/2/3/4/7/8, ukulawula i-jumper) 2 * RS232 (COM9/10) Inothi: 11thI-CPU ayisekeli i-COM7/8/9/10 | |

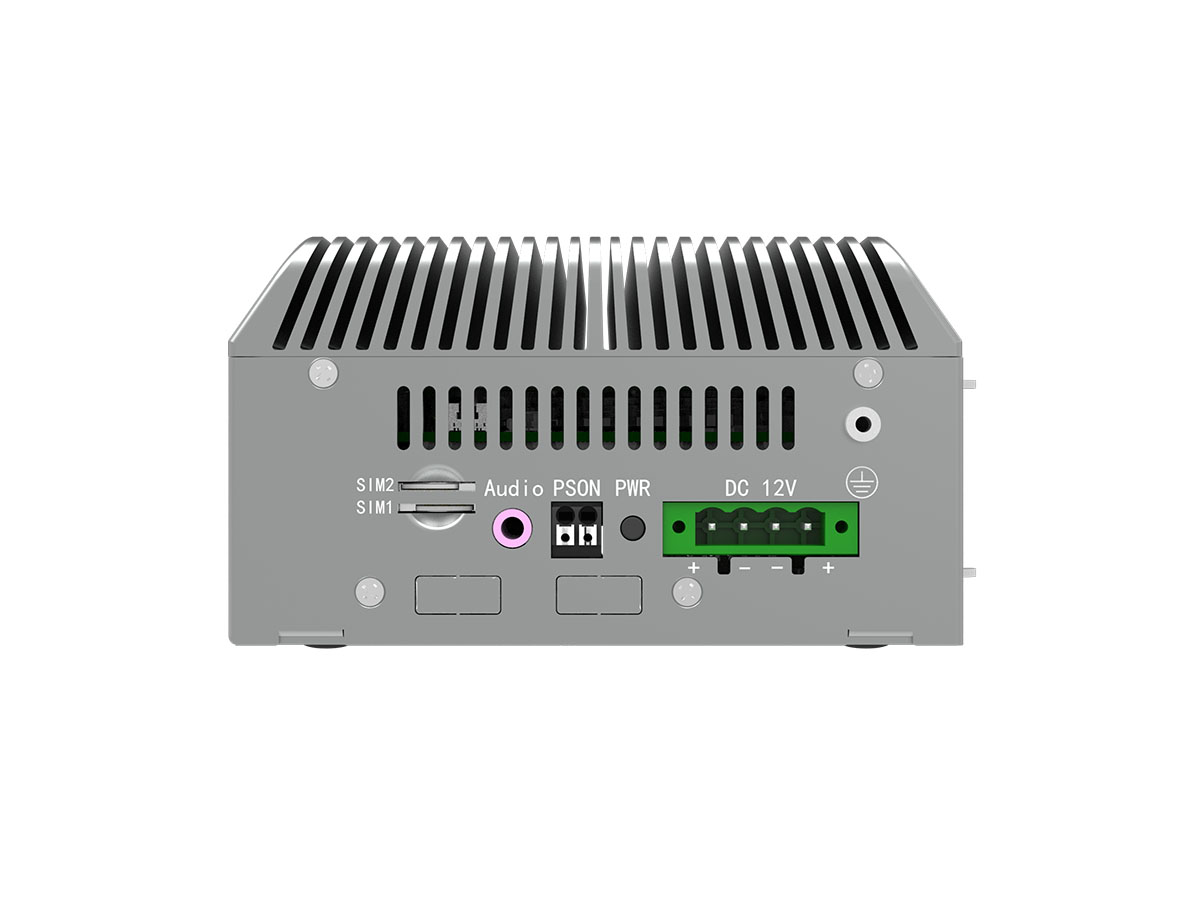

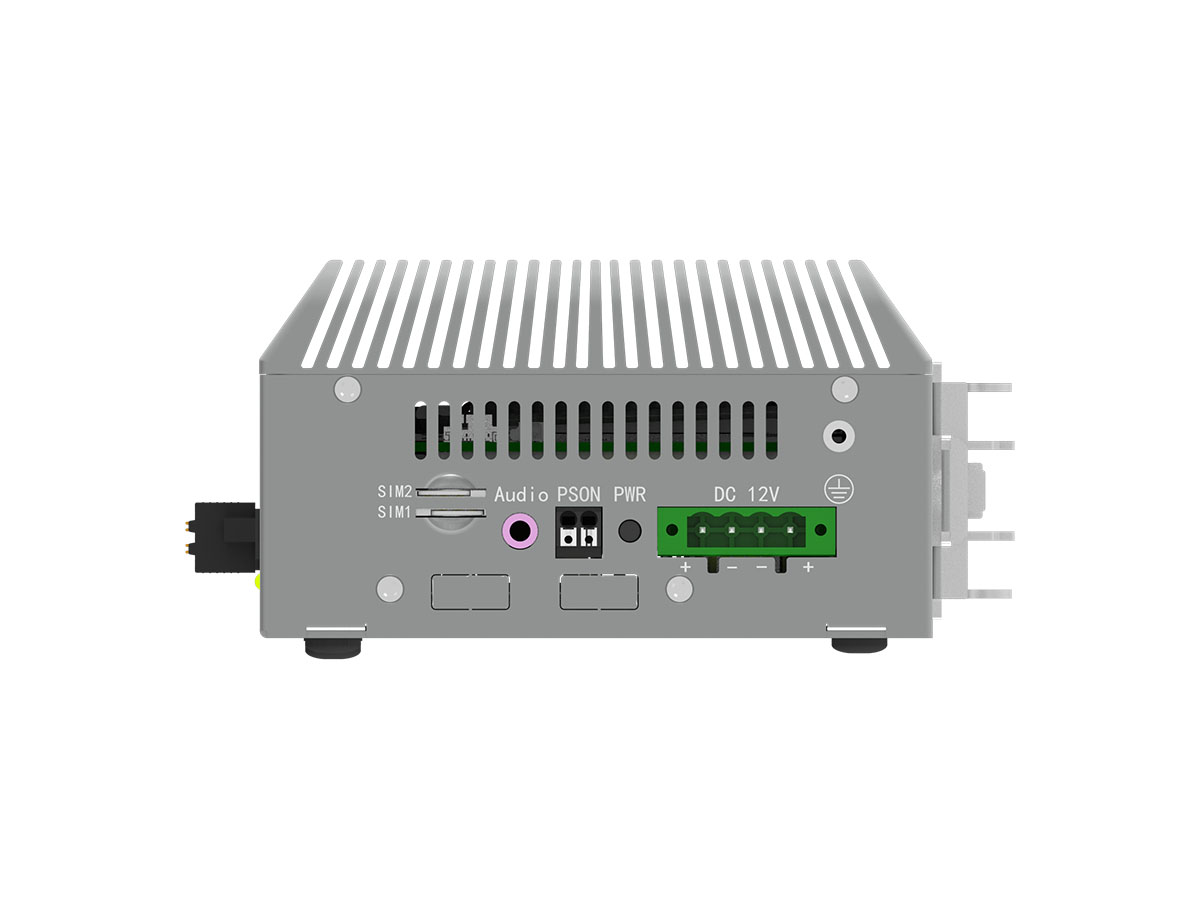

| I/O yesokudla | I-SIM | I-Nano SIM Card Slot engu-2 * (amamojula e-Mini PCIe ahlinzeka ngosekelo olusebenzayo) | |
| Umsindo | I-Jack engu-1 * 3.5mm (Umugqa Wokuphuma + I-MIC, i-CTIA) | ||
| Amandla | 1 * Inkinobho Yamandla 1 * PS_ON 1 * Okokufaka Amandla kwe-DC | ||
| Ukunikezwa kwamandla kagesi | Uhlobo | DC | |
| Amandla Okufaka I-Voltage | 12~24VDC (ongakukhetha okungu-12VDC) | ||
| Isixhumi | Isixhumi Sokufaka Amandla Esiyi-1 * 4Pin (P= 5.08mm) | ||
| Ibhethri le-RTC | Iseli Yezinhlamvu Ze-CR2032 | ||
| Usekelo lwe-OS | Amafasitela | I-Windows 10 | |
| I-Linux | I-Linux | ||
| Inja eqaphayo | Umphumela | Ukusetha kabusha uhlelo | |
| Isikhawu | Kungahlelwa 1 ~ 255 sec | ||
| Okwemishini | Izinto Zokufaka | Irediyetha: I-Aluminium, Ibhokisi: I-SGCC | |

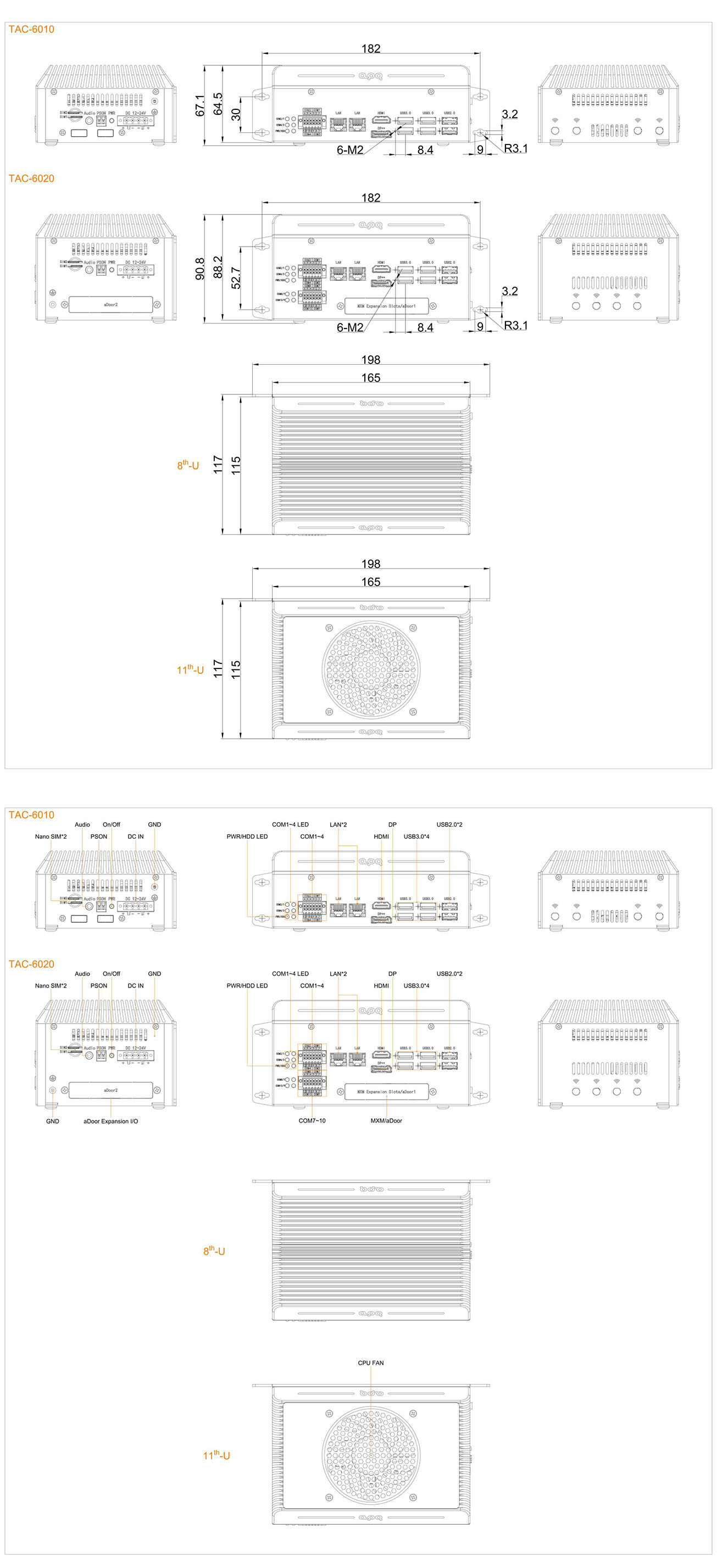

| Ubukhulu | 165mm(L) * 115mm(W) * 64.5mm(H) | 165mm(L) * 115mm(W) * 88.2mm(H) | |
| Isisindo | Inethi: 1.2kg, Isiyonke: 2.2kg | Inethi: 1.4kg, Isiyonke: 2.4kg | |

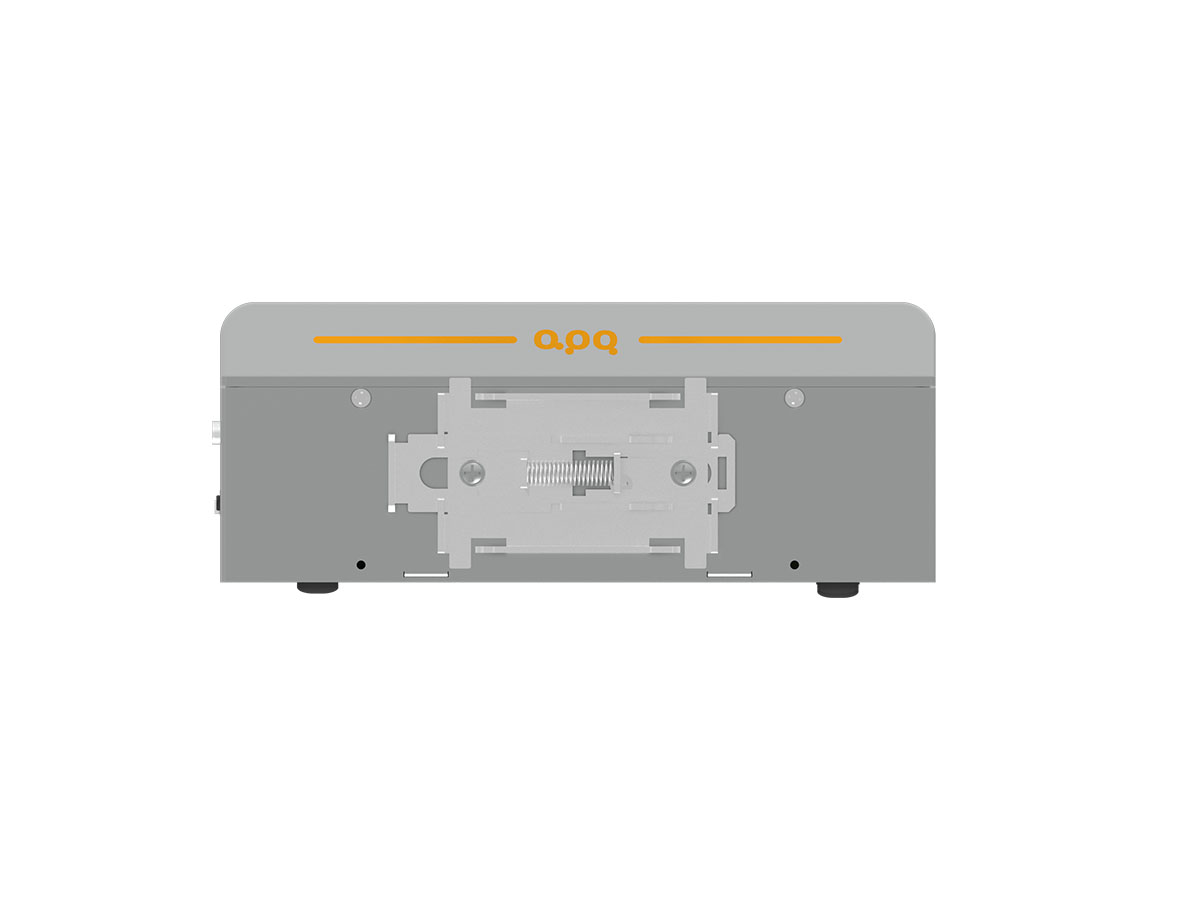

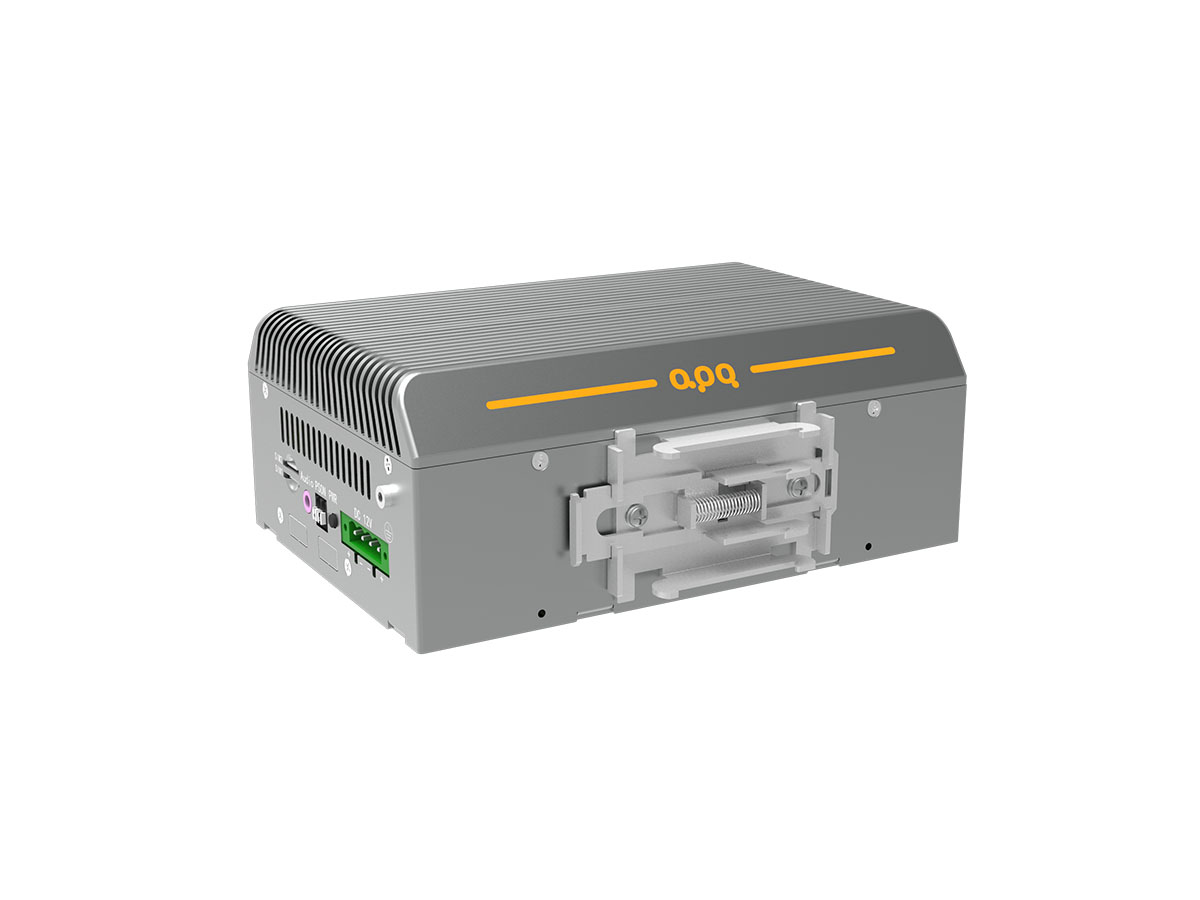

| Ukufaka | I-DIN, Ukufakwa kodonga, Ukufakwa kwedeski | ||
| Indawo ezungezile | Uhlelo Lokushabalalisa Ukushisa | Ukushabalalisa Ukushisa Okungenamsebenzi (8)thi-CPU) Ukupholisa Umoya we-PWM (11)thi-CPU) | |
| Izinga Lokushisa Lokusebenza | -20~60℃ | ||
| Izinga Lokushisa Lesitoreji | -40~80℃ | ||
| Umswakama Olinganiselwe | 5 kuya ku-95% RH (ayinciphisi) | ||
| Ukudlidliza Ngesikhathi Sokusebenza | Nge-SSD: IEC 60068-2-64 (3Grms@5~500Hz, okungahleliwe, ihora eli-1/eksisi) | ||
| Ukushaqeka Ngesikhathi Sokusebenza | Nge-SSD: IEC 60068-2-27 (30G, i-half sine, 11ms) | ||
| Isitifiketi | CE | ||
