BOX PC APQ IPC200-Q270SA2
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT US|

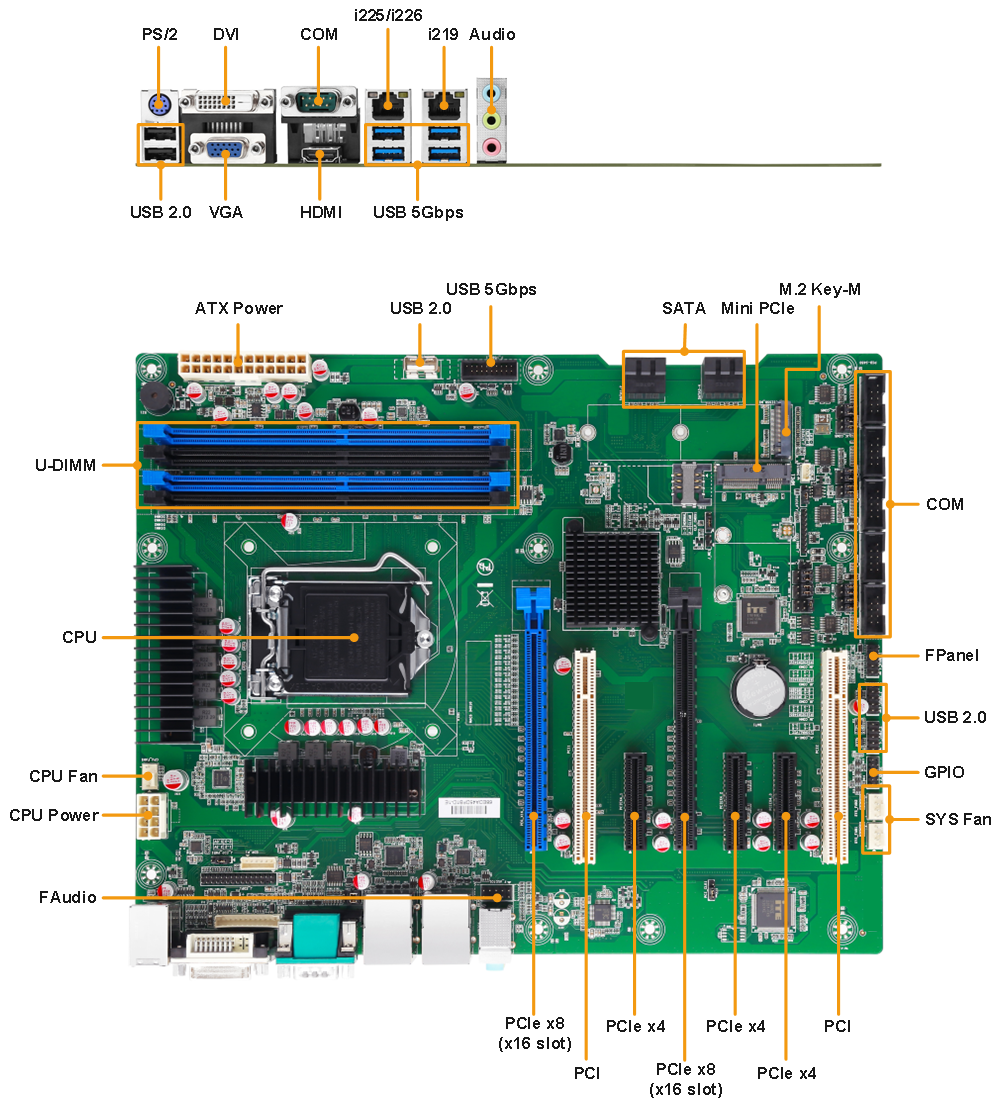

Model |
IPC200-Q270SA2 |
|
|
Processor System |
CPU | Intel® 6/7/8/9 Generation Core / Pentium/ Celeron Desktop CPU |
|
|
TDP | 95W |
|
|
Socket | LGA1151 |
|
|
Chipset | Q270 |
|
|
BIOS | AMI UEFI BIOS |
|
Memory |
Socket | 4 * U-DIMM slot， Dual Channel DDR4-2133/2400 MHz |
|
|
Capacity | 64GB, Single Max 16GB |
|
Ethernet |
Controller | 1 * Intel i225/i226-V/LM Chip
1 * Intel i219-V/LM Chip |
|
Storage |
SATA | 4 * SATA 3.0 Connector，Support RAID 0，1，5，10 |
|
|
M.2 | 1 * M.2 Key-M slot（PCIe Gen 3 x4 + SATA 3.0，NVMe/SATA Auto Detect，2280） |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot（PCIe Gen 3 x8 signal）
3 * PCIe x4 slot（PCIe Gen 3 x4 signal） |
|
|
PCI | 2 * PCI slot |
|
|
Mini PCIe | 1 * Mini PCIe（PCIe Gen 3 x1 + USB 2.0, with 1 * SIM Card slot) |
|
Rear I/O |
Ethernet | 2 * RJ45 |
|
|
USB | 4 * USB 5Gbps Type-A
2 * USB 2.0 Type-A |
|
|
PS/2 | 1 * PS/2 (Keyboard & Mouse) |
|
|
Display | 1 * DVI-D：max resolution up to 1920*1200 @ 60Hz 1 * HDMI: max resolution up to 4096*2160 @ 30Hz 1 * VGA：max resolution up to 1920*1200 @ 60Hz |
|
|
Audio | 3 * 3.5mm Jack（Line-out + Line-in + MIC） |
|
|
Serial | 1 * RS232 DB9/M（COM1） |
|
Front I/O |
USB | 2 * USB 2.0 Type-A |
|
|
Button | 1 * Power Button |
|
|
LED | 1 * Power status LED 1 * Hard drive status LED |
|
Internal Interfaces |
USB | 1 * USB 2.0 (Type-A)
2 * USB 5Gbps 2 * USB 2.0 |
|
|
COM | 3 * RS232（COM2/5/6）
1 * RS232/RS485/RS422 1 * RS232/RS485 |
|
|
Audio | 1 * Front Audio (Line-Out + MIC） |
|
|
IO | 1 × 8-channel digital input/output header (default: 4 inputs, 4 outputs) |
|
|
SATA | 4 * SATA 3.0 Connector |
|
|
FAN | 2 * SYS FAN (Header) 1 * CPU FAN (Header) |
|
Power Supply |
Type | 2U |
|
|
Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided |
|
|
RTC Battery | CR2032 Coin Cell |
|
OS Support |
Windows | Win 10/11 |
|
|
Linux | Linux |
|
Platform |
TPM | fTPM，optional dTPM2.0 |
|
Watchdog |
Output | System Reset |
|
|
Interval | Programmable 1 ~ 255 sec |
|
Mechanical |
Enclosure Material | SGCC |
|
|
Dimensions | 482.6mm (L) * 475.7mm (W) * 88.1mm (H) |
|
|
Mounting | Shelf mounted installation |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
