BOX PC APQ TMC-7000
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT US|
Model |
TMC-7000 |
|
|
Processor System |
CPU | Supports Intel® 6th to 9th Gen Core™/Pentium®/Celeron® desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chip | Q170 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * SO-DIMM Slot，Dual Channel DDR4-2400/2666 MHz |
| Capacity | 64GB, Single Max 32GB | |
|
Ethernet |
Controller | 4 * Intel i210-AT Gigabit Ethernet Chips
1 * Intel i219-V/LM Gigabit Ethernet Chips |
|
Storage |
SATA | 2 * SATA3.0 (Support RAID 0,1) |
| M.2 | 1 * M.2 Key-M Slot (PCIe Gen 3 x2 + SATA 3.0, NVMe/ SATA SSD Auto Detect, 2280) | |
|
Expansion Slots |
M.2 | 1 * M.2 Key-B Slot(PCIe Gen 3 x1 + USB 5Gbps + USB2.0, 3042/3052, With 1*SIM Card Slot) |
| 1 * M.2 Key-E Slot (PCIe Gen 3 x1 + USB2.0 2230) | ||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe Gen 3 x1 + USB2.0, With 1*SIM Card Slot) | |
|

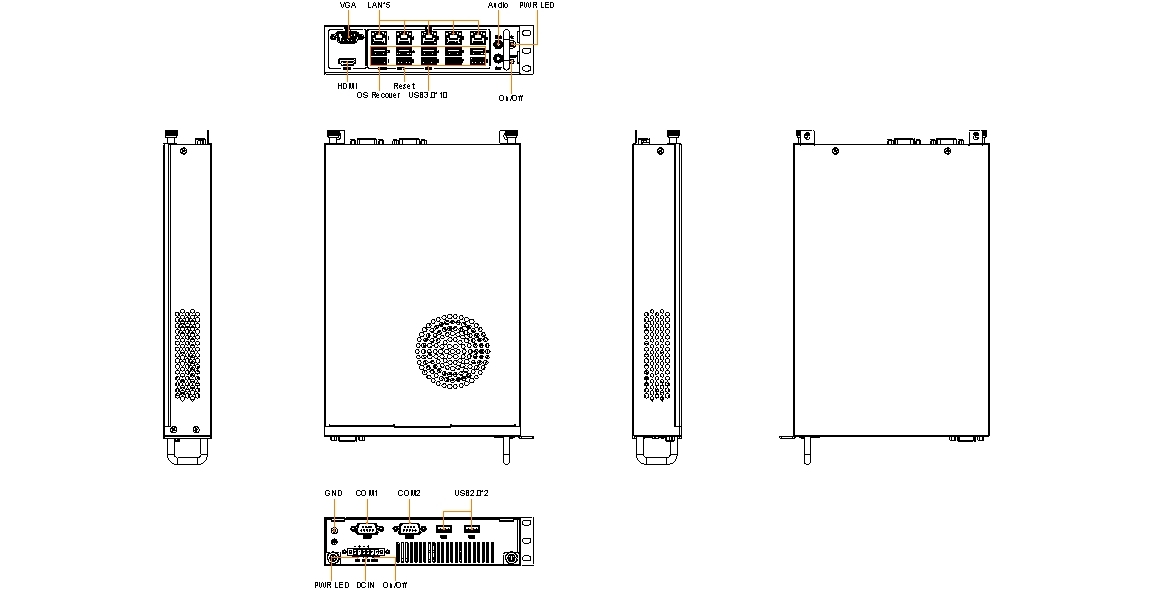

Front I/O |
USB | 10 * USB 5Gbps (Type-A) |
| Ethernet | 5 * RJ45 | |
| Display | 1 * HDMI: max resolution up to 4096*2160 @ 30Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
| Audio | 2 * 3.5mm Jack（Line-out + MIC） | |
| Button | 1 * Power Button 1 * System Restart Button 1 * System Reset Button |
|
| LED | 1 * Power status LED | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Serial | 2 * RS232/RS485 DB9/M (COM1/2) | |
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28V | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7代CPU: Windows 7/10/11 |
| 8/9代CPU: Windows 10/11 | ||
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | 1 ~ 255 seconds, | |
|
Mechanical |
Enclosure Material | Aluminum Alloy + Galvanized Steel |

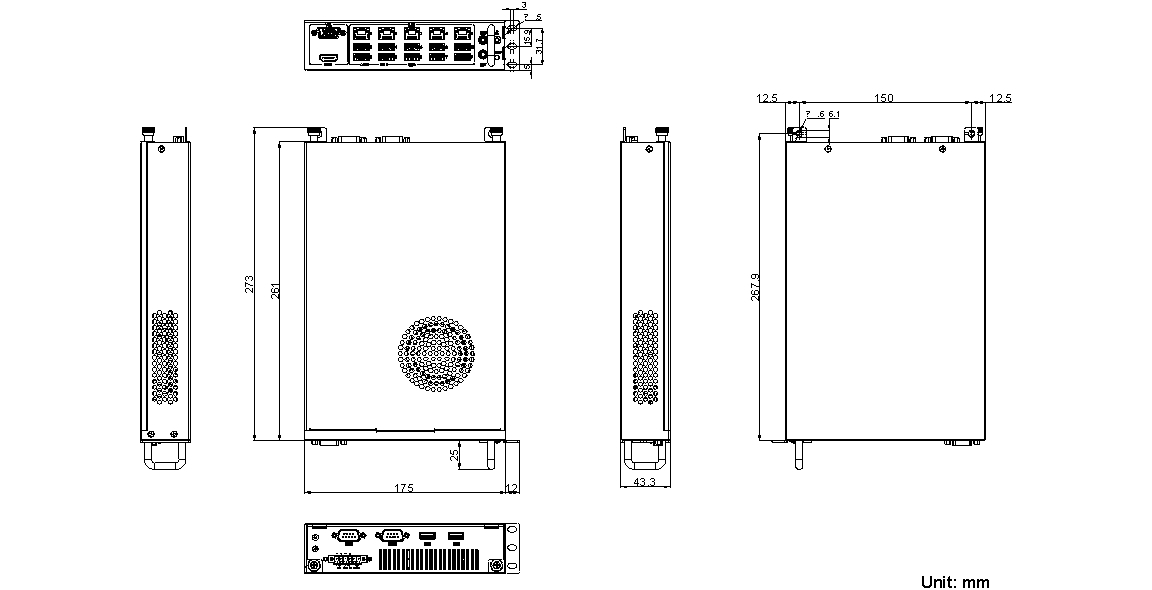

| Dimensions | 187mm(L) * 273mm(W) * 43.3mm(H) | |
| Mounting | Rack-mount and desktop installation | |
|
Environment |
Heat Dissipation System | -20 ~ 60℃ |
| Operating Temperature | -40 ~ 80℃ | |
| Storage Temperature | 10 to 90%(non-condensing) | |
