Cantilever Panel APQ ICD Series
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Specification
| General | Touch | ||

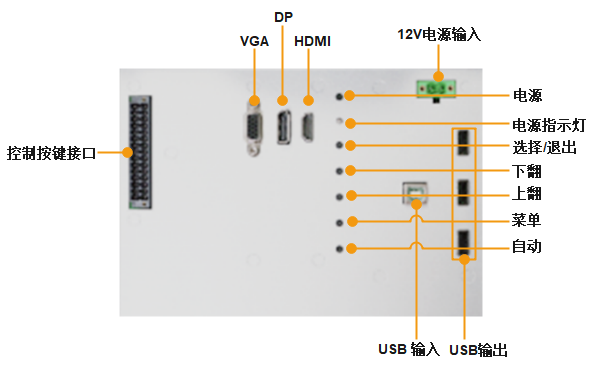

| l I/0 Interface | DP, HDMI, VGA, USB | l Touch Type | Projected Capacitive Multi-touch Screen |
| l Power | 12V DC Input | l Control Signal | USB |
| l Structure | Front frame: Aluminum alloy, Rear cover: SGCC | l Touch Method | Finger / Capacitive Touch Pen |
| l Mounting | VESA/Flush mount | l Transmittance | ≥85% |
| l Relative Humidity | 10 to 90% RH (non-condensing) | l Surface Hardness | 6H |
| l Vibration | 1.5Grms@5~500Hz, 0.15MM peak | l Response Time | 7~12ms |
| l Shock | 10G, 11ms | ||
Display Panel
|
Model |
ICD-156CQ |
ICD-215CQ |
| Size | 15.6" | 21.5" |
| Resolution | 1920*1080 | 1920*1080 |
| Aspect Ratio | 16:9 | 16:9 |
| Brightness | 400 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 1000:1 | 1000:1 |
| Number of Colors | 16.7M | 16.7M |
| Backlight Lifetime | 20000 hrs | 50000 hrs |
| Operating Temperature | -20~60℃ | -20~60℃ |
| Storage Temperature | -20~70℃ | -20~70℃ |
| Product Weight | 5 Kg | 8.4 Kg |
| Product Dimensions(L*W*H) | 392.4*320.6*129.5 mm | 528.9*399.4*129.5 mm |
Optional Accessories[1]
|
Part Name |
Part Number |
Description |
| Handle | WS.0FZ.0BLXS0BS-001 | Handle for ICD-156CQ, one pair |
| Handle | WS.0FZ.0BLXS0BS-002 | Handle for ICD-215CQ, one pair |

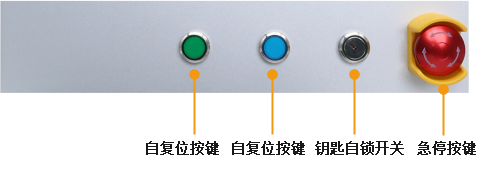

| Button | KZ.JKB.00BL00AJ-001 | 4 standard buttons: E-stop (double normally closed) + green momentary (1 NO, 24V LED) + blue momentary (1 NO, 24V LED) + key latching switch (1 NO, 24V LED) |
| Keyboard & Mouse & Tray Kit | WS.0JP.00BLJPTJ-001 | Custom keyboard tray + waterproof keyboard + mouse + mouse pad |
| Keyboard Tray | WS.0JP.00BL0JPT-001 | Simple keyboard tray |
Note: [1] The product by default includes the monitor, cantilever mounting kit, 60W adapter kit, and 1.5m 2P 5.08 Phoenix terminal DC power cable. It does **not** include accessories such as handles, buttons, keyboard tray, etc.
