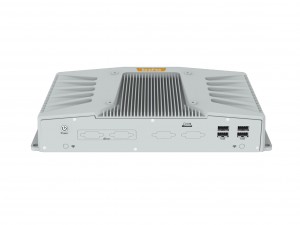

E5M Embedded Industrial PC

E5M Embedded Industrial PC


  • Utilizes Intel® Celeron® J1900 ultra-low power processor

  • Integrates dual Intel® Gigabit network cards
  • Two onboard display interfaces
  • Onboard with 6 COM ports, supports two isolated RS485 channels
  • Supports WiFi/4G wireless expansion
  • Supports APQ MXM COM/GPIO module expansion
  • Supports 12~28V DC wide voltage power supply

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Embedded Industrial PC E5M Series is an industrial computer crafted specifically for industrial automation and edge computing. It boasts robust performance and an extensive array of interfaces. Powered by the Intel Celeron J1900 processor, it is efficient and low in power consumption, ensuring stable operation across various industrial environments. Dual Gigabit network cards provide high-speed and stable network connections, meeting the needs for large data transmission. Two onboard display interfaces facilitate real-time monitoring and data display. Furthermore, the E5M Series features 6 COM ports, supports two isolated RS485 channels, and can communicate with a variety of external devices. The APQ MXM COM/GPIO module expansion function can be customized according to specific application requirements. Additionally, this series supports WiFi/4G wireless expansion, enabling convenient wireless connections and control. The 12~28V DC wide voltage power supply design adapts to different power environments, ensuring stable operation under various working conditions. In summary, with its excellent performance and rich interfaces, the APQ E5M Series Embedded Industrial PC provides robust support for industrial automation and edge computing, meeting the needs of various complex application scenarios.


Engineering Drawing

File Download



 Processor System

CPU Intel® Celeron® Processor J1900, FCBGA1170
Chipset SOC


Socket 1 * DDR3L-1333MHz SO-DIMM Slot
Max Capacity 8GB


Controller 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45)


SATA 1 * SATA2.0 Connector (2.5-inch hard disk with 15 + 7pin)
M.2 1 * M.2 Key-M Slot (support SATA SSD, 2280)

Expansion Slots

MXM/aDoor 1 * MXM Slot (LPC + GPIO, support COM/GPIO MXM card)
Mini PCIe 1 * Mini PCIe Slot (PCIe2.0 + USB2.0, with 1 * Nano SIM Card)

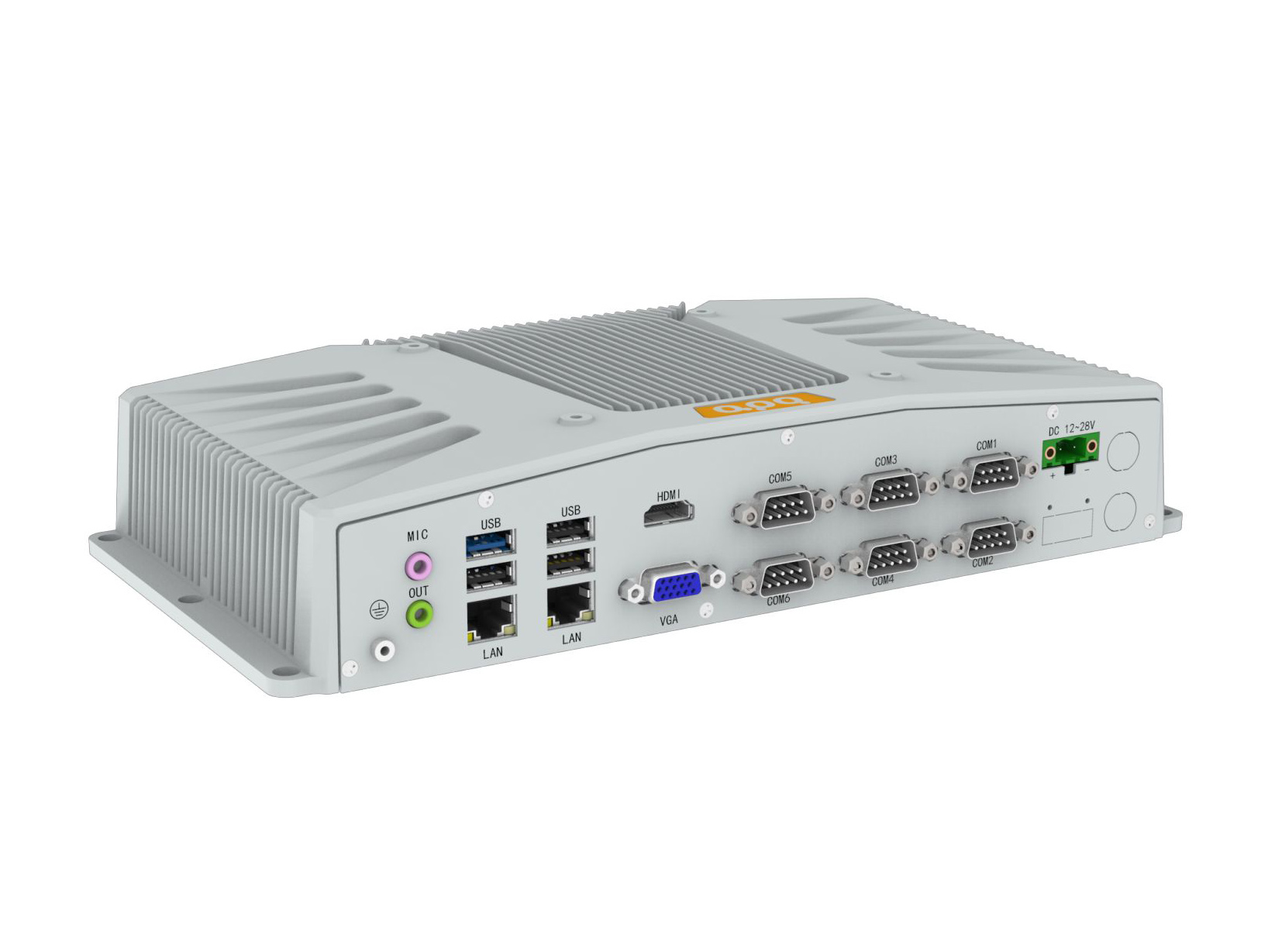

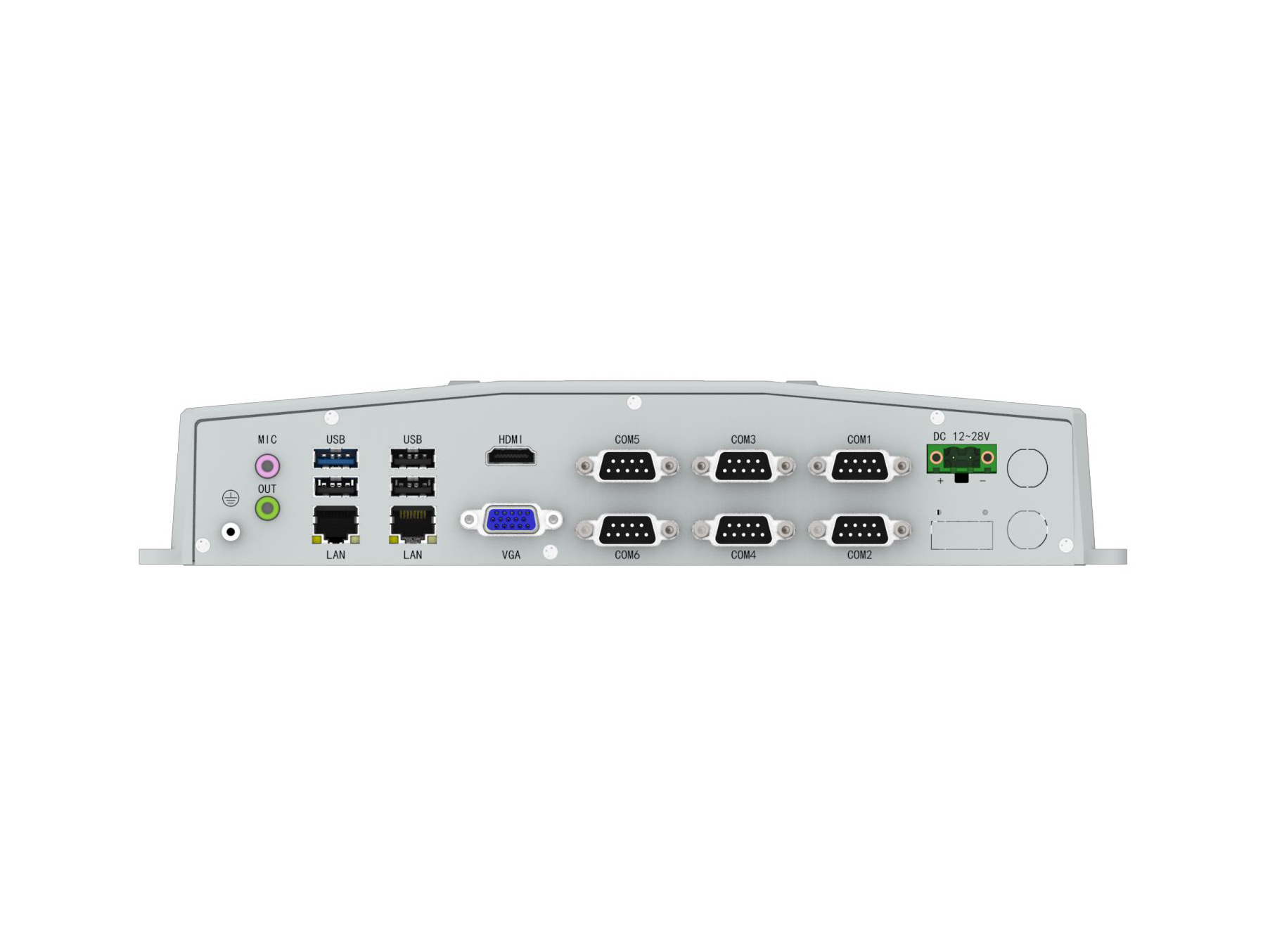

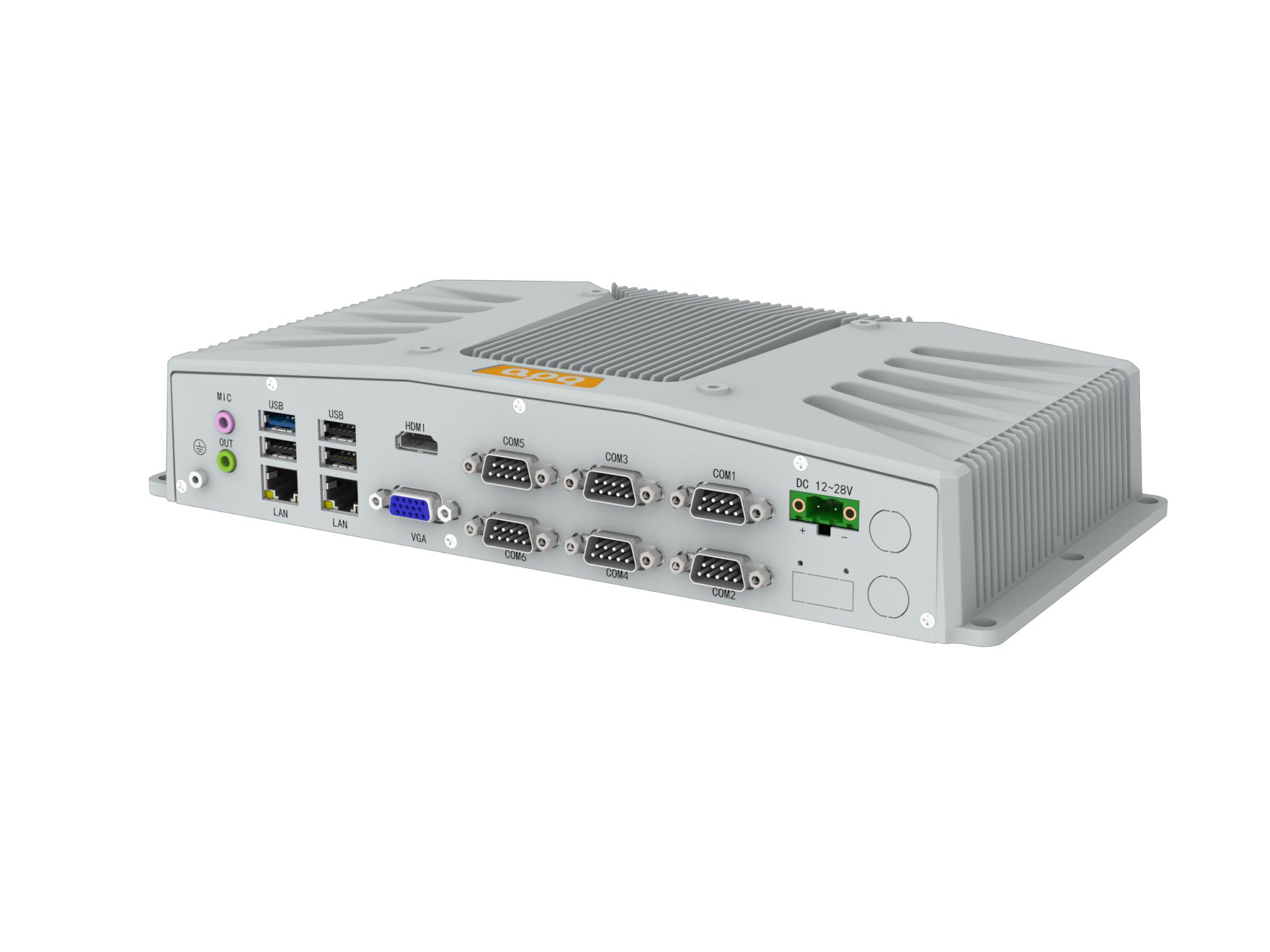

Front I/O

USB 1 * USB3.0 (Type-A)
3 * USB2.0 (Type-A)
Ethernet 2 * RJ45
Display 1 * VGA: max resolution up to 1920*1280 @ 60Hz
1 * HDMI: max resolution up to 1920*1280 @ 60Hz
Audio 1 * 3.5mm Line-out Jack
1 * 3.5mm MIC Jack
Serial 2 * RS232/485 (COM1/2, DB9/M)
4 * RS232 (COM3/4/5/6, DB9/M)
Power 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)

Power Supply

Type DC
Power Input Voltage 12~28VDC
Connector 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
RTC Battery CR2032 Coin Cell

OS Support

Windows Windows 7/8.1/10
Linux Linux


Dimensions 293.5mm(L) * 149.5mm(W) * 54.5mm(H)


Operating Temperature -20~60℃
Storage Temperature -40~80℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
Certification CE/FCC, RoHS

E5M_SpecSheet(APQ)_CN_20231222 (11)
