CONTACT USProduct Description

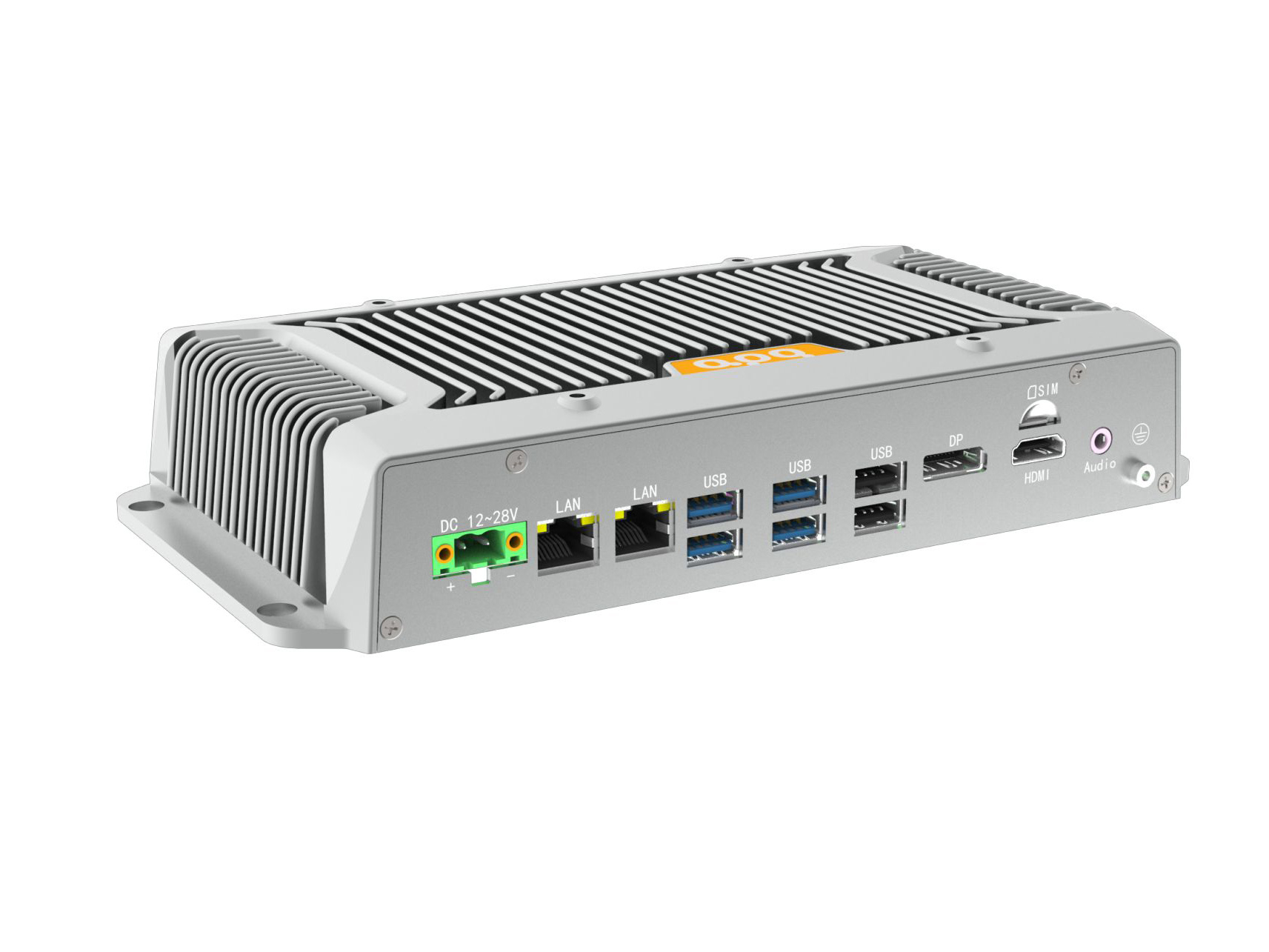

The APQ Embedded Industrial PC E5S Series J6412 platform is an ultra-compact industrial computer designed specifically for industrial automation and edge computing applications. It utilizes the Intel Celeron J6412 low-power quad-core processor, which is efficient and stable, ensuring smooth operation of various applications. Dual Gigabit network cards provide a stable channel for large data transmission, meeting real-time communication needs. The 8GB LPDDR4 memory ensures smooth multitasking, offering efficient computing capabilities. Additionally, two onboard display interfaces facilitate real-time monitoring, and the dual hard drive storage design meets data storage requirements. This series also supports WiFi/4G wireless expansion, making wireless connections and control convenient, further expanding its application scenarios. Adapted to 12~28V DC wide voltage power supply, it ensures stability in various environments. The ultra-compact body design and fanless cooling system make the E5S Series suitable for more embedded scenarios. Whether in confined spaces or harsh environments, the E5S Series provides stable and efficient computing support.
In summary, with its powerful performance and rich interfaces, the APQ E5S Series J6412 platform Embedded Industrial PC provides a solid backbone for industrial automation and edge computing, meeting the needs of various complex application scenarios.
|
Model |
E5S |
|||
|
Processor System |
CPU |
Intel® Elkhart Lake J6412 |
Intel® Alder Lake N97 |
Intel® Alder Lake N305 |
|
Base Frequency |
2.00 GHz |
2.0 GHz |
1 GHz |
|
|
Max Turbo Frequency |
2.60 GHz |
3.60 GHz |
3.8GHz |
|
|
Cache |
1.5MB |
6MB |
6MB |
|
|
Total Cores/Threads |
4/4 |
4/4 |
8/8 |
|
|
Chipset |
SoC |
|||
|
BIOS |
AMI UEFI BIOS |
|||
|
Memory |
Socket |
LPDDR4 3200 MHz (Onboard) |
||
|
Capacity |
8GB |
|||
|
Graphics |
Controller |
Intel® UHD Graphics |
||
|
Ethernet |
Controller |
2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) |
||
|
Storage |
SATA |
1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) |
||
|
M.2 |
1 * M.2 Key-M Slot (SATA SSD, 2280) |
|||
|
Expansion Slots |
aDoor |
1 * aDoor |
||
|
Mini PCIe |
1 * Mini PCIe Slot (PCIe2.0x1+USB2.0) |
|||
|

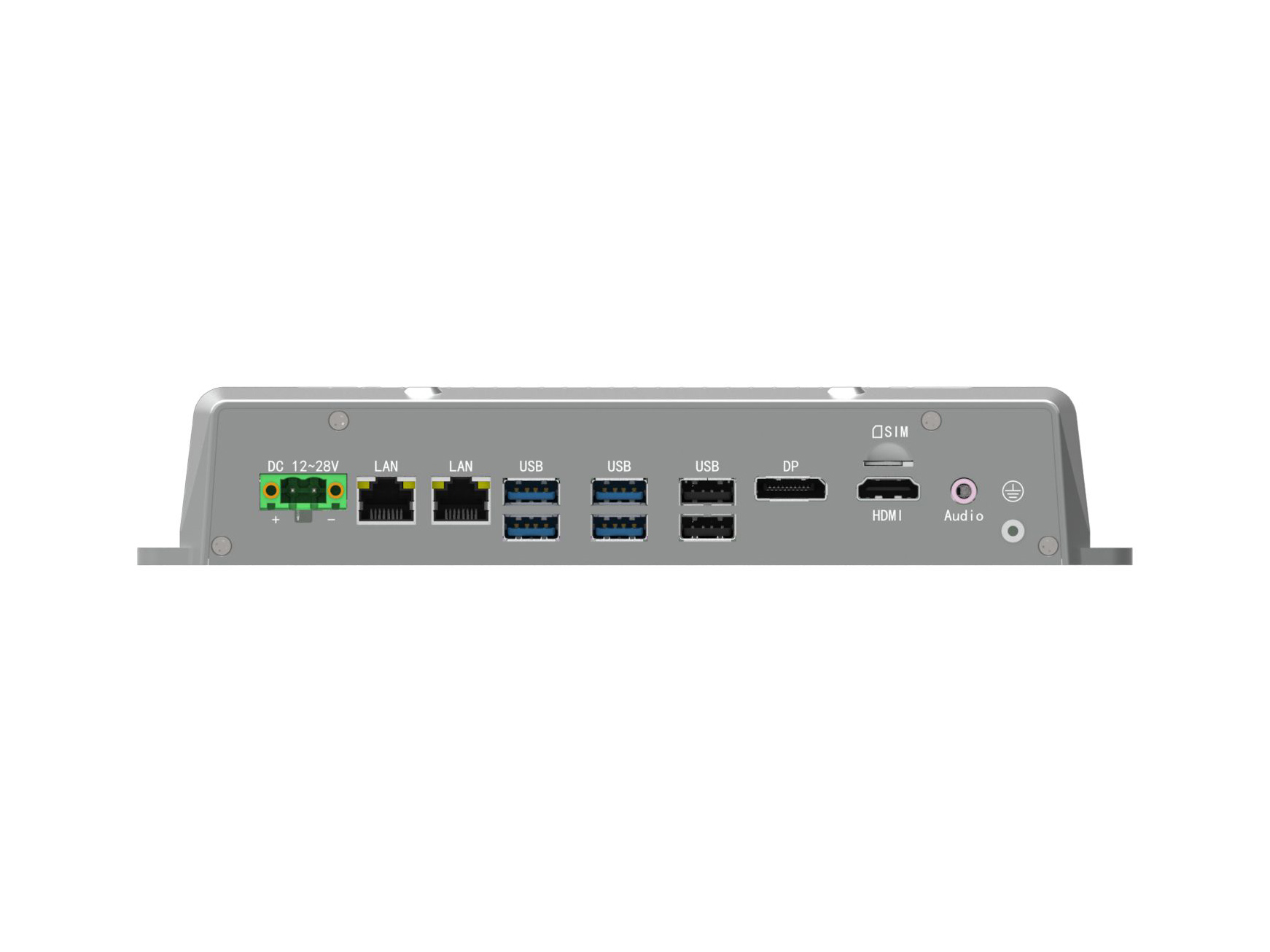

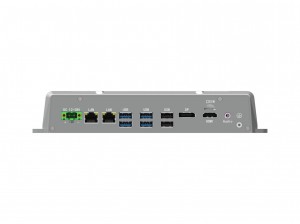

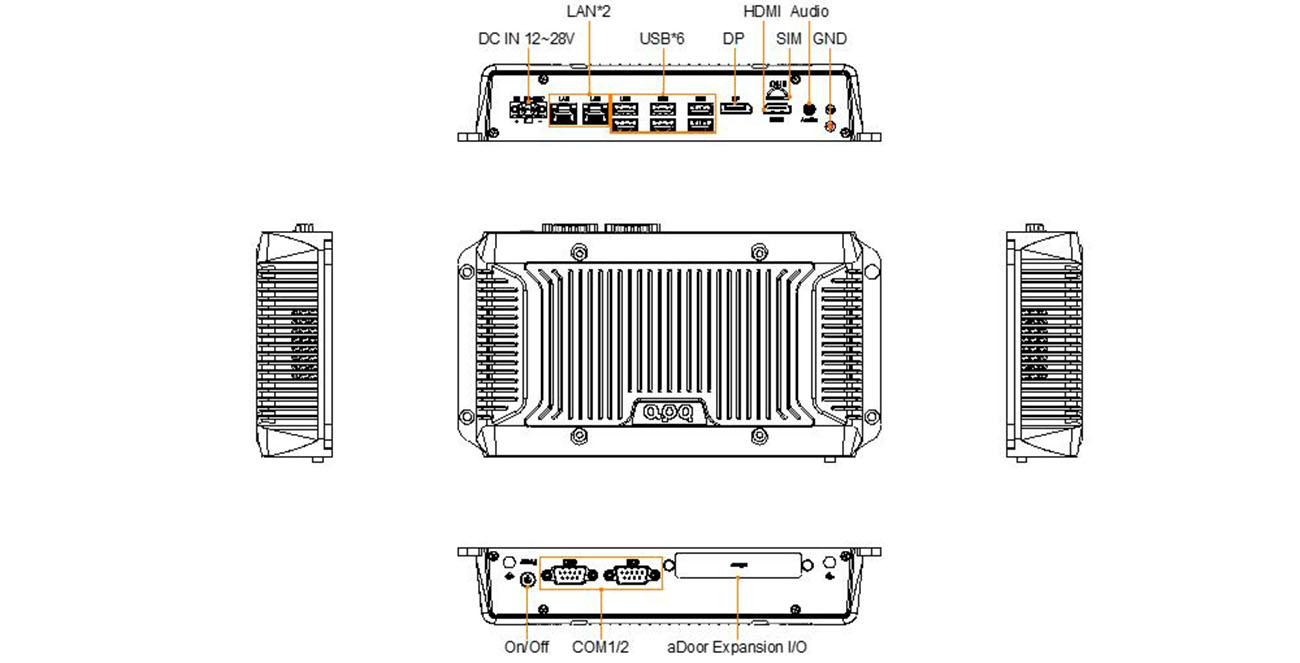

Front I/O |
USB |
4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
||
|
Ethernet |
2 * RJ45 |
|||
|
Display |
1 * DP++: max resolution up to 4096x2160@60Hz 1 * HDMI (Type-A): max resolution up to 2048x1080@60Hz |
|||
|
Audio |
1 * 3.5mm Jack (Line-Out + MIC, CTIA) |
|||
|
SIM |
1 * Nano-SIM Card slot (Mini PCIe module provides functional support) |
|||
|
Power |
1 * Power Input Connector (12~28V) |
|||
|

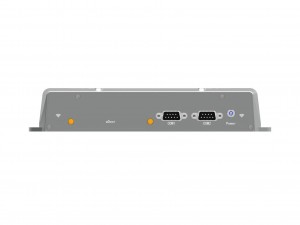

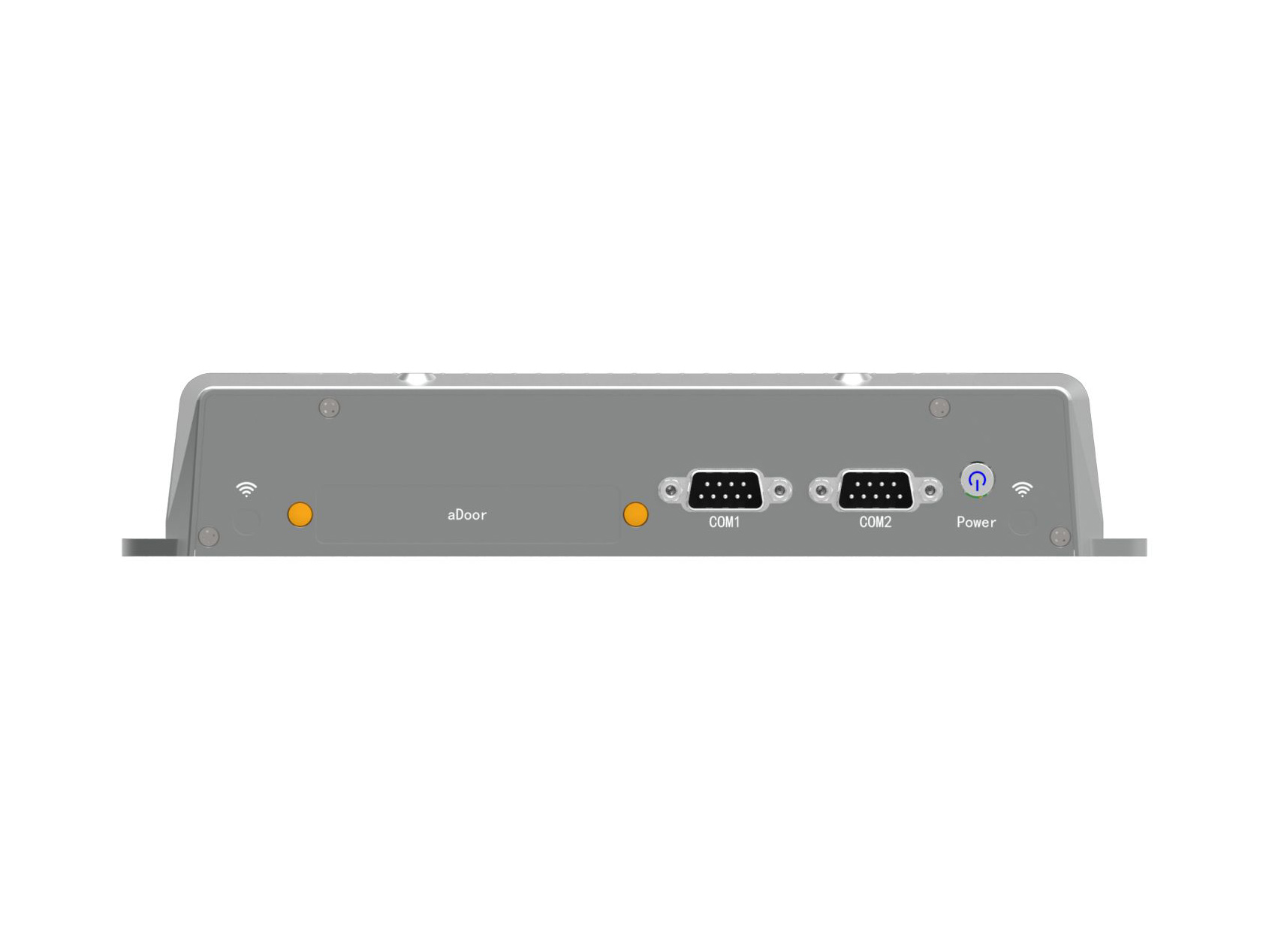

Rear I/O |
Button |
1 * Power Button with Power LED |
||
|
Serial |
2 * RS232/485 (COM1/2, DB9/M, BIOS control) |
|||
|
Internal I/O |
Front Panel |
1 * Front Panel (3x2Pin, PHD2.0) |
||
|
FAN |
1 * SYS FAN (4x1Pin, MX1.25) |
|||
|
Serial |
2 * COM (JCOM3/4, 5x2Pin, PHD2.0) 2 * COM (JCOM5/6, 5x2Pin, PHD2.0) |
|||
|
USB |
2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) 2 * USB2.0 (F_USB2_2, 5x2Pin, PHD2.0) |
|||
|
Display |
1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) |
|||
|
Audio |
1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) |
|||
|
GPIO |
1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) |
|||
|
LPC |
1 * LPC (8x2Pin, PHD2.0) |
|||
|
Power Supply |
Type |
DC |
||
|
Power Input Voltage |
12~28VDC |
|||
|
Connector |
1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) |
|||
|
RTC Battery |
CR2032 Coin Cell |
|||
|
OS Support |
Windows |
Windows 10/11 |
||
|
Linux |
Linux |
|||
|
Watchdog |
Output |
System Reset |
||
|
Interval |
Programmable 1 ~ 255 sec |
|||
|
Mechanical |
Enclosure Material |
Radiator: Aluminum, Box: SGCC |
||
|

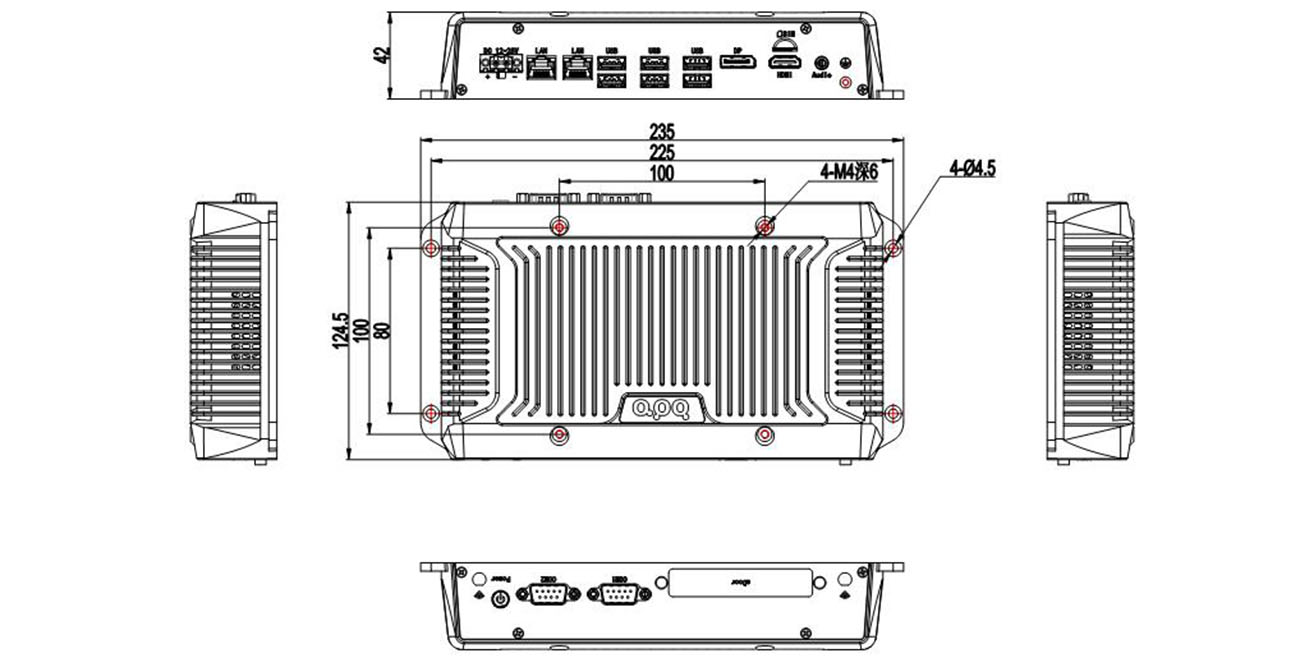

Dimensions |
235mm(L) * 124.5mm(W) * 42mm(H) |
|||
|
Weight |
Net: 1.2Kg, Total: 2.2Kg (include packaging) |
|||
|
Mounting |
VESA, Wallmount, Desk mounting |
|||
|
Environment |
Heat Dissipation System |
Passive heat dissipation |
||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-40~80℃ |
|||
|
Relative Humidity |
5 to 95% RH (non-condensing) |
|||
|
Vibration During Operation |
With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) |
|||
|
Shock During Operation |
With SSD: IEC 60068-2-27 (30G, half sine, 11ms) |
|||
