Model |
IPC330D-H610SA2 |
|
|

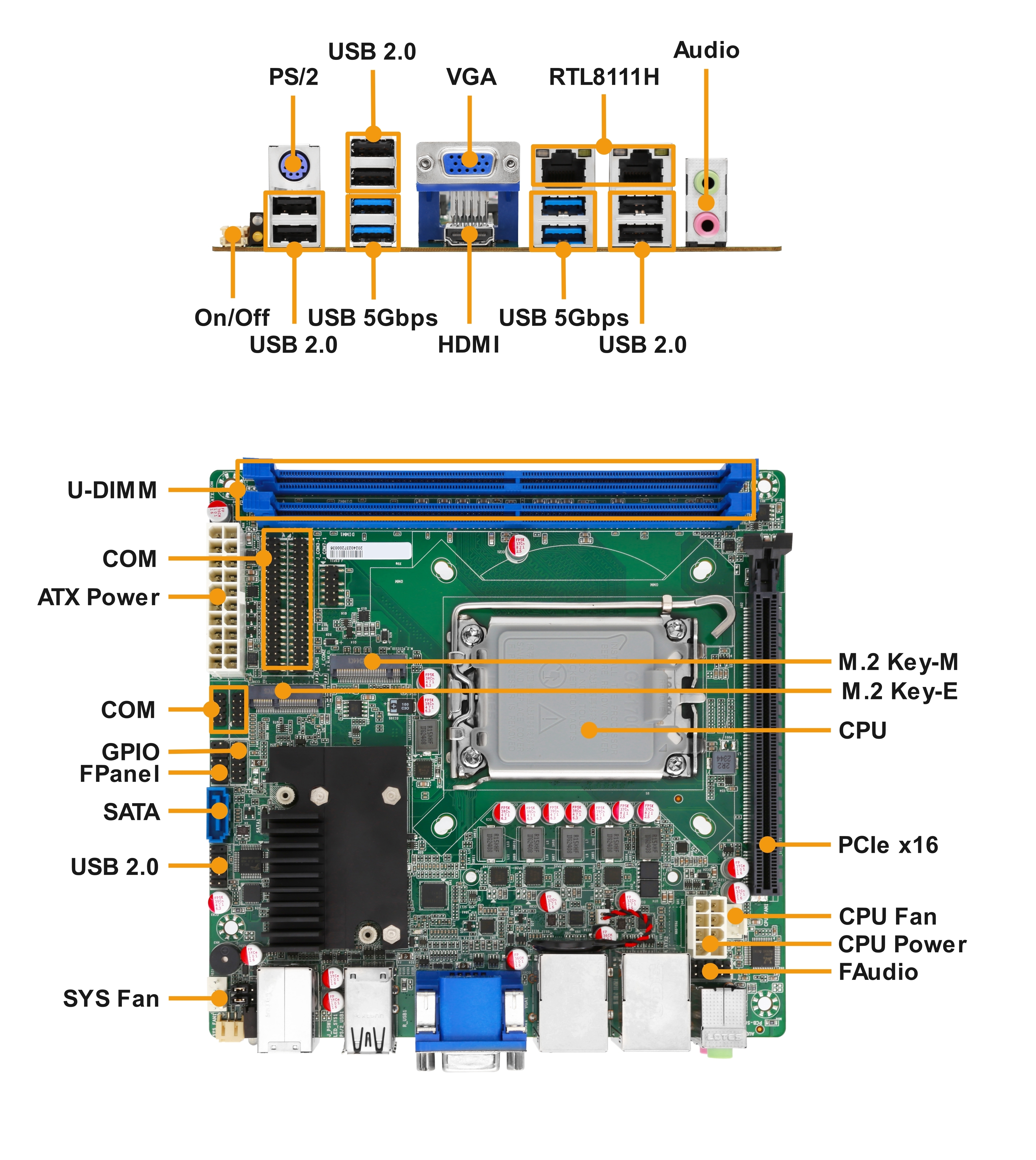

Processor System |
CPU | Intel® 12~14thCore/Pentium/Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1700 | |
| Chipset | H610 | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 2 * U-DIMM Slot，Dual Channel DDR4-3200 MHz |
| Capacity | 64GB, Single Max 32GB | |
|
Ethernet |
Controller | 2 * Realtek RTL8111H Chip |
|
Storage |
SATA | 1 * SATA 3.0 Connector |
| M.2 | 1 * M.2 Key-M Slot（PCIe Gen 3 x4 signal，NVMe SSD） | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 Slot（PCIe Gen 3 x16 Signal，optional） |
|
|
PCI | 2 * PCI Slot（optional） |
| M.2 | 1 * M.2 Key-E Slot（PCIe Gen 3 x1 + USB 2.0 signal） | |
|
Front I/O |
Ethernet | 2 * RJ45 |
|
|
USB | 4 * USB 5Gbps Type-A
4 * USB 2.0 Type-A |
|
|
PS/2 | 1 * PS/2 (Keyboard & Mouse) |
|
|
Display | 1 * HDMI: max resolution up to 4096*2160 @ 30Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
|
Audio | 2 * 3.5mm Jack（Line-out + MIC） |
|
|
Switch | 1 *Power switch header |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED 1 * Hard drive status LED |
|
|
Internal I/O |
COM | 10 * RS232（COM1~10） |
|
|
USB | 2 * USB 2.0 |
|
|
Audio | 1 * Front Audio（Line-Out + MIC） |
|
|
FPIO | 1 × 8-channel digital input/output header (default: 4 inputs, 4 outputs)） |
| SATA | 1 * SATA Connector | |
| FAN | 1 *SYS FAN (Header)
1 * CPU FAN (Header) |
|
|
Power Supply |
Type | 1U |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Win 10/11 |
|
|
Linux | Linux |
|
Platform |
TPM | fTPM |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|

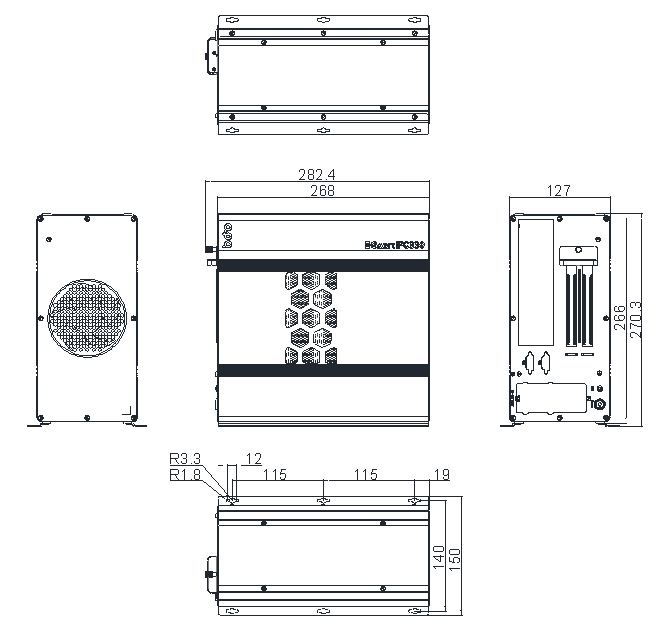

Mechanical |
Enclosure Material | SGCC |
| Dimensions | 266mm(L) * 268mm(W) * 127mm(H) | |
| Mounting | Shelf mounted installation Desktop | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 ~ 90%(non-condensing) | |
