Model |
IPC340-H610SA3 |
|
|
Processor System |
CPU | Intel® 12/13/14 Generation Core/Pentium/Celeron Desktop CPU |
|
|
TDP | 125W |
|
|
Socket | LGA1700 |
|
|
Chipset | H610 |
|
|
BIOS | AMI UEFI BIOS |
|
Memory |
Socket | 2 * U-DIMM slot，Dual Channel DDR4-3200 MHz |
|
|
Capacity | 64GB, Single Max 32GB |
|
Ethernet |
Controller | 1 * Intel i226-V/LM Chip
2 * Intel i210-AT Chip |
|
Storage |
SATA | 3 * SATA 3.0 Connector |
|
|
M.2 | 1 * M.2 Key-M Slot (SATA 3.0 signal，SATA SSD Auto Detect，2280) |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot（PCIe Gen 4 x16 signal）
2 * PCIe x4 slot（PCIe Gen 3 x2 signal） |
|
|
PCI | 2 * PCI slot |
|

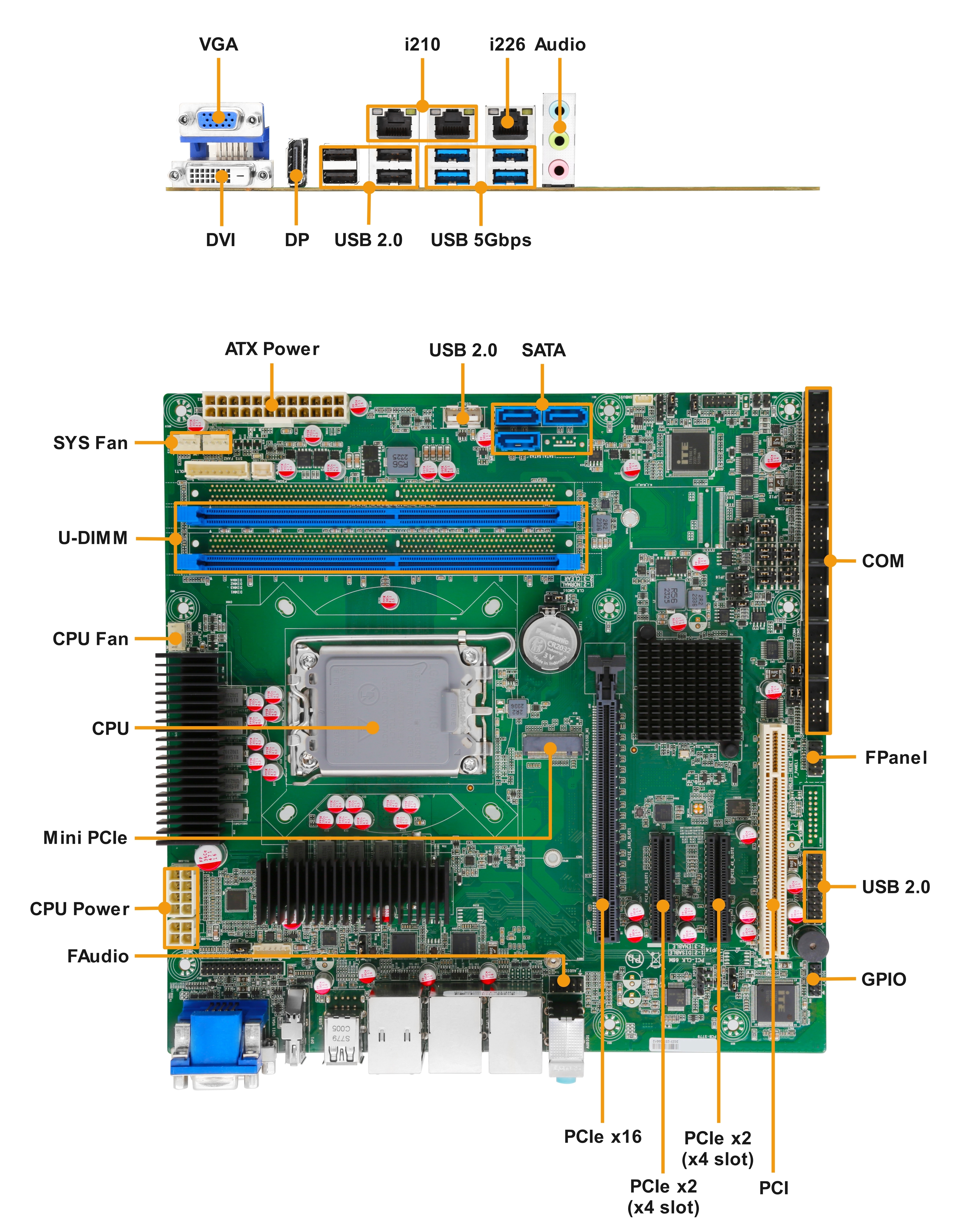

Rear I/O |
Ethernet | 3 * RJ45 |
|
|
USB | 4 * USB 5Gbps Type-A
4 * USB 2.0 Type-A |
|
|
Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 30Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
|
Audio | 3 * 3.5mm Jack（Line-out + Line-in + MIC） |
|
Front I/O |
USB | 2 * USB 2.0 Type-A |
|
|
Button | 1 * Power Button |
|
|
LED | 1 * Power status LED 1 * Hard drive status LED |
|
Internal I/O |
USB | 1 * USB 2.0(Type-A) |
|
|
COM | 4 * RS232（COM1/2/5/6）
1 * RS232/RS485/RS422（COM3） 1 * RS232/RS485（COM4） |
|
|
Audio | 1 * Front Audio （Line-Out + MIC） |
|
|
GPIO | 1 × 8-channel digital input/output header (default: 4 inputs, 4 outputs) |
|
|
SATA | 3 * SATA 3.0 Connector |
|
|
FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
Power Supply |
Type | ATX |
|
|
Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided |
|
|
RTC Battery | CR2032 Coin Cell |
|
OS Support |
Windows | Win 10/11 |
|
|
Linux | Linux |
|
Platform |
TPM | fTPM，optional dTPM2.0 |
|
Watchdog |
Output | System Reset |
|
|
Interval | Programmable 1 ~ 255 sec |
|
Mechanical |
Enclosure Material | SGCC |
|
|

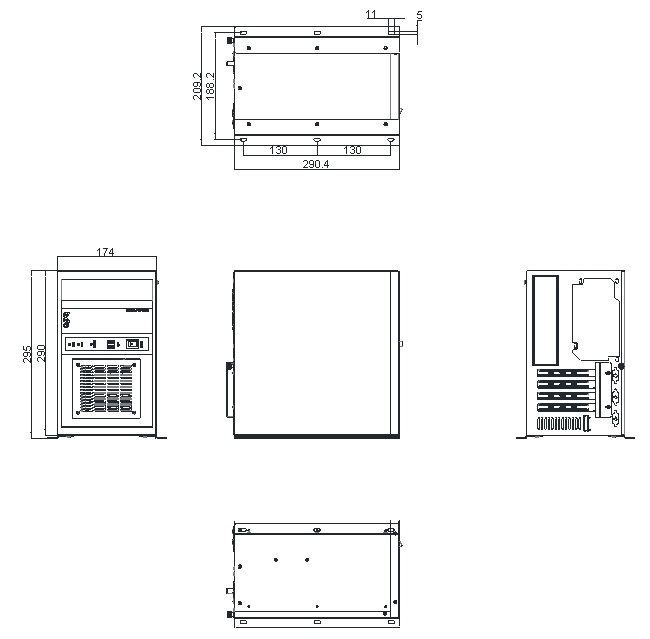

Dimensions | 290mm(L) * 290mm(W) * 174mm(H) |
|
|
Mounting | Programmable 1 ~ 255 sec |
|
Environment |
Heat Dissipation System | SGCC |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 ~ 90% (non-condensing) | |
