Panel PC APQ PCxxxCQ-ADLN Series
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT US|
Model |
PC156CQ-XXXX |
PC215CQ-XXXX |
|
|
LCD Panel |
Size |
15.6" |
21.5" |
|
|
Resolution |
1920 x 1080 |
1920 x 1080 |
|
|
Aspect Ratio |
16:9 |
16:9 |
|
|
Viewing Angle |
89/89/89/89 |
89/89/89/89 |
|
|
Brightness |
250 cd/m2 |
250 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
1000:1 |
|
|
Backlight Service Life |
15,000Hrs |
30,000Hrs |
|
Touch Screen |
Touch Type |
|
|
|
|
Control Signal |
USB |
|
|
|
Input Method |
Finger / Capacitive Pen |
|
|
|
Transmittance |
≥85% |
|
|
|
Surface Hardness |
≥6H |
|
|
Processor |
CPU |
Intel® Alder Lake N Series N97/ Core™ i3-N305 |
|
|
|
Chipset |
SOC |
|
|
|
BIOS |
AMI EFI BIOS |
|
|
Memory |
Slot |
1 * DDR4 SO-DIMM slot,up to 3200MHz |
|
|
|
Max Capacity |
Max 16GB |
|
|
Graphics |
Display Chip |
Intel® UHD |
|
|
Ethernet |
Network Chip |
2 * Intel® i210AT (10/100/1000Mbps, RJ45) |
|
|
Storage |
M.2 |
1 * M.2 Key-M slot (PCIe x1/SATA3.0 SSD Auto-detect, include PCIe x1 Gen4/SATA3.0,2280) 1 * M.2 Key-B slot (SATA3.0 SSD, 2242/2280) |
|
|
Expansion Slots |
M.2 |
1 * M.2 Key-B Slot (support SATA SSD or 4/5G Model, include SATA3.0+USB 3.0+USB2.0, with 1*SIM Card Slot, 3042/3052/2242/2280) 1 * M.2 Key-E Slot (support WiFi, include PCIe x1+USB2.0) |
|
|

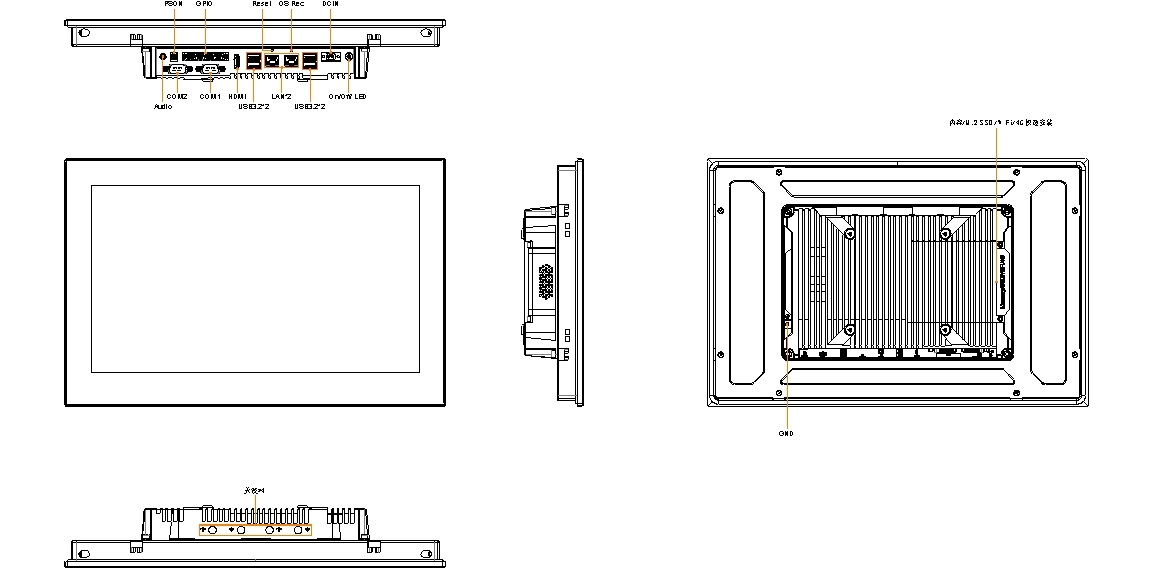

Front I/O |
USB |
4 * USB3.2 Gen1 (Type-A) |
|
|
Ethernet |
2 * RJ45 |
||
|
Display |
1 * HDMI, max. Resolution 3840*2160@30H, 24bpp/2048*1080@60Hz |
||
|
COM |
2 * DB9 (COM1/2, supports RS232/RS485/RS422, switchable via BIOS ) |
||
|
GPIO |
8 * GPIO (10P, P=3.5/3.81, 4*DI+4*DO) |
||
|
Audio |
1 * 3.5mm Combo Audio Jack (LineOut+MIC) |
||
|
Buttons |
1 * Power button 1 * Reset button 1 * System restore button |
||
|
PSON |
1 * External power button connector |
||
|
Power |
1 * Power input connector (2P, P=5.08mm) |
||
|
Power Supply |
Type |
DC |
|
|
|
Voltage |
12~28V |
|
|
|
Connector |
1 * 2P Power Socket (P=5.08mm) |
|
|
|
RTC Battery |
CR2032 Coin Cell |
|
|
OS Support |
Windows |
Windows 10/11 |
|
|
|
Linux |
Linux |
|
|
Watchdog |
Output |
System reboot |
|
|
|
Interval |
1 ~ 255 seconds, programmable |
|
|
Structure |
Housing |
Aluminum alloy |
|
|
|
Mounting |
VESA/Embedded |
|
|
|

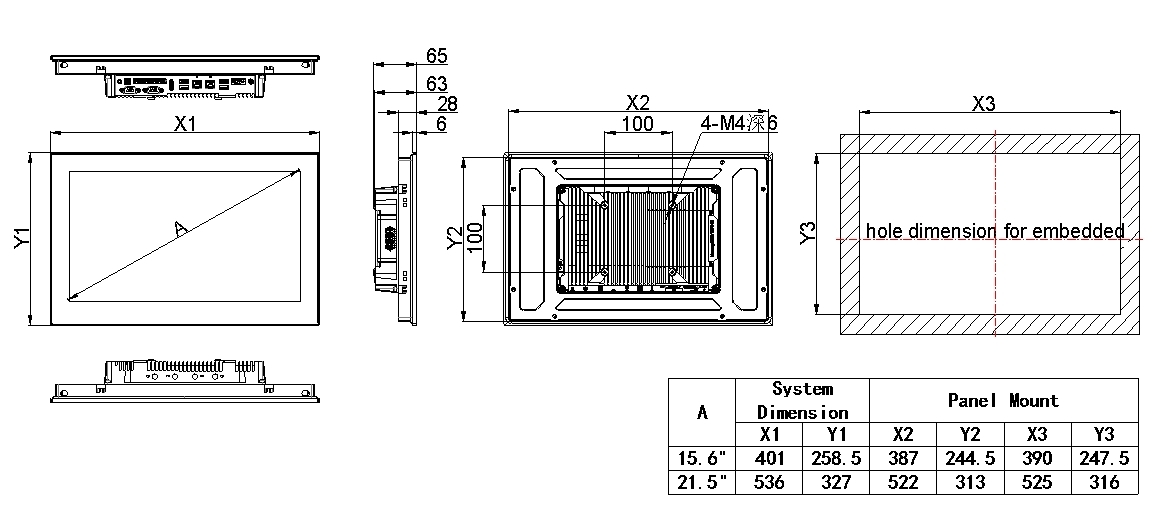

Dimensions(L*W*H) |
401.0mm*258.5mm*65.0mm |
536.0mm*327.0mm*65.0mm |
|
|
Weight |
Net：3.6KG, Total：4.9KG |
Net：6.6KG, Total：8.4KG |
|
Environment |
Heat Dissipation System |
Passive cooling (external fan optional) |
|
| Operating Temperature |
0~50°C |
0~50°C |
|
| Storage Temperature |
-20~60°C |
-20~60°C |
|
| Relative Humidity |
10 to 95% RH (non-condensing) |
||
