Note: The product image shown above is the PL150RQ-E7L-H81 model
Panel PC APQ PLxxxCQ-D200SA2
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT US|
Model |
PL121CQ-D200SA2 |
PL150CQ-D200SA2 |
PL156CQ-D200SA2 |
PL170CQ-D200SA2 |
PL185CQ-D200SA2 |
PL191CQ-D200SA2 |
PL215CQ-D200SA2 |
PL238CQ-D200SA2 |
PL270CQ-D200SA2 |
|
|
LCD Panel |
Size |
12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.1" | 21.5" | 23.8" | 27" |
|
|
Resolution | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
|
|
Brightness | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 300 cd/m2 |
|
|
Aspect Ratio | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 |
|
|
Viewing Angle | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 89/89/89/89° | 89/89/89/89° |
|
|
Max. Display Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
|
|
Backlight Service Life | 30,000 h | 70,000 h | 50,000 h | 30,000 h | 30,000 h | 30,000 h | 50,000 h | 30,000 h | 30,000小时 |
|
|
Contrast Ratio | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 3000:1 |
|
Touch Screen |
Touch Type |
Capacitive touch | ||||||||
|
|
Control Signal |
USB2.0 | ||||||||
|
|
Input Method | supports finger / capacitive pen | ||||||||
|
|
Transmittance |
≥85% | ||||||||
|
|
Surface Hardness |
≥6H | ||||||||
|
Processor System |
CPU | Supports Phytium Tengrui D series high-performance desktop processor D2000, 8 cores, 2.3GHz | ||||||||
| TDP | 25W | |||||||||
|
Memory |
Socket | 2 * SO-DIMM Slot，Dual Channel DDR4-3200MHz | ||||||||
| Capacity | 64GB, Single Max 32GB | |||||||||
|
Ethernet |
Controller | 2 * YT8531-SC Gigabit Ethernet Chips | ||||||||
|
Storage |
M.2 | 1 * M.2 Key-M Slot（PCle Gen 3 x4 + SATA 3.0，NVMe/SATA SSD Auto Detect，2280) | ||||||||
|
|
mSATA | 1 * mSATA Slot（SATA 3.0，SATA SSD，Shared slot with Mini PCIe） | ||||||||
|
Expansion Slots |
M.2 | 1 * M.2 Key-E Slot（PCle Gen 3 x1 + USB 2.0，2230) | ||||||||
|
|
Mini PCIe | 1 * Mini PCIe Slot（USB 2.0，Shared slot with Mini PCIe，With 1 * SIM Card Slot） | ||||||||
|
Front Panel Interface |
USB | 1 * USB 2.0 (Type-A) | ||||||||
|
|
LED | 1 * Power status LED 1 * Hard drive status LED |
||||||||
|
Front I/O |
Ethernet | 2 * RJ45 | ||||||||
|
|
USB | 4 * USB 5Gbps( Type-A) | ||||||||
|
|
Audio | 1 * 3.5mm Jack（Line-out + MIC） | ||||||||
|
|
COM | 1 * RS232 DB9/M（COM1） | ||||||||
|
|
Display | 1 * HDMI: max resolution up to 4096*2160@30Hz | ||||||||
| Buttons | 1 * Power switch button + Power indicator | |||||||||
| Power | 1 * Power input socket | |||||||||
|
Internal I/O |
COM | 3 * RS232（COM2/3/4） | ||||||||
|
|
Audio | 1 *Audio amplifier pin header (left & right channels, 2W/8Ω per channel) | ||||||||
|
|
GPIO | 1 × 8-channel digital input/output header (default: 4 inputs, 4 outputs)） | ||||||||
|
|
SIM | 1 * SIM Card Slot | ||||||||
|
Power Supply |
Type | DC 12~28V | ||||||||
| Power Input Voltage | 1 * 4Pin 5.08mm Connector | |||||||||
| RTC Battery | CR2032 Coin Cell | |||||||||
|
OS Support |
Linux | Kylin KOS, UnionTech UOS | ||||||||
|
Watchdog |
Output | System Reset | ||||||||
| Interval | 1 ~ 255 seconds, | |||||||||
|
Structure |
Enclosure Material | Aluminum Alloy + Galvanized Steel | ||||||||

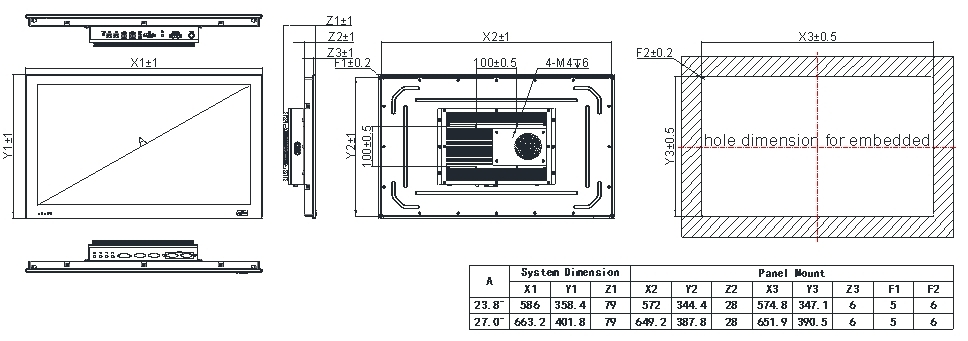

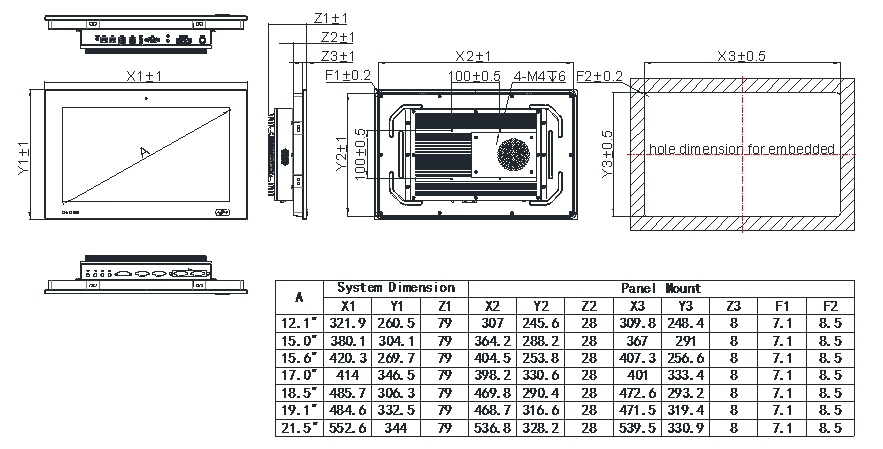

| Dimensions | 321.9*260.5*79mm | 380.1*304.1*79 mm | 420.3*269.7*79 mm | 414*346.5*79 mm | 485.7*306.3*79 mm | 484.6*332.5*79 mm | 552.6*344*79 mm | 586*358.4*79 mm | 663.2*401.8*79 mm | |
| Mounting | VESA，mounting | |||||||||
|
Environment |
Heat Dissipation System | PWM fan active cooling
|
||||||||
|
|
Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 60℃ | -20 ~ 60℃ | -20 ~ 60℃ | -20 ~ 60℃ | -20 ~ 60℃ | -20 ~ 60℃ | |
| Relative Humidity | 10 ~ 90%(non-condensing) | |||||||||
