BOX PC APQ AK1J19A3
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT US|
型号 |
AK1J19A3 |
|
|
CPU |
CPU | Intel® Celeron® Processor J1900 |
| Basic Frequency | 2.0 GHz | |
| Max Turbo Frequency | 2.4 GHz | |
| Cache | 2MB | |
| Kernel | 4/4 | |
| Chip | SOC | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR3L SO-DIMM slot, Frequency1333MHz |
| Max Capacity | 8GB | |
|
Display |
Controller | Intel® UHD Graphics |
|
Ethernet |
Controller | 3 * Intel® i210-AT network chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (SATA2.0协议, 2280) |
|
Expansion |
Mini PCIe | 1 * Mini PCIe (PCIe x1+USB 2.0+1*SATA2.0, with SIM Card Slot) |
|

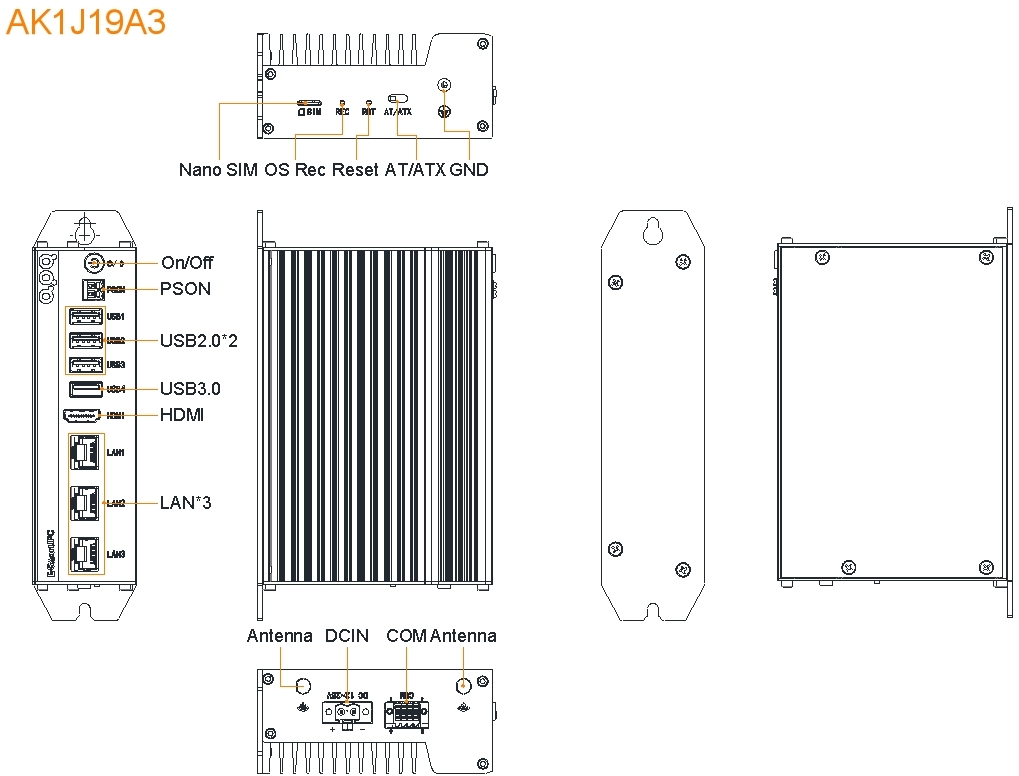

Front I/O |
USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
|
|
Network Interface | 3 * RJ45 interfaces |
|
|
Display | 1 * HDMI slot（resolution up to1920*1200 @ 60Hz) |
|
|
Button | 1 *power button（include LED） 1*External Power On/Off Button Connector |
|
Side I/O
|
DIP Switch | 1 * AT/ATX switch |
|
|
Button | 1 * Reset button 1 *System Reset button |
|
|
SIM | 1 * Nano SIM bayonet socket |
|
|
Power Source | 1 * Power input interface（12~28V，2P，P=5.08mm） |
|
|
Interface | 2 * RS232/485 |
|
Power Supply |
Type | DC |
| Input Voltage | 12~28V | |
| Socket | 1 * 2Pin Power input socket | |
| RTC Battery | CR2032 Battery | |
|
OS Support |
Windows | Windows 7/10 |
| Linux | Linux | |
|
Watchdog |
Input | Restart System |
| Interval | 1~255 seconds | |
|
Construction |
Material | Heatsink:Aluminum Alloy Upper/Lower Baffles: Galvanized Steel Sheet Bottom Cover: Galvanized Steel Sheet |

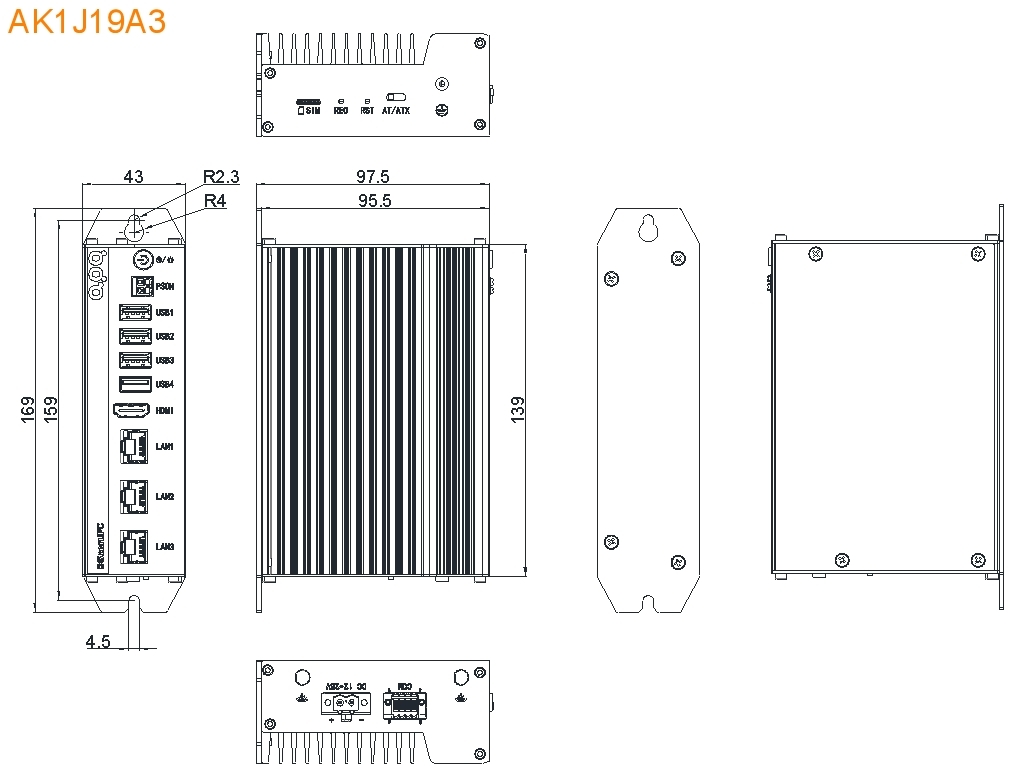

| Size | 139mm(L) * 95.5mm(W) * 43mm(H) | |
| Mounting Method | Wall-mounted, Rail-mounted, Desktop | |
|
Industrial Environment |
Cooling System | Fanless passive cooling |
| Operation Temperature | -20~60℃ | |
| Storage Temperature | -40~80℃ | |
| Humidity | 5 to 90% RH | |
| Vibration | IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Material | IEC 60068-2-27 (30G, half sine, 11ms) | |
