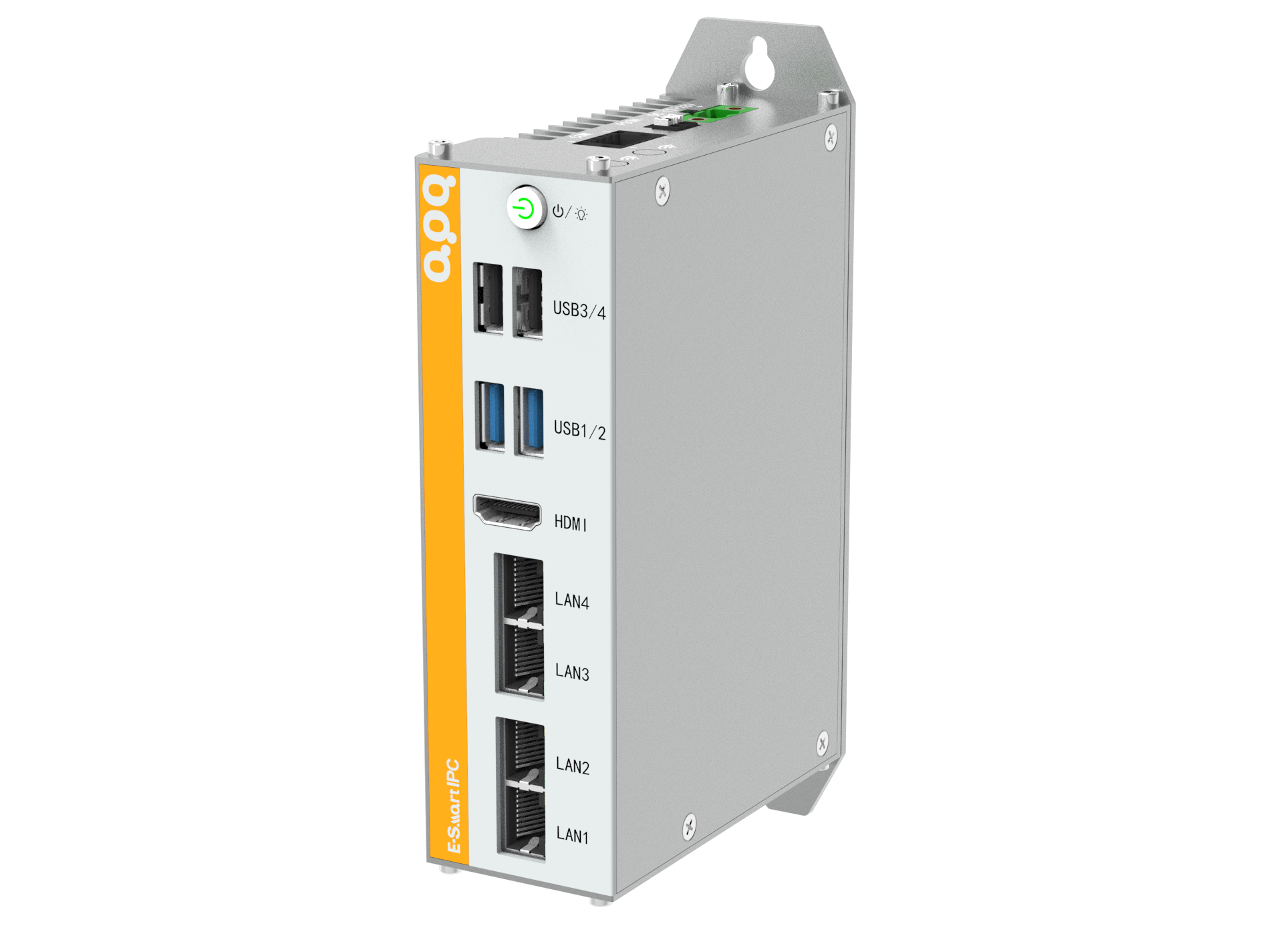

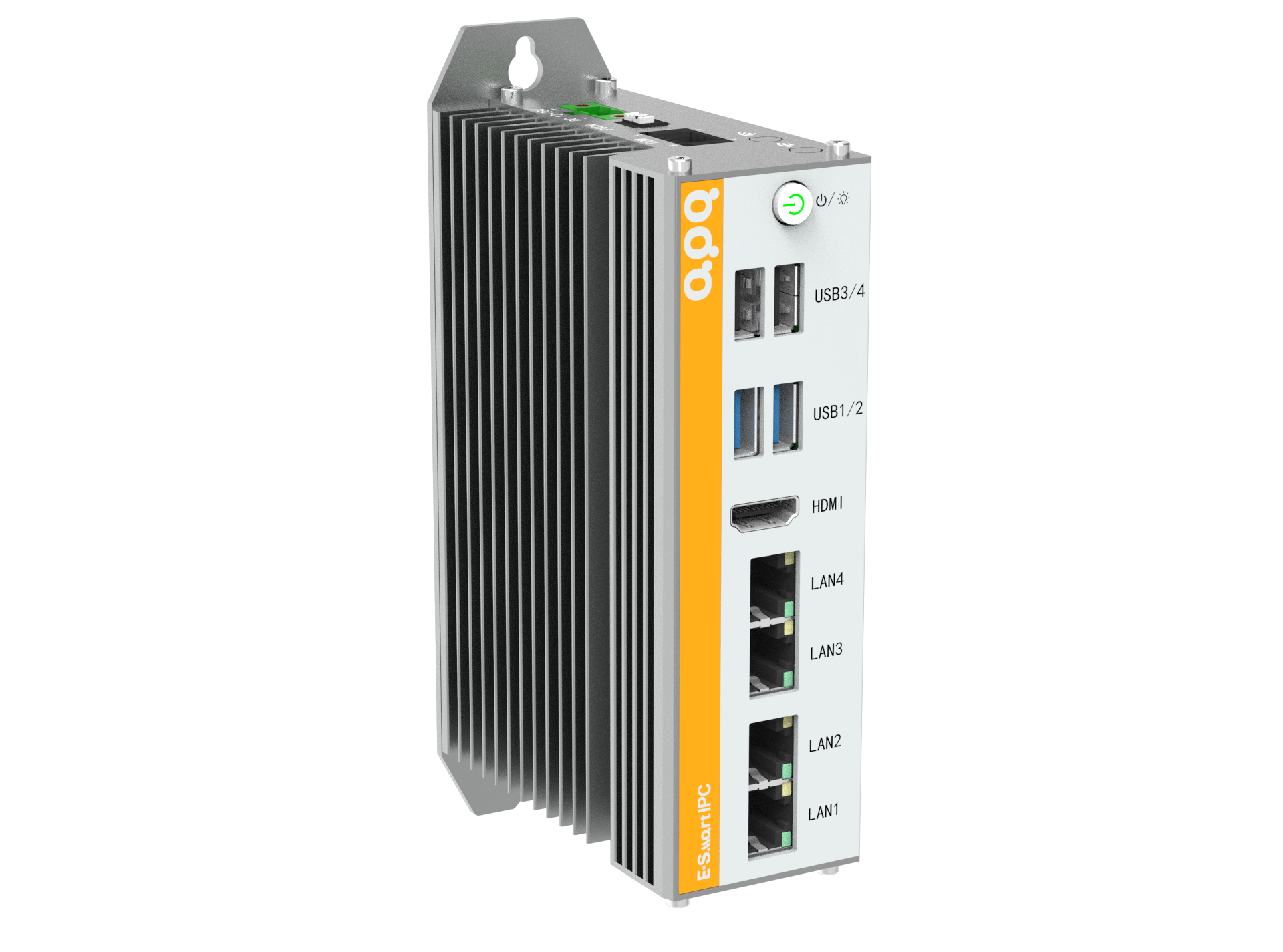

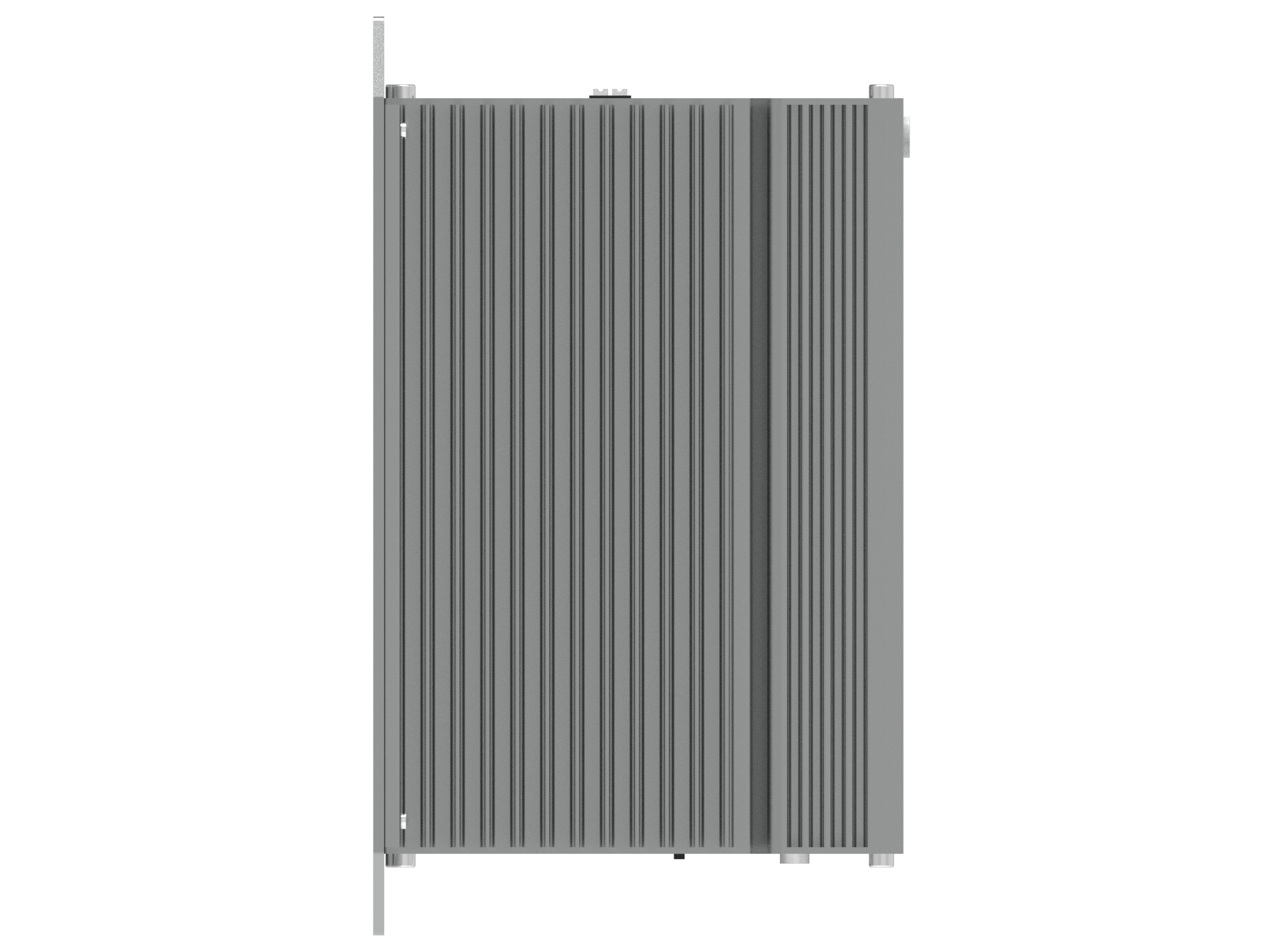

BOX PC APQ AK1J64A4

Model

AK1J64A4

CPU

CPU

Intel^® Celeron^®  J6412

Basic Frequency

2.0 GHz

Max Turbo Frequency

2.6 GHz

Cache

4MB

Kernel

4/4

Chip

SOC

BIOS

AMI UEFI BIOS

Memory

Socket

1 * DDR4 SO-DIMM interface，Frequency 3200MT/s

Max Capacity

32GB

Display

Controller

Intel^® UHD Graphics

Ethernet

Controller

4 * Intel^® i210-AT network（10/100/1000 Mbps）

Storage

M.2

1 * M.2 Key-M slot（SATA3.0/PCIe x1signal，Adaptable SATA/NVMe SSD，2280）

Expansion

Mini PCIe

1 * Mini PCIe slot（1*PCIe +1*USB 2.0 , 1*SIM bayonet socket）

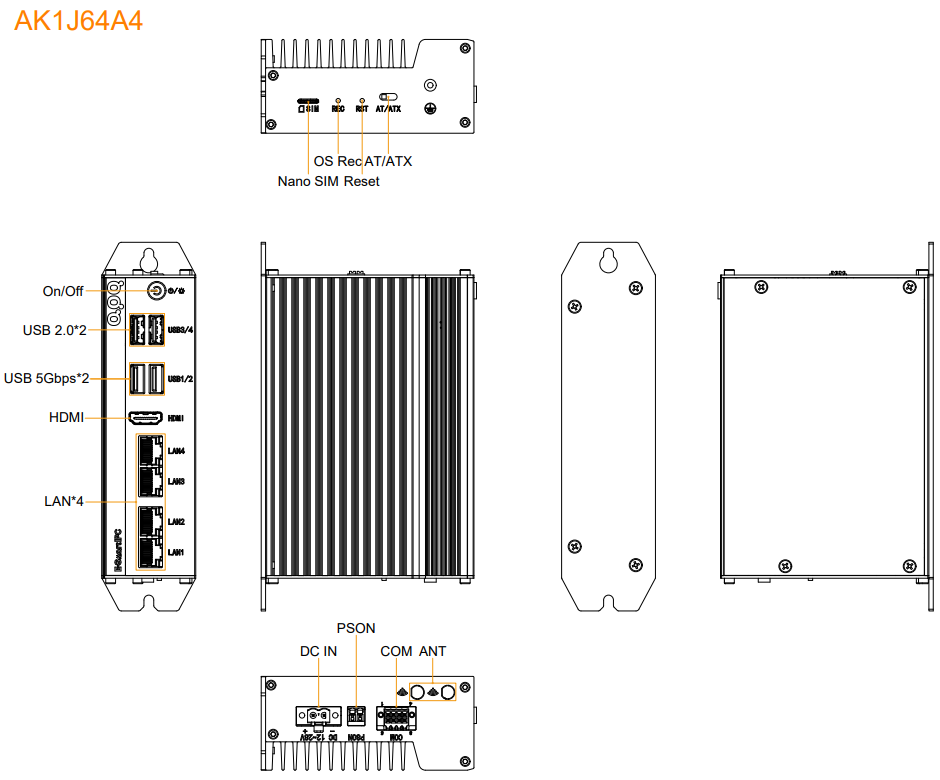

Front I/O

USB

2 * USB 5Gbps（Type-A）
2 * USB 2.0（Type-A）

Network Interface

4 * RJ45 interface

Display

1 * HDMI slot（resolution up to 3840*2160 @ 30Hz）

Button

1 *power button（include LED）

Side I/O

DIP Switch

1 * AT/ATX DIP switch

Button

1 * Reset button
1 *System Reset button

SIM

1 * Nano SIM bayonet socket

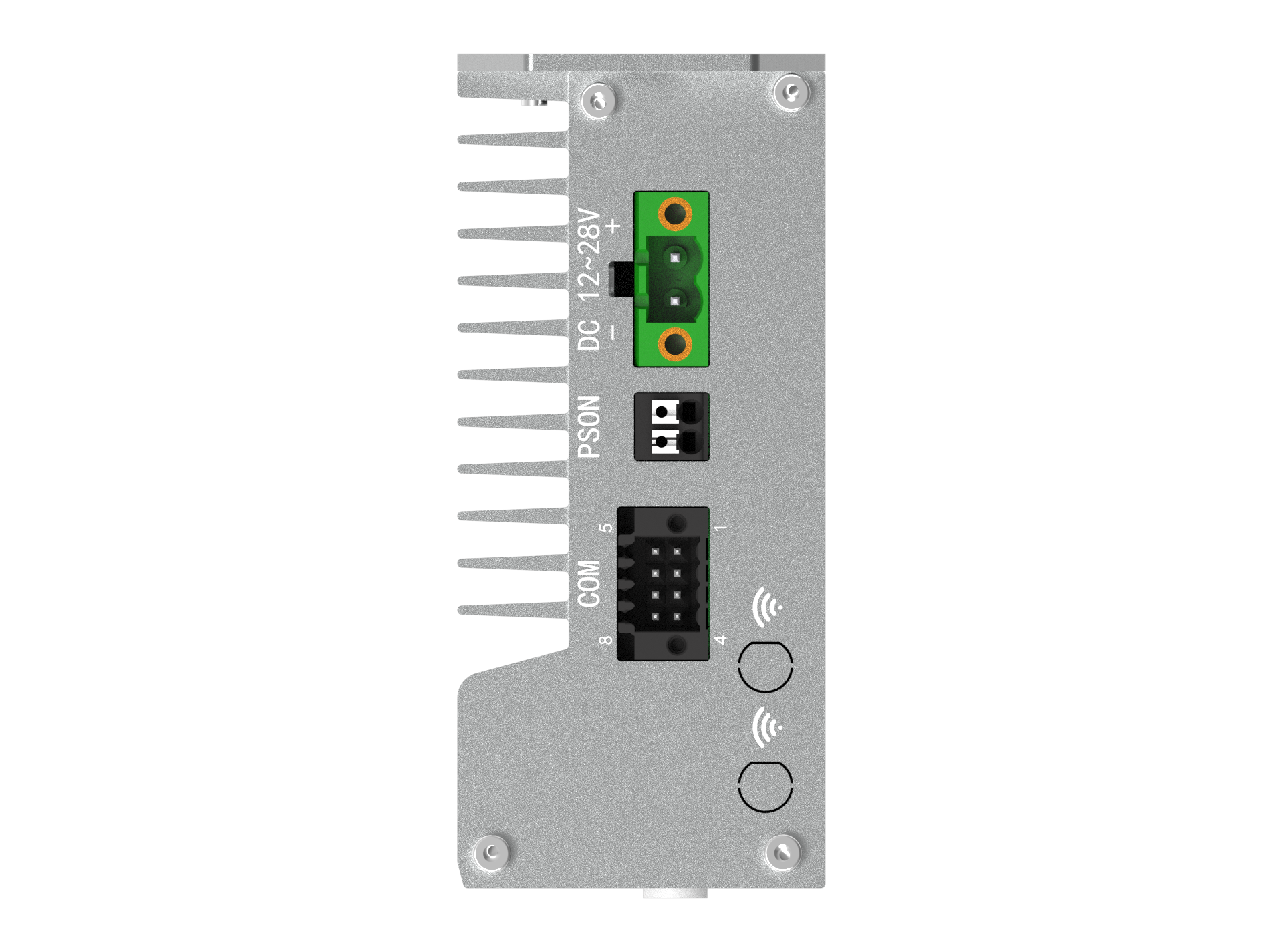

Power Source

1 * Power input interface（12~28V，2P，P=5.08mm）

Interface

2 * RS232/485

Socket

1 * External power switch socket（2P，P=3.81mm）

Power Supply

Type

DC

Input Voltage

12~28V

Socket

1 * 2Pin Power input socket

RTC Battery

CR2032 battery

OS Support

Windows

Windows 10/11

Linux

Linux ≥5.4

Watchdog

Input

Restart System

Interval

1~255 seconds

Construction

Material

Heatsink:Aluminum Alloy
Upper/Lower Baffles: Galvanized Steel Sheet
Bottom Cover: Galvanized Steel Sheet

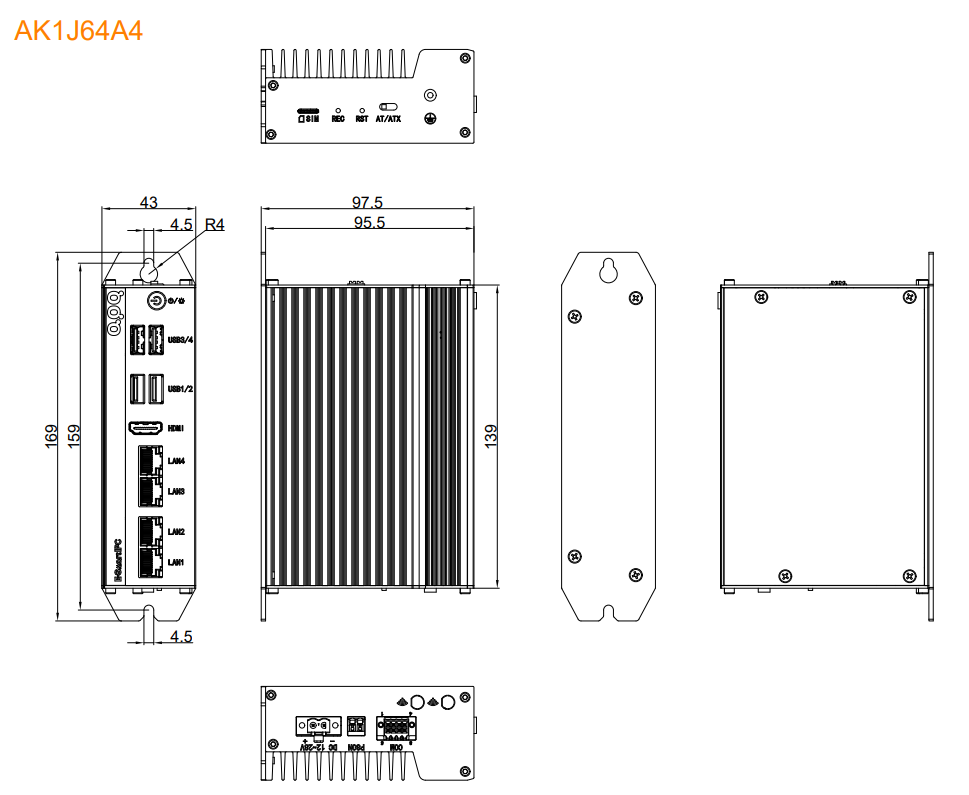

Size

139mm(Length) * 95.5mm(Width) * 43mm(Height)

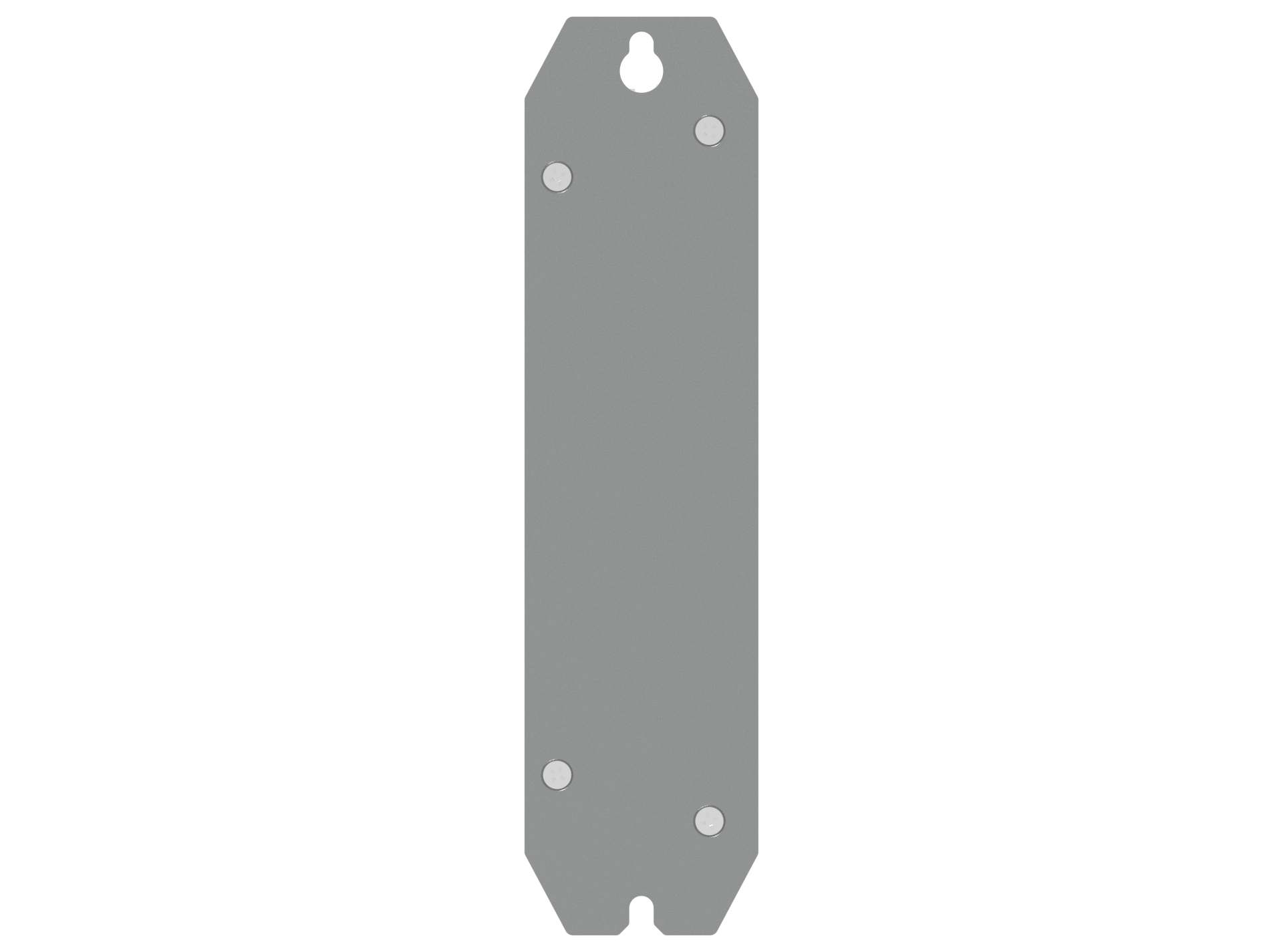

Mounting Method

Wall-mounted, Rail-mounted, Desktop

Industrial Environment

Cooling System

Fanless passive cooling

Operation Temperature

-20~60℃

Storage Temperature

-40~80℃

Humidity

5 to 90% RH

Vibration

IEC 60068-2-64（3Grms@5~500Hz，random，1hr/axis）

Shock

IEC 60068-2-27（30G，half sine，11ms）
