BOX PC APQ AK5A2

Model

AK5097A2

AK5305A2

CPU

CPU

Intel^® Alder Lake N97

Intel^® Alder Lake Core^TM i3-N305

Base Frequency

2.0 GHz

1 GHz

Max Turbo Frequency

3.60 GHz

3.8GHz

Cache

6MB

6MB

Total Cores/Threads

4/4

8/8

Chip

SOC

BIOS

AMI UEFI BIOS

Memory

Socket

1 * DDR4 SO-DIMM Slot, up to 3200MHz

Max Capacity

32GB

Graphics

Controller

Intel^® UHD Graphics

Ethernet

Controller

2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)

Storage

M.2

1 * M.2 Key-M (SATA3.0, 2280)

Expansion Slots

Mini PCIe

1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)

Optional Primary Cabinet

1A/1B/1C/1D/1E/2A/3A

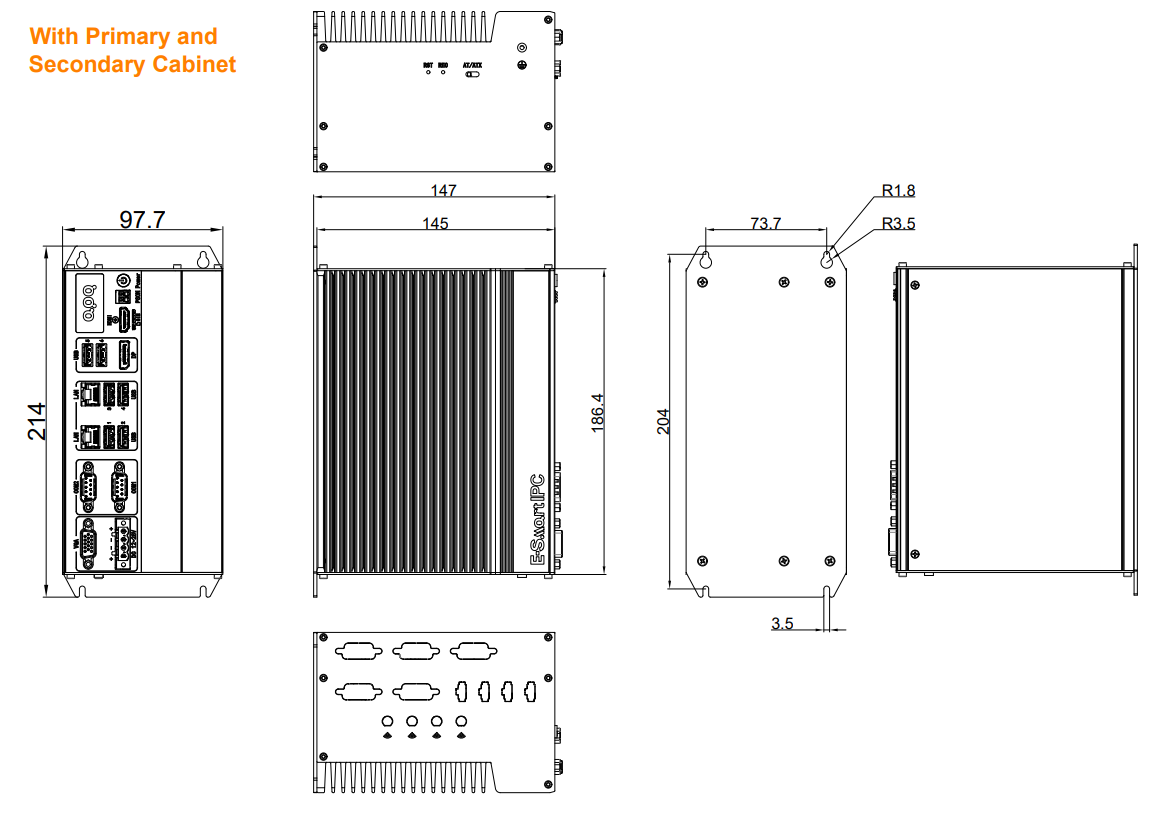

Optional Secondary Cabinet

1E

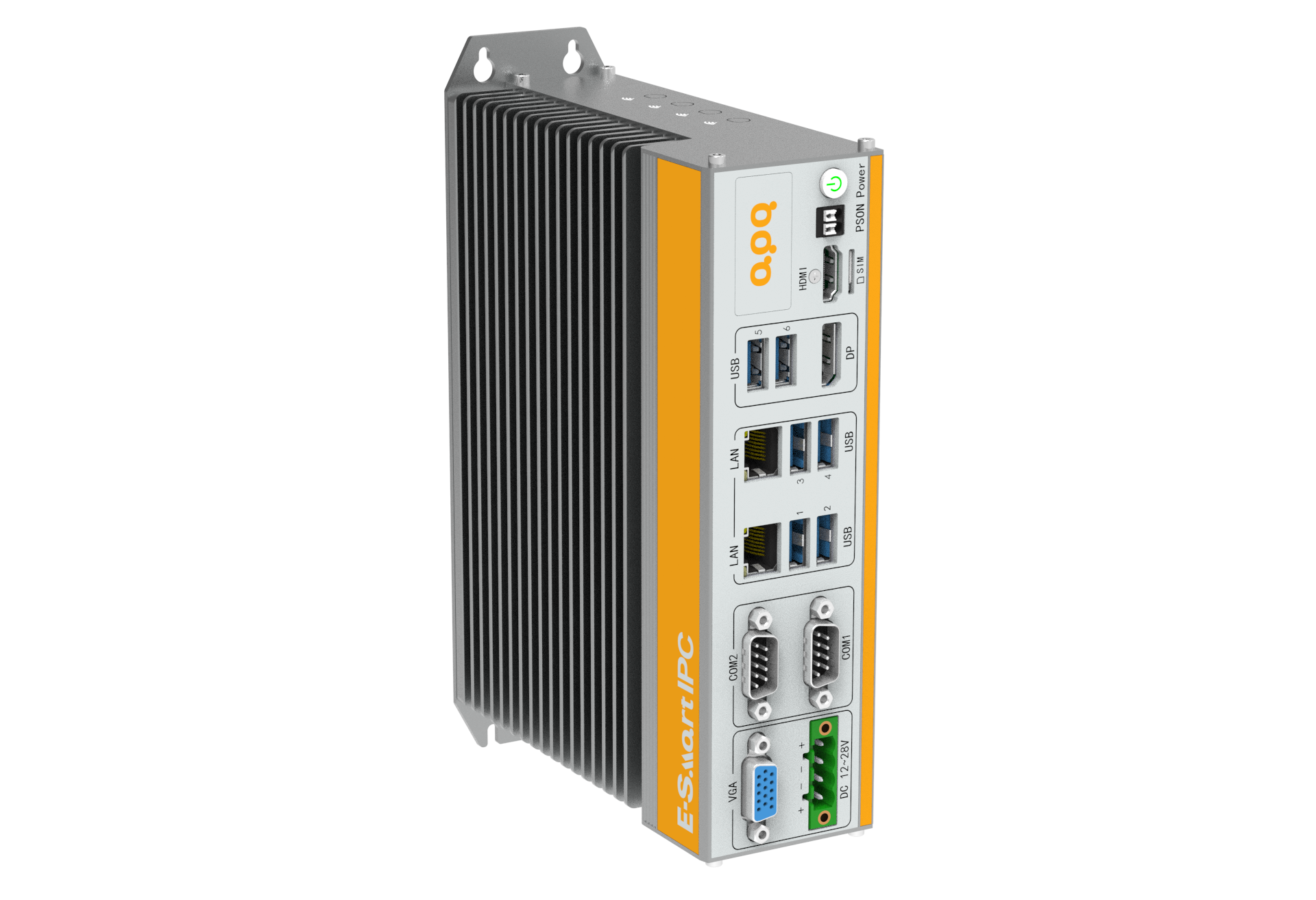

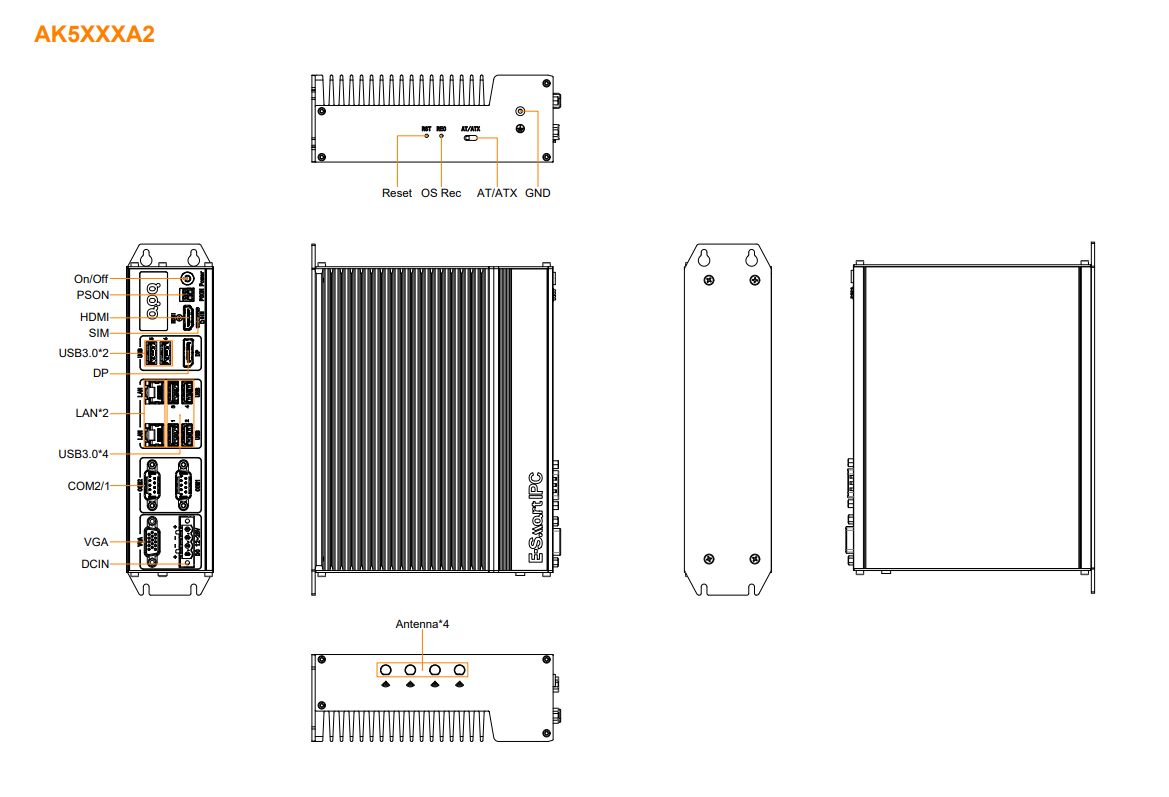

Front I/O

USB

4 * USB3.0 (Type-A)
2 * USB2.0 (Type-A)

Serial

2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)

Display

1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz

Power

1 * DC Power Input

SIM

1 * Nano SIM Card slot (Mini PCIe module provide functional support)

Button

1 * Power Button + Power LED
1 * PS_ON Connector

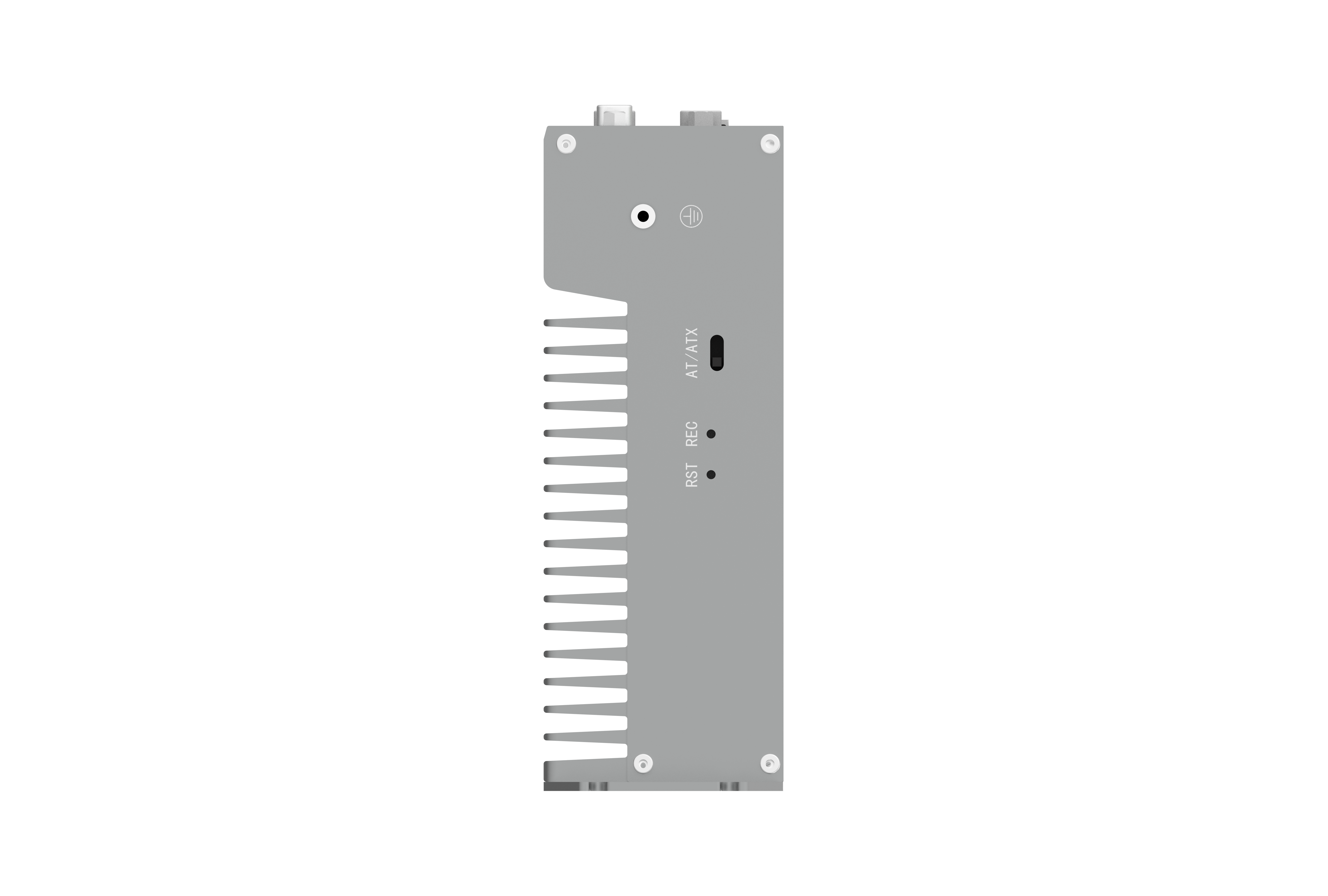

Bottom I/O

Switch

1 * AT/ATX Mode Switch (Enable/Disable automatically power on)

Button

1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)

Power Supply

Type

DC

Power Input Voltage

12 ~ 28VDC
Note：When using the light source and POE, 24V input must be used.

Connector

1 * 4Pin Power Input Connector (P= 5.08mm)

RTC Battery

CR2032 battery

OS Support

Windows

Windows 10/11

Linux

Linux

Watchdog

Output

System Reset

Interval

Programmable via Software from 1 to 255 sec

Mechanical

Enclosure Material

Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC

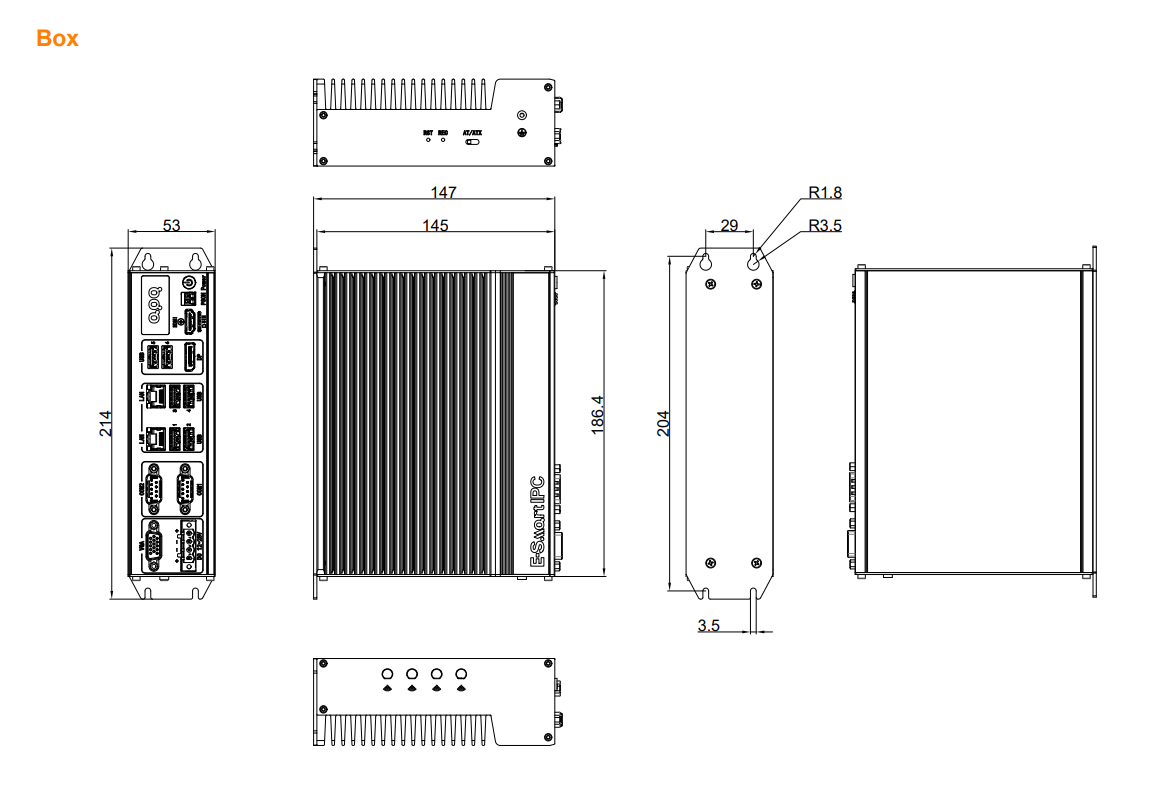

Size

53mm(L) * 145mm(W) * 186.4mm(H)

Mounting

Wall mounted, DIN, Desktop

Environment

Heat Dissipation System

Passive Heat Dissipation

Operating Temperature

-20~60℃

Storage Temperature

-40~80℃

Relative Humidity

5 to 90% RH (non-condensing)

Vibration During Operation

With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)

Shock During Operation

With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
