BOX PC APQ AK6C6 11th-U

AK6xxxC6

AK6xxxC6-xx

AK6xxxC6-xxxx

CPU

CPU

Intel^® 11^th Generation Core™ i3/i5/i7 Mobile -U Processor

Chip

SOC

BIOS

BIOS

AMI UEFI BIOS

Memory

Socket

1 * DDR4 SO-DIMM slot, up to 3200MHz

Max Capacity

32GB

Graphics

Controller

Intel^® UHD Graphics/Intel® Iris^® Xe Graphics

Ethernet

Controller

1 * Intel^® i210-AT(10/100/1000 Mbps)

1 * Intel^® i219-LM(10/100/1000 Mbps)

1 * Intel^® i350-AM4(10/100/1000 Mbps)

Storage

Socket

1 * M.2 Key-M (PCIe x4 Gen 3)

Expansion Slots

Mini PCIe

1 * Mini PCIe( PCIe x1 Gen 2+ USB 2.0, with SIM card slot)，support WiFi/BT/4G/CAN )

Primary Cabinet

N/A

9D: 16*GPIO^[1]/4*CH^[2]

9D: 16*GPIO^[1]/4*CH^[2]

Secondary Cabinet

N/A

N/A

9D: 16*GPIO^[1]/4*CH^[2]

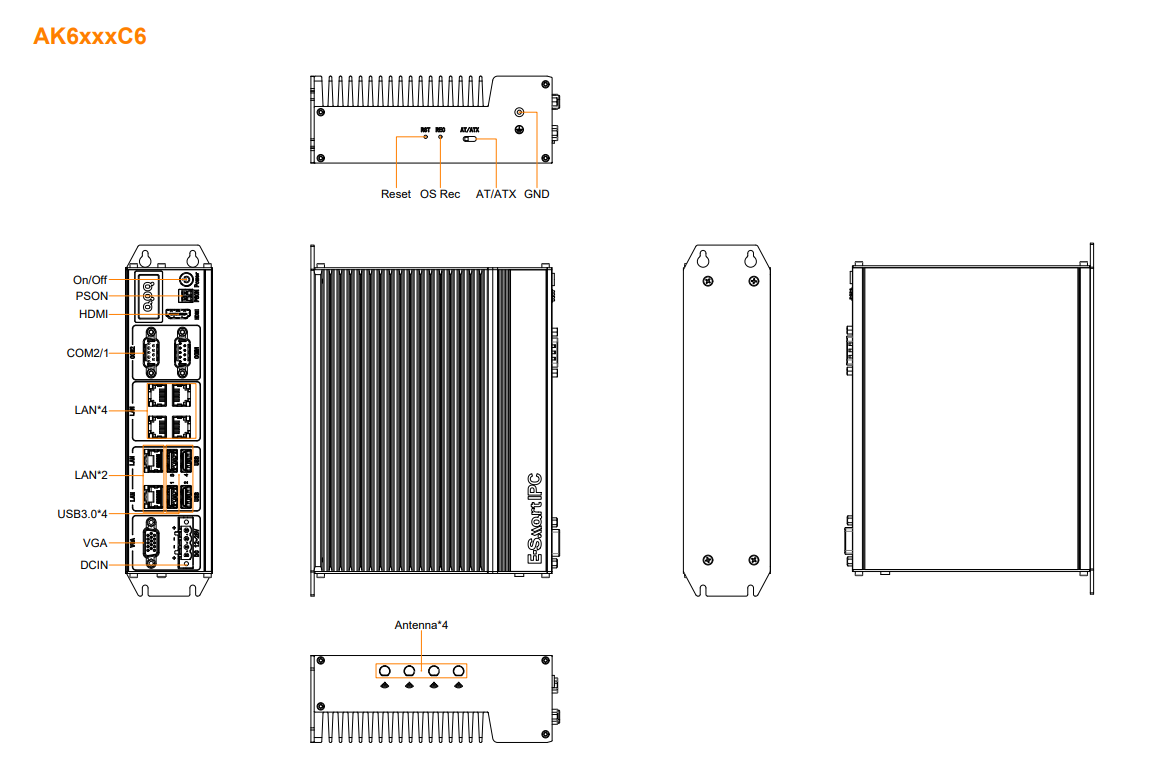

Front I/O

USB

4 * USB 3.0 (Type-A)

serial

2 * RS232/422/485 (COM1/2, DB9/M,)

Display

1 * HDMI: max resolution up to  4096*2304 @ 24Hz)
1 * VGA: max resolution up to  1920*1200 @ 60Hz)

Internet

2 * RJ45

POE

4 * POE

Power

1 * DC Power Input

Button

1 * Power Button + Power LED
1 * PS_ON Connector

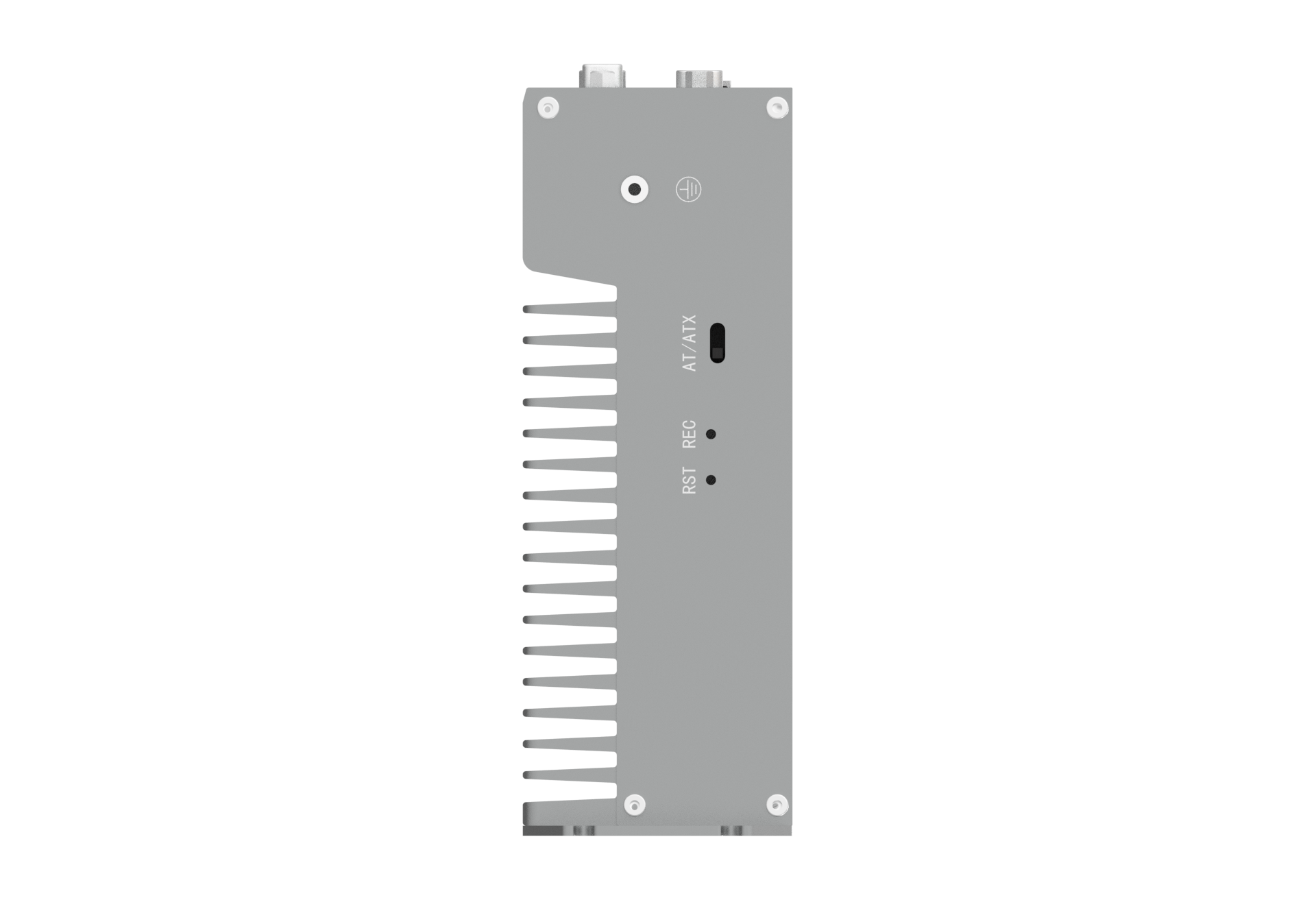

Bottom I/O

Switch

1 * AT/ATX Mode Switch (Enable/Disable automatically power on)

Button

1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)

Power Supply

Type

DC

Power Input Voltage

12 ~ 28V  Note：When using the light source and POE, 24V input must be used.

Connector

1 * 4Pin Power Input Connector (P= 5.08mm)

RTC Battery

CR2032 Battery

OS Support

Windows

Windows 10/11

Linux

Linux

Watchdog

Output

System Reset

Interval

Programmable via Software from 1 to 255 sec

Mechanical

Enclosure Material

Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC

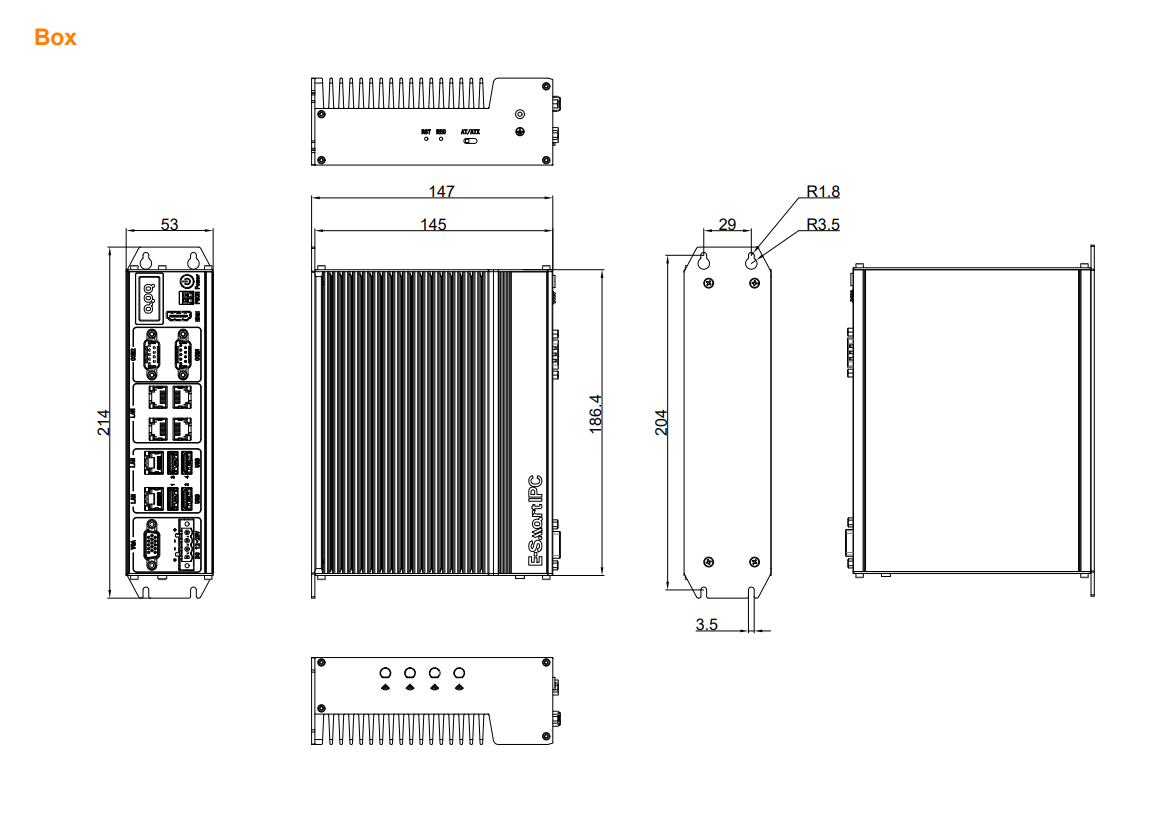

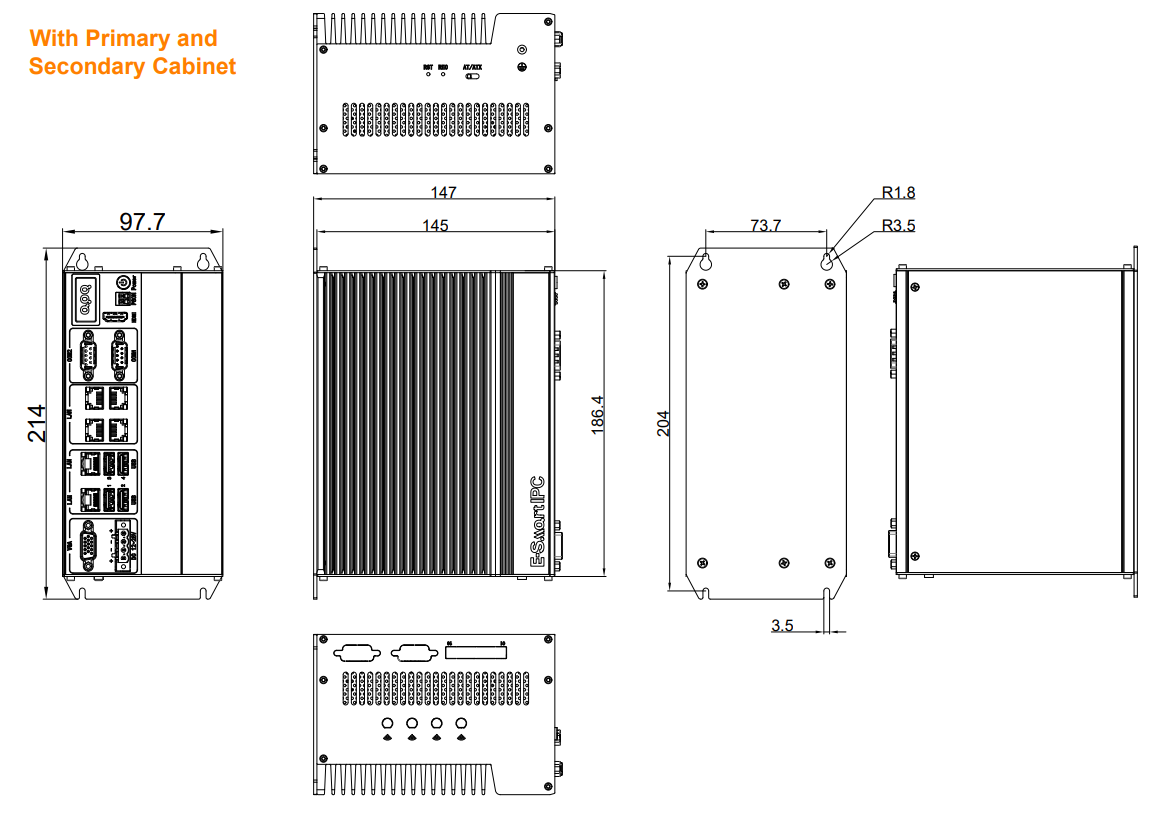

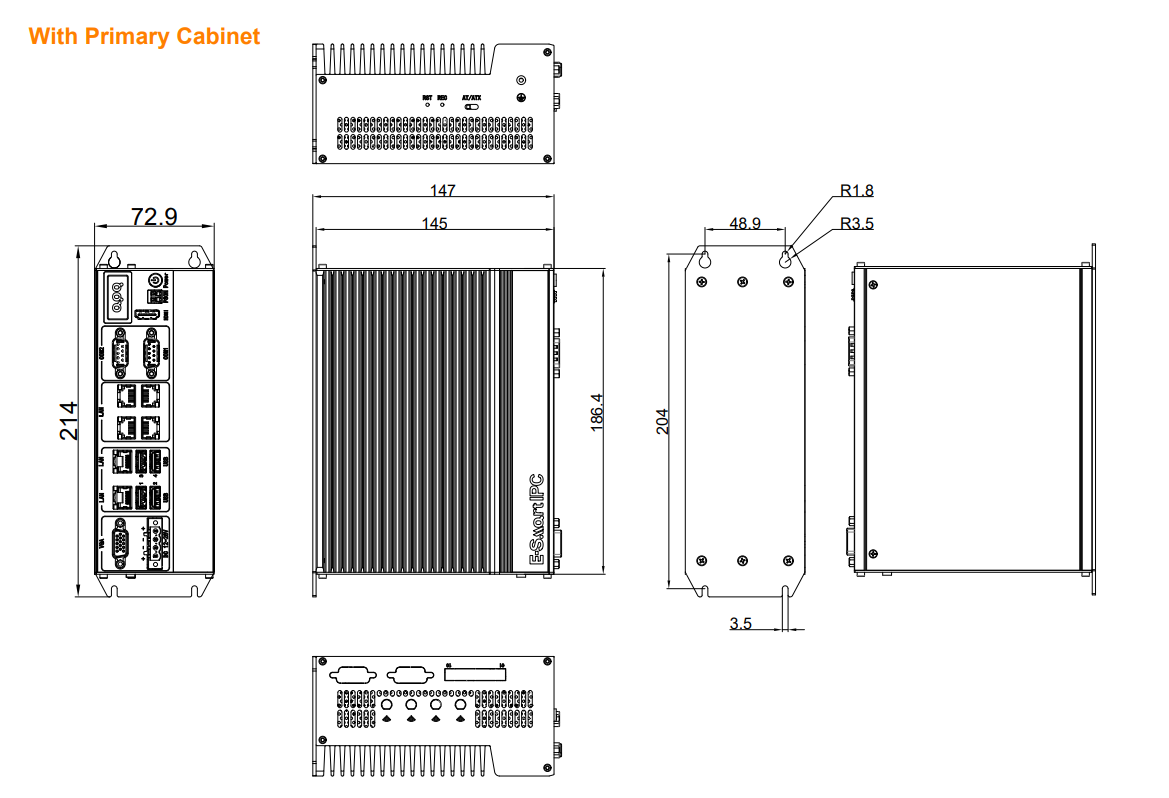

Size

53mm(L)*145mm(W)*186.4mm(H)

72.9mm(L)*145mm(W)*186.4mm(H)

97.7mm(L)*145mm(W)*186.4mm(H)

Mounting

Wall mounted, DIN, Desktop

Industrial Environment

Heat Dissipation System

Passive Heat Dissipation

Operating Temperature

-20~60℃

Storage Temperature

-40~80℃

Humidity

5 to 90% RH (non-condensing)

Vibration During Operation

IEC 60068-2-64(3Grms@5~500Hz, random, 1hr/axis)

Shock During Operation

IEC 60068-2-27(30G, half sine, 11ms)
