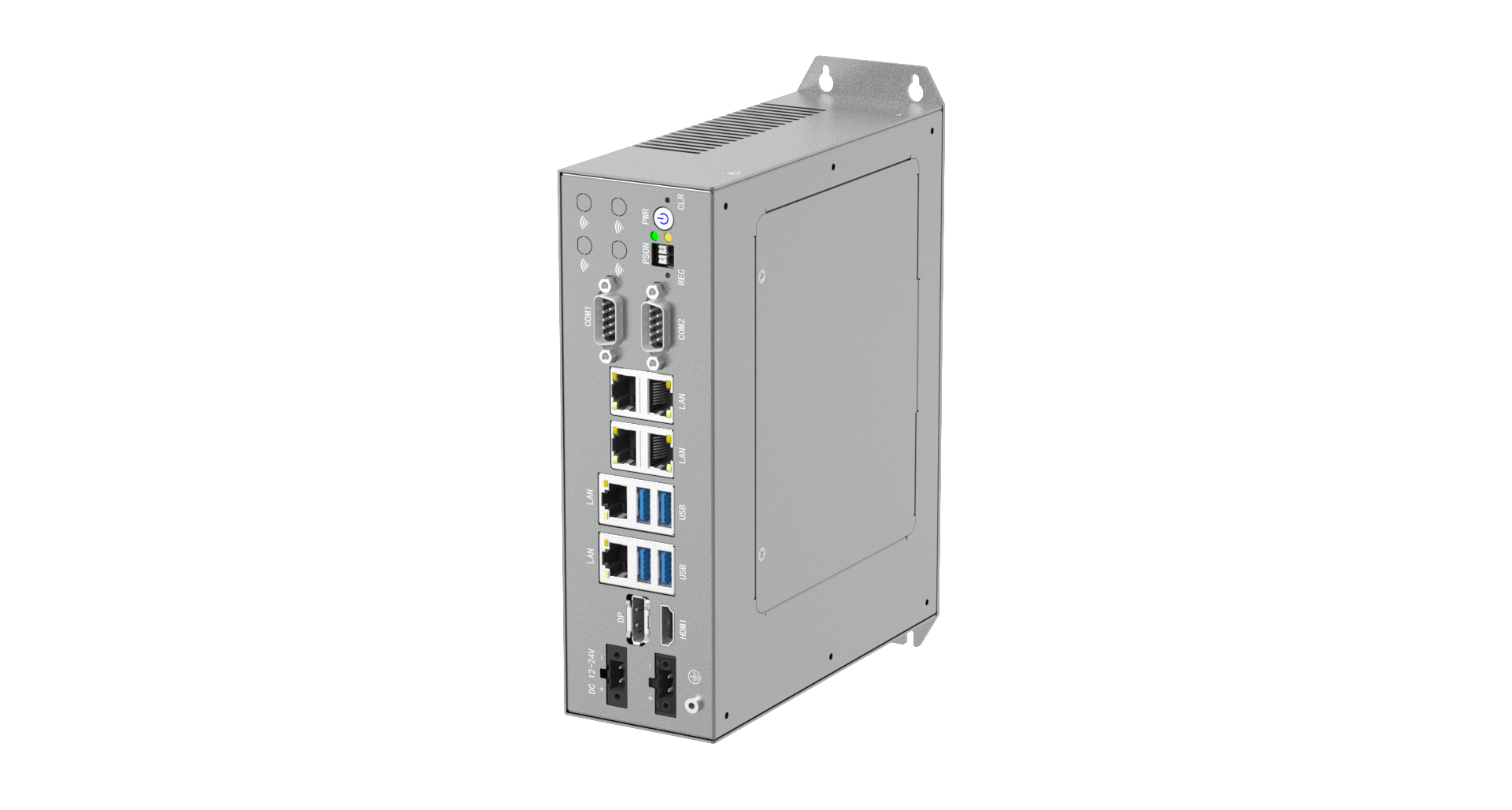

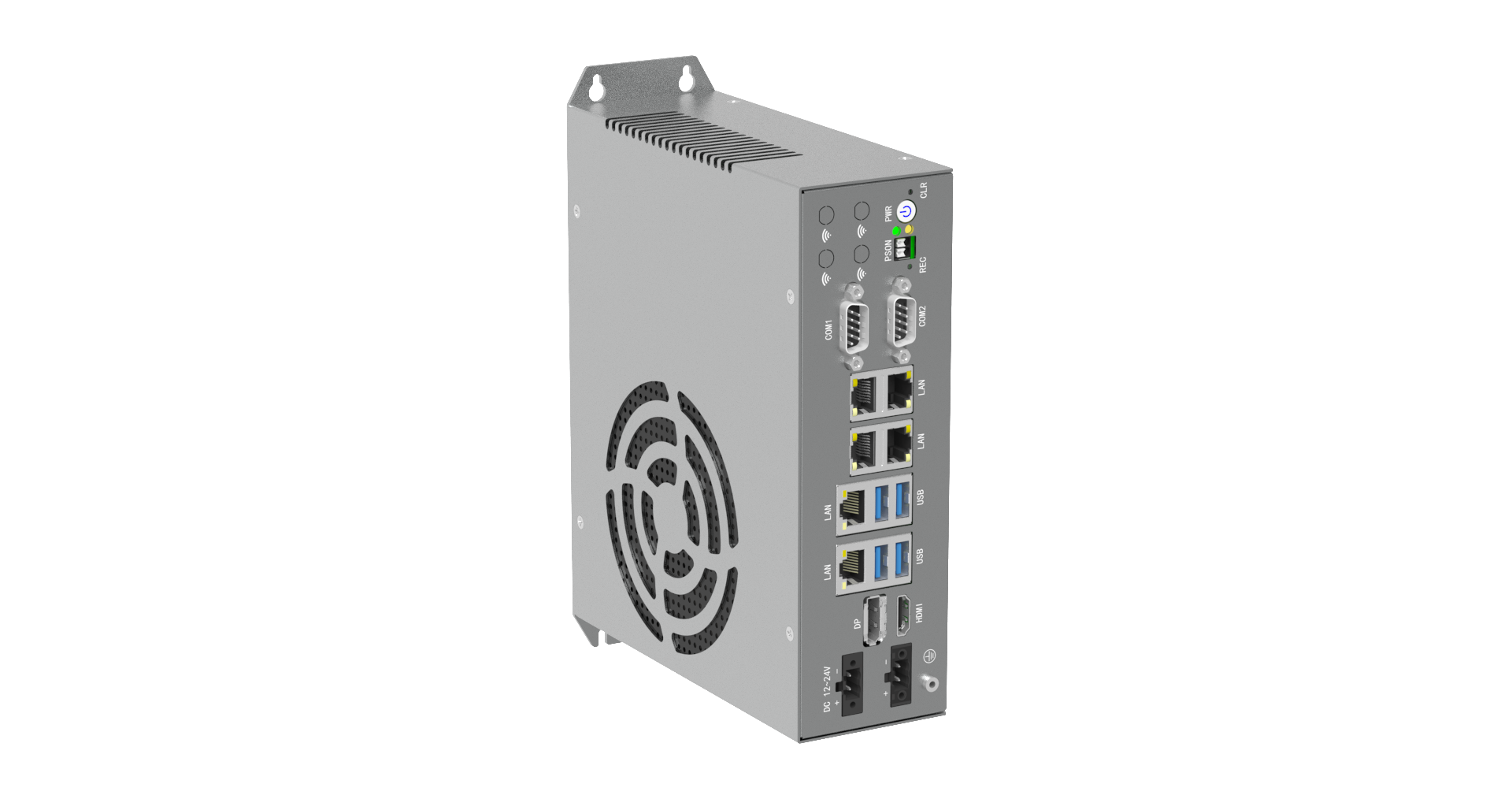

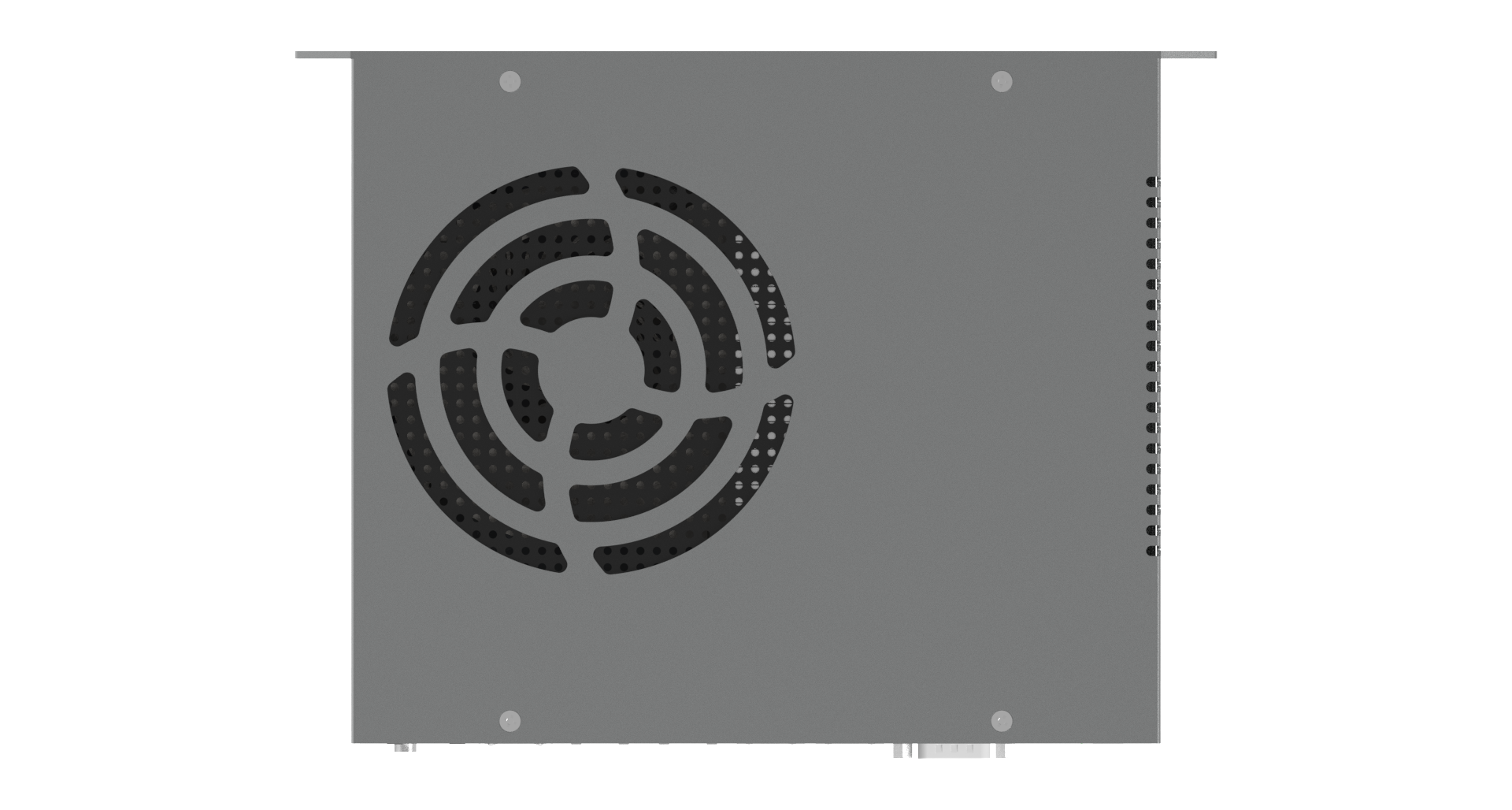

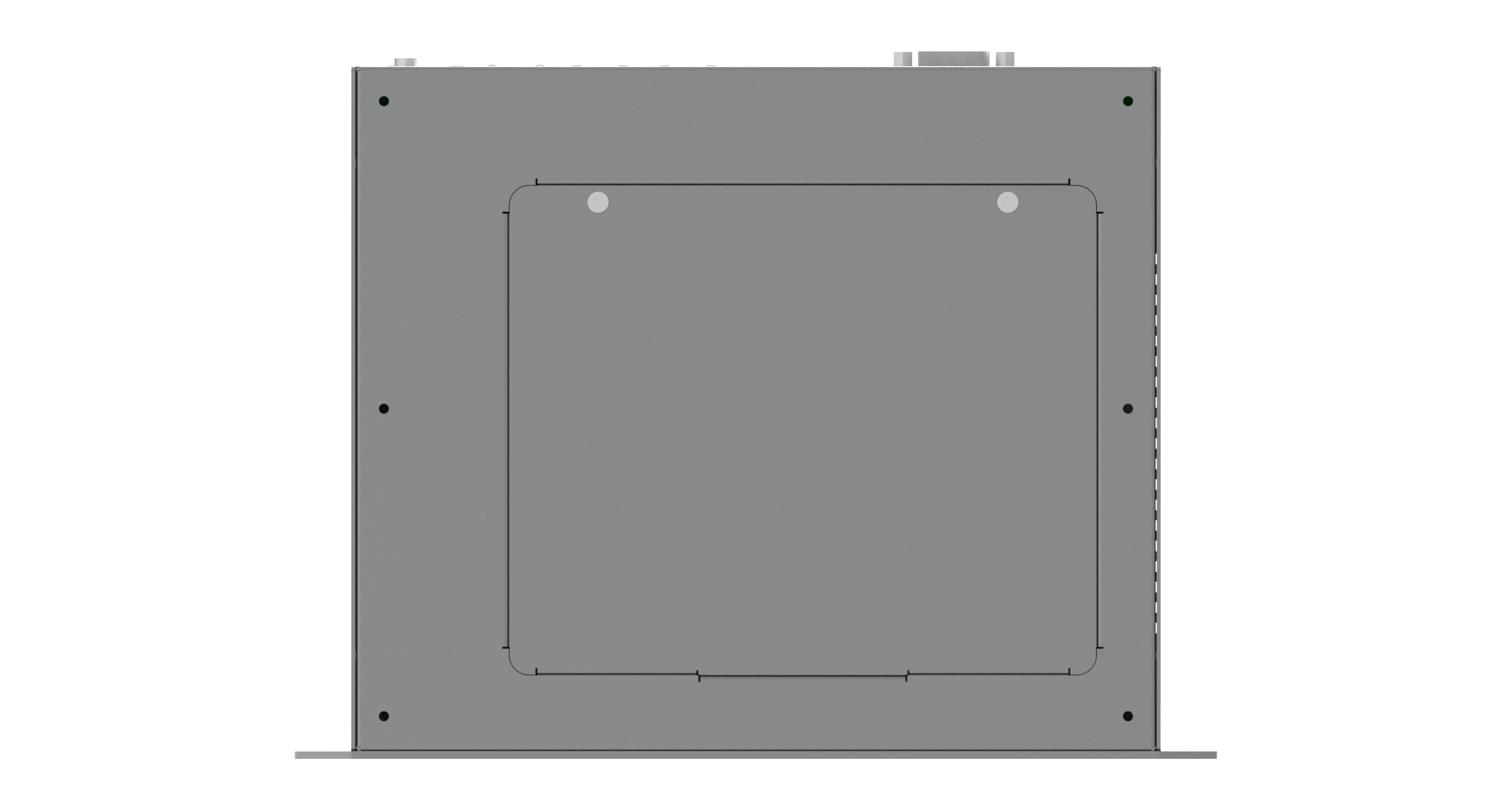

C7E-H610A6 Embedded Industrial PC

Model

C7E-H610A6

Processing System

CPU

Supports Intel® 12th / 13th / 14th Gen Core™ / Pentium® / Celeron® desktop processors

Typical Power Consumption

65W

Socket

LGA1700

Chipset

H610

BIOS

AMI UEFI BIOS

Memory

Slot

2 × SO-DIMM slots, dual-channel DDR4-3200 MT/s supported

Capacity

Maximum 32 GB

Network

Network Controller

1 × Intel® i219V Gigabit Ethernet controller

5 × Intel® i210-AT Gigabit Ethernet controllers

Storage

SATA

1 × SATA 3.0 port

M.2

1 × M.2 Key-M slot (SATA 3.0, 2280)

Expansion Slots

Mini PCIe

1 × Mini PCIe slot 1 (PCIe x1, supports Wi-Fi)

1 × Mini PCIe slot 2 (USB 2.0 signal, supports 4G, with 1 × Nano SIM card slot)

PCIe

1 × PCIe x8 slot (includes 1 × PCIe x4 + 2 × PCIe x1 + PSON signal)

Rear I/O

Network

6 × RJ45 ports

USB

4 × USB 5 Gbps Type-A ports

Serial Port

2 × DB9 ports, support RS-232 / RS-485 mode, jumper selectable

Display

1 × HDMI port: up to 4096 × 2160 @ 30 Hz

1 × DP port: up to 4096 × 2160 @ 30 Hz

External Signal

1 × external signal connector (includes power on/off signal)

Button 1

Power button

Button 2

CMOS clear button

Button 3

System recovery button

LED

System + HDD status LEDs

Power Input

1 × power input connector (2 × 2P, 5.08 mm)

Internal I/O

Power Input

1 × power input connector (2 × 1P, 3.96 mm)

SATA

1 × SATA 3.0 port

USB

2 × USB 2.0 headers

1 × USB 2.0 Type-A port

eDP

1 × eDP FPC connector

Audio

1 × front audio header (Line-Out + MIC)

Fan

1 × CPU fan connector

SIM Card Slot

1 × Nano SIM card slot

Power

Type

DC

Input Voltage

12-24V

Connector

2 × 2P power connectors (P = 5.08 mm)

RTC Battery

CR2032 coin-cell battery with cable

System

Windows

Win 10/11

Linux

Linux

Trusted Platform

TPM

fTPM

Watchdog

Output Signal

System reset

Programmable Interval

1–255 seconds

Mechanical

Chassis Material

Galvanized steel

Chassis Dimensions

225.2mm(L) * 169mm(W) * 62mm(H)，including mounting brackets

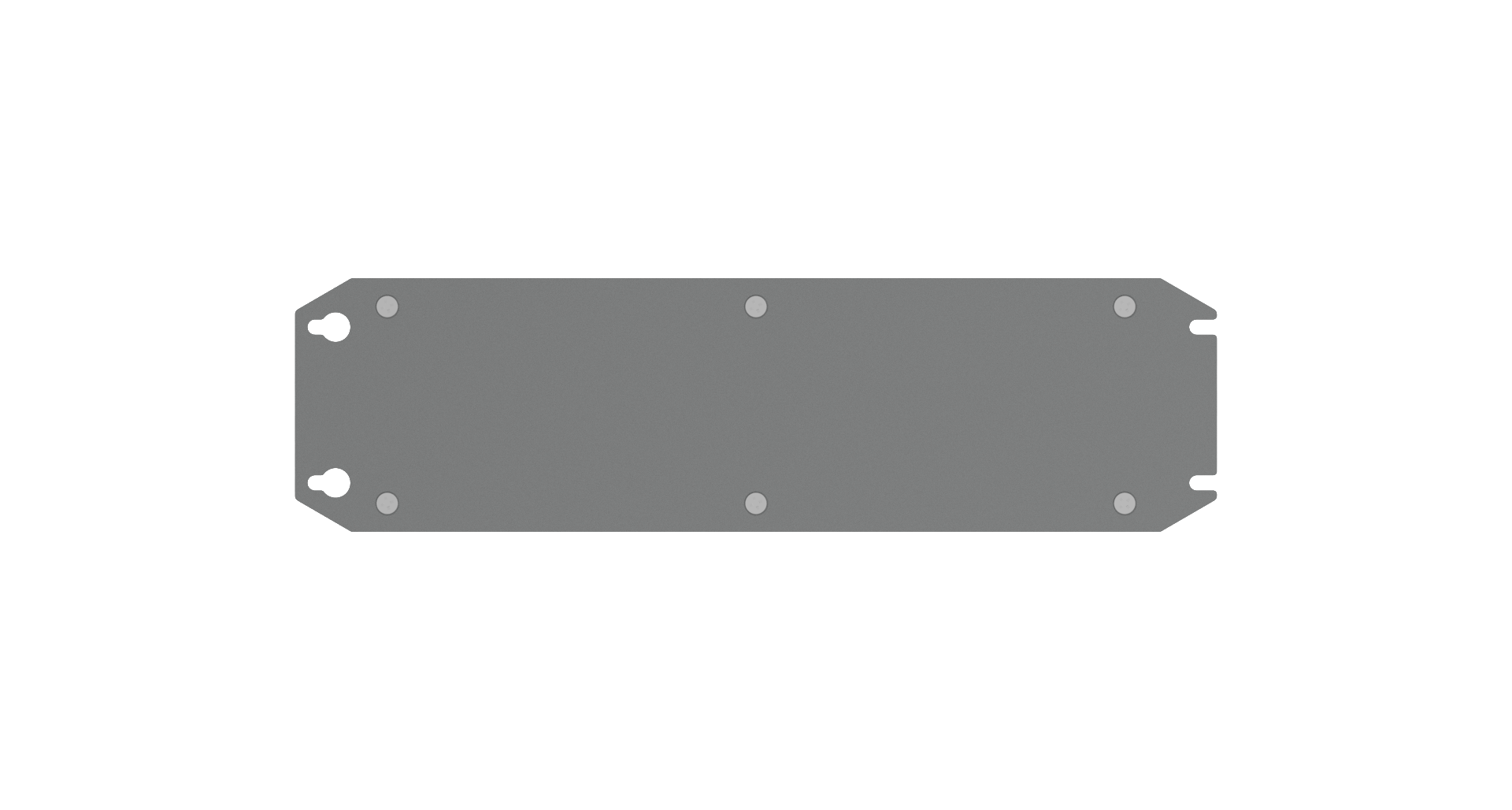

Mounting Method

Wall-mount / desktop

Environment

Cooling Method

Smart fan cooling

Operating Temperature

-20 ~ 60℃

Storage Temperature

-20 ~ 75℃

Relative Humidity

5 to 95%, non-condensing
