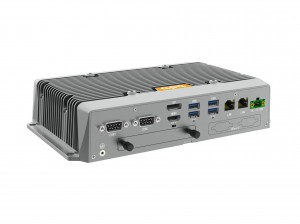

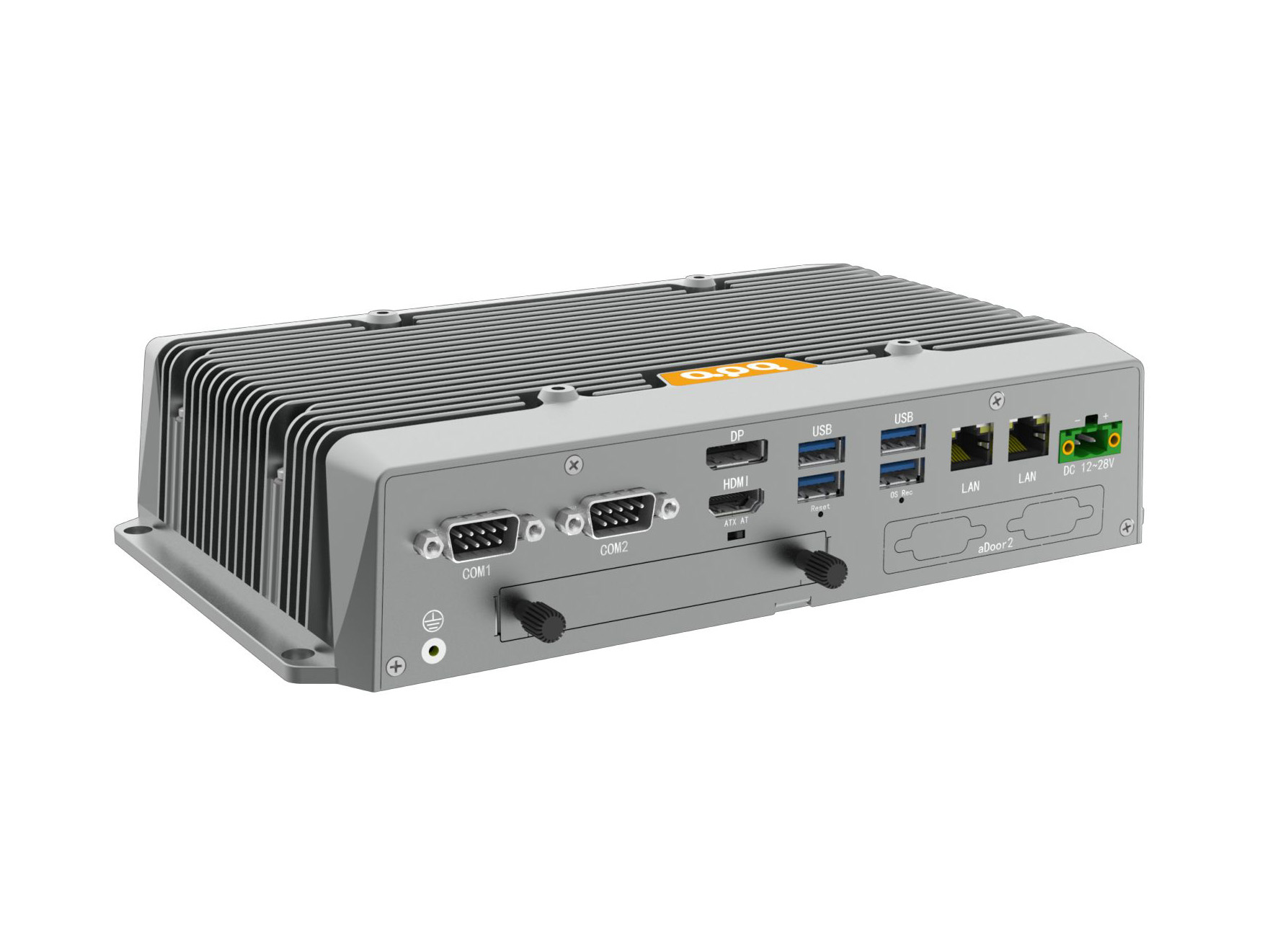

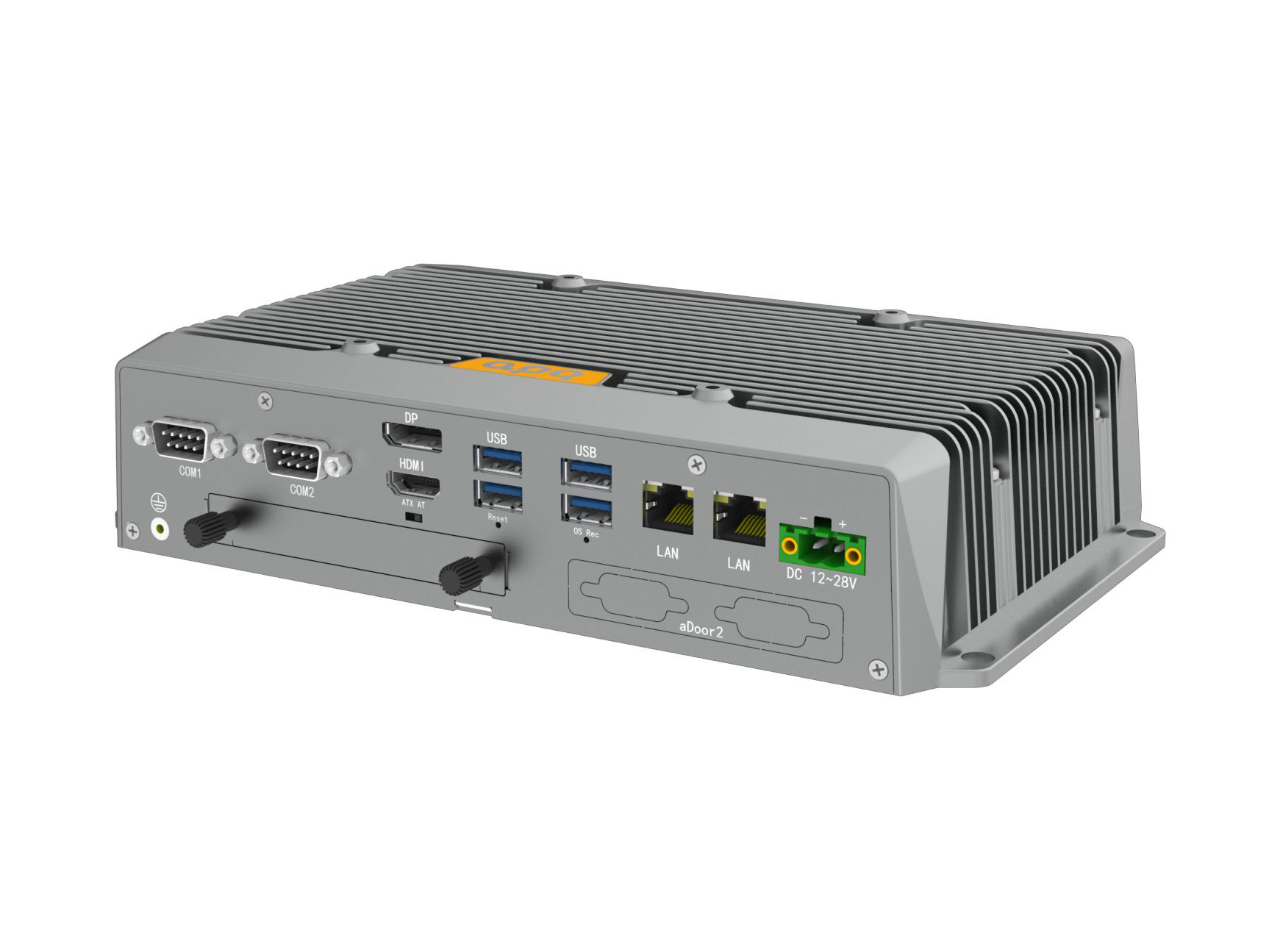

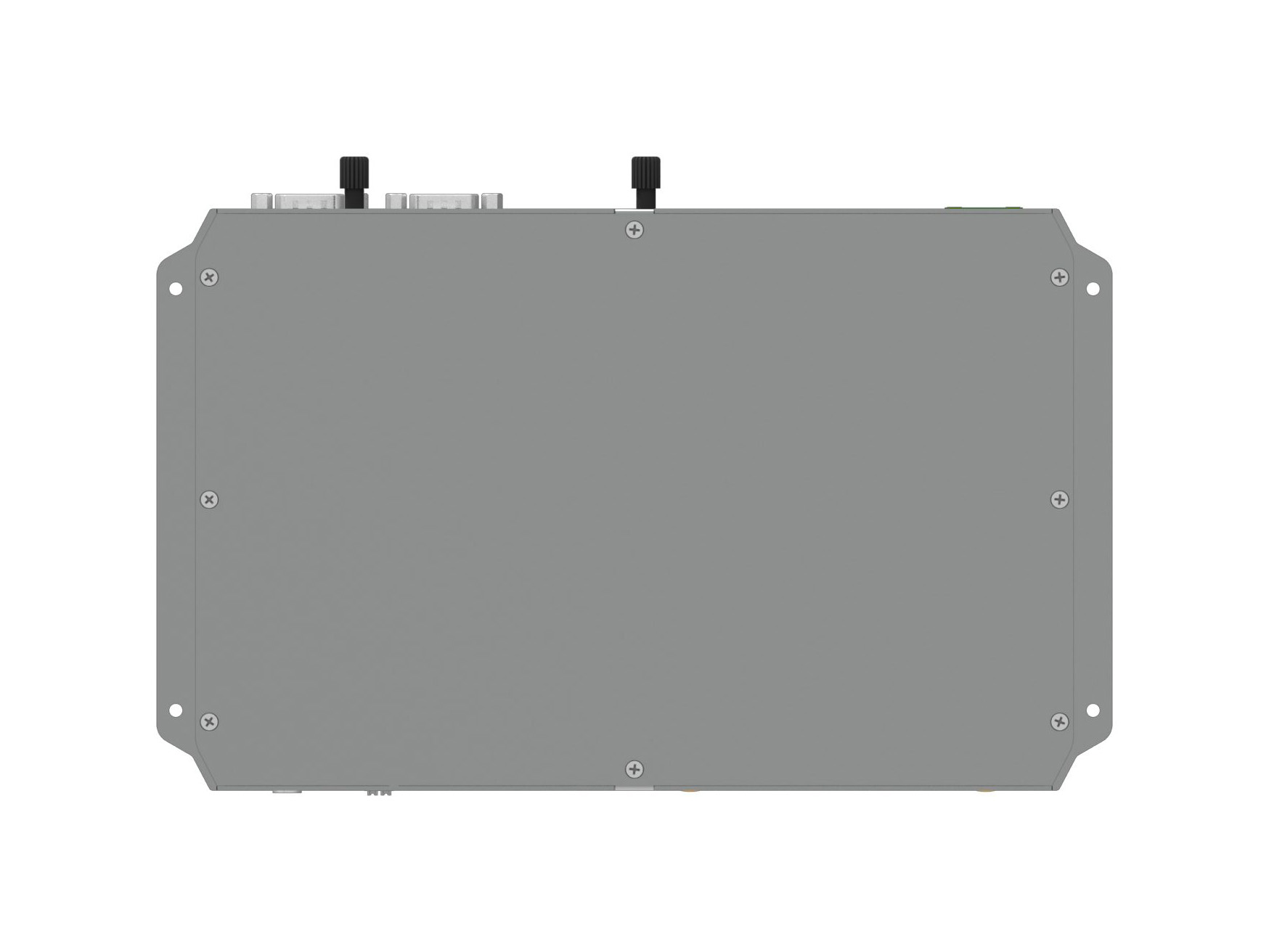

E6 Embedded Industrial PC

E6 Embedded Industrial PC

Features:

  • Utilizes Intel® 11th-U mobile platform CPU

  • Integrates dual Intel® Gigabit network cards
  • Two onboard display interfaces
  • Supports dual hard drive storage, with 2.5” hard drive featuring a pull-out design
  • Supports APQ aDoor Bus module expansion
  • Supports WiFi/4G wireless expansion
  • Supports 12~28V DC wide voltage power supply

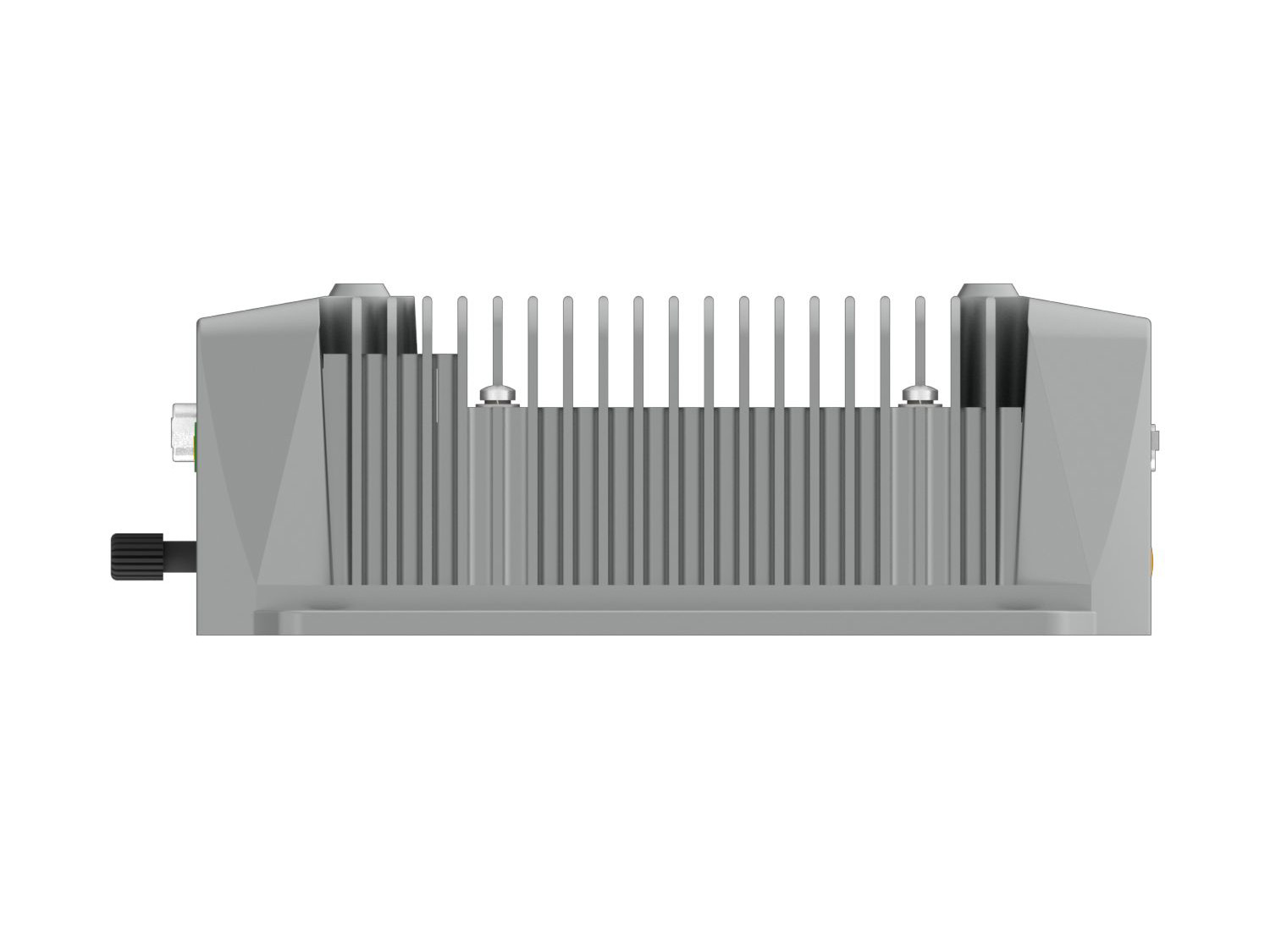

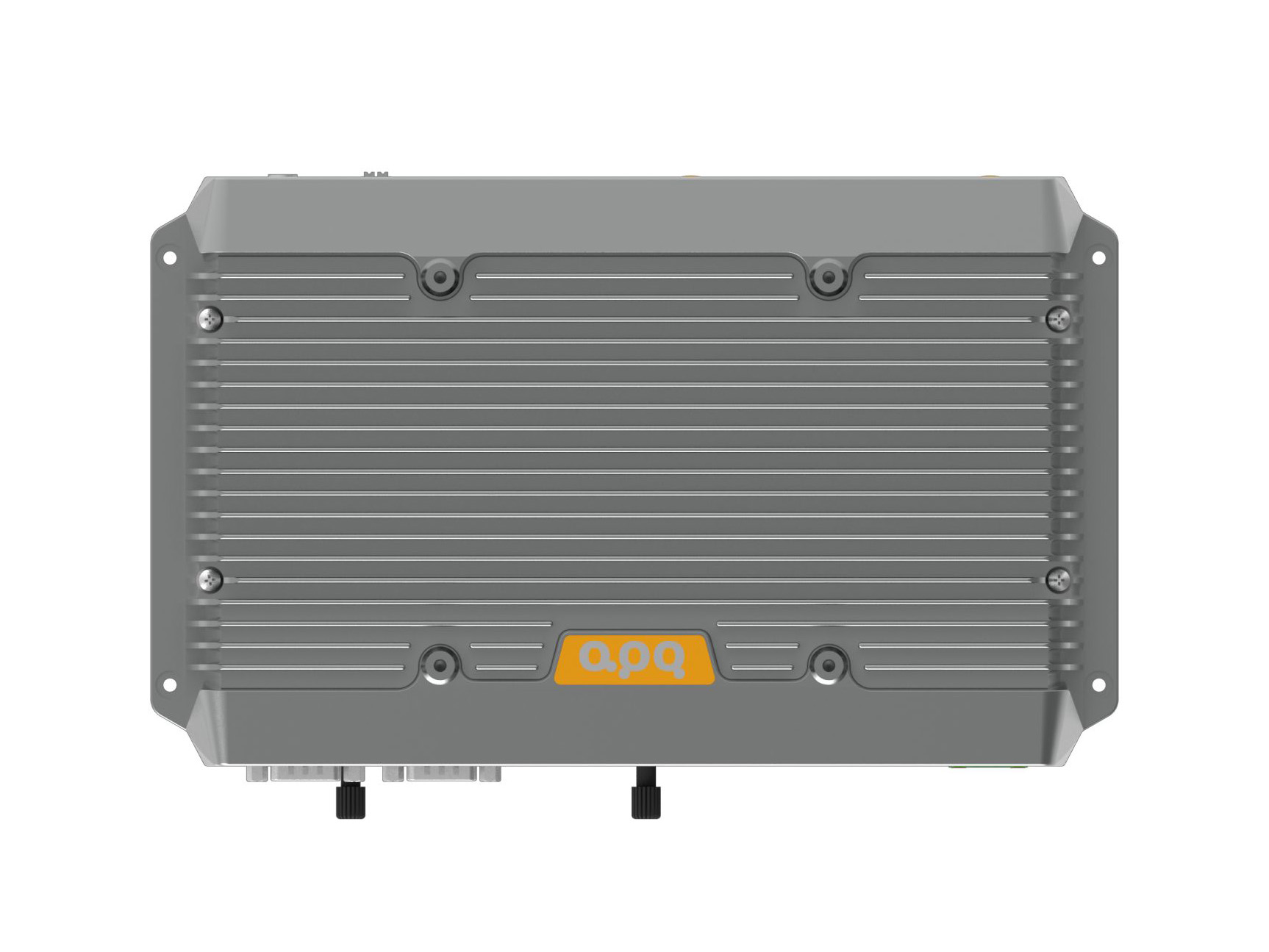

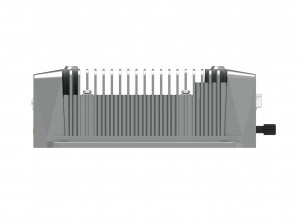

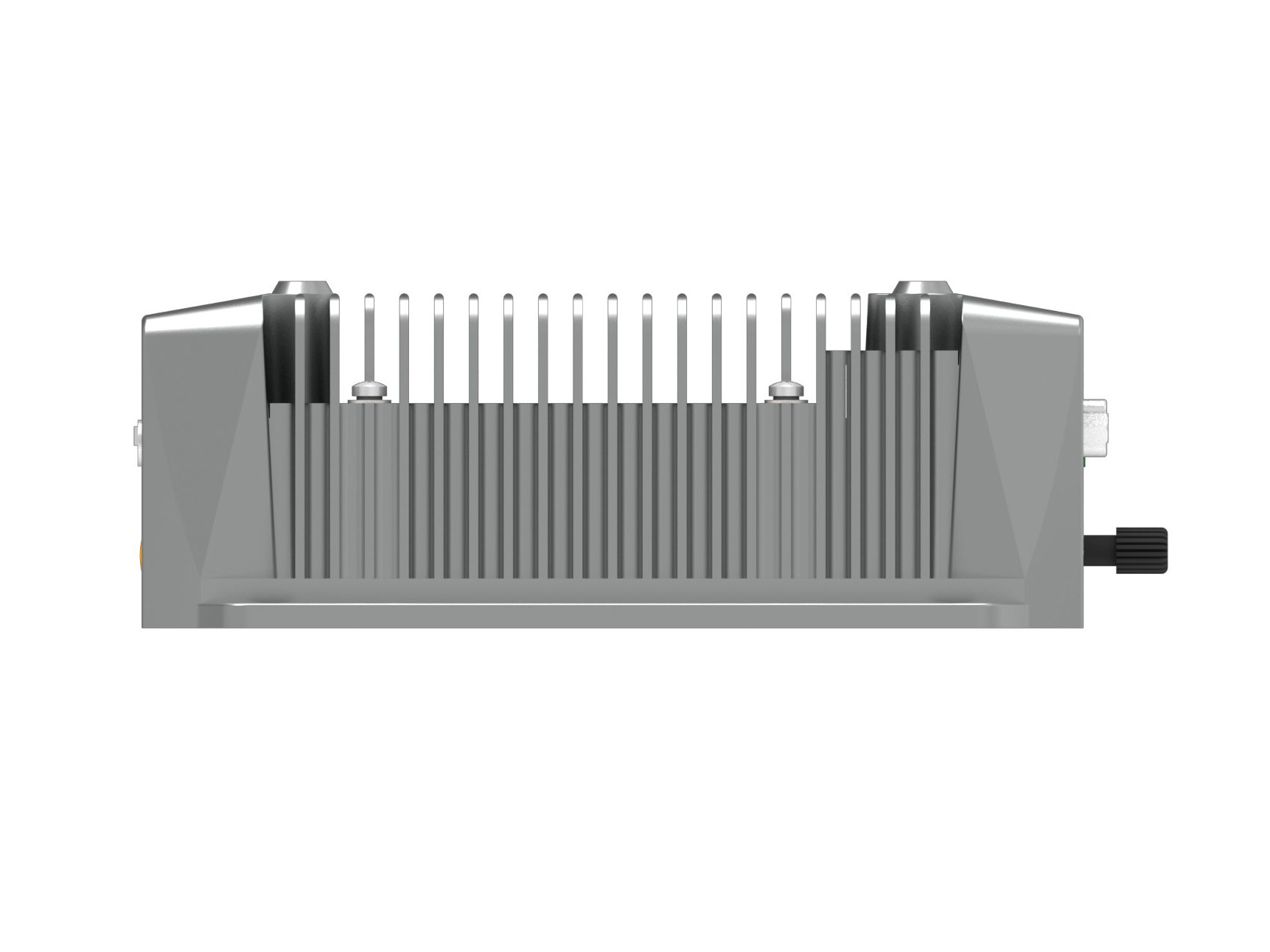

  • Compact body, fanless design, with detachable heatsink

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Embedded Industrial PC E6 Series 11th-U platform is a compact computer designed specifically for industrial automation and edge computing applications. It utilizes an Intel® 11th-U mobile platform CPU, characterized by high performance and low power consumption, ensuring stable operation in various industrial environments. Integrated dual Intel® Gigabit network cards provide high-speed and stable network connections to meet the demands of data transmission and communication. Equipped with two onboard display interfaces, it supports multiple display outputs. Dual hard drive support allows the E6 Series to meet the needs for substantial data storage, with a 2.5” hard drive featuring a pull-out design for enhanced convenience and expandability. Support for APQ aDoor Bus module expansion allows for customized configurations based on specific application needs, meeting the demands of various complex industrial automation requirements. Support for WiFi/4G wireless expansion facilitates wireless connections and control, further expanding its application scenarios. Support for a 12~28V DC wide voltage power supply adapts to different power environments, ensuring stable operation under various working conditions. Additionally, this series features a compact body design and a fanless cooling system, making it suitable for use in confined spaces.

The APQ E6 Series Embedded Industrial PC is widely used in factory and machine automation scenarios. Its flexible fanless and fanned options, along with reinforced structure design, ensure these systems can withstand the demands of harsh industrial environments.

INTRODUCTION

Engineering Drawing

File Download

Model

E6

Processor System

CPU

Intel® 11th Generation Core™ i3/i5/i7 Mobile -U CPU

Chipset

SOC

BIOS

AMI EFI BIOS

Memory

Socket

2 * DDR4-3200 MHz SO-DIMM Slot

Max Capacity

64GB, Single Max. 32GB

Graphics

Controller

Intel® UHD Graphics/Intel® Iris® Xe Graphics (dependent on CPU type)

Ethernet

Controller

1 * Intel® i210-AT (10/100/1000 Mbps, RJ45)

1 * Intel® i219 (10/100/1000 Mbps, RJ45)

Storage

SATA

1 * SATA3.0 Connector

M.2

1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, Auto Detect, 2280)

Expansion Slots

aDoor Bus

1 * aDoor Bus (16*GPIO + PCIe x2 + 1*LPC)

Mini PCIe

1 * Mini PCIe Slot (PCIe x1+USB 2.0, with 1 * SIM Card)

1 * Mini PCIe Slot (PCIe x1+USB 2.0)

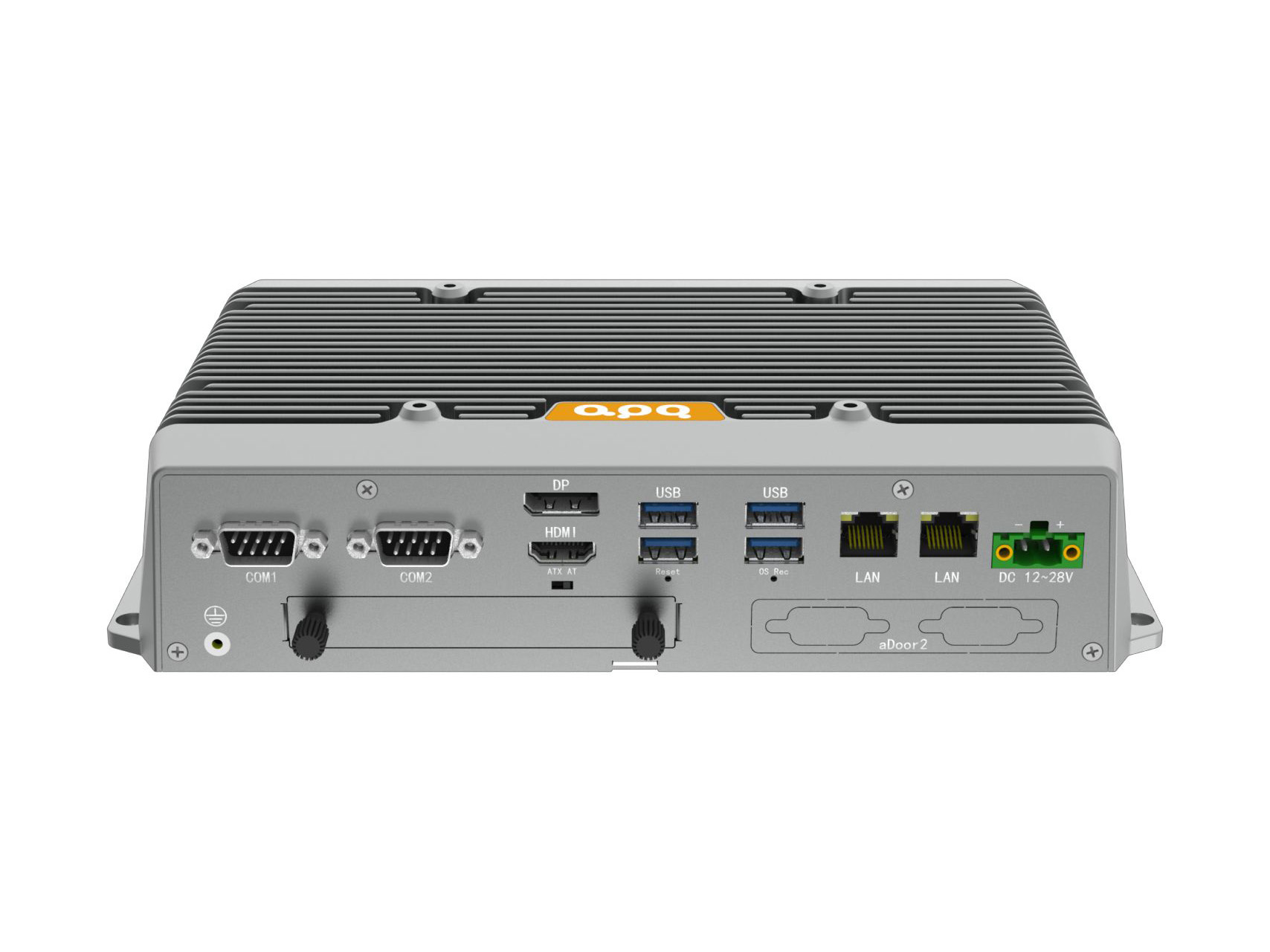

Front I/O

USB

2 * USB3.2 Gen2x1 (Type-A)

2 * USB3.2 Gen1x1 (Type-A)

Ethernet

2 * RJ45

Display

1 * DP: up to 4096x2304 @ 60Hz

1 * HDMI (Type-A): up to 3840x2160 @ 24Hz

Serial

2 * RS232/485 (COM1/2, DB9/M, BIOS control)

Switch

1 * AT/ATX Mode Switch (Enable/Disable automatically power on)

Button

1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS)

1 * OS Rec (system recovery)

Power

1 * Power Input Connector (12~28V)

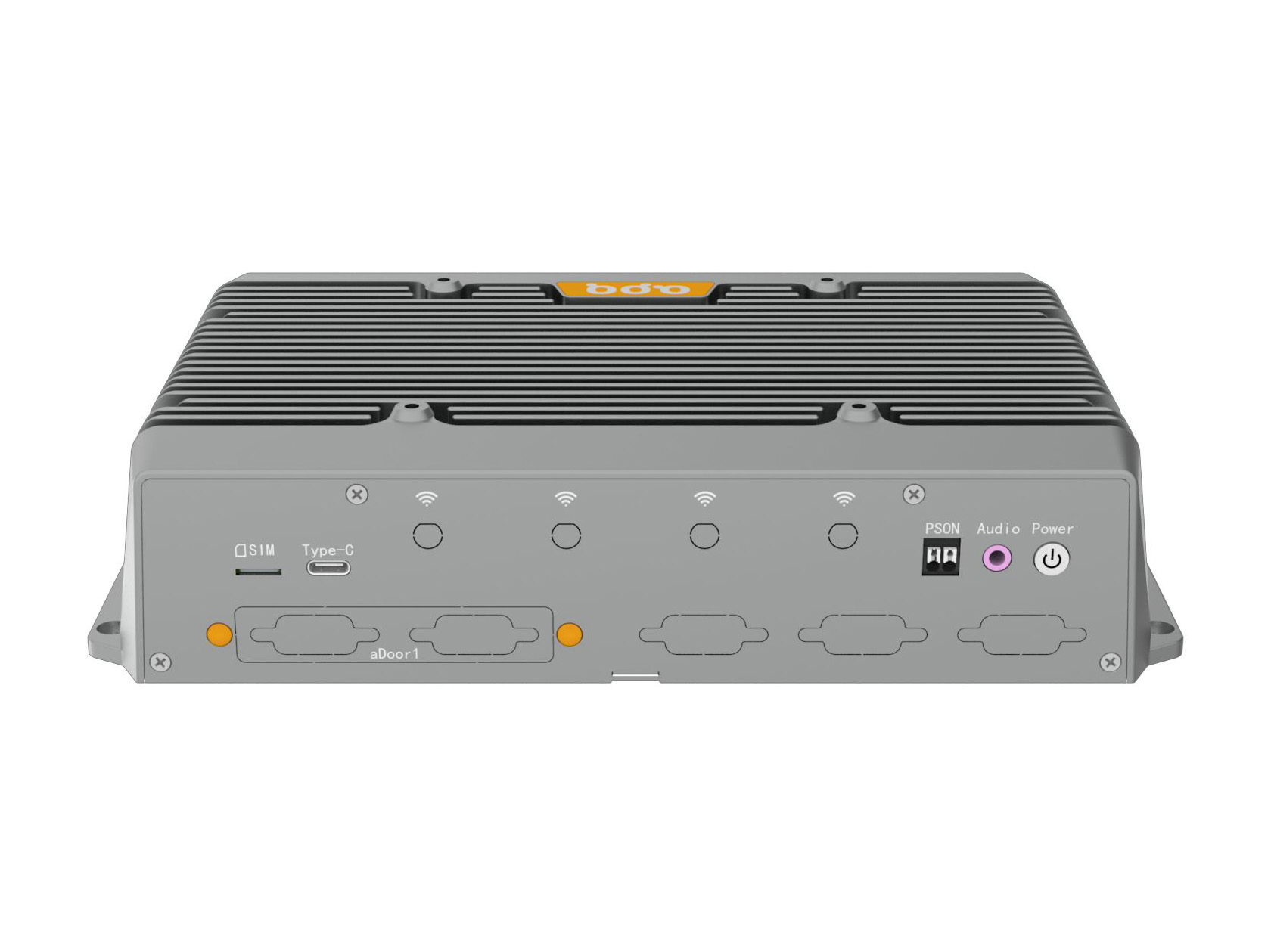

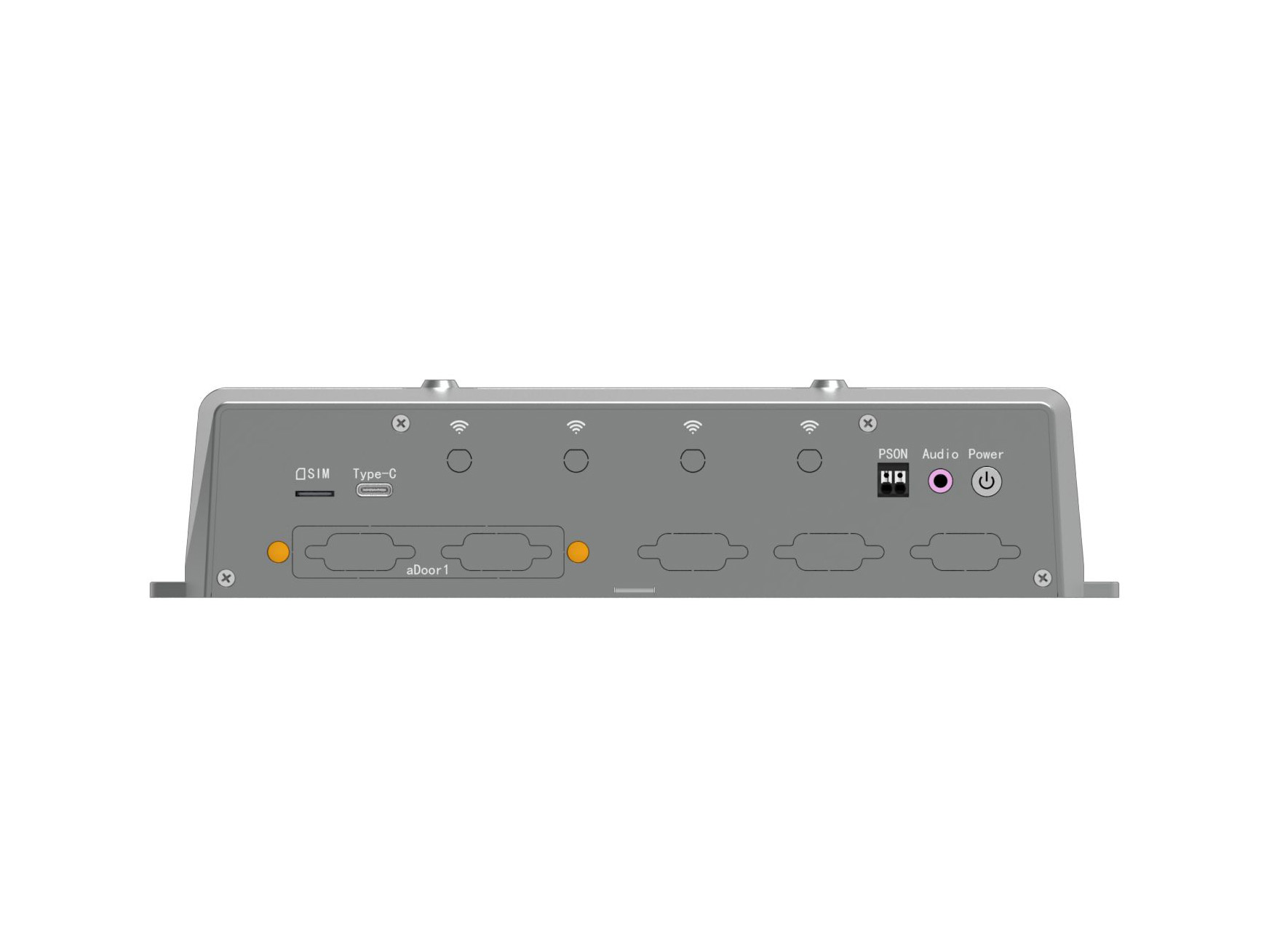

Rear I/O

SIM

1 * Nano SIM Card Slot

Button

1 * Power Button + Power LED

1 * PS_ON

Audio

1 * 3.5mm Audio Jack (Line-Out + MIC, CTIA)

Internal I/O

Front Panel

1 * Front Panel (wafer, 3x2Pin, PHD2.0)

FAN

1 * CPU FAN (wafer)

1 * SYS FAN (wafer)

Serial

1 * COM3/4 (wafer)

1 * COM5/6 (wafer)

USB

4 * USB2.0 (wafer)

Display

1 * LVDS (wafer)

LPC

1 * LPC (wafer)

Storage

1 * SATA3.0 7Pin Connector

1 * SATA Power

Audio

1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)

GPIO

1 * 16bits DIO (8xDI and 8xDO, wafer)

Power Supply

Type

DC

Power Input Voltage

12~28VDC

Connector

1 * 2Pin Power Input Connector (P=5.08mm)

RTC Battery

CR2032 Coin Cell

OS Support

Windows

Windows 10

Linux

Linux

Watchdog

Output

System Reset

Interval

Programmable 1 ~ 255 sec

Mechanical

Enclosure Material

Radiator: Aluminum, Box: SGCC

Dimensions

249mm(L) * 152mm(W) * 55.5mm(H)

Weight

Net: 1.8Kg

Total: 2.8Kg

Mounting

VESA, Wallmount, Desk mounting

Environment

Heat Dissipation System

Passive heat dissipation

Operating Temperature

-20~60℃

Storage Temperature

-40~80℃

Relative Humidity

5 to 95% RH (non-condensing)

Vibration During Operation

With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)

Shock During Operation

With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
