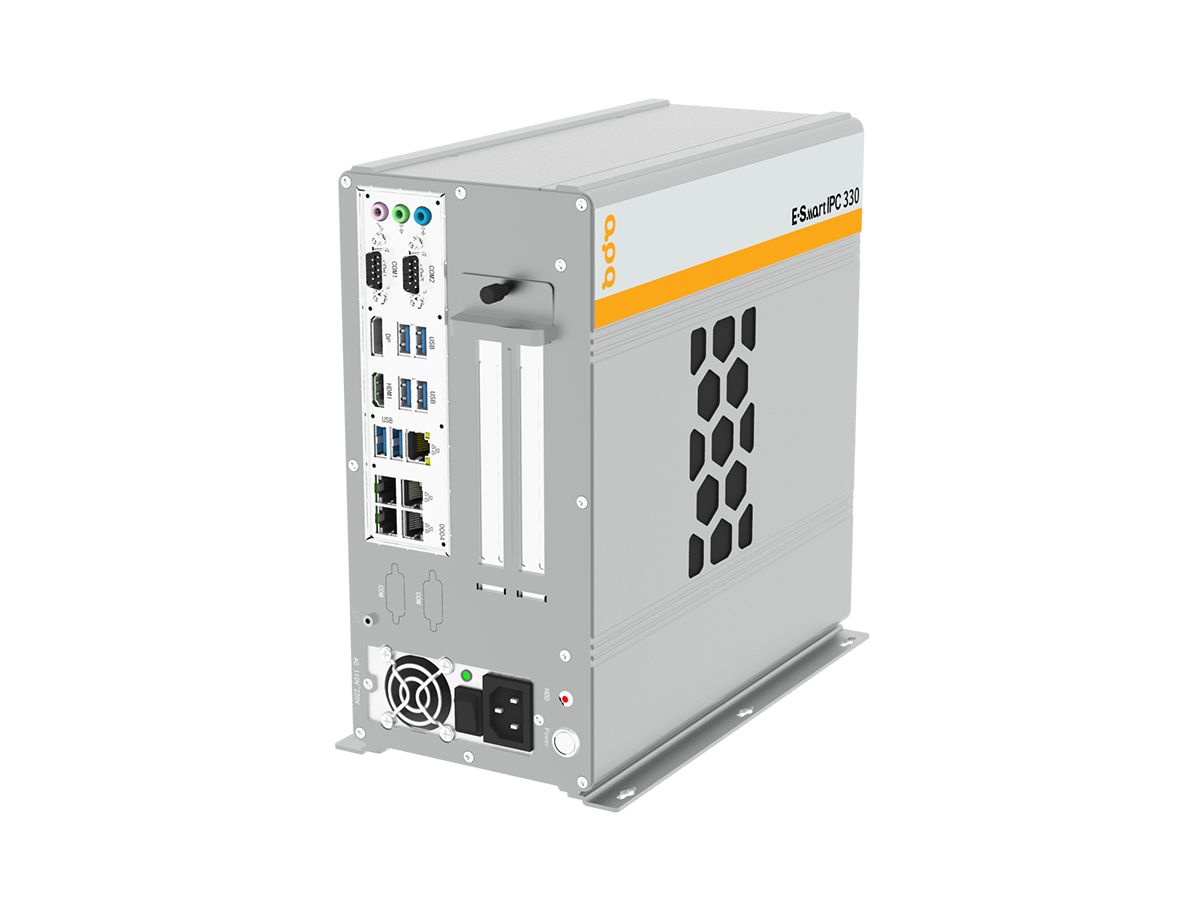

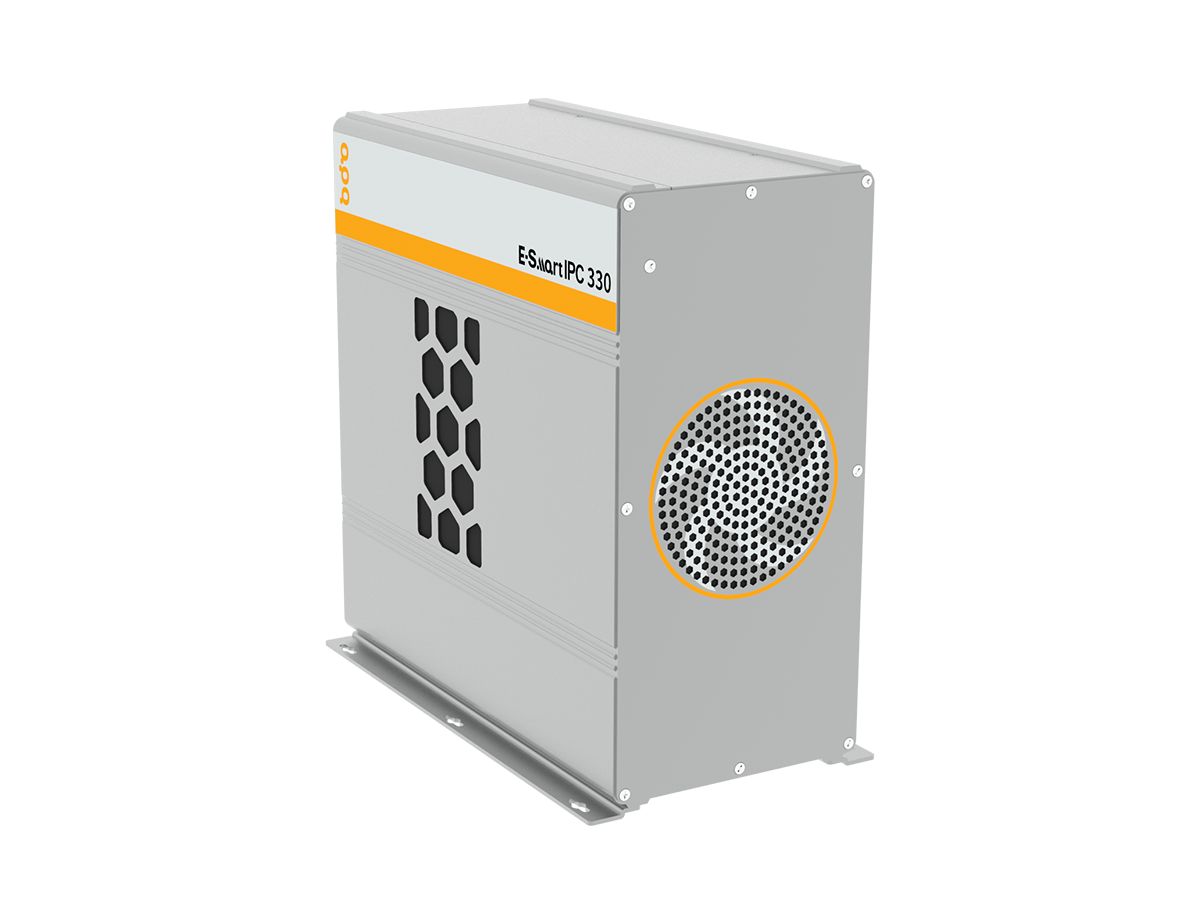

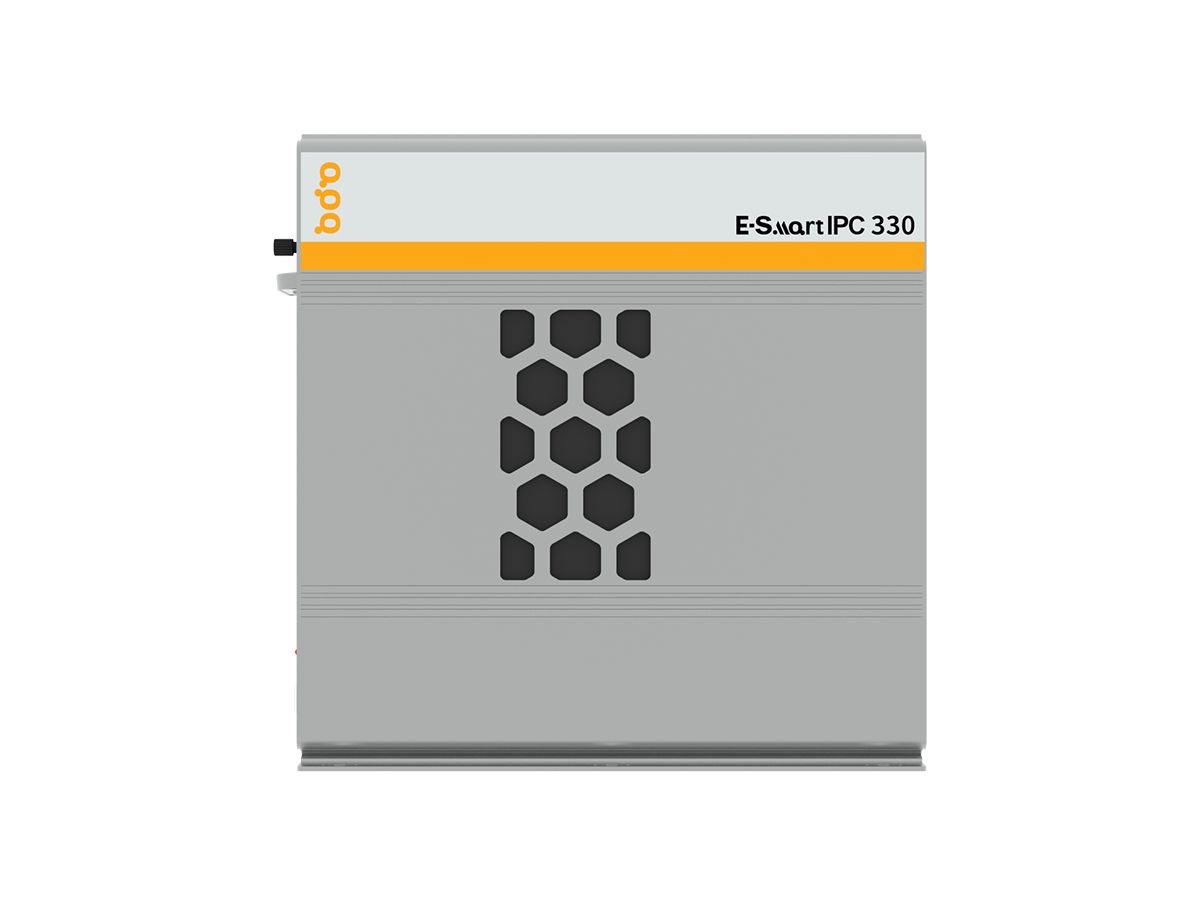

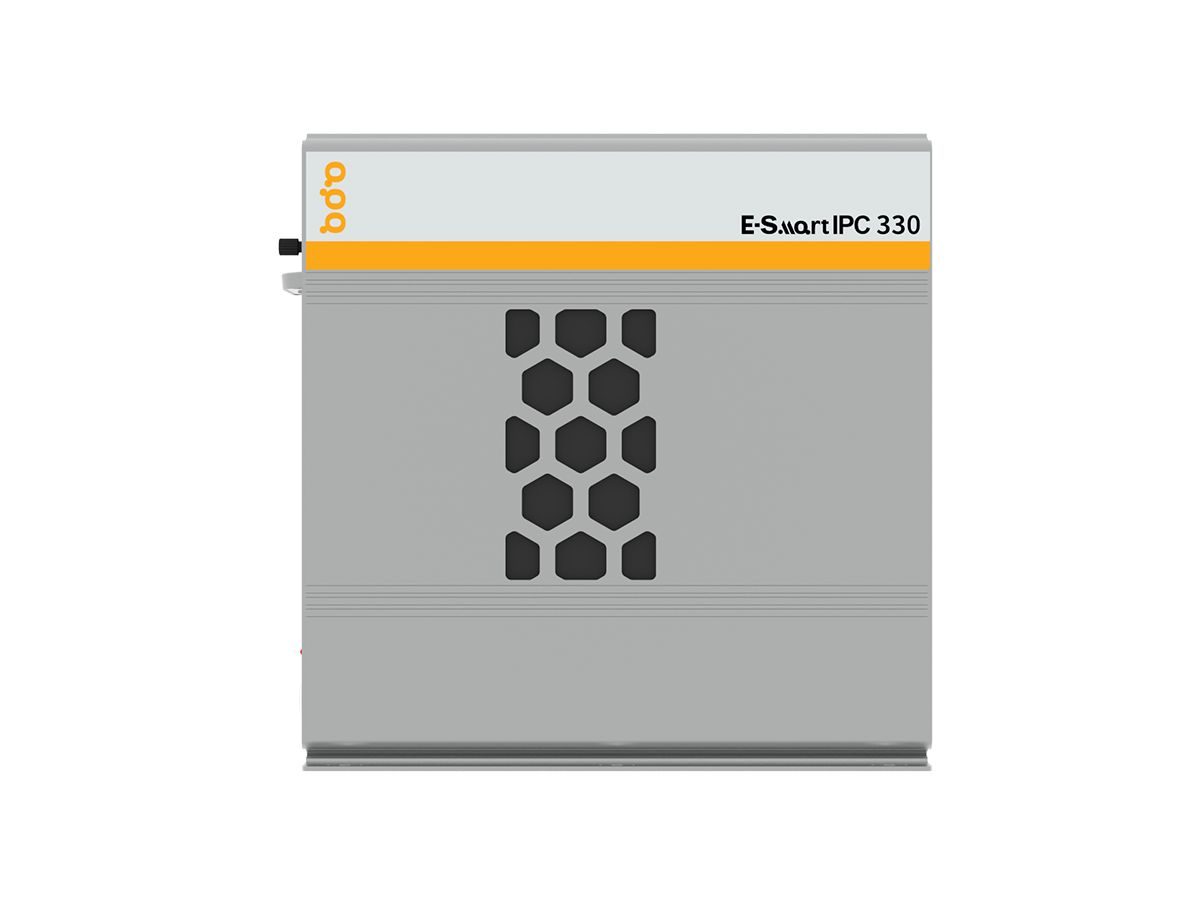

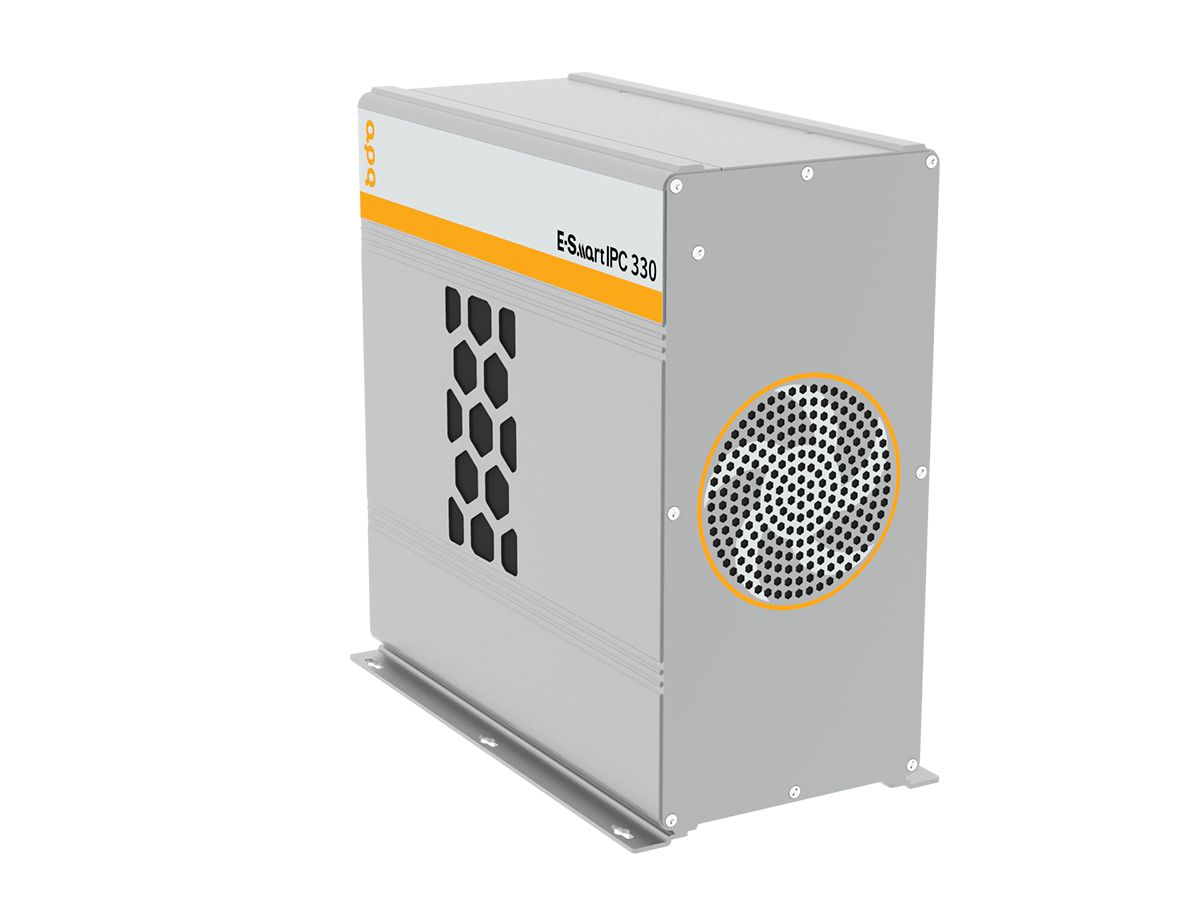

IPC330D-H31CL5 Wall Mounted Industrial Computer

IPC330D-H31CL5 Wall Mounted Industrial Computer

Features:

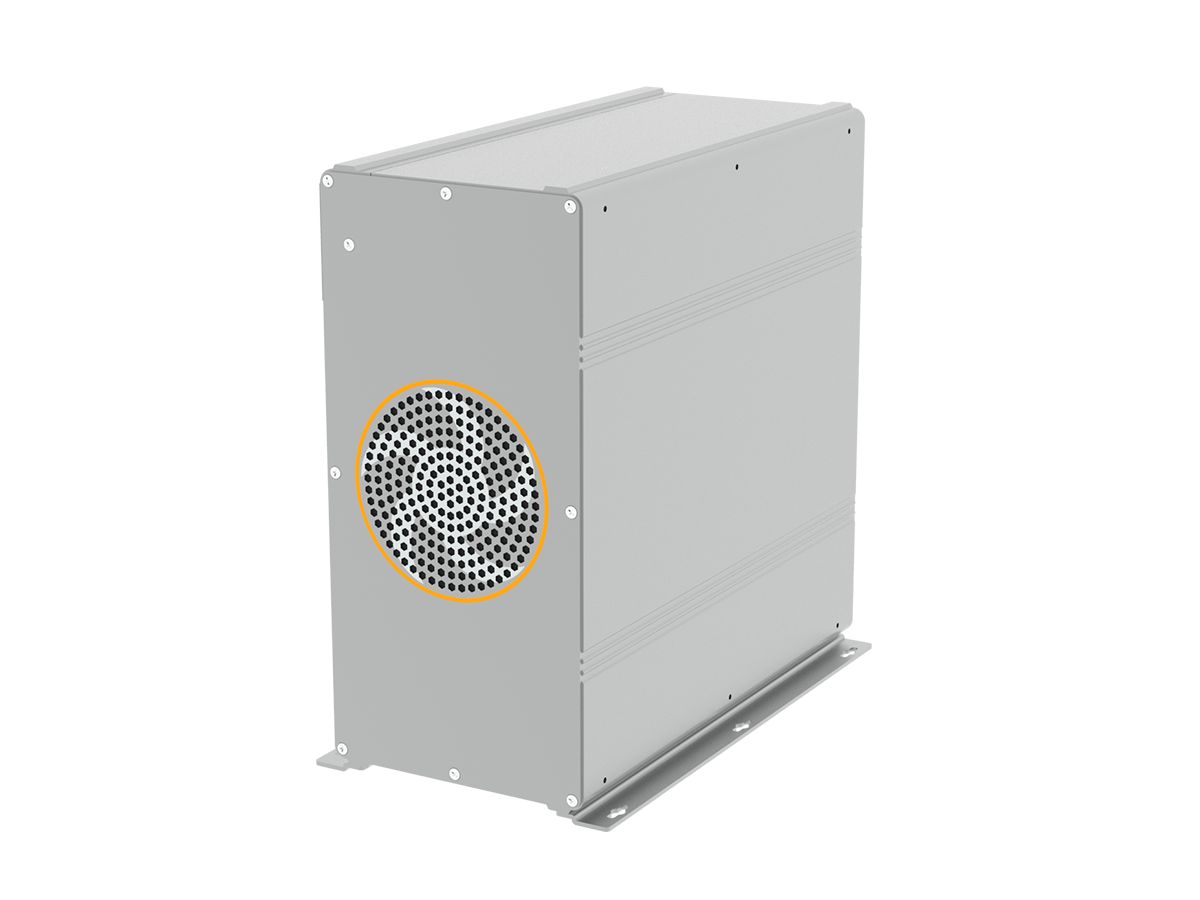

  • Aluminum alloy mold forming

  • Supports Intel® 6th to 9th Generation Core/Pentium/Celeron Desktop CPU
  • Installs standard ITX motherboard, supports standard 1U power supply
  • Optional adapter card, supports 2PCI or 1PCIe X16 expansion
  • Default design includes one 2.5-inch 7mm shock and impact-resistant hard drive bay
  • Front panel power switch design, power and storage status display, easier for system maintenance

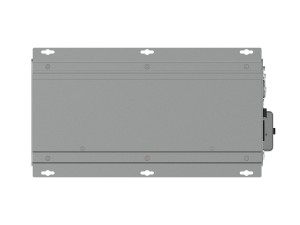

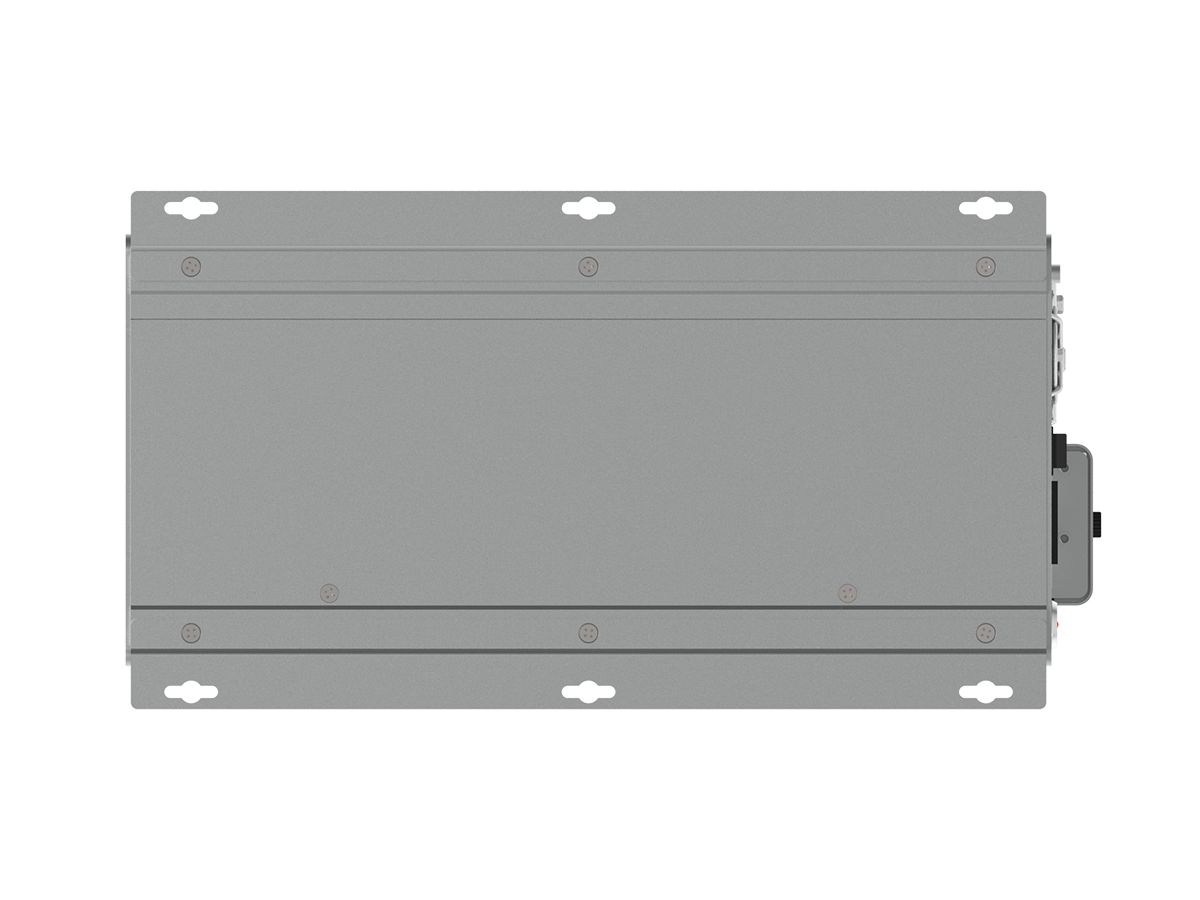

  • Supports multi-directional wall-mounted and desktop installations

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

PRODUCT DESCRIPTION

The APQ wall-mounted industrial PC IPC330D-H31CL5 is an exceptional performance industrial computer designed for various industrial settings. Its stable and reliable performance is attributed to the aluminum alloy mold forming, ensuring excellent heat dissipation and structural strength. This industrial PC supports Intel’s 6th to 9th Generation Core/Pentium/Celeron desktop CPUs, offering powerful data processing capabilities to quickly handle diverse edge computing tasks. Additionally, it can house a standard ITX motherboard and supports a standard 1U power supply, reducing energy consumption and further enhancing energy efficiency. In terms of expandability, the IPC330D-H31CL5′s optional adapter card supports 2 PCI or 1 PCIe X16 expansion to meet users’ expansion needs. Moreover, the default 2.5-inch 7mm shock-resistant hard drive slot design better protects the hard drive, ensuring data storage reliability. The front panel switch design, along with power and storage status displays, make system maintenance more convenient. Support for versatile wall-mounting and desktop installations provides users with more options, meeting the needs of various industrial applications.

In summary, with its outstanding performance, stable and reliable structure, powerful expansion capabilities, and data security protection, the APQ wall-mounted industrial PC IPC330D-H31CL5 is suitable for fields such as industrial automation control, intelligent transportation, digital healthcare, and smart grids.

INTRODUCTION

Engineering Drawing

File Download

Model

IPC330D-H31CL5

Processor System

CPU  Support Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
TDP  65W
Socket  LGA1151
Chipset  H310C
BIOS  AMI 256 Mbit SPI

Memory

Socket  2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz
Capacity  64GB, Single Max. 32GB

Graphics

Controller  Intel® UHD Graphics

Ethernet

Controller  4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket)
 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)

Storage

SATA  2 * SATA3.0 7P Connector, up to 600MB/s
mSATA  1 * mSATA (SATA3.0, Share slot with Mini PCIe, default)

Expansion Slots

PCIe  1 * PCIe x16 slot (Gen 3, x16 signal)
Mini PCIe  1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with Msat, Opt.)

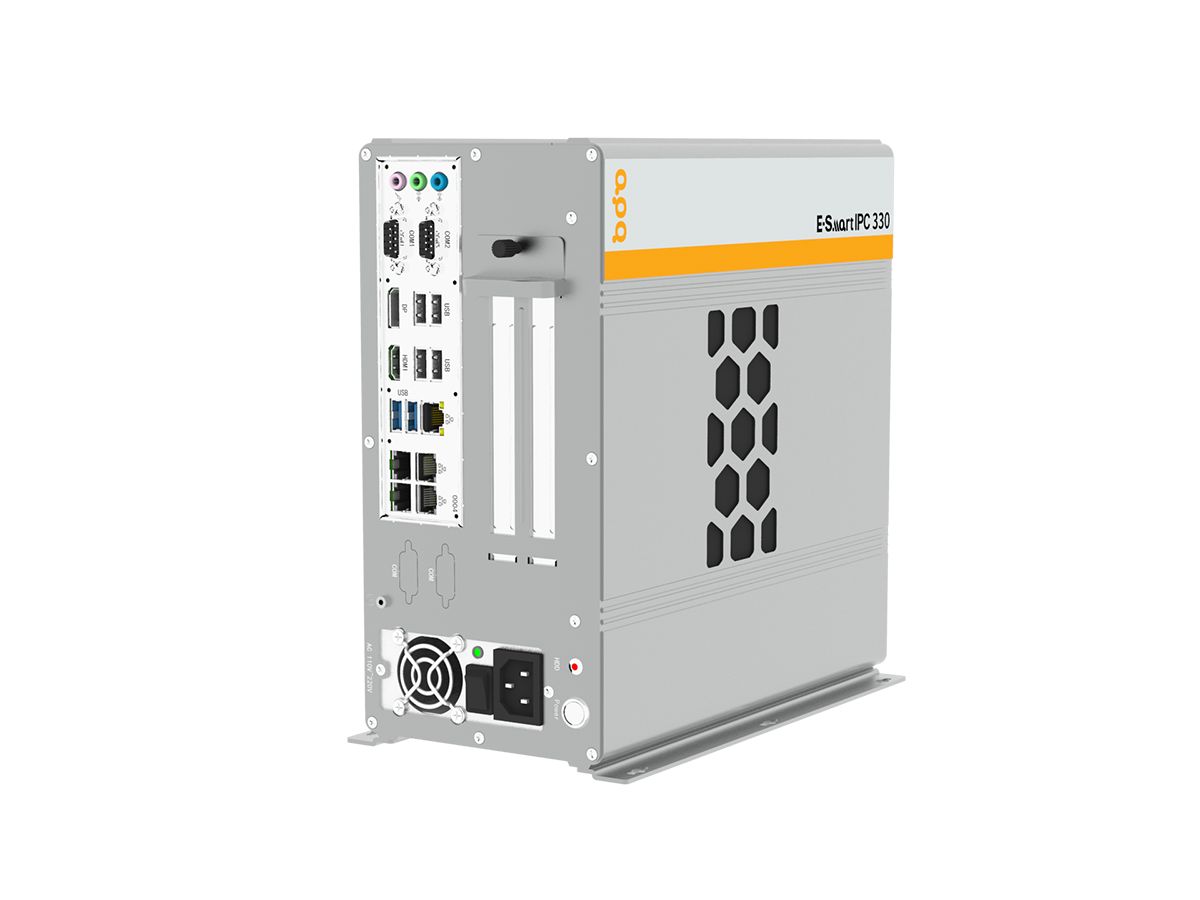

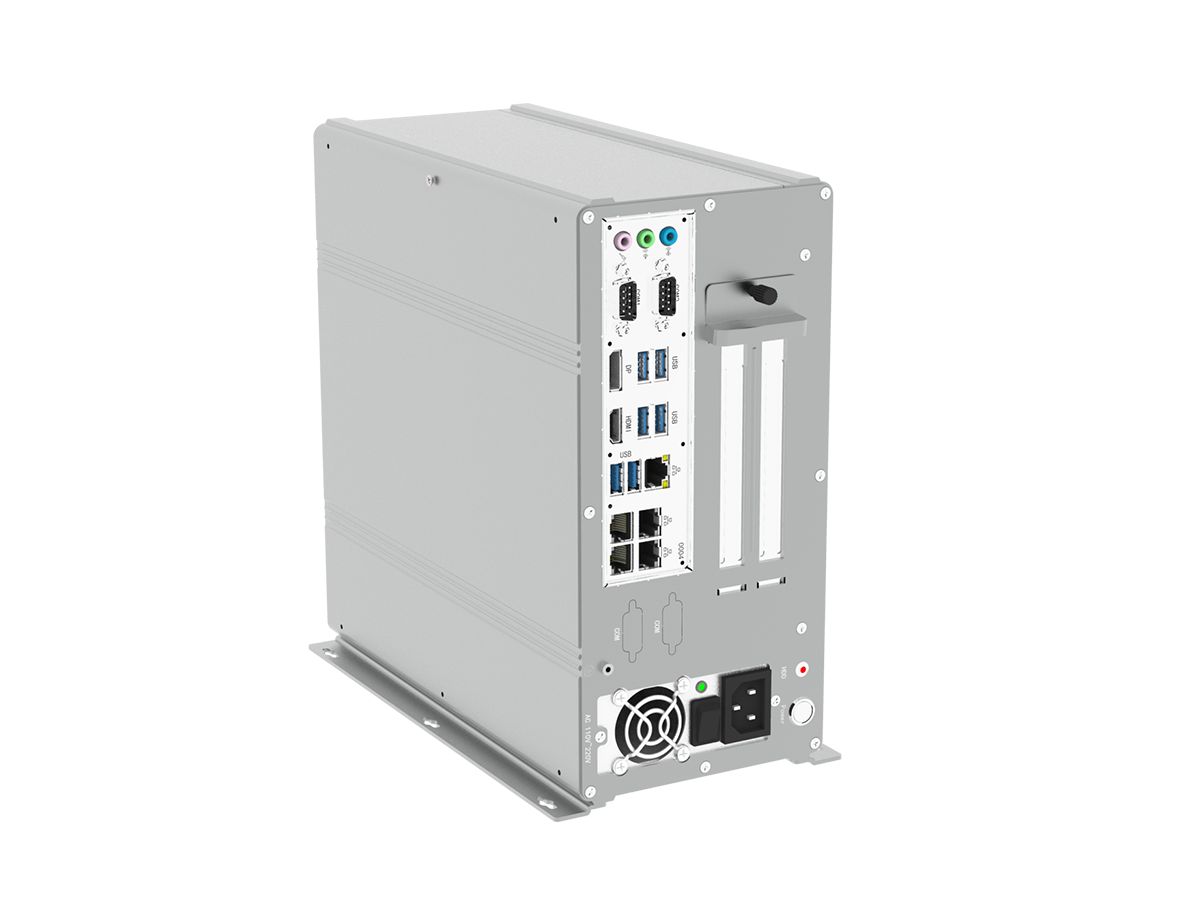

Front I/O

Ethernet  5 * RJ45
USB  4 * USB3.2 Gen 1x1 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A)
 2 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A)
Display  1 * DP: max resolution up to 3840*2160 @ 60Hz
 1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz
Audio  3 * 3.5mm Jack (Line-out + Line-in + MIC)
Serial  2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Button  1 * Power Button
LED  1 * Power status LED
 1 * Hard drive status LED

Internal I/O

USB  2 * USB2.0 (Header)
COM  4 * RS232 (COM3/4/5/6, Header, Full Lanes)
Display  1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header)
Serial  4 * RS232 (COM3/4/5/6, Header)
GPIO  1 * 8 bits DIO (4xDI and 4xDO, wafer)
SATA  2* SATA 7P Connector
FAN  1 * CPU FAN (Header)
 1 * SYS FAN (Header)
Front Panel  1 * Front Panel (Header)

Power Supply

Type  1U FLEX
Power Input Voltage  AC power supply, voltage and frequency shall be based on the IU FLEX power supply provided
RTC Battery  CR2032 Coin Cell

OS Support

Windows  6/7th Core™: Windows 7/10/11
 8/9th Core™: Windows 10/11
Linux  Linux

Watchdog

Output  System Reset
Interval  Programmable 1 ~ 255 sec

Mechanical

Enclosure Material  SGCC+AI6061
Dimensions  266mm * 127mm * 268mm
Mounting  Wall mounted, Desktop

Environment

Heat Dissipation System  PWM fan cooling
Operating Temperature  0 ~ 60℃
Storage Temperature  -20 ~ 75℃
Relative Humidity  10 to 95% RH (non-condensing)

IPC330D-H31CL5_SpecSheet(APQ)_CN_20231224
