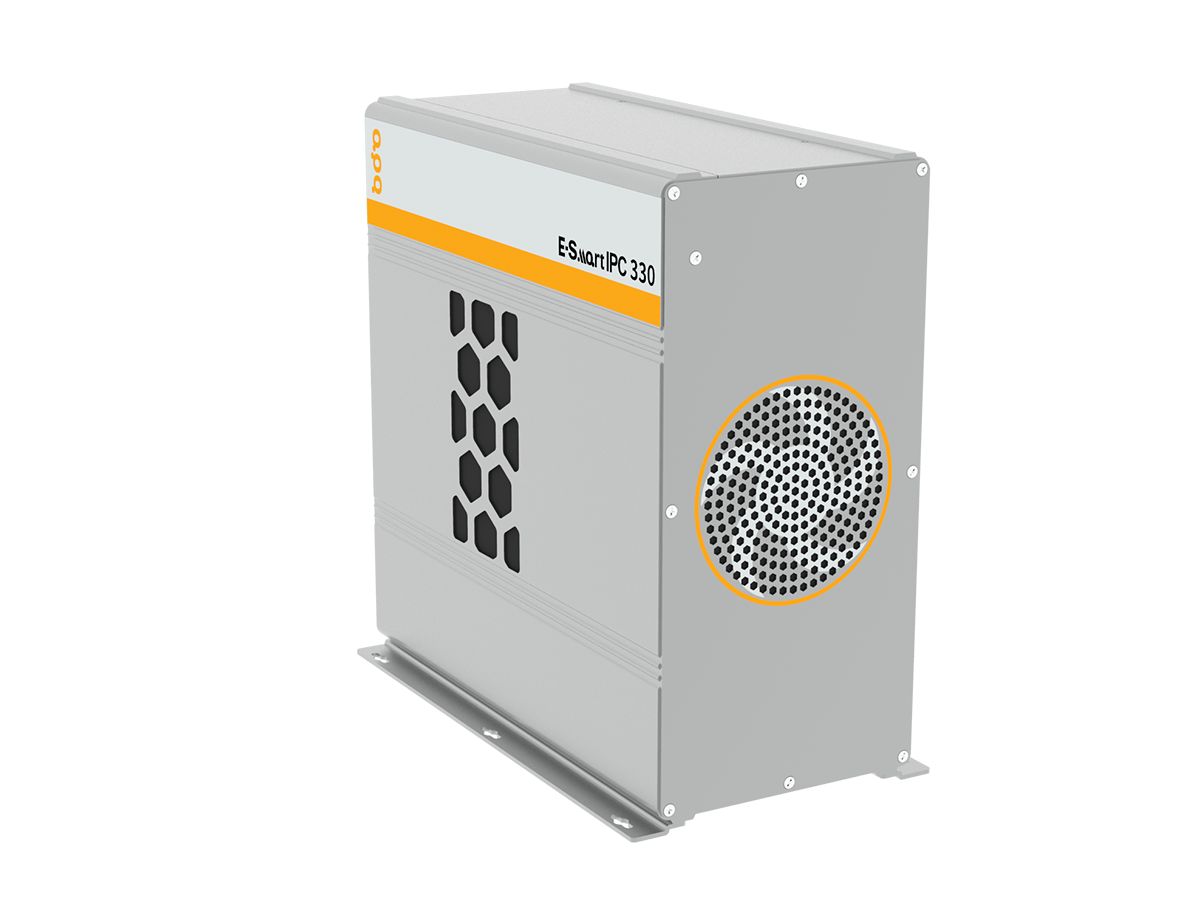

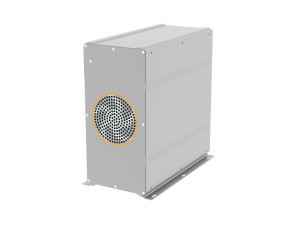

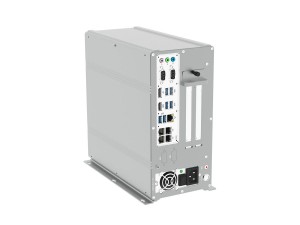

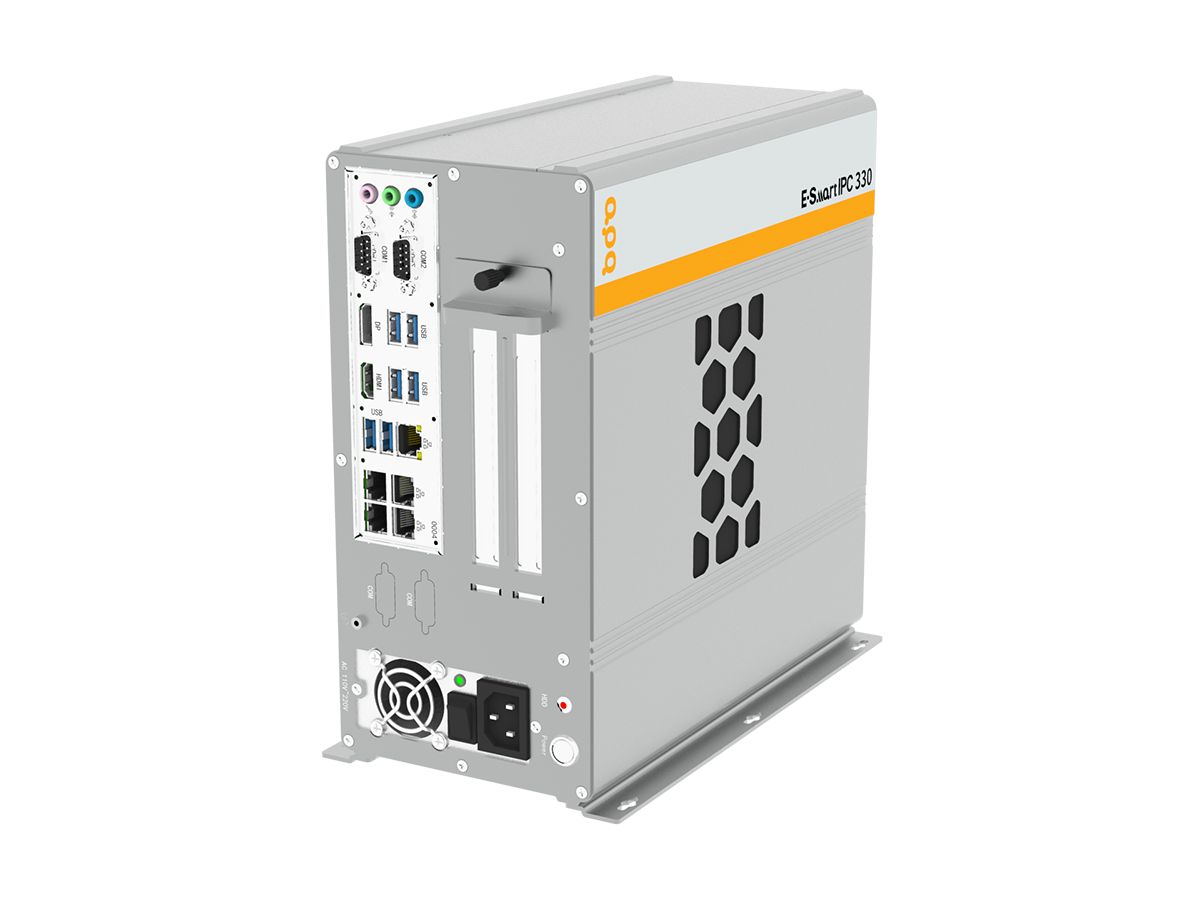

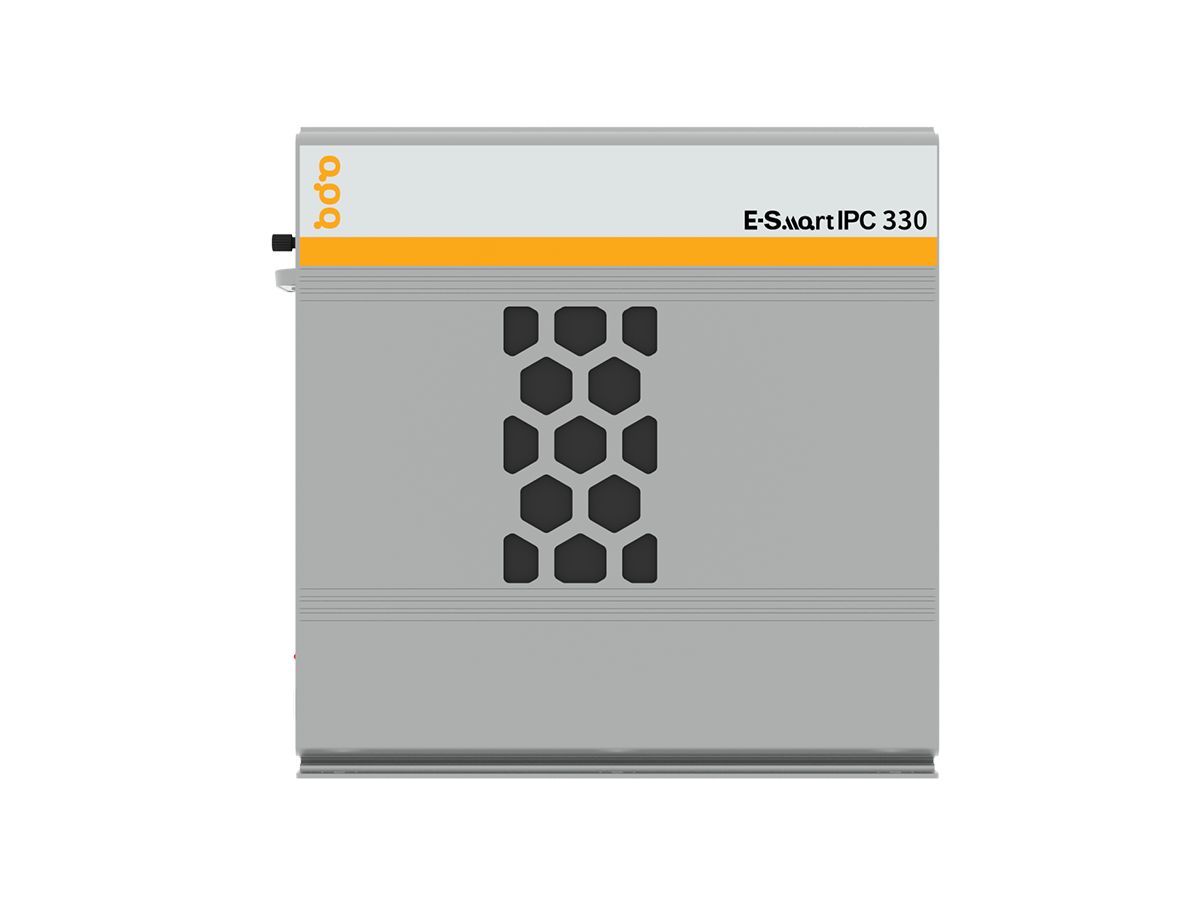

IPC330D-H81L5 Wall Mounted Industrial Computer

IPC330D-H81L5 Wall Mounted Industrial Computer


  • Aluminum alloy mold forming

  • Supports Intel® 4th/5th Generation Core/Pentium/Celeron Desktop CPU
  • Installs standard ITX motherboard, supports standard 1U power supply
  • Optional adapter card, supports 2PCI or 1PCIe X16 expansion
  • Default design includes one 2.5-inch 7mm shock and impact-resistant hard drive bay
  • Front panel power switch design, power and storage status display, easier for system maintenance

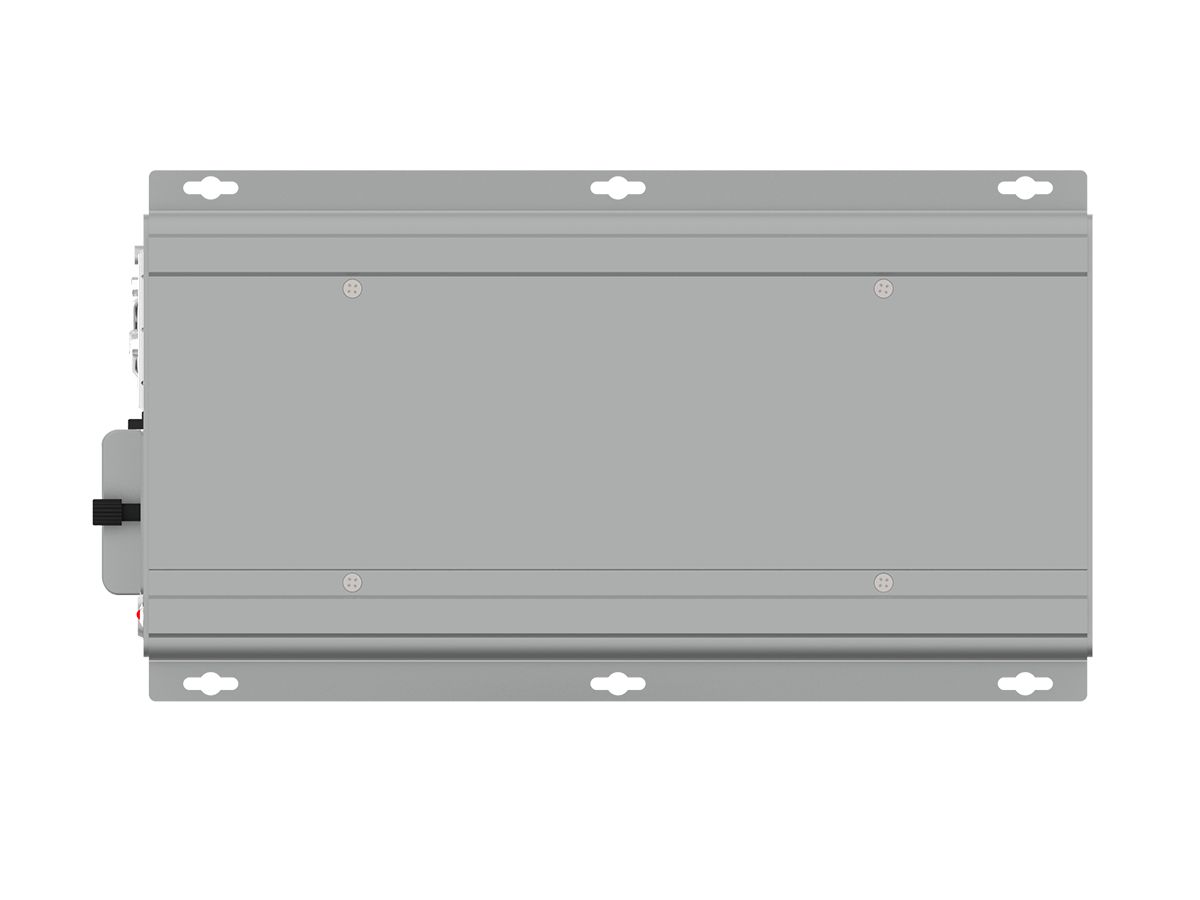

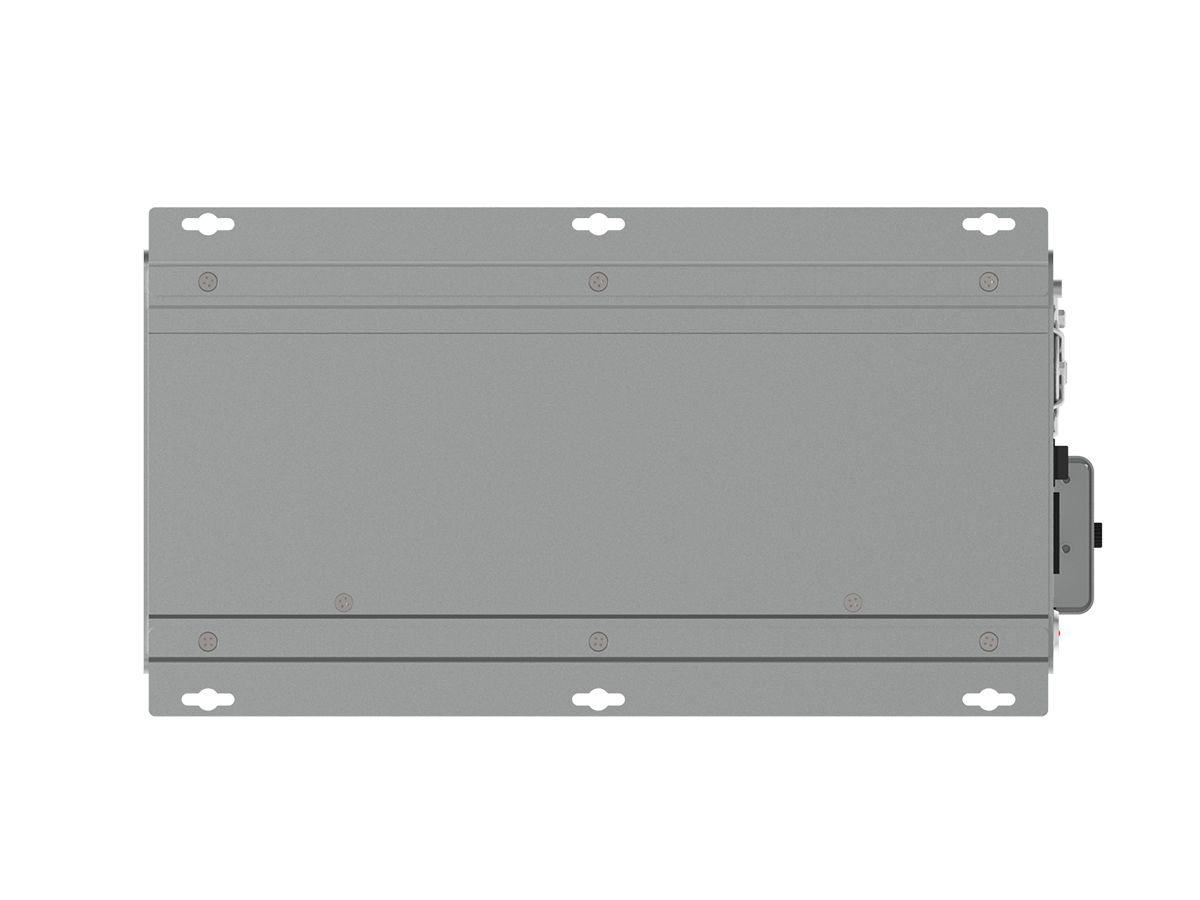

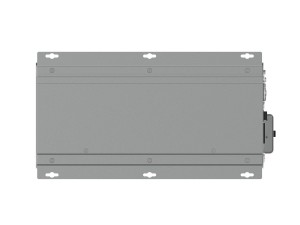

  • Supports multi-directional wall-mounted and desktop installations

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control


The APQ wall-mounted industrial PC IPC330D-H81L5 is a high-performance computer designed specifically for industrial environments. Made with aluminum alloy mold forming, it features stable performance and a durable casing, making it highly suitable for applications within the industrial sector. This industrial PC supports Intel® 4th/5th Generation Core/Pentium/Celeron desktop CPUs, meeting a variety of industrial computing needs. It also supports a standard ITX motherboard and standard 1U power supply, ensuring reliable power support. The IPC330D-H81L5 offers optional adapter cards, supporting either 2 PCI or 1 PCIe X16 expansion to meet diverse expansion needs. The default design includes a 2.5-inch 7mm shock-resistant hard drive slot to protect the hard drive during operation. The front panel design includes a power switch and indicators for power and storage status, simplifying system maintenance. Additionally, this industrial PC supports versatile wall-mounted and desktop installations, meeting different installation requirements.

In summary, the APQ wall-mounted industrial PC IPC330D-H81L5, with its stable performance, rich expandability, and flexible installation options, is highly suitable for industrial control, automation equipment, and smart manufacturing fields. For more details or inquiries, feel free to consult our product advisors.


Engineering Drawing

File Download



Processor System

CPU  Support Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP  95W
Chipset  H81


Socket  2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Capacity  16GB, Single Max. 8GB


Controller  4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket)
 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)


SATA  1 * SATA3.0 7P Connector, up to 600MB/s
 1 * SATA2.0 7P Connector, up to 300MB/s
mSATA  1 * mSATA (SATA3.0, Share slot with Mini PCIe, default)

Expansion Slots

PCIe  1 * PCIe x16 slot (Gen 2, x16 signal)
Mini PCIe  1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with mSATA, Opt.)

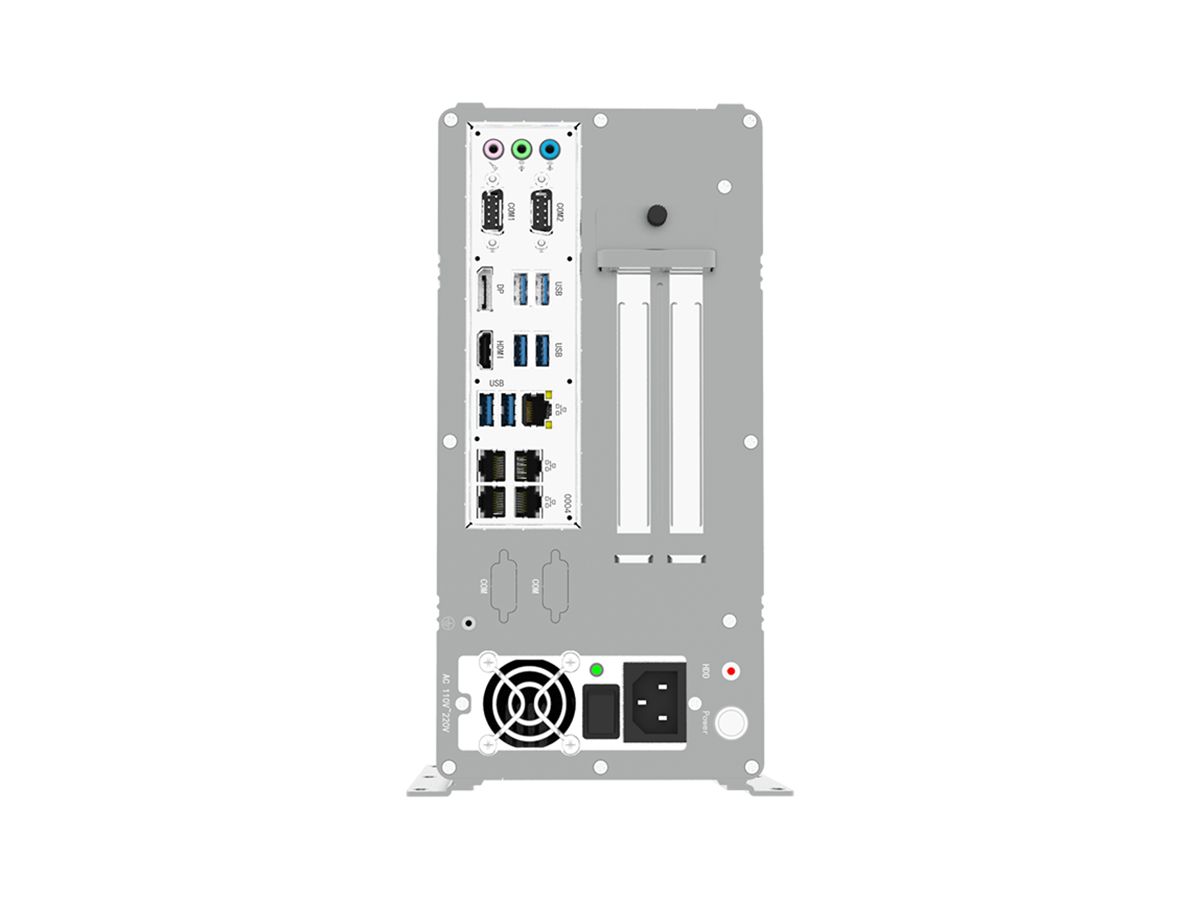

Front I/O

Ethernet  5 * RJ45
USB  2 * USB3.0 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A)
 4 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A)
Display  1 * DP: max resolution up to 3840*2160 @ 60Hz
 1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz
Audio  3 * 3.5mm Jack (Line-out + Line-in + MIC)
Serial  2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
Button  1 * Power Button
LED  1 * Power status LED
 1 * Hard drive status LED
Power Supply Power Input Voltage  AC power supply, voltage and frequency shall be based on the 1U FLEX power supply provided
OS Support Windows  Windows 7/10/11
Linux  Linux
Mechanical Dimensions  266mm * 127mm * 268mm
Environment Operating Temperature  0 ~ 60℃
Storage Temperature  -20 ~ 75℃
Relative Humidity  10 to 95% RH (non-condensing)
