MIT-H31C Industrial Motherboard

MIT-H31C Industrial Motherboard


  • Supports Intel® 6th to 9th Gen Core / Pentium / Celeron processors, TDP=65W

  • Equipped with the Intel® H310C chipset
  • 2 (Non-ECC) DDR4-2666MHz memory slots, supporting up to 64GB
  • Onboard 5 Intel Gigabit network cards, with an option to support 4 PoE (IEEE 802.3AT)
  • Default 2 RS232/422/485 and 4 RS232 serial ports
  • Onboard 4 USB3.2 and 4 USB2.0 ports
  • HDMI, DP, and eDP display interfaces, supporting up to 4K@60Hz resolution
  • 1 PCIe x16 slot

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Mini-ITX motherboard MIT-H31C is designed for compactness and high performance. It supports Intel® 6th to 9th Gen Core/Pentium/Celeron processors, offering stable and efficient performance to meet diverse computing needs. Featuring the Intel® H310C chipset, it perfectly integrates with the latest processor technologies, ensuring exceptional stability and compatibility. The motherboard is equipped with two DDR4-2666MHz memory slots, supporting up to 64GB of memory, providing ample resources for multitasking operations. With five onboard Intel Gigabit network cards, it guarantees high-speed, stable network transmissions. Additionally, it supports four PoE (Power over Ethernet) interfaces, enabling power supply to devices via Ethernet for more convenient remote deployment and management. In terms of expandability, the MIT-H31C offers two USB3.2 and four USB2.0 interfaces to meet the connection needs of various USB devices. Moreover, it comes with HDMI, DP, and eDP display interfaces, supporting multiple monitor connections with resolutions up to 4K@60Hz, delivering clear and smooth visual experiences to users.

In summary, with its robust processor support, high-speed memory and network connections, extensive expansion slots, and superior expandability, the APQ Mini-ITX motherboard MIT-H31C stands as an ideal choice for compact high-performance applications.

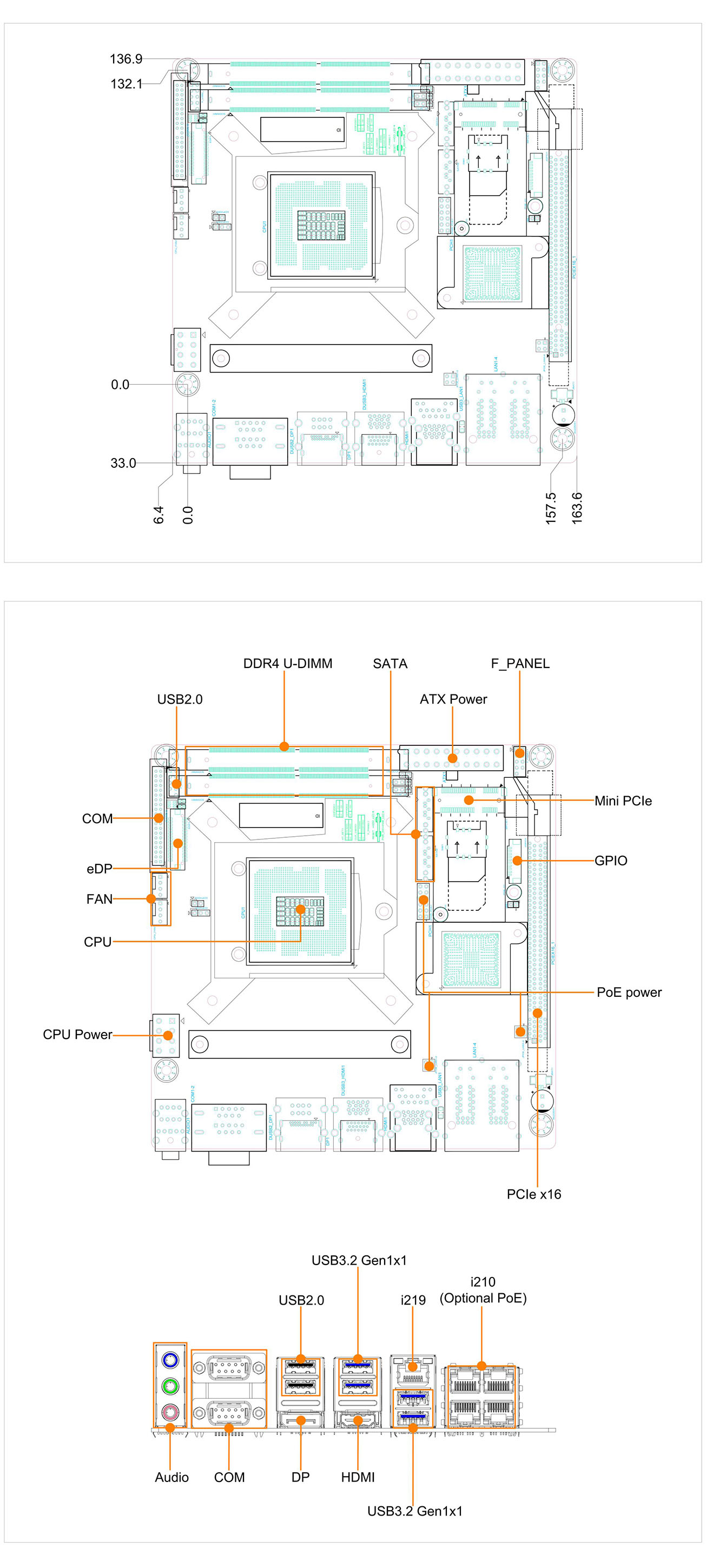

Engineering Drawing

File Download

Model MIT-H31C
ProcessorSystem CPU Support Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
Chipset H310C
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz
Capacity 64GB, Single Max. 32GB
Ethernet Controller 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 2 * SATA3.0 7P Connector, up to 600MB/s
mSATA 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default)
Expansion Slots PCIe slot 1 * PCIe x16 slot (Gen 3, x16 signal)
Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with Msat, Opt.)
OS Support Windows 6/7th Core™: Windows 7/10/118/9th Core™: Windows 10/11
Linux Linux
Mechanical Dimensions 170 x 170 mm (6.7" x 6.7")
Environment Operating Temperature -20 ~ 60℃ (Industrial SSD)
Storage Temperature -40 ~ 80℃ (Industrial SSD)
Relative Humidity 10 to 95% RH (non-condensing)
