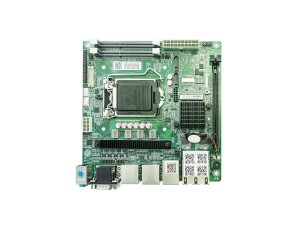

MIT-H81 Industrial Motherboard
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description
The APQ Mini-ITX motherboard MIT-H81 is a fully-featured and highly expandable motherboard designed to meet a wide range of application needs. It supports Intel® 4th/5th Gen Core/Pentium/Celeron processors, delivering efficient processing capabilities. Utilizing the Intel® H81 chipset, it ensures outstanding stability and compatibility. The motherboard is equipped with two DDR3-1600MHz memory slots, supporting up to 16GB of memory, providing ample resources for multitasking operations. It features five onboard Intel Gigabit network cards, with an option for four PoE interfaces, ensuring high-speed and stable network transmissions. By default, it comes with two RS232/422/485 and four RS232 serial ports, facilitating the connection to a variety of devices. It offers two USB3.0 and six USB2.0 ports to meet the connectivity needs of various devices. Additionally, the motherboard has HDMI, DP, and eDP display interfaces, supporting multiple monitor connections with resolutions up to 4K@24Hz. Furthermore, it includes one PCIe x16 slot, making it easy to expand with various PCI/PCIe devices.
In summary, the APQ Mini-ITX motherboard MIT-H81 is a high-performance motherboard suitable for various application scenarios, featuring robust processor support, high-speed memory and network connections, extensive expansion slots, and superior expandability. Whether used in industrial control, automation equipment, or other specialized applications, it provides stable and efficient support.
| Model | MIT-H81 | |
| Processor
System |
CPU | Support Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
| Graphics | Controller | Intel® HD Graphics |
| Ethernet | Controller | 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
| Storage | SATA | 1 * SATA3.0 7P Connector, up to 600MB/s
1 * SATA2.0 7P Connector, up to 300MB/s |
| mSATA | 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
| Expansion Slots | PCIe slot | 1 * PCIe x16 slot (Gen 2, x16 signal) |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with mSATA, Opt.) | |
| Rear I/O | Ethernet | 5 * RJ45 |
| USB | 2 * USB3.0 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A)
4 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) |
|
| Display | 1 * DP: max resolution up to 3840*2160 @ 60Hz
1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Internal I/O | USB | 2 * USB2.0 (Header) |
| Display | 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 1 * SATA3.0 7P Connector
1 * SATA2.0 7P Connector |
|
| FAN | 1 * CPU FAN (Header)
1 * SYS FAN (Header) |
|
| Front Panel | 1 * Front Panel (Header) | |
| Power Supply | Type | ATX |
| Connector | 1 * 8P 12V Power (Header)
1 * 24P Power (Header) |
|
| OS Support | Windows | Windows 7/10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |

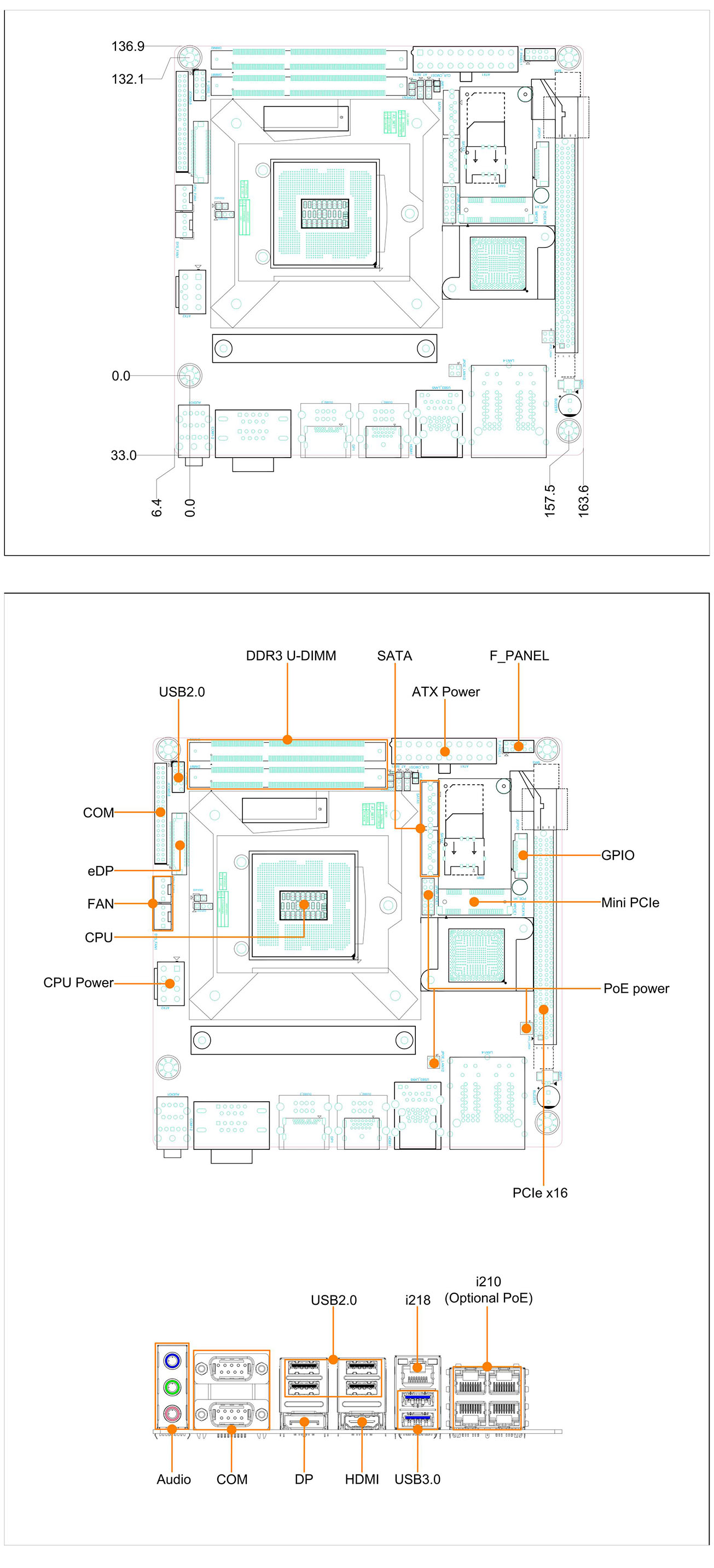

| Mechanical | Dimensions | 170 x 170 mm (6.7" x 6.7") |
| Environment | Operating Temperature | -20 ~ 60℃ (Industrial SSD) |
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
