PANEL PCs APQ PLxxxCQ-E5S
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description

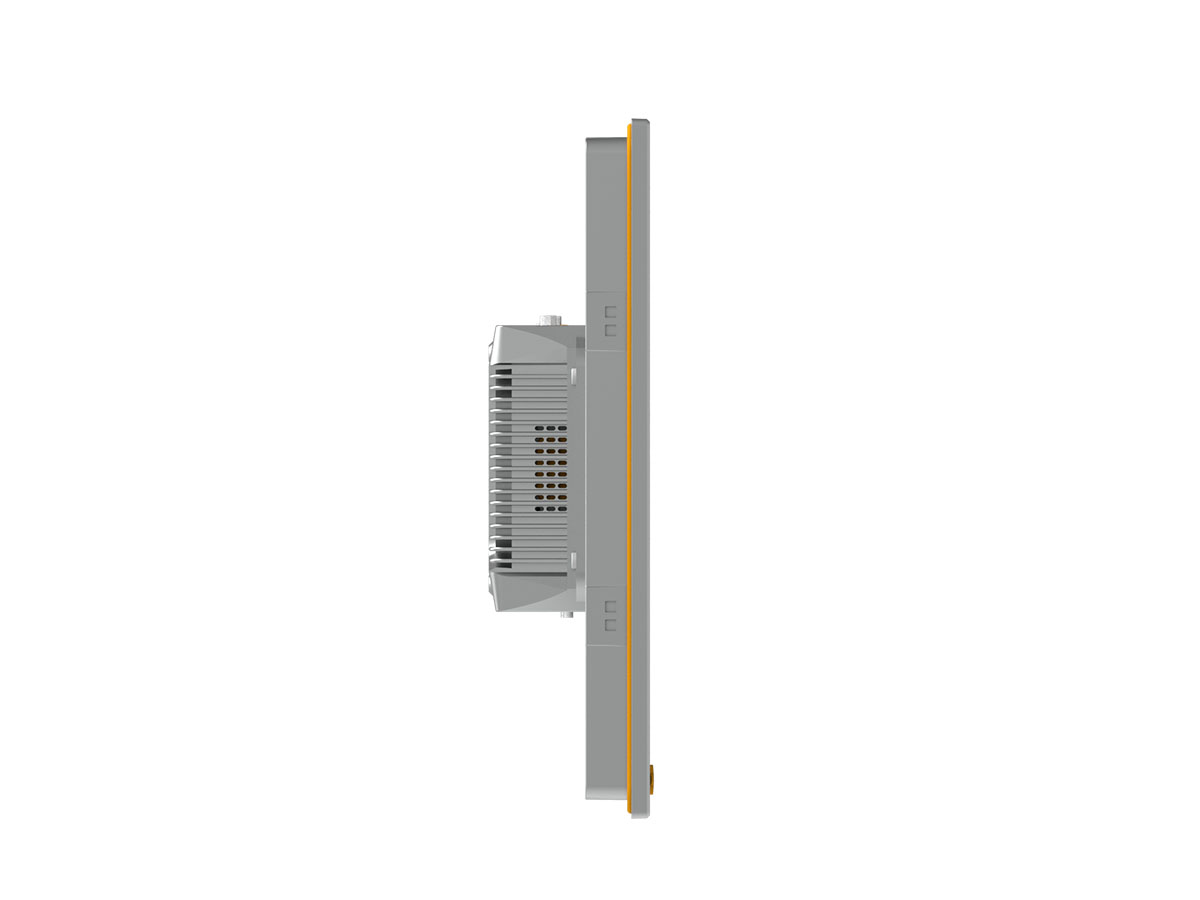

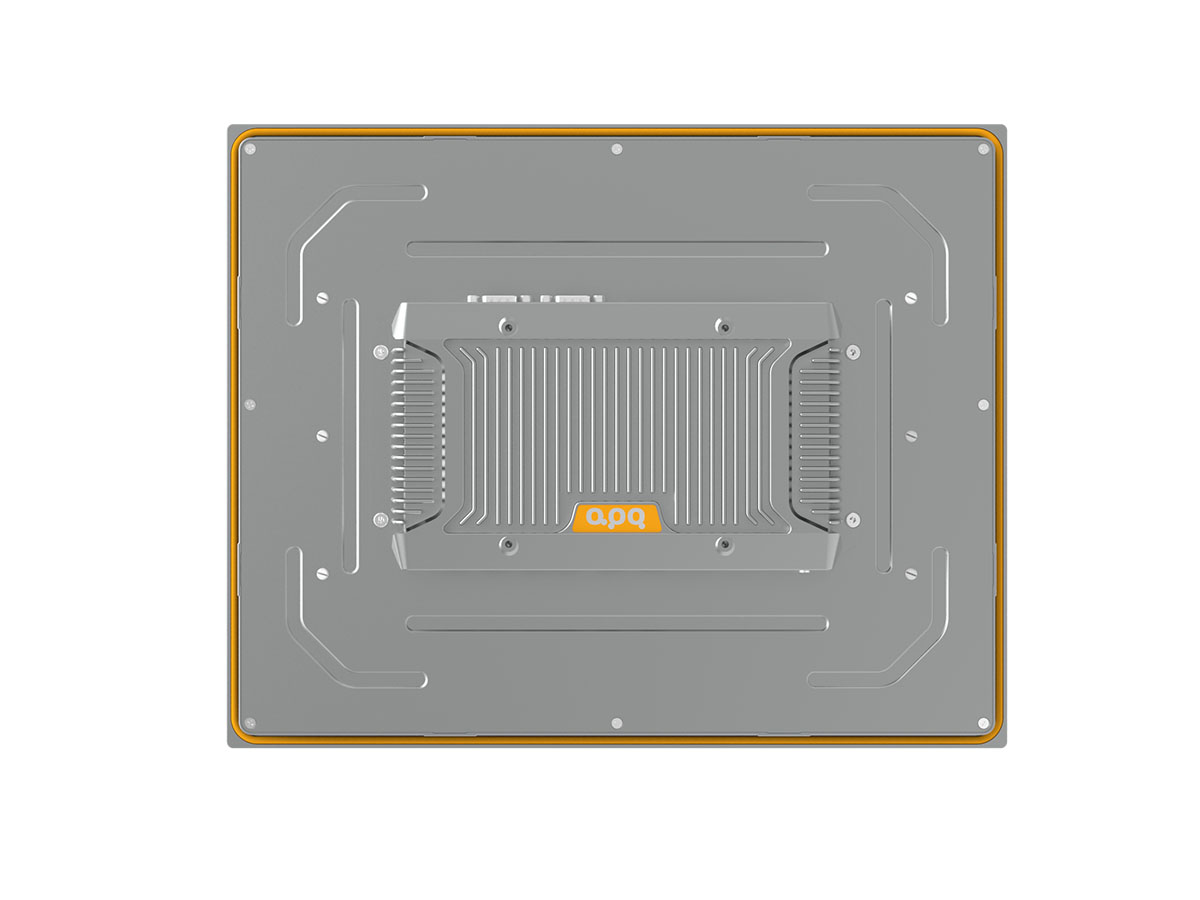

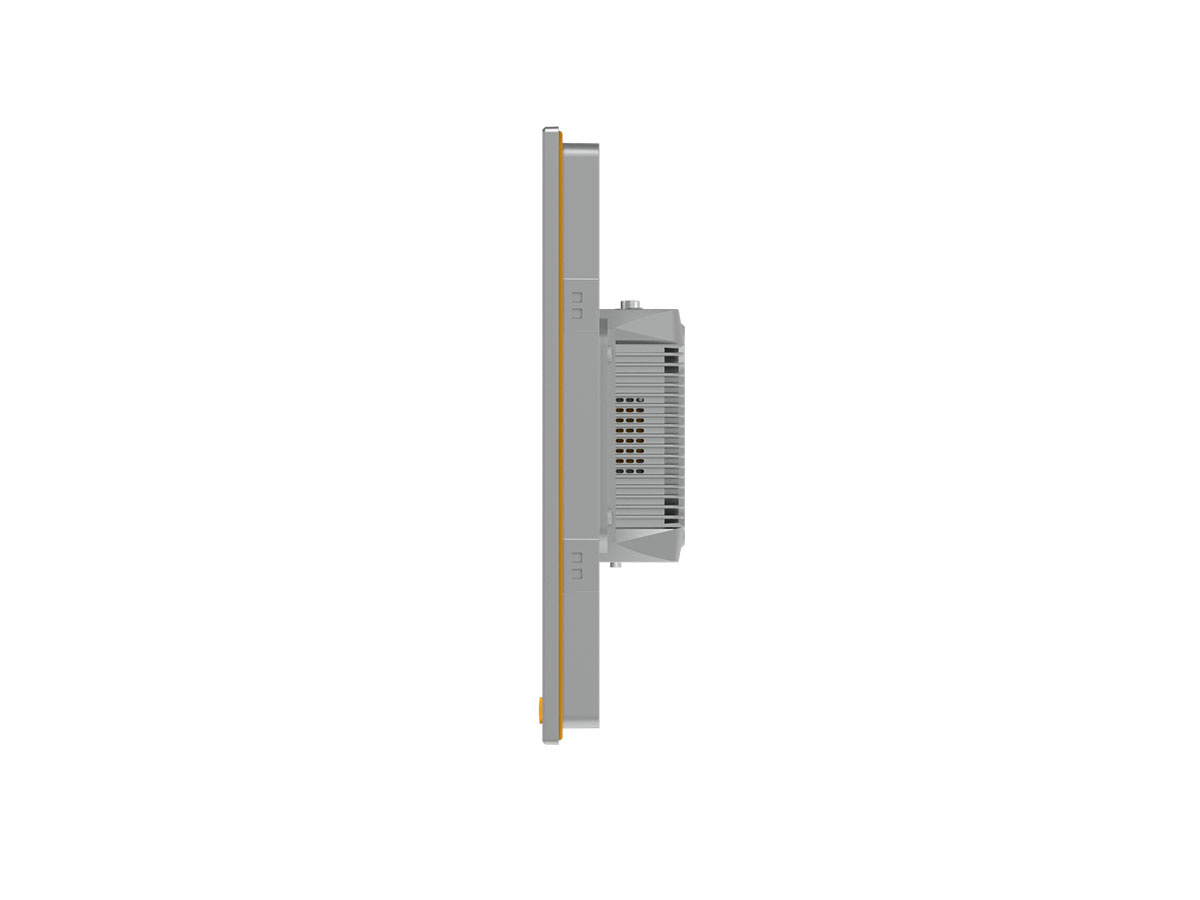

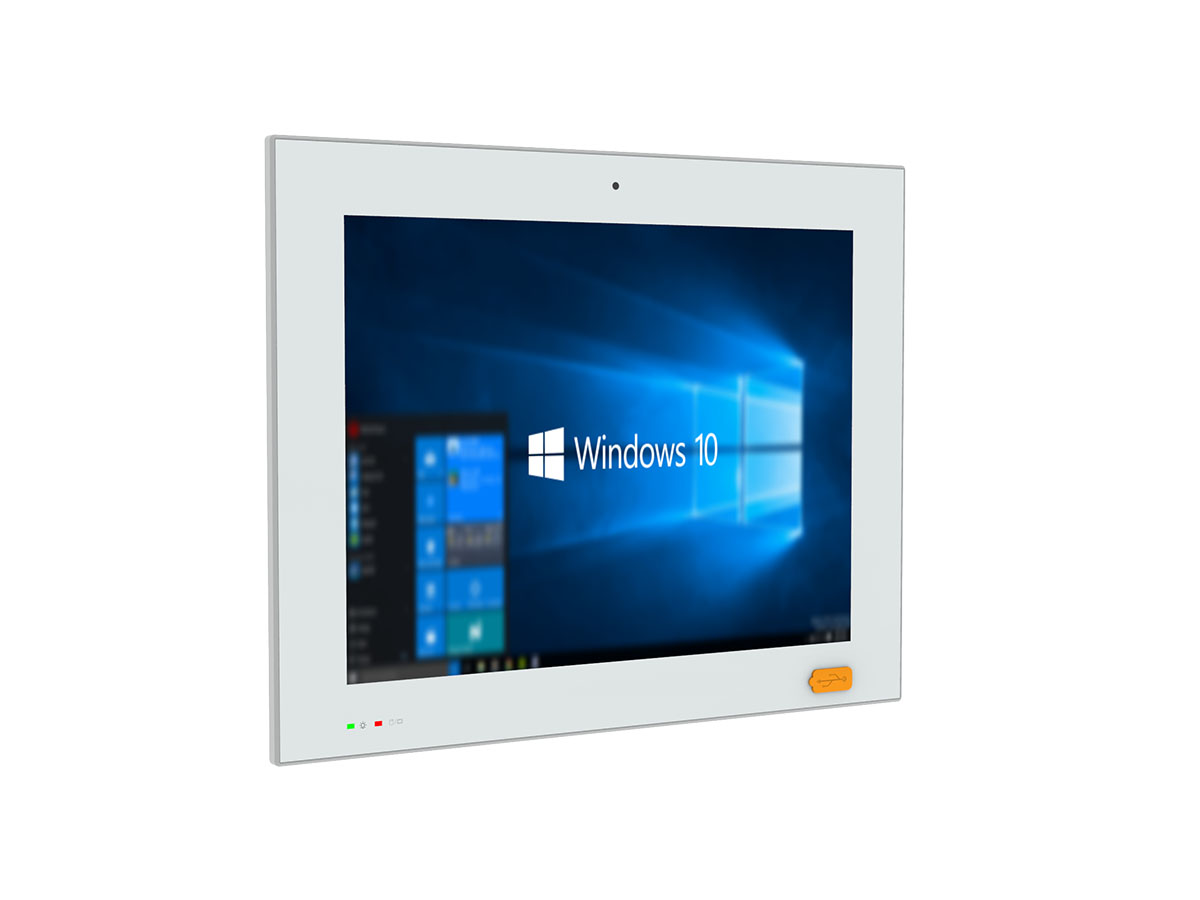

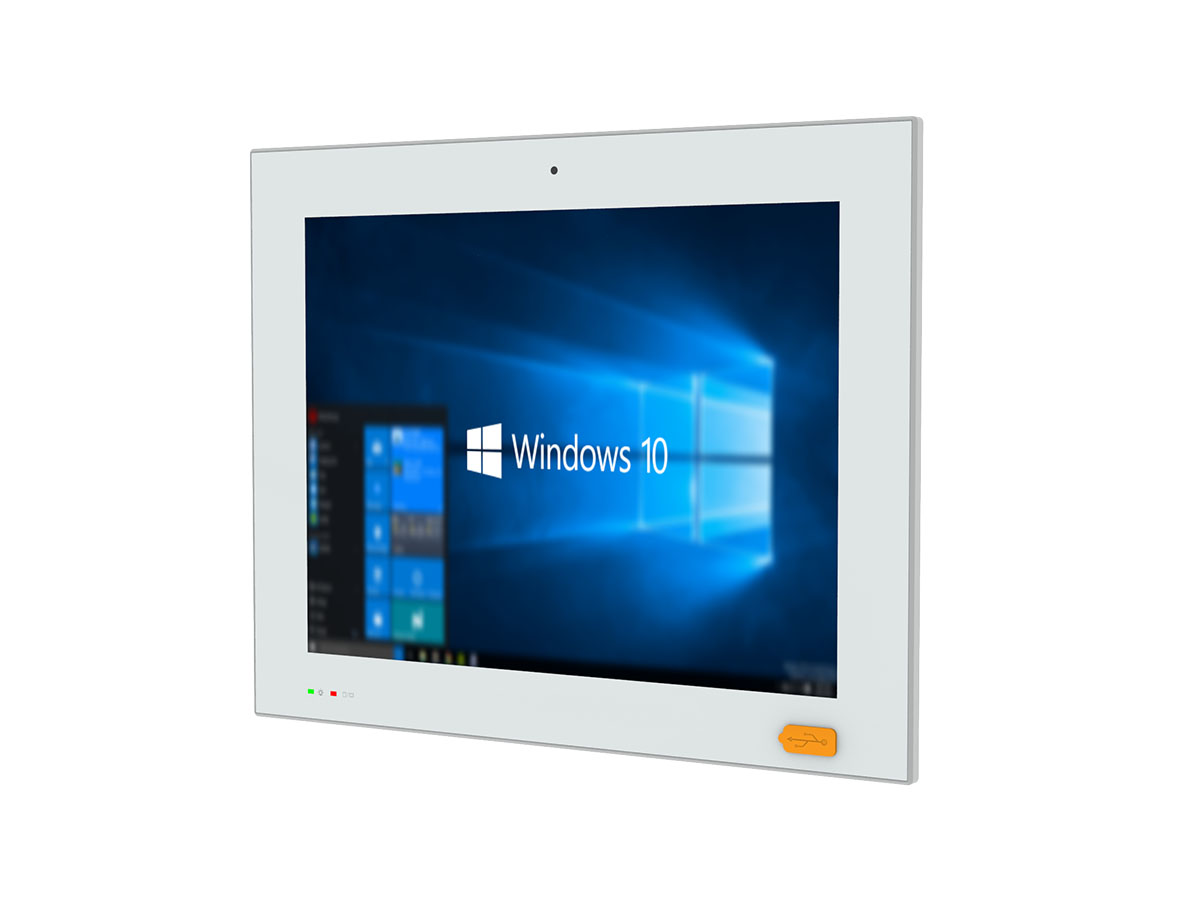

The APQ full-screen capacitive touch screen industrial all-in-one machine PLxxxCQ-E5S series is a powerful industrial all-in-one machine designed specifically for industrial applications. The full-screen capacitive touch screen technology provides a smooth and accurate touch experience. With a modular design, the size can be selected according to application requirements, supporting screen sizes ranging from 10.1 to 27 inches. It supports both square and widescreen displays, adapting to different industry standards and user needs. The front panel meets IP65 requirements, enabling it to adapt to various harsh industrial environments. It uses Intel J6412/N95/N97/N305 low-power CPUs, ensuring efficient performance while reducing energy consumption. It integrates dual Intel® Gigabit Ethernet cards, providing high-speed and stable network connectivity and data transmission capabilities. This series of industrial all-in-one machines supports dual hard disk storage to meet various data storage needs, and also supports APQ aDoor module expansion for customized configurations based on specific application requirements. It supports WiFi/4G wireless expansion for convenient remote management and data transmission, enabling flexible network connectivity. Additionally, it adopts a fanless design to improve system reliability. In terms of installation, it supports embedded and VESA installation methods, facilitating integration into various industrial environments. It operates with 12~28V DC power supply, adapting to a wide range of power environments.
In summary, the APQ full-screen capacitive touch screen industrial all-in-one machine PLxxxCQ-E5S series boasts a wealth of functions and excellent performance, bolstering the advancement of industrial automation.
|
Model |
PL101CQ-E5S |
PL104CQ-E5S |
PL121CQ-E5S |
PL150CQ-E5S |
PL156CQ-E5S |
PL170CQ-E5S |
PL185CQ-E5S |
PL191CQ-E5S |
PL215CQ-E5S |
PL238CQ -E5S |
PL270CQ -E5S |
||||
|
LCD |
Display Size |
10.1" |
10.4" |
12.1" |
15.0" |
15.6" |
17.0" |
18.5" |
19.0" |
21.5" |
23.8" |
27.0" |
|||
|
Display Type |
WXGA TFT-LCD |
XGA TFT-LCD |
XGA TFT-LCD |
XGA TFT-LCD |
FHD TFT-LCD |
SXGA TFT-LCD |
WXGA TFT-LCD |
WXGA TFT-LCD |
FHD TFT-LCD |
FHD TFT-LCD |
FHD TFT-LCD |
||||
|
Max.Resolution |
1280 x 800 |
1024 x 768 |
1024 x 768 |
1024 x 768 |
1920 x 1080 |
1280 x 1024 |
1366 x 768 |
1440 x 900 |
1920 x 1080 |
1920 x 1080 |
1920 x 1080 |
||||
|
Luminance |
400 cd/m2 |
350 cd/m2 |
350 cd/m2 |
300 cd/m2 |
350 cd/m2 |
250 cd/m2 |
250 cd/m2 |
250 cd/m2 |
250 cd/m2 |
250 cd/m2 |
300 cd/m2 |
||||
|
Aspect Ratio |
16:10 |
4:3 |
4:3 |
4:3 |
16:9 |
5:4 |
16:9 |
16:10 |
16:9 |
16:9 |
16:9 |
||||
|
Viewing Angle |
89/89/89/89° |
88/88/88/88° |
80/80/80/80° |
88/88/88/88° |
89/89/89/89° |
85/85/80/80° |
89/89/89/89° |
85/85/80/80° |
89/89/89/89° |
89/89/89/89 |
89/89/89/89 |
||||
|
Max. Color |
16.7M |
16.2M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
||||
|
Backlight Lifetime |
20,000 hr |
50,000 hr |
30,000 hr |
70,000 hr |
50,000 hr |
30,000 hr |
30,000 hr |
30,000 hr |
50,000 hr |
30,000 hr |
30,000 hr |
||||
|
Contrast Ratio |
800:1 |
1000:1 |
800:1 |
2000:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
3000:1 |
||||
|
Touchscreen |
Touch Type |
Projected Capacitive Touch |
|||||||||||||
|
Controller |
USB Signal |
||||||||||||||
|
Input |
Finger/Capacitive Touch Pen |
||||||||||||||
|
Light Transmission |
≥85% |
||||||||||||||
|
Hardness |
≥6H |
||||||||||||||
|
Processor System |
CPU |
Intel® Elkhart Lake J6412 |
Intel® Alder Lake N95 |
Intel® Alder Lake N97 |
Intel® Alder Lake N305 |
||||||||||
|
Base Frequency |
2.00 GHz |
1.7 GHz |
2.0 GHz |
1 GHz |
|||||||||||
|
Max Turbo Frequency |
2.60 GHz |
3.40 GHz |
3.60 GHz |
3.8GHz |
|||||||||||
|
Cache |
1.5MB |
6MB |
6MB |
6MB |
|||||||||||
|
Total Cores/Threads |
4/4 |
4/4 |
4/4 |
8/8 |
|||||||||||
|
Chipset |
SOC |
||||||||||||||
|
BIOS |
AMI UEFI BIOS |
||||||||||||||
|
Memory |
Socket |
1 * DDR4-SODIMM, up to 3200MHz |
|||||||||||||
|
Capacity |
Max. 32GB |
||||||||||||||
|
Graphics |
Controller |
Intel® UHD Graphics |
|||||||||||||
|
Ethernet |
Controller |
2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) |
|||||||||||||
|
Storage |
SATA |
1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) |
|||||||||||||
|
M.2 |
1 * M.2 Key-M Slot (SATA SSD, 2280) |
||||||||||||||
|
Expansion Slots |
aDoor |
1 * aDoor |
|||||||||||||
|
Mini PCIe |
1 * Mini PCIe Slot (PCIe2.0x1+USB2.0) |
||||||||||||||
|

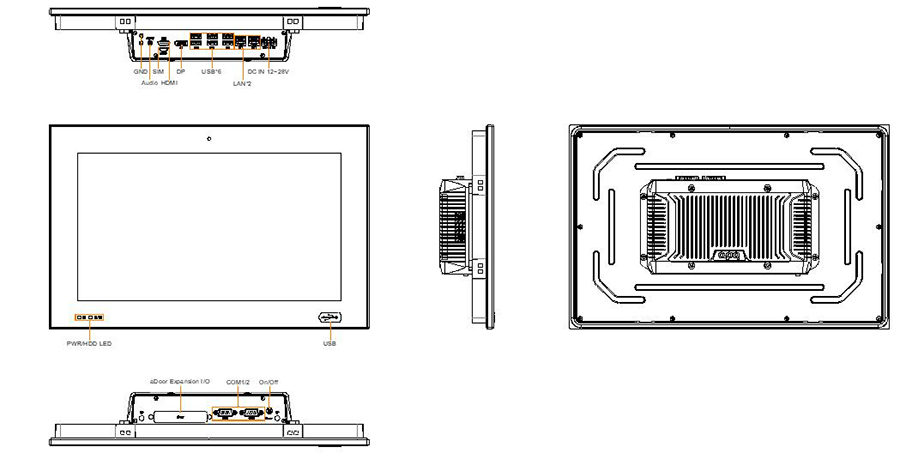

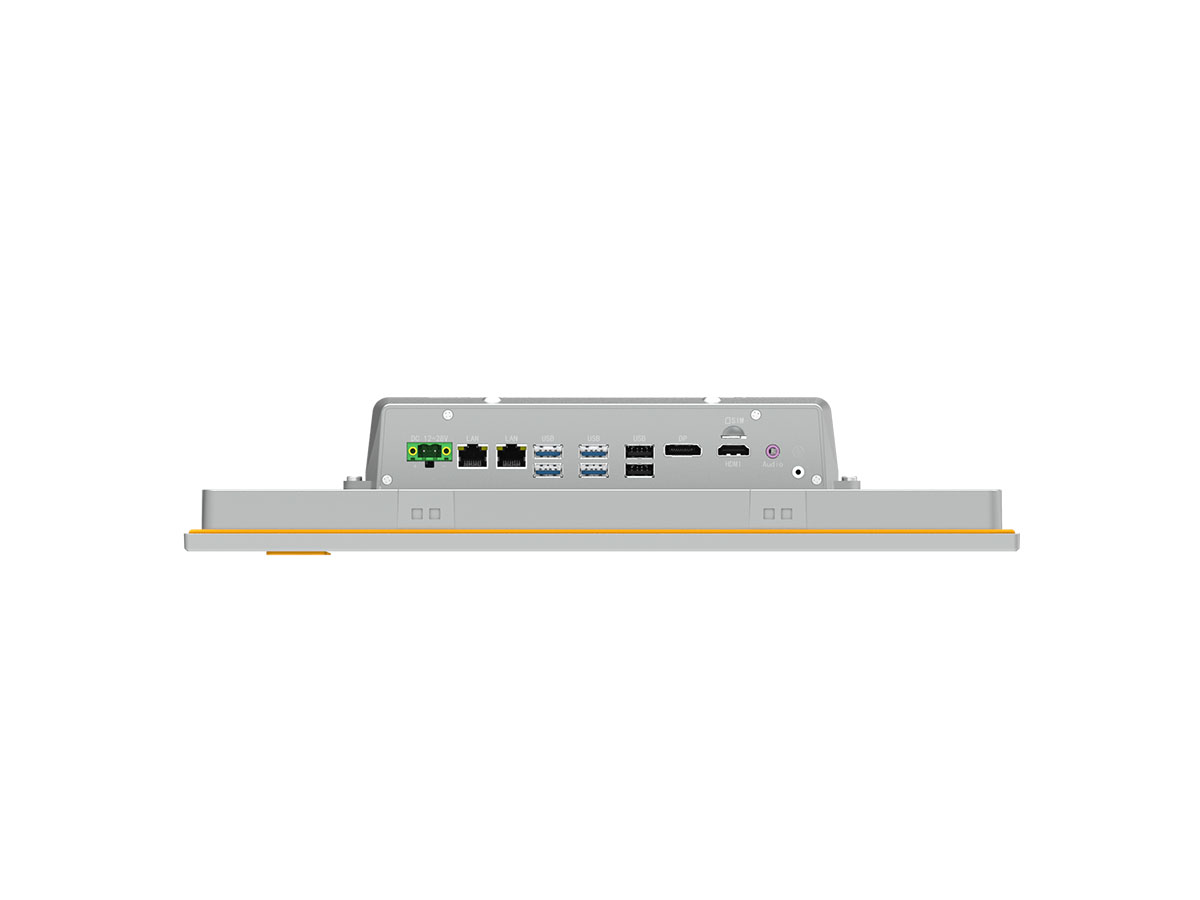

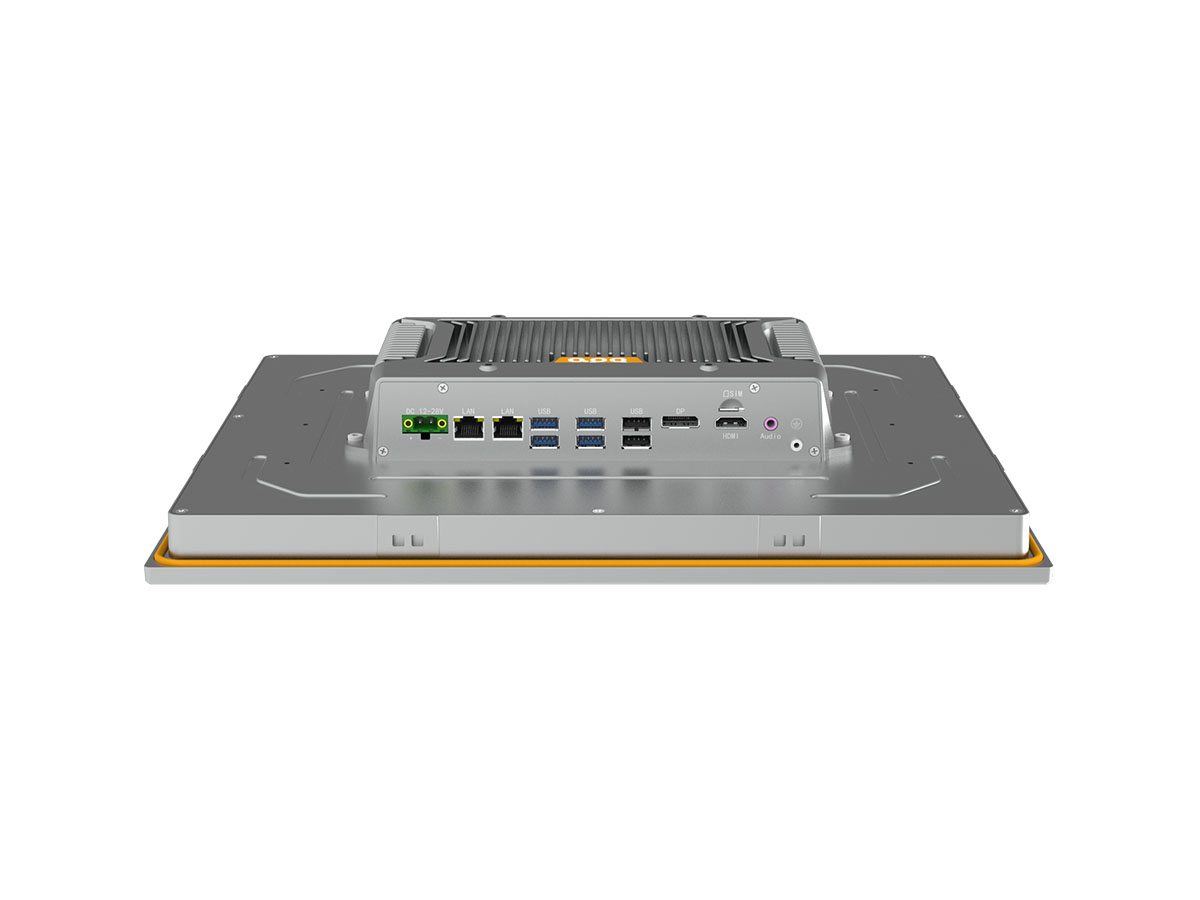

Front I/O |
USB |
4 * USB3.0 (Type-A) |
|||||||||||||
|
Ethernet |
2 * RJ45 |
||||||||||||||
|
Display |
1 * DP++: max resolution up to 4096x2160@60Hz |
||||||||||||||
|
Audio |
1 * 3.5mm Jack (Line-Out + MIC, CTIA) |
||||||||||||||
|
SIM |
1 * Nano-SIM Card slot (Mini PCIe module provides functional support) |
||||||||||||||
|
Power |
1 * Power Input Connector (12~28V) |
||||||||||||||
|

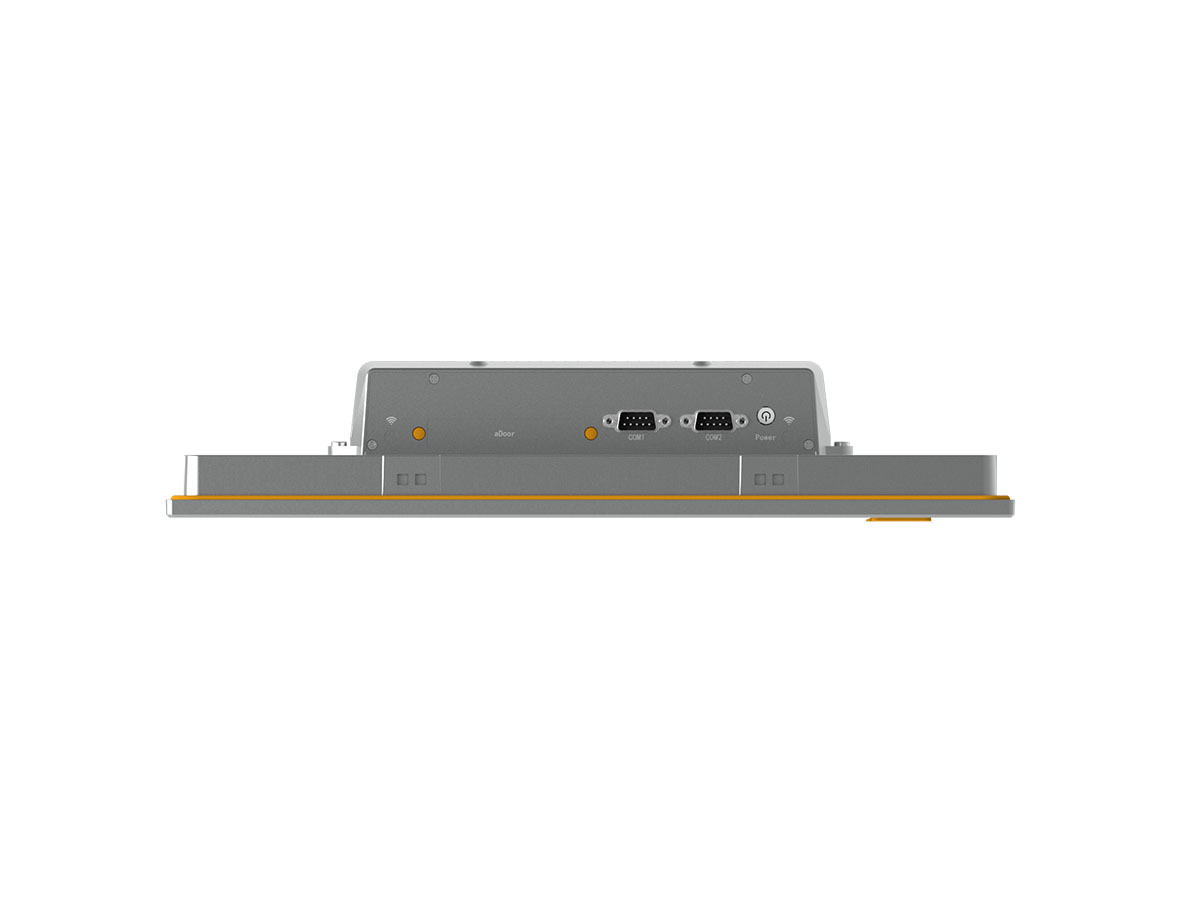

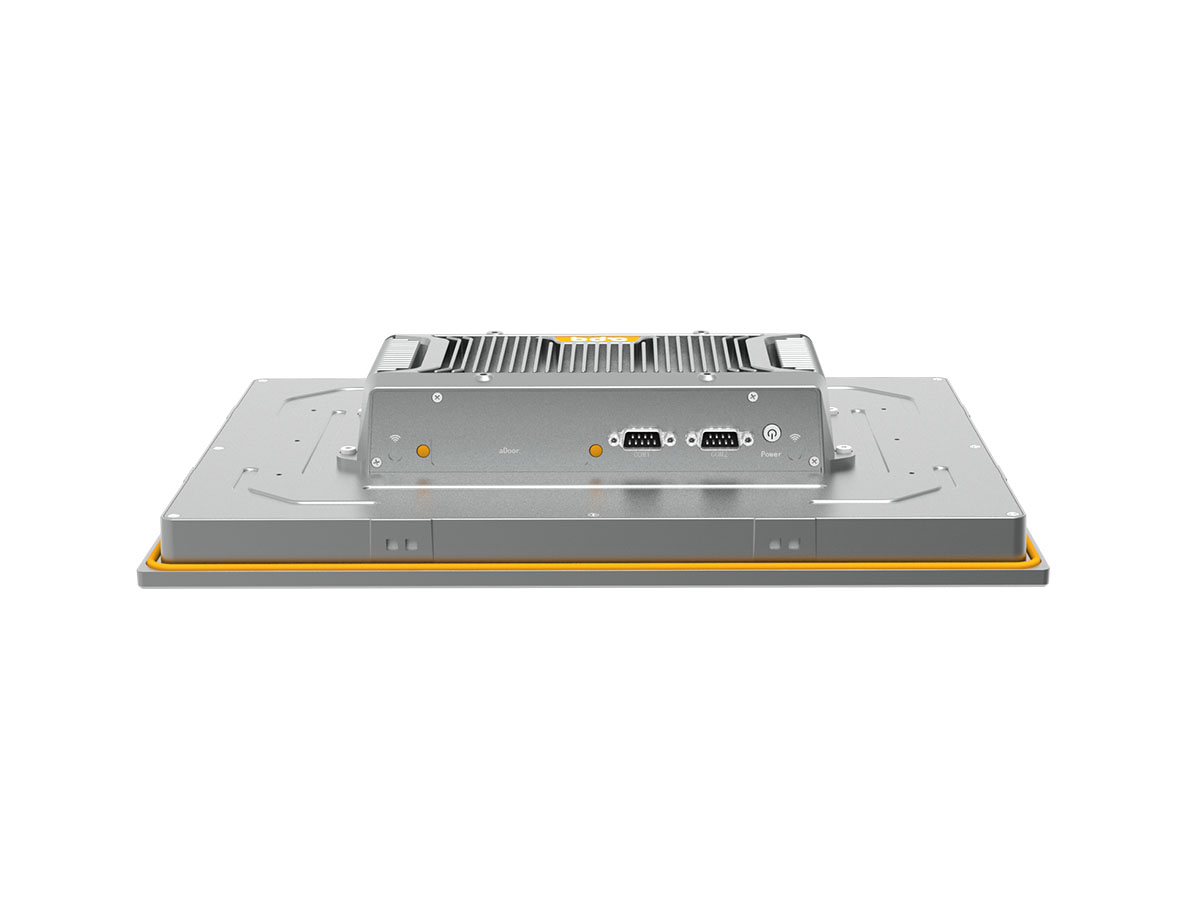

Rear I/O |
Button |
1 * Power Button with Power LED |
|||||||||||||
|
Serial |
2 * RS232/485 (COM1/2, DB9/M, BIOS control) |
||||||||||||||
|
Internal I/O |
Front Panel |
1 * Front Panel (3x2Pin, PHD2.0) |
|||||||||||||
|
FAN |
1 * SYS FAN (4x1Pin, MX1.25) |
||||||||||||||
|
Serial |
2 * COM (JCOM3/4, 5x2Pin, PHD2.0) |
||||||||||||||
|
USB |
2 * USB2.0 (F_USB2_TP, 5x2Pin, PHD2.0) |
||||||||||||||
|
Display |
1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) |
||||||||||||||
|
Audio |
1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) |
||||||||||||||
|
GPIO |
1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) |
||||||||||||||
|
LPC |
1 * LPC (8x2Pin, PHD2.0) |
||||||||||||||
|
Power Supply |
Type |
DC |
|||||||||||||
|
Power Input Voltage |
12~28VDC |
||||||||||||||
|
Connector |
1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) |
||||||||||||||
|
RTC Battery |
CR2032 Coin Cell |
||||||||||||||
|
OS Support |
Windows |
Windows 7/8.1/10 |
|||||||||||||
|
Linux |
Linux |
||||||||||||||
|
Watchdog |
Output |
System Reset |
|||||||||||||
|
Interval |
Programmable 1 ~ 255 sec |
||||||||||||||
|
Mechanical |
Enclosure Material |
Panel: Plastics, Radiator/Box: Aluminum, Cover: SGCC |
|||||||||||||
|
Mounting |
VESA, embedded |
||||||||||||||
|

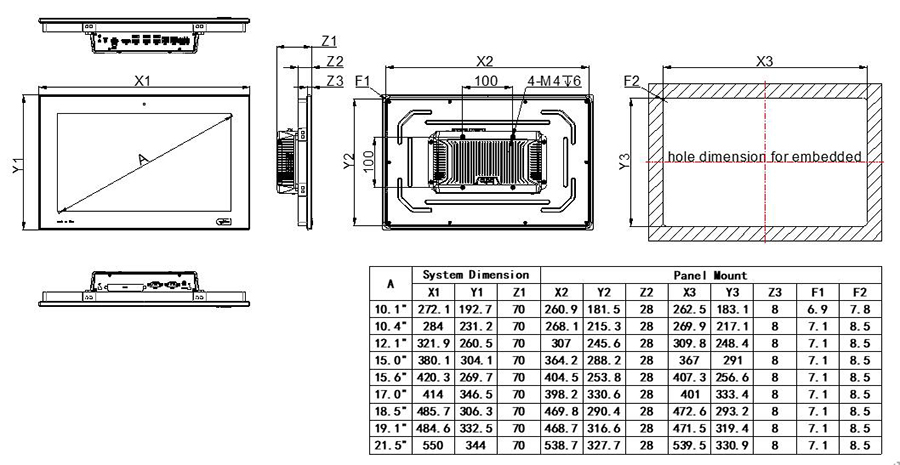

Dimensions |
272.1*192.7 *70 |
284* 231.2 *70 |
321.9* 260.5*70 |
380.1* 304.1*70 |
420.3* 269.7*70 |
414* 346.5*70 |
485.7* 306.3*70 |
484.6* 332.5*70 |
552.6* 344*70 |
586* 358.4*70 |
663.2* 401.8*70 |
||||
|
Weight |
Net: 2.9kg, |
Net: 3.0kg, |
Net: 3.2kg, |
Net: 4.6kg, |
Net: 4.5kg, |
Net: 5.2kg, |
Net: 5.2kg, |
Net: 5.9kg, |
Net: 6.2kg, |
Net: 7.6kg, |
Net: 8.7kg, |
||||
|
Environment |
Heat Dissipation System |
Passive heat dissipation |
|||||||||||||
|
Operating Temperature |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
0~50℃ |
0~50℃ |
0~50℃ |
0~60℃ |
0~50℃ |
0~50℃ |
||||
|
Storage Temperature |
-20~60℃ |
-20~70℃ |
-30~80℃ |
-30~70℃ |
-30~70℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
||||
|
Relative Humidity |
10 to 95% RH (non-condensing) |
||||||||||||||
|
Vibration During Operation |
With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) |
||||||||||||||
|
Shock During Operation |
With SSD: IEC 60068-2-27 (15G, half sine, 11ms) |
||||||||||||||
