PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC
  • PLCQ-E7S Industrial All-in-One PC

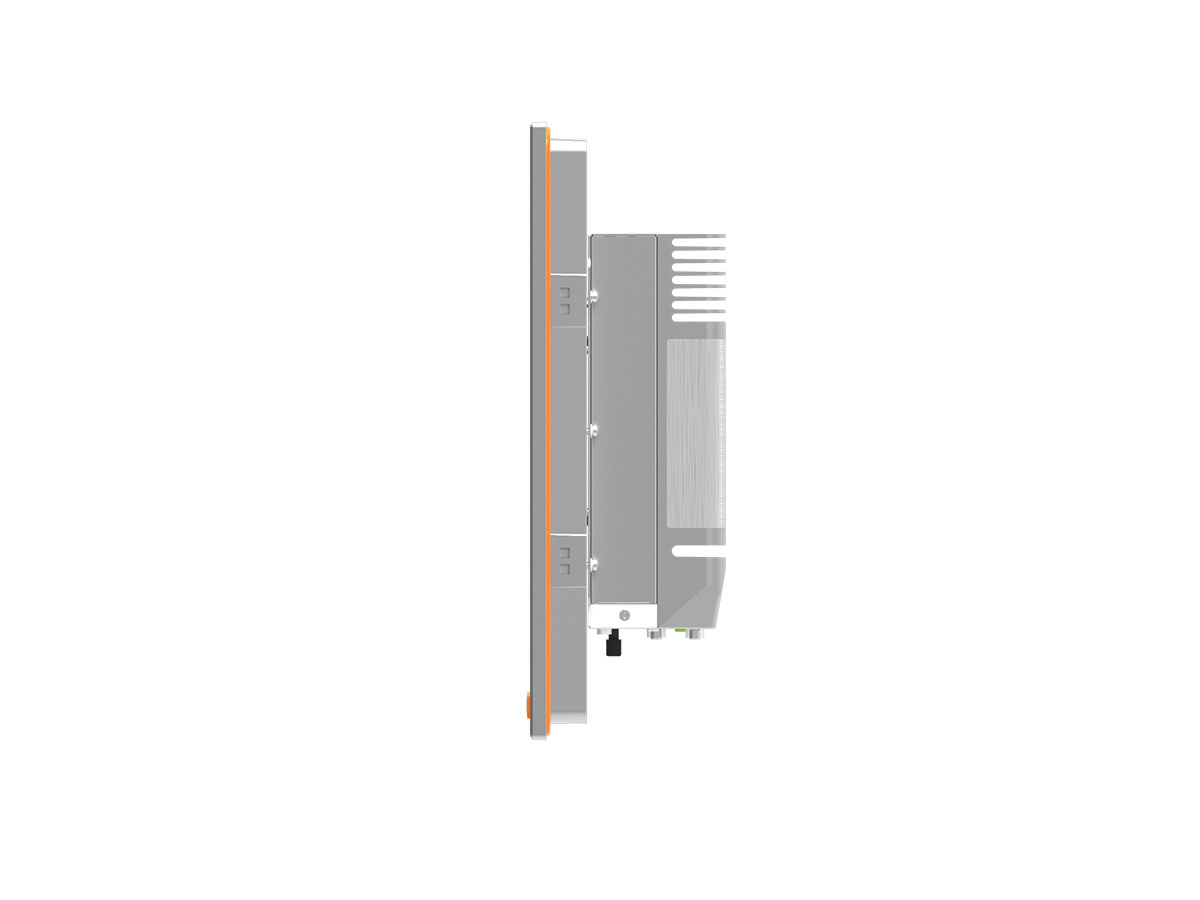

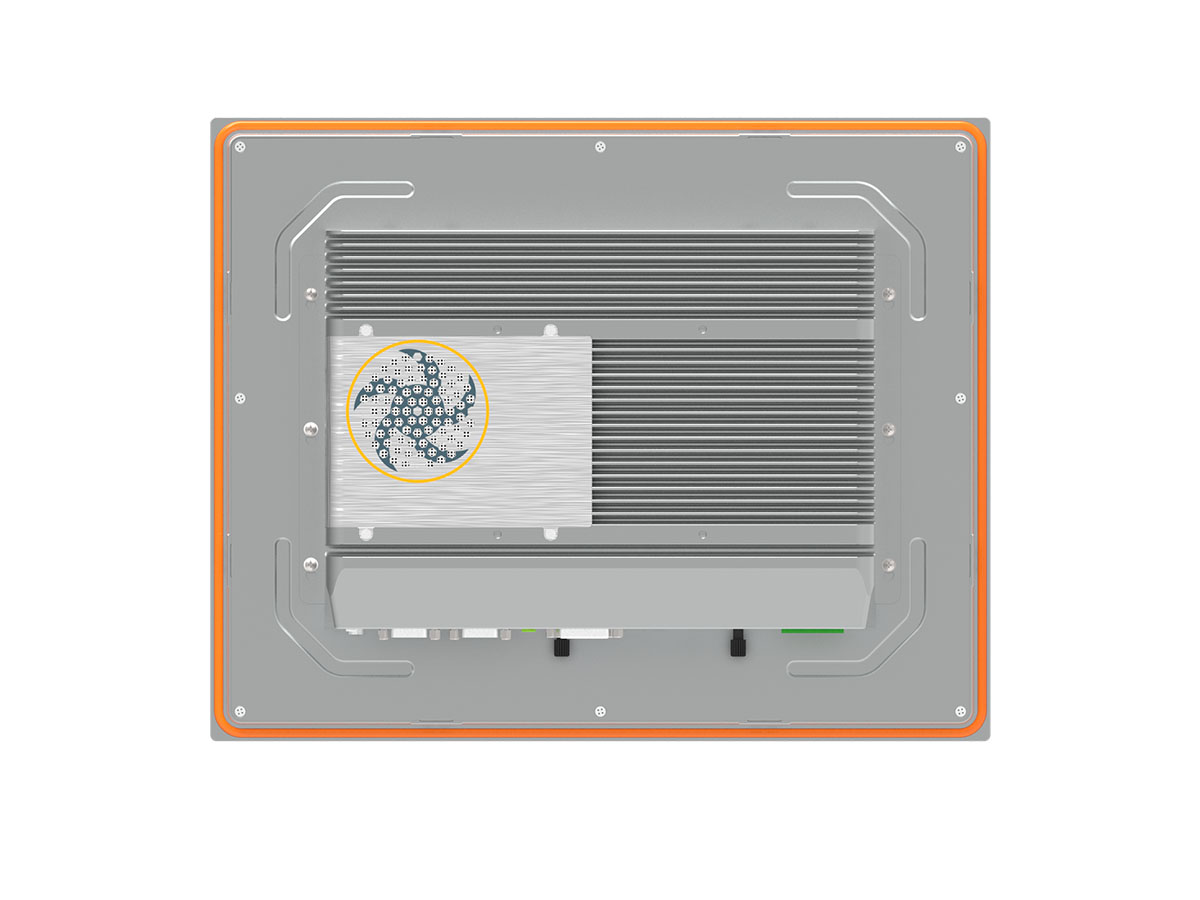

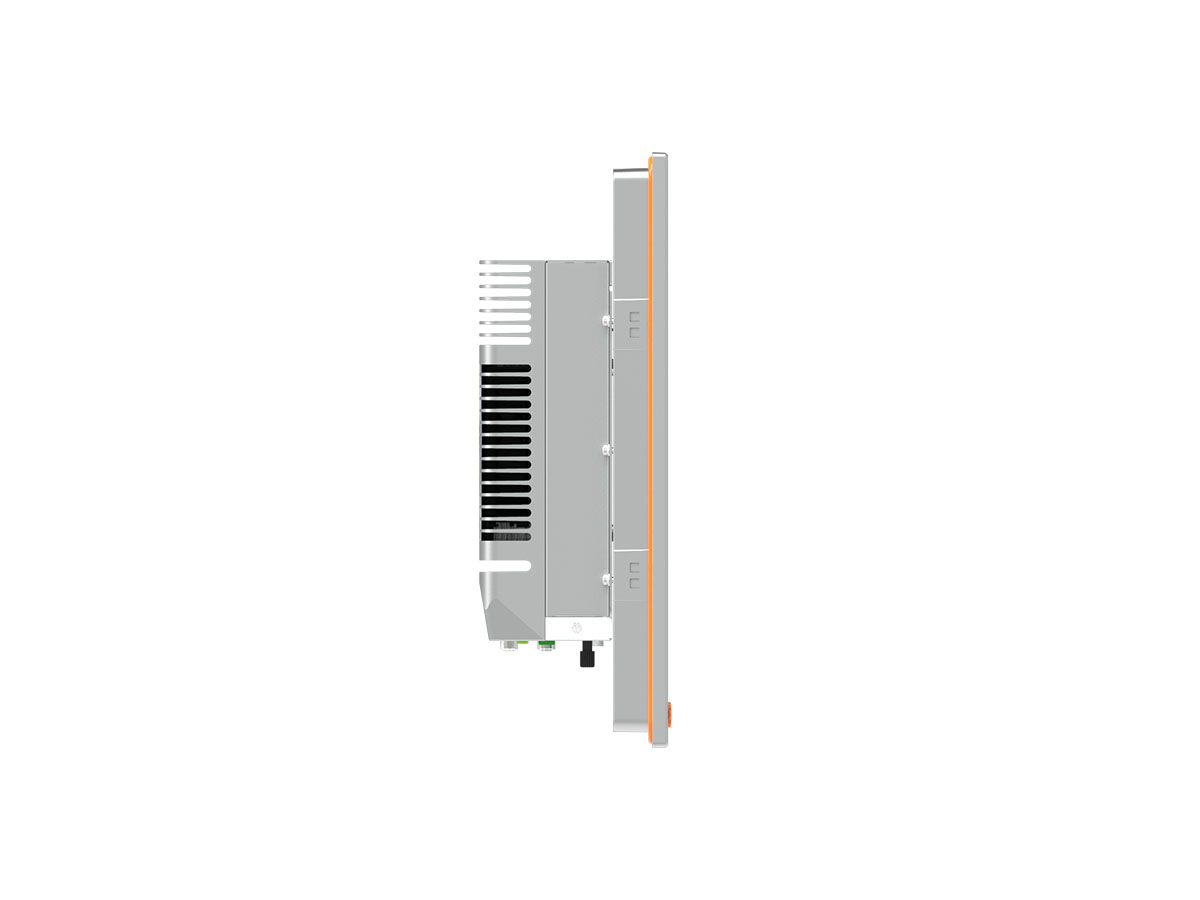

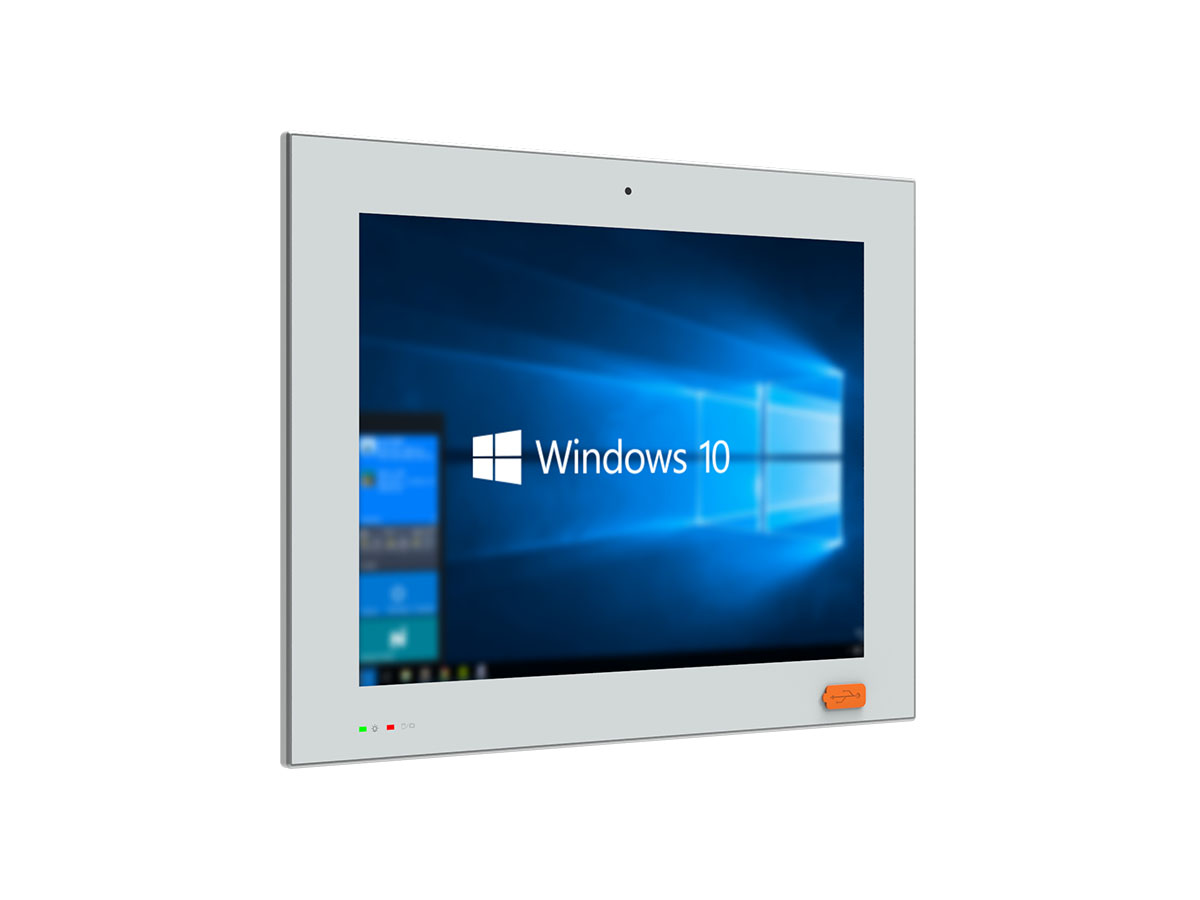

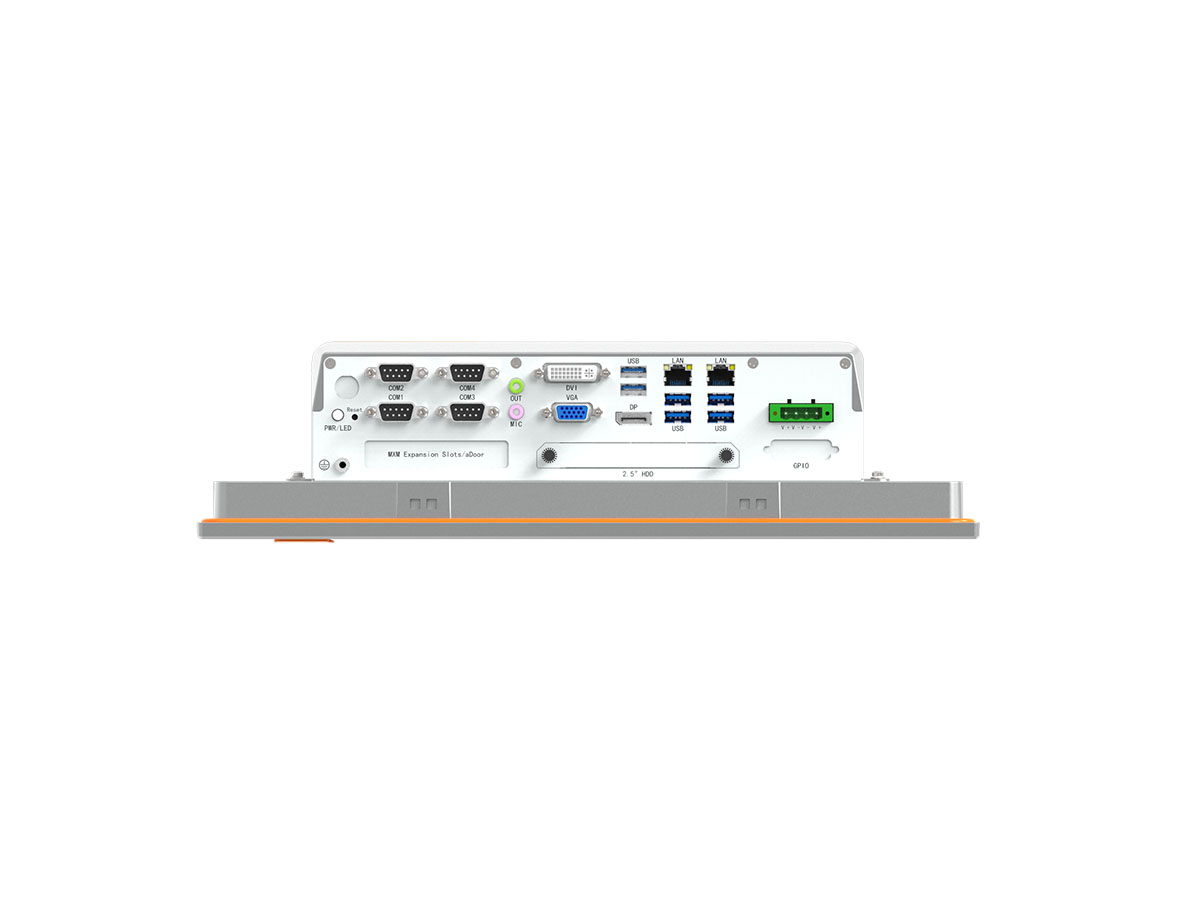

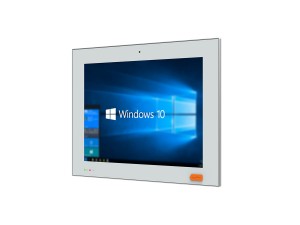

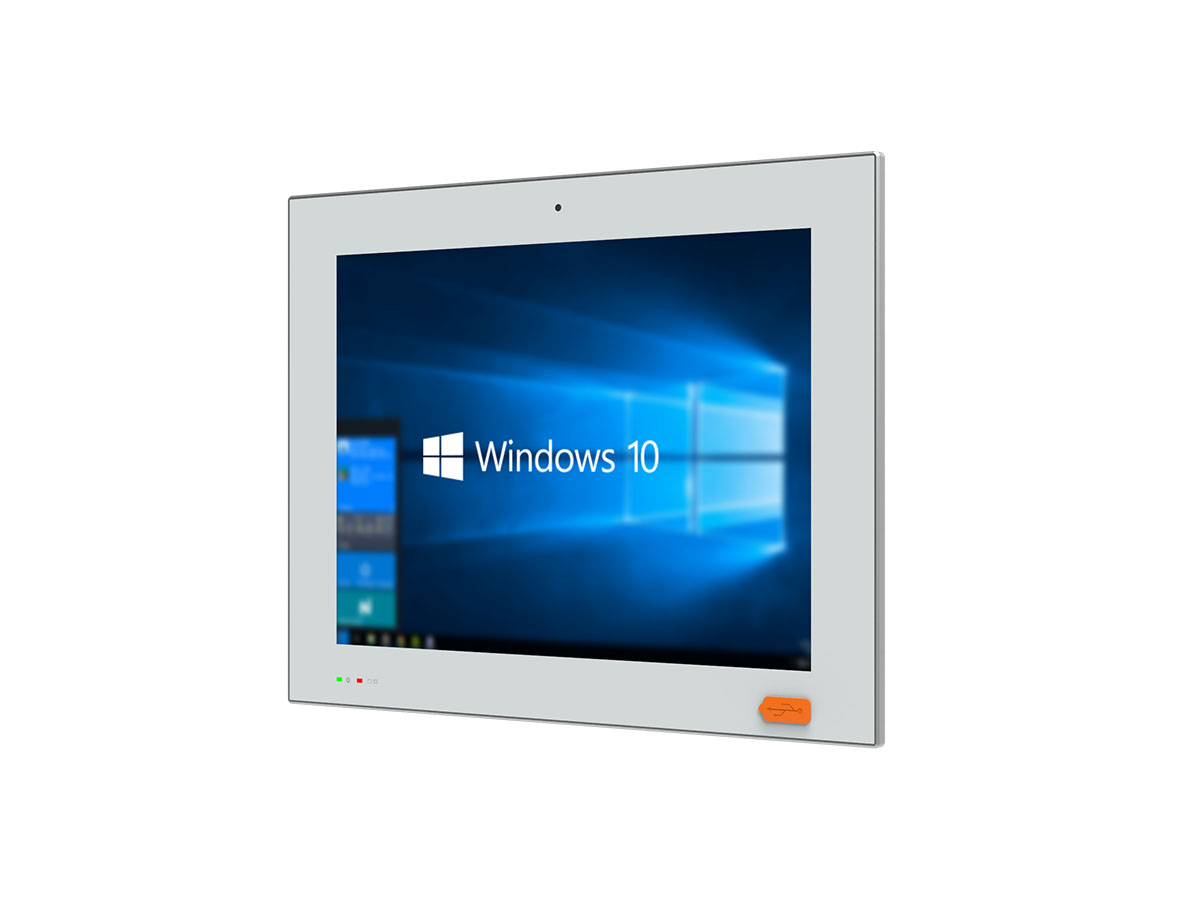

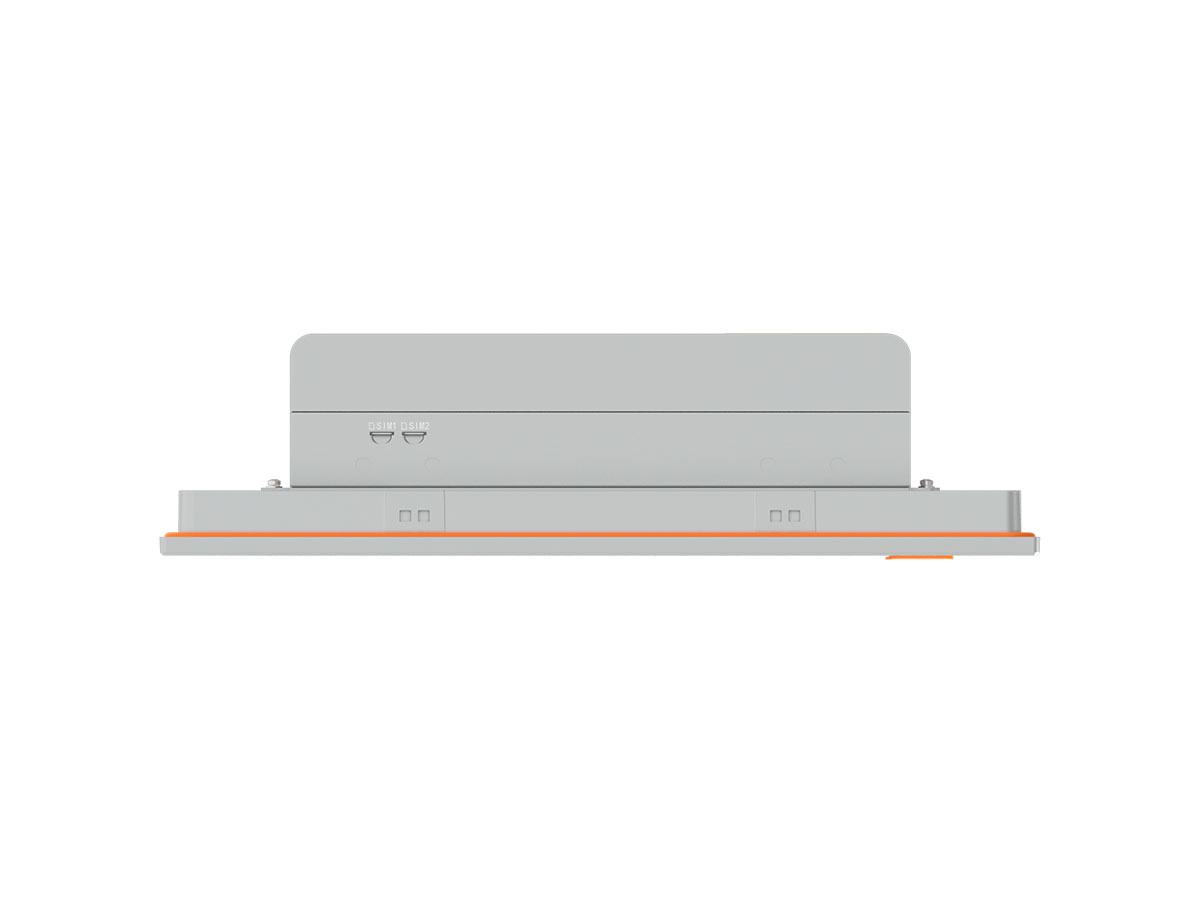

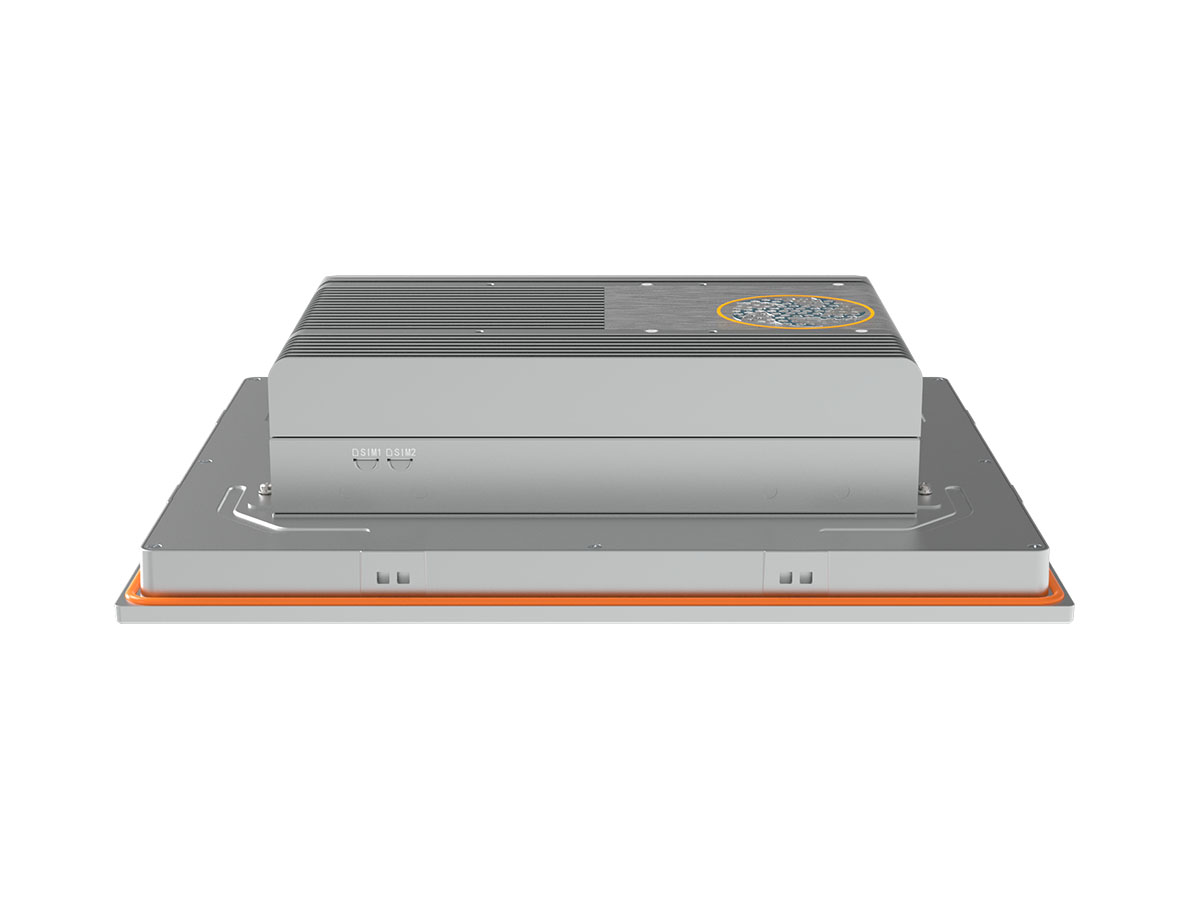

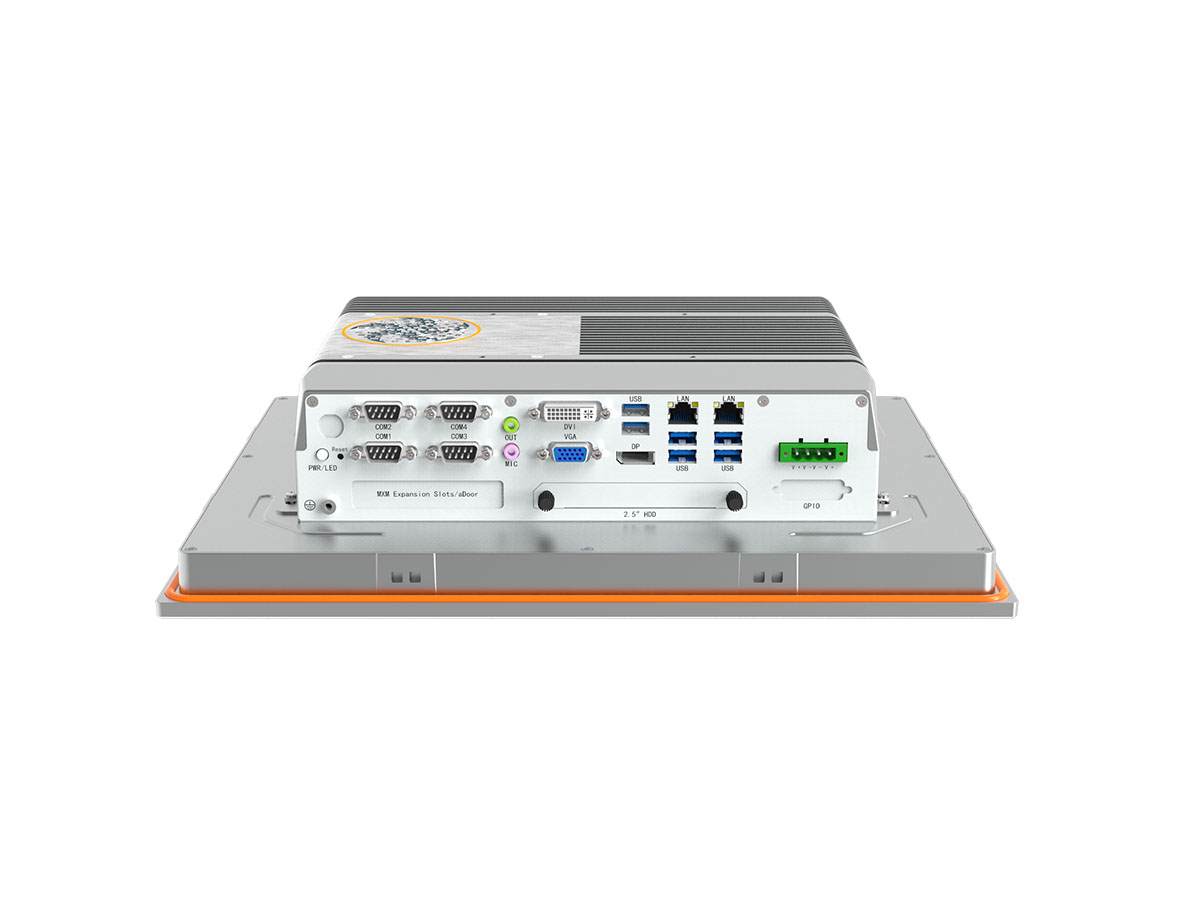

Note: The product image shown above is the PL150CQ-E7S-H81 model

PLCQ-E7S Industrial All-in-One PC

Features:

  • Full-screen capacitive touchscreen design

  • Modular design 12.1~21.5″ selectable, supports square/wide screen
  • Front panel meets IP65 requirements
  • Front panel integrates USB Type-A and signal indicator lights
  • Embedded/VESA mounting

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ Full-Screen Capacitive Touchscreen Industrial All-in-One PC Series PLxxxCQ-E7S is a versatile solution designed for the rigorous demands of industrial settings. It features a responsive full-screen capacitive touchscreen available in multiple sizes from 12.1 to 21.5 inches, catering to a variety of industrial applications. The series is built to withstand harsh conditions, with an IP65-rated front panel for dust and water resistance. Powered by Intel® processors across various generations and supported by a range of chipsets, these PCs offer robust performance and are equipped with ample connectivity options including dual Intel Gigabit network interfaces and multiple DB9 serial ports. They also support dual storage options and high-definition display outputs for comprehensive industrial tasks.

Key to its industrial utility is the series’ adaptability to different power supplies and installation methods, including 9~36V DC power input and options for embedded or VESA mounting. This flexibility, combined with its high-performance computing power, connectivity, and storage solutions, makes the PLxxxCQ-E7S series a prime choice for enhancing efficiency in industrial automation, control systems, and smart manufacturing processes. In essence, the APQ series exemplifies how advanced computing solutions can significantly impact the efficiency and productivity of the industrial sector.

INTRODUCTION

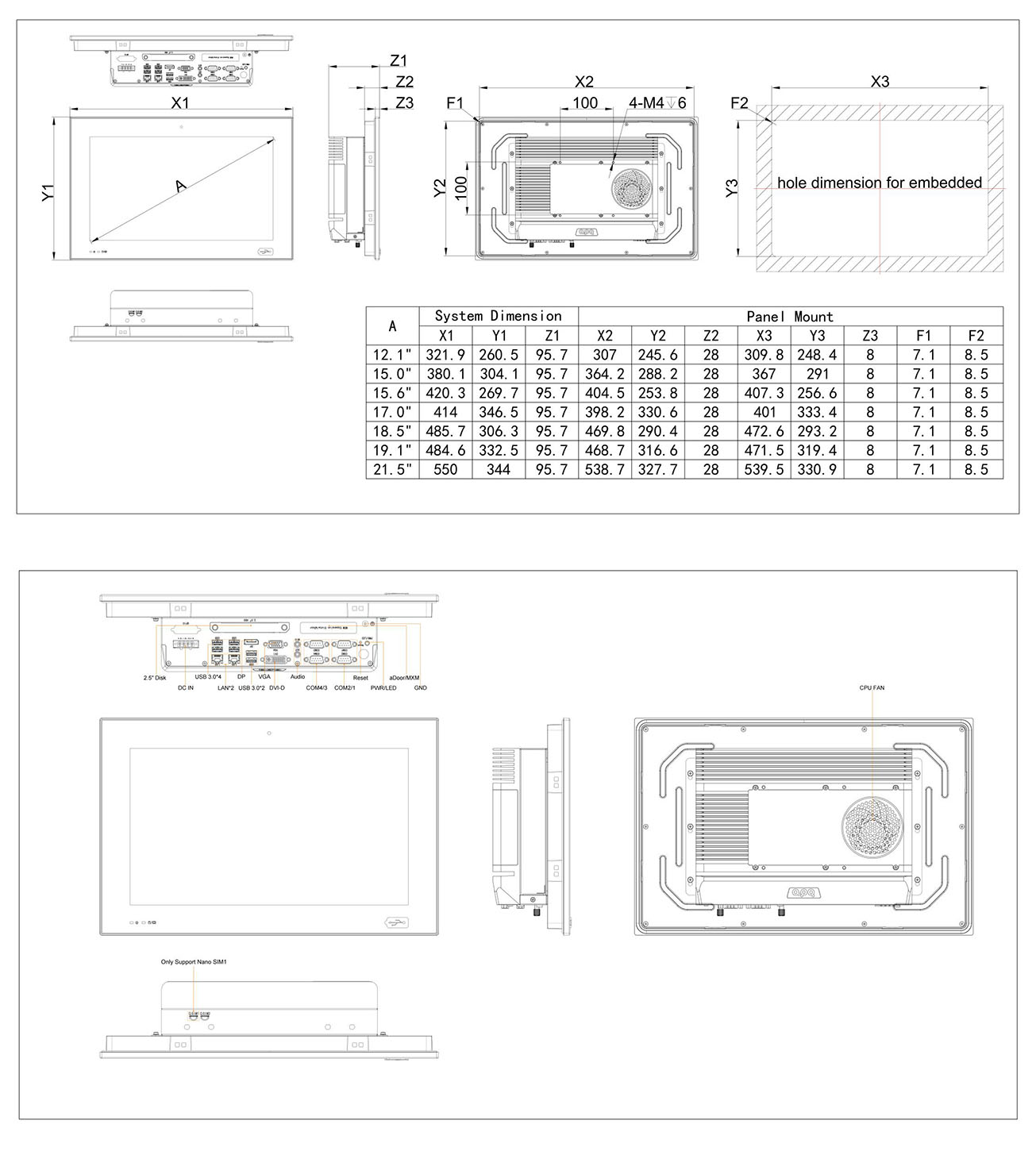

Engineering Drawing

File Download

H81
H610
Q170
Q670
H81
Model PL121CQ-E7S PL150CQ-E7S PL156CQ-E7S PL170CQ-E7S PL185CQ-E7S PL191CQ-E7S PL215CQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Controller USB signal
Input Finger/Capacitive Touch Pen
Light Transmission ≥85%
Hardness ≥6H
Processor System CPU Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1150
Chipset Intel® H81
BIOS AMI UEFI BIOS (Support Watchdog Timer)
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Graphics Controller Intel® HD Graphics
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)

1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)

Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)

1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)

M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)

1 * aDoor Expansion Slot

Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)

4 * USB2.0 (Type-A)

Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz

1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz

1 * DP: max resolution up to 4096*2160 @ 60Hz

Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

2 * RS232 (COM3/4, DB9/M)

Button 1 * Power Button + Power LED

1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)

Rear I/O Antenna 4 * Antenna hole
SIM 1 * Nano SIM card slot (SIM1)
Internal I/O USB 2 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * Front Panel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 2 * SATA 7P Connector
SATA Power 2 * SATA Power (SATA_PWR1/2, wafer)
FAN 1 * CPU FAN (wafer)

2 * SYS FAN (wafer)

Power Supply Type DC, AT/ATX
Power Input Voltage 9 ~ 36VDC, P≤240W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, embedded
Dimensions

(L * W * H, Unit: mm)

321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Weight Net: 6.6 kg

Total: 8.1 kg

Net: 8.0 kg

Total: 9.5 kg

Net: 7.9 kg

Total: 9.6 kg

Net: 8.8 kg

Total: 10.3 kg

Net: 8.7 kg

Total: 10.2 kg

Net: 10.0 kg

Total: 11.5 kg

Net: 9.6 kg

Total: 11.1 kg

Environment Heat Dissipation System PWM Fan Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
H610
Model PL121CQ-E7S PL150CQ-E7S PL156CQ-E7S P170CQ-E7S PL185CQ-E7S PL191CQ-E7S PL215CQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Controller USB signal
Input Finger/Capacitive Touch Pen
Light Transmission ≥85%
Hardness ≥6H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1700
Chipset H610
BIOS AMI 256 Mbit SPI
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel® UHD Graphics
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)

1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)

Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)

1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)

M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1(Type-A, 10Gbps)

2 * USB3.2 Gen1x1(Type-A, 5Gbps)

2 * USB2.0 (Type-A)

Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz

1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz

Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

2 * RS232 (COM3/4, DB9/M, Full Lanes)

Button 1 * Power Button + Power LED

1 * AT/ATX Button

1 * OS Recover Button

1 * System Reset Button

Rear I/O Antenna 4 * Antenna hole
SIM 1 * Nano SIM card slots(SIM1)
Internal I/O USB 6 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
Front Panel 1 * FPanel (PWR+RST+LED, wafer)
Audio 1 * Audio (Header)

1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)

Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 3 * SATA 7P Connector, up to 600MB/s
SATA Power 3 * SATA Power (wafer)
FAN 1 * CPU FAN (wafer)

2 * SYS FAN (KF2510-4A)

Power Supply Type DC, AT/ATX
Power Input Voltage 9~36VDC, P≤240W

18~60VDC, P≤400W

Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable 1 ~ 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, Embedded
Dimensions

(L * W * H, Unit: mm)

321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 560*344*95.7
Weight Net: 6.66Kg

Total: 8.16Kg

Net: 8.05Kg

Total: 9.55Kg

Net: 7.95Kg

Total: 9.45Kg

Net: 8.8Kg

Total: 10.6Kg

Net: 8.65Kg

Total: 10.45Kg

Net: 10.05Kg

Total: 11.85Kg

Net: 9.58Kg

Total: 11.38Kg

Environment Heat Dissipation System PWM Fan Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃ 0~50℃ 0~60℃
Storage Temperature -30~80℃ -20~70℃ -30~70℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
Q170
Model PL121CQ-E7S PL150CQ-E7S PL156CQ-E7S PL170CQ-E7S PL185CQ-E7S PL191CQ-E7S PL215CQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Controller USB signal
Input Finger/Capacitive Touch Pen
Light Transmission ≥85%
Hardness ≥6H
Processor System CPU Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1151
Chipset Q170
BIOS AMI UEFI BIOS (Support Watchdog Timer)
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel® HD Graphics
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)

1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)

Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)

1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)

Support RAID 0, 1

M.2 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)

1 * aDoor Expansion Slot

Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052)
Front I/O Ethernet 2 * RJ45
USB 6 * USB3.0 (Type-A, 5Gbps)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz

1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz

1 * DP: max resolution up to 4096*2160 @ 60Hz

Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

2 * RS232 (COM3/4, DB9/M)

Button 1 * Power Button + Power LED

1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)

Rear I/O Antenna 4 * Antenna hole
SIM 2 * Nano SIM card slots
Internal I/O USB 2 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * Front Panel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 2 * SATA 7P Connector
SATA Power 2 * SATA Power (SATA_PWR1/2, wafer)
FAN 1 * CPU FAN (wafer)

2 * SYS FAN (wafer)

Power Supply Type DC, AT/ATX
Power Input Voltage 9 ~ 36VDC, P≤240W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows 6/7th Core™: Windows 7/10/11

8/9th Core™: Windows 10/11

Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, embedded
Dimensions

(L * W * H, Unit: mm)

321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Weight Net: 6.6 kg

Total: 8.1 kg

Net: 8.0 kg

Total : 9.5 kg

Net: 7.9 kg

Total: 9.6 kg

Net: 8.8 kg

Total: 10.3 kg

Net: 8.7 kg

Total: 10.2 kg

Net: 10.0 kg

Total: 11.5 kg

Net: 9.6 kg

Total: 11.1 kg

Environment Heat Dissipation System PWM Fan Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Q670
Model PL121CQ-E7S PL150CQ-E7S PL156CQ-E7S P170CQ-E7S PL185CQ-E7S PL191CQ-E7S PL215CQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Controller USB signal
Input Finger/Capacitive Touch Pen
Light Transmission ≥85%
Hardness ≥6H
Processor System CPU Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1700
Chipset Q670
BIOS AMI 256 Mbit SPI
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel® UHD Graphics
Ethernet Controller 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)

1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)

Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)

1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)

Support RAID 0, 1

M.2 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots aDoor 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)

6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)

Display 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz

1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz

Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

2 * RS232 (COM3/4, DB9/M, Full Lanes)

Button 1 * Power Button + Power LED

1 * AT/ATX Button

1 * OS Recover Button

1 * System Reset Button

Rear I/O Antenna 4 * Antenna hole
SIM 2 * Nano SIM card slots
Internal I/O USB 6 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
Front Panel 1 * FPanel (PWR+RST+LED, wafer)
Audio 1 * Audio (Header)

1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)

Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 3 * SATA 7P Connector, up to 600MB/s
SATA Power 3 * SATA Power (wafer)
FAN 1 * CPU FAN (wafer)

2 * SYS FAN (KF2510-4A)

Power Supply Type DC, AT/ATX
Power Input Voltage 9~36VDC, P≤240W

18~60VDC, P≤400W

Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable 1 ~ 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, Embedded
Dimensions

(L * W * H, Unit: mm)

321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 560*344*95.7
Weight Net: 6.66Kg

Total: 8.16Kg

Net: 8.05Kg

Total: 9.55Kg

Net: 7.95Kg

Total: 9.45Kg

Net: 8.8Kg

Total: 10.6Kg

Net: 8.65Kg

Total: 10.45Kg

Net: 10.05Kg

Total: 11.85Kg

Net: 9.58Kg

Total: 11.38Kg

Environment Heat Dissipation System PWM FAN Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
Certification CE/FCC, RoHS
Model PL121CQ-E7S PL150CQ-E7S PL156CQ-E7S PL170CQ-E7S PL185CQ-E7S PL191CQ-E7S PL215CQ-E7S
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.1" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type Projected Capacitive Touch
Controller USB signal
Input Finger/Capacitive Touch Pen
Light Transmission ≥85%
Hardness ≥6H
Processor System CPU Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 65W
Socket LGA1150
Chipset Intel® H81
BIOS AMI UEFI BIOS (Support Watchdog Timer)
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Graphics Controller Intel® HD Graphics
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)
1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O Antenna 4 * Antenna hole
SIM 1 * Nano SIM card slot (SIM1)
Internal I/O USB 2 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * Front Panel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 2 * SATA 7P Connector
SATA Power 2 * SATA Power (SATA_PWR1/2, wafer)
FAN 1 * CPU FAN (wafer)
2 * SYS FAN (wafer)
Power Supply Type DC, AT/ATX
Power Input Voltage 9 ~ 36VDC, P≤240W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Mounting VESA, embedded
Dimensions
(L * W * H, Unit: mm)
321.9*260.5*95.7 380.1*304.1*95.7 420.3*269.7*95.7 414*346.5*95.7 485.7*306.3*95.7 484.6*332.5*95.7 550*344*95.7
Weight Net: 6.6 kg
Total: 8.1 kg
Net: 8.0 kg
Total: 9.5 kg
Net: 7.9 kg
Total: 9.6 kg
Net: 8.8 kg
Total: 10.3 kg
Net: 8.7 kg
Total: 10.2 kg
Net: 10.0 kg
Total: 11.5 kg
Net: 9.6 kg
Total: 11.1 kg
Environment Heat Dissipation System PWM Fan Cooling
Operating Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~70℃ -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃
Relative Humidity 5 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)

PLxxxCQ-E7S-20240103_00

  • 	PLxxxCQ-E7S-H81_SpecSheet_APQ
    PLxxxCQ-E7S-H81_SpecSheet_APQ
    DOWNLOAD
  • 	PLxxxCQ-E7S-H610_SpecSheet_APQ
    PLxxxCQ-E7S-H610_SpecSheet_APQ
    DOWNLOAD
  • 	PLxxxCQ-E7S-Q170_SpecSheet_APQ
    PLxxxCQ-E7S-Q170_SpecSheet_APQ
    DOWNLOAD
  • 	PLxxxCQ-E7S-Q670_SpecSheet_APQ
    PLxxxCQ-E7S-Q670_SpecSheet_APQ
    DOWNLOAD
  • OBTAIN SAMPLES

    Effective, safe and reliable. Our equipment guarantees the right solution for any requirement. Benefit from our industry expertise and generate added value - every day.

    Click For InquiryClick more
