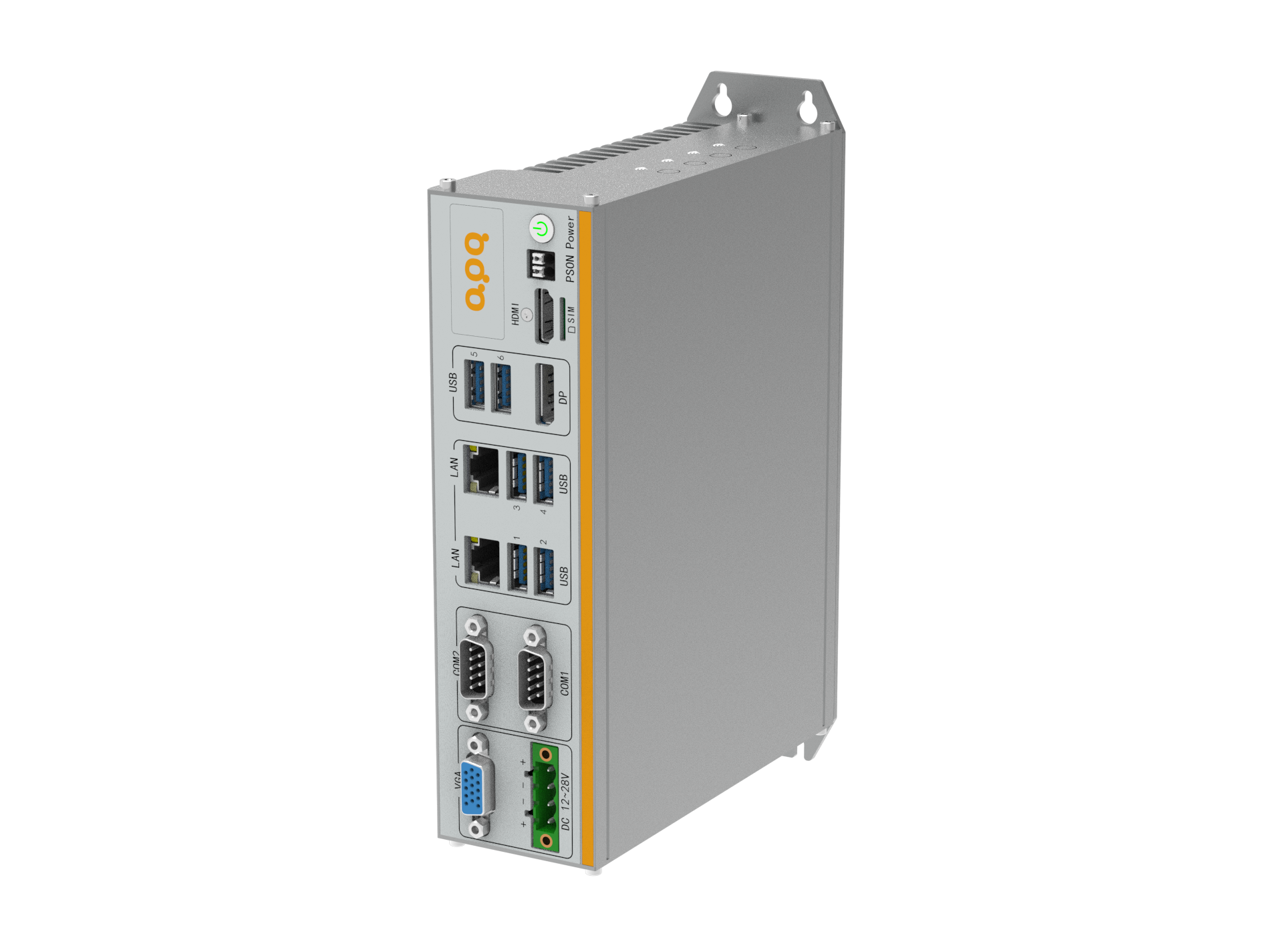

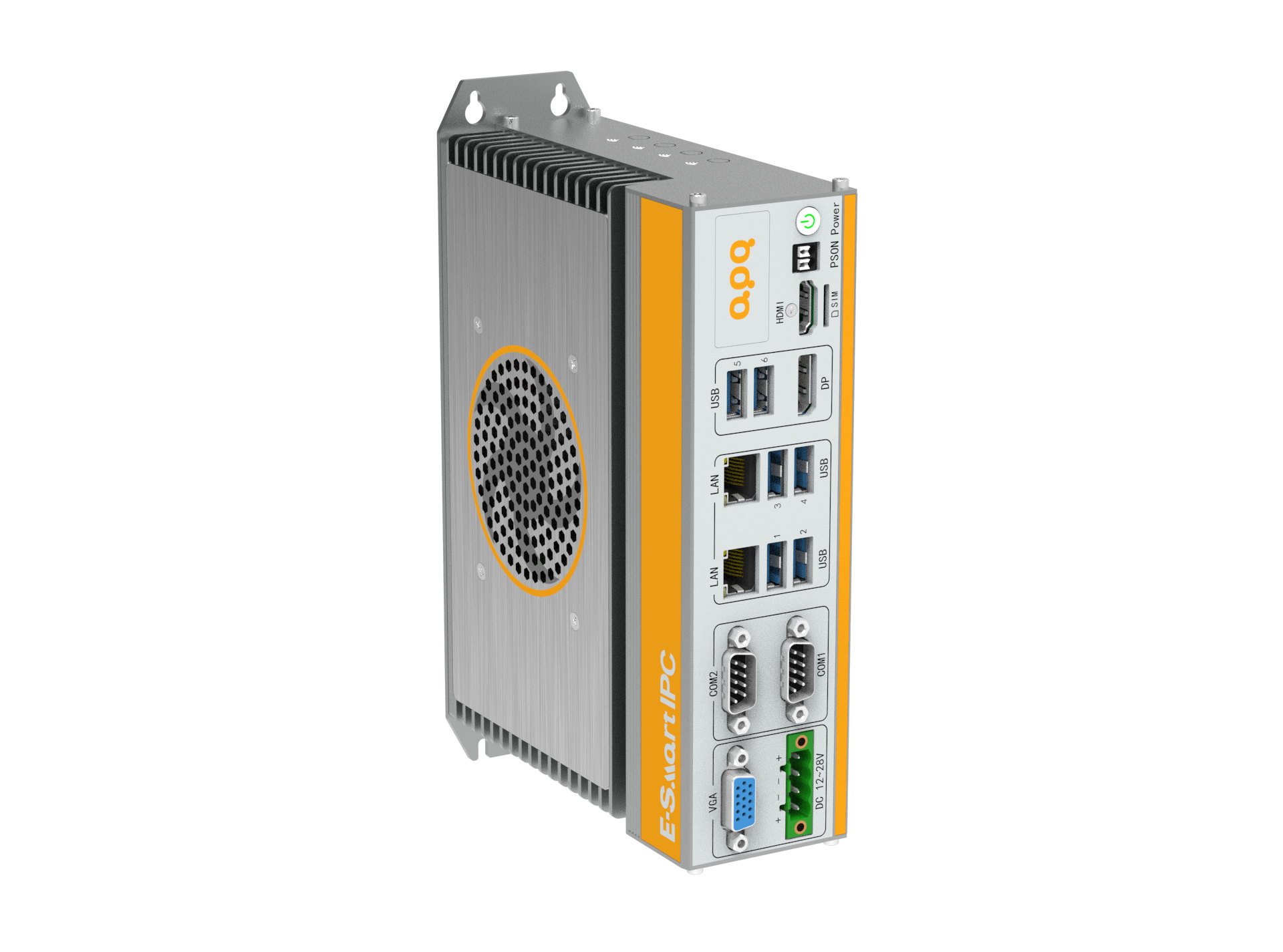

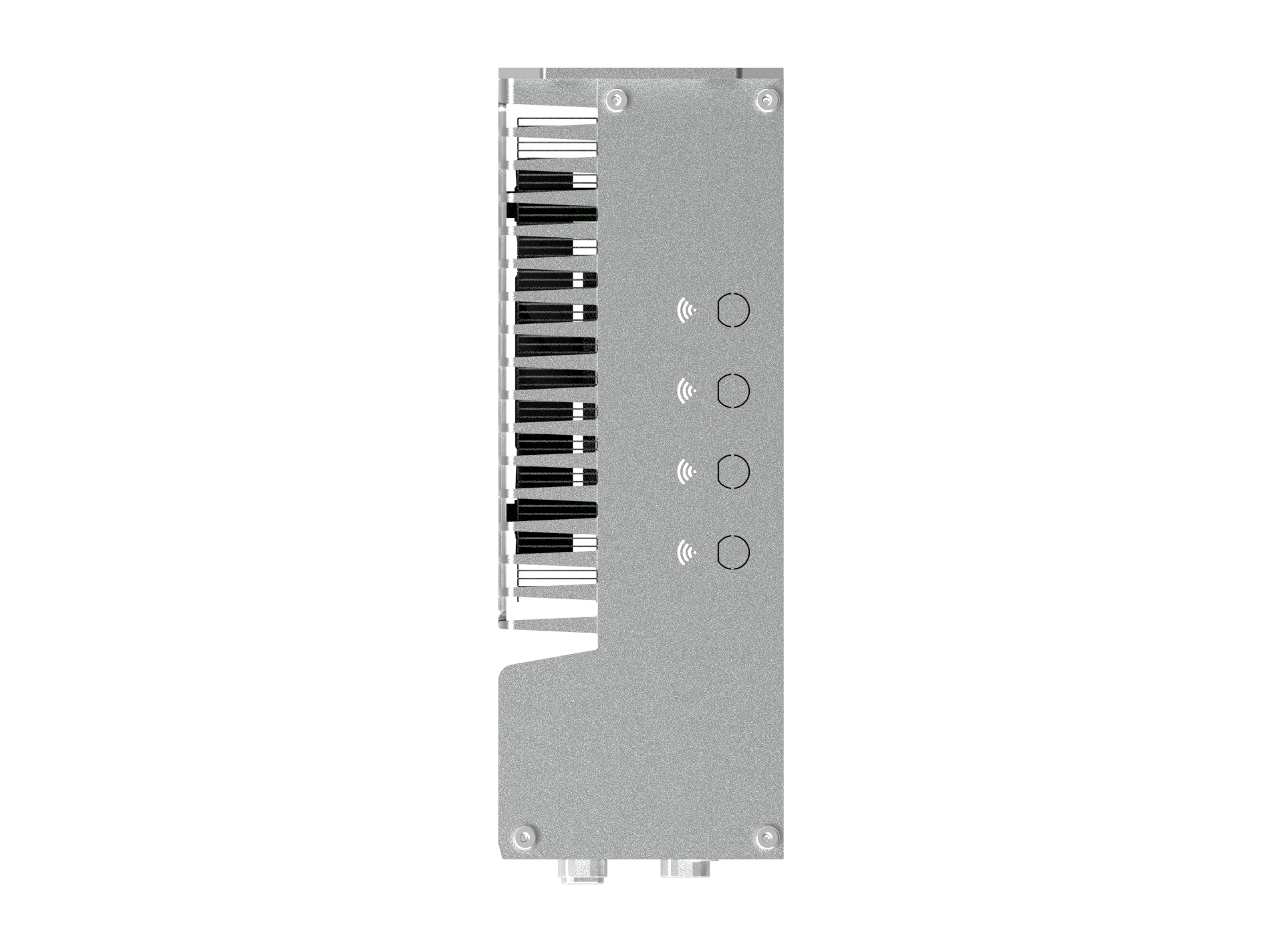

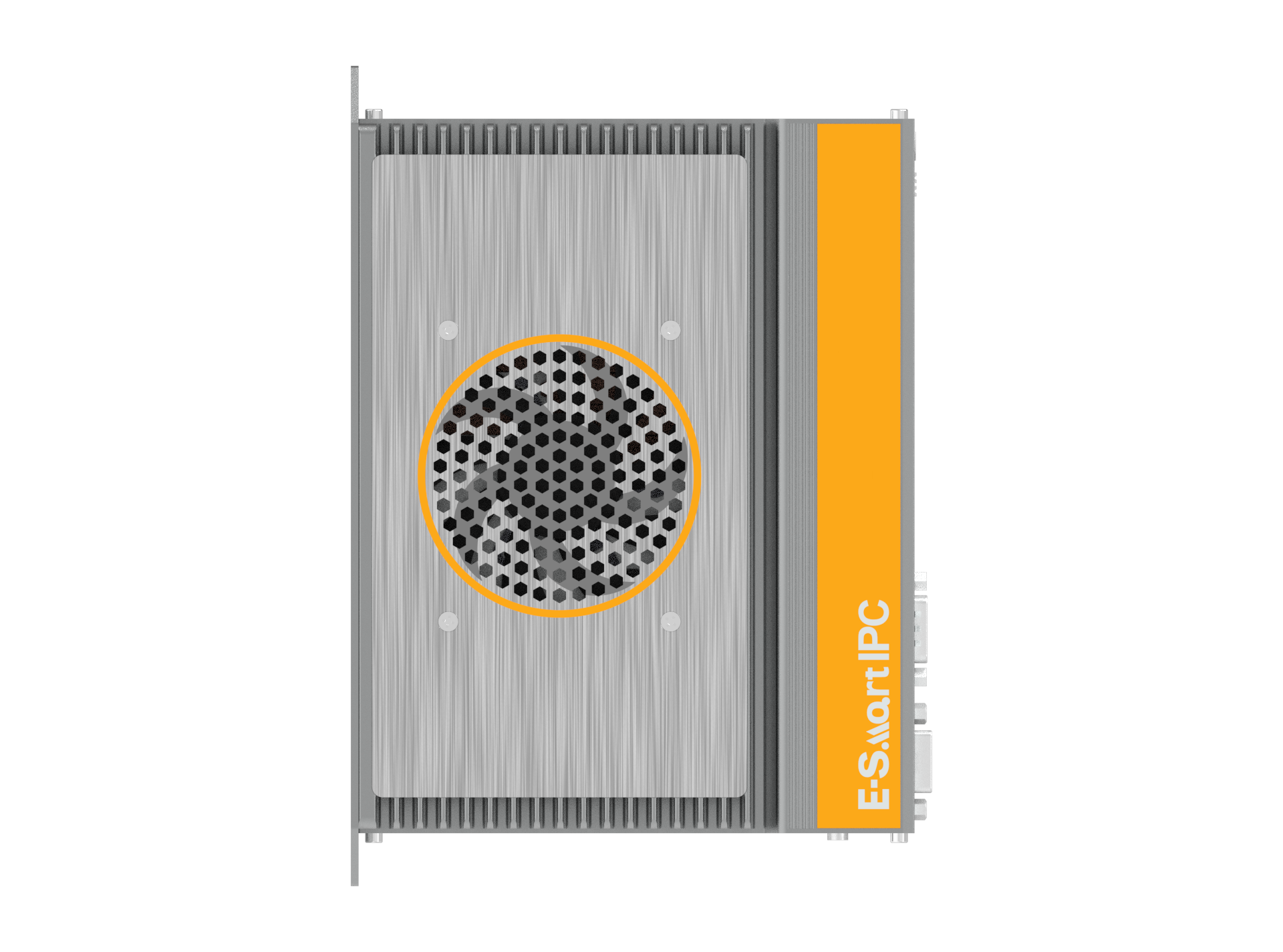

BOX PC APQ AK7A2

Model

AK7170A2

AK7110A2

CPU

CPU

Intel^® 6~9^th Generation Core^TM Desktop Processor

TDP

65W

Socket

LGA1151

Chipset

Chipset

Intel^® Q170

Intel^® H110

BIOS

BIOS

AMI UEFI BIOS

Memory

Socket

2 * SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz

Max Capacity

32GB, Single Max. 16GB

Graphics

Controller

Intel^® HD Graphics530/Intel^® UHD Graphics 630(Dependent on CPU)

Ethernet

Controller

1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel^® i219-LM GbE LAN Chip (10/100/1000 Mbps)

1 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel^® i219-LM GbE LAN Chip (10/100/1000 Mbps)

Storage

M.2

1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280)

1 * M.2 Key-M (SATA3.0, 2280)

Expansion

Mini PCIe

1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0)
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)

1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)

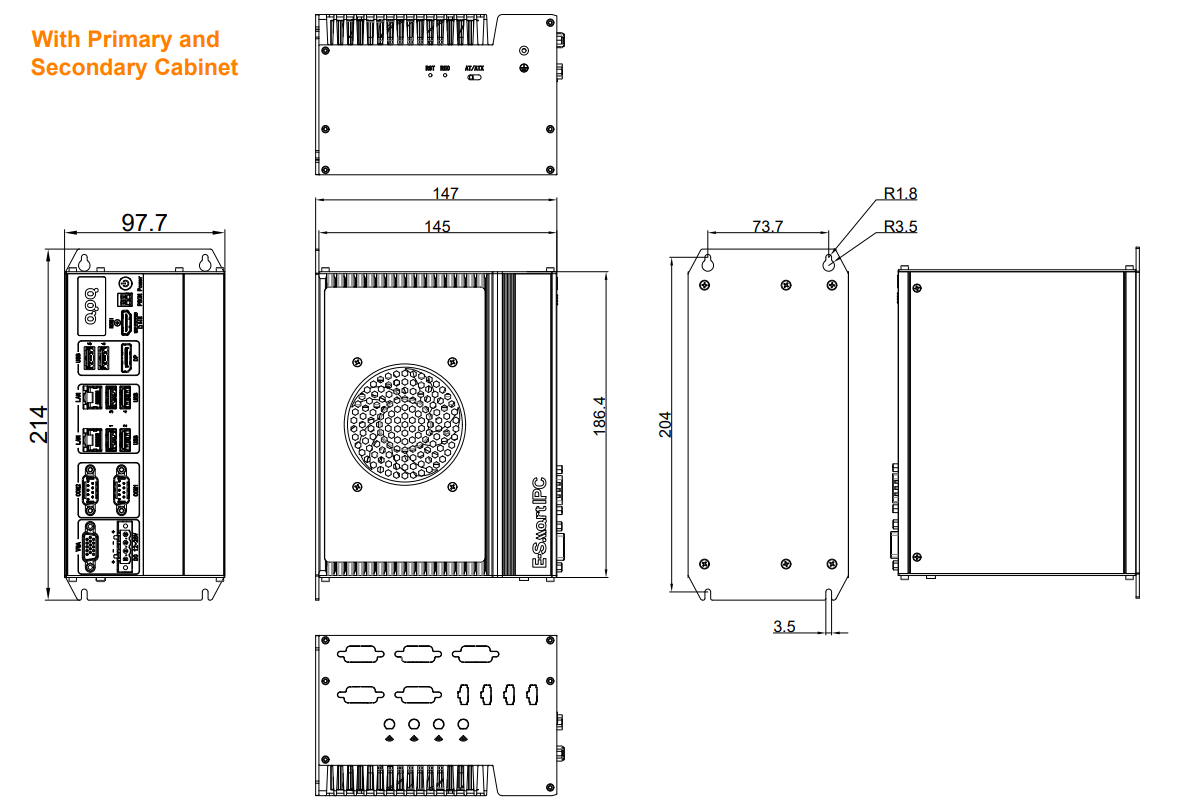

Optional Primary Cabinet

1A/1B/1C/1D/1E/2A/3A

1E

Optional Secondary Cabinet

1E

1E

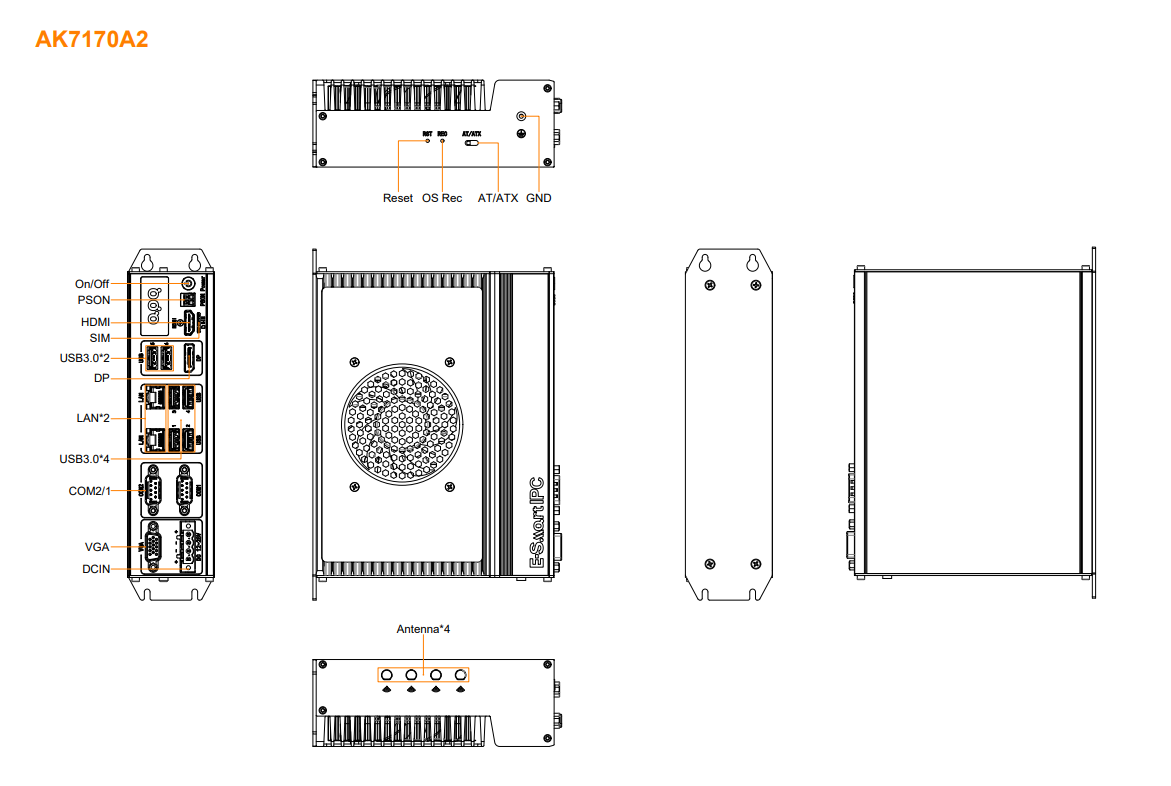

Front I/O

USB

6 * USB3.0 (Type-A)

4 * USB3.0 (Type-A)
2 * USB2.0 (Type-A)

Serial

2 * RS232/485 (COM1/2, DB9/M, Full lanes)

Display

1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz

Ethernet

2 * RJ45

Power

1 * DC Power Input

SIM

1 * Nano SIM Card slot (Mini PCIe module provide functional support)

Button

1 * Power Button + Power LED
1 * PS_ON Connector

Bottom I/O

Switch

1 * AT/ATX Mode Switch (Enable/Disable automatically power on)

Button

1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)

Power Supply

Type

DC

Power Input Voltage

12 ~ 28VDC
Note：When using the light source and POE, 24V input must be used.

Connector

1 * 4Pin Power Input Connector (P= 5.08mm)

RTC Battery

CR2032 Coin Cell

OS Support

Windows

6/7th Core™: Windows 7/10
8/9th Core™: Windows 10

Linux

Linux

Watchdog

Output

System Reset

Interval

Programmable via Software from 1 to 255 sec

Mechanical

Enclosure Material

Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC

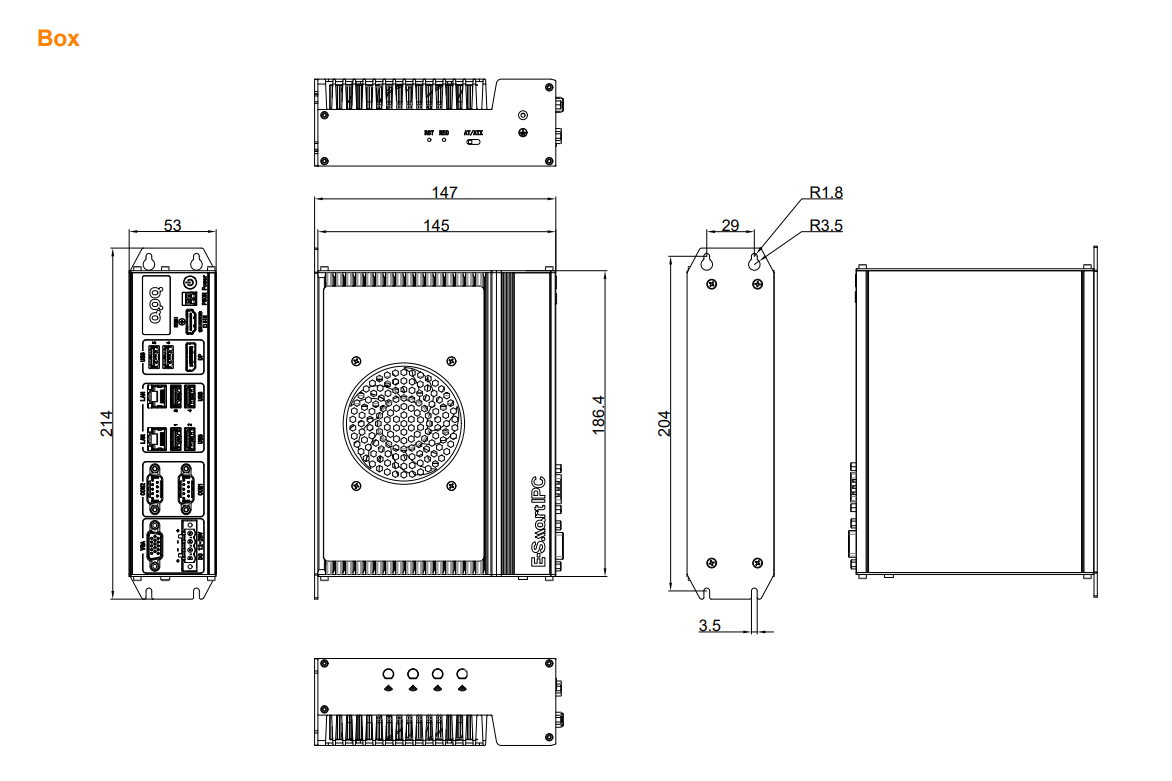

Dimensions

53mm(L) * 145mm(W) * 186.4mm(H)

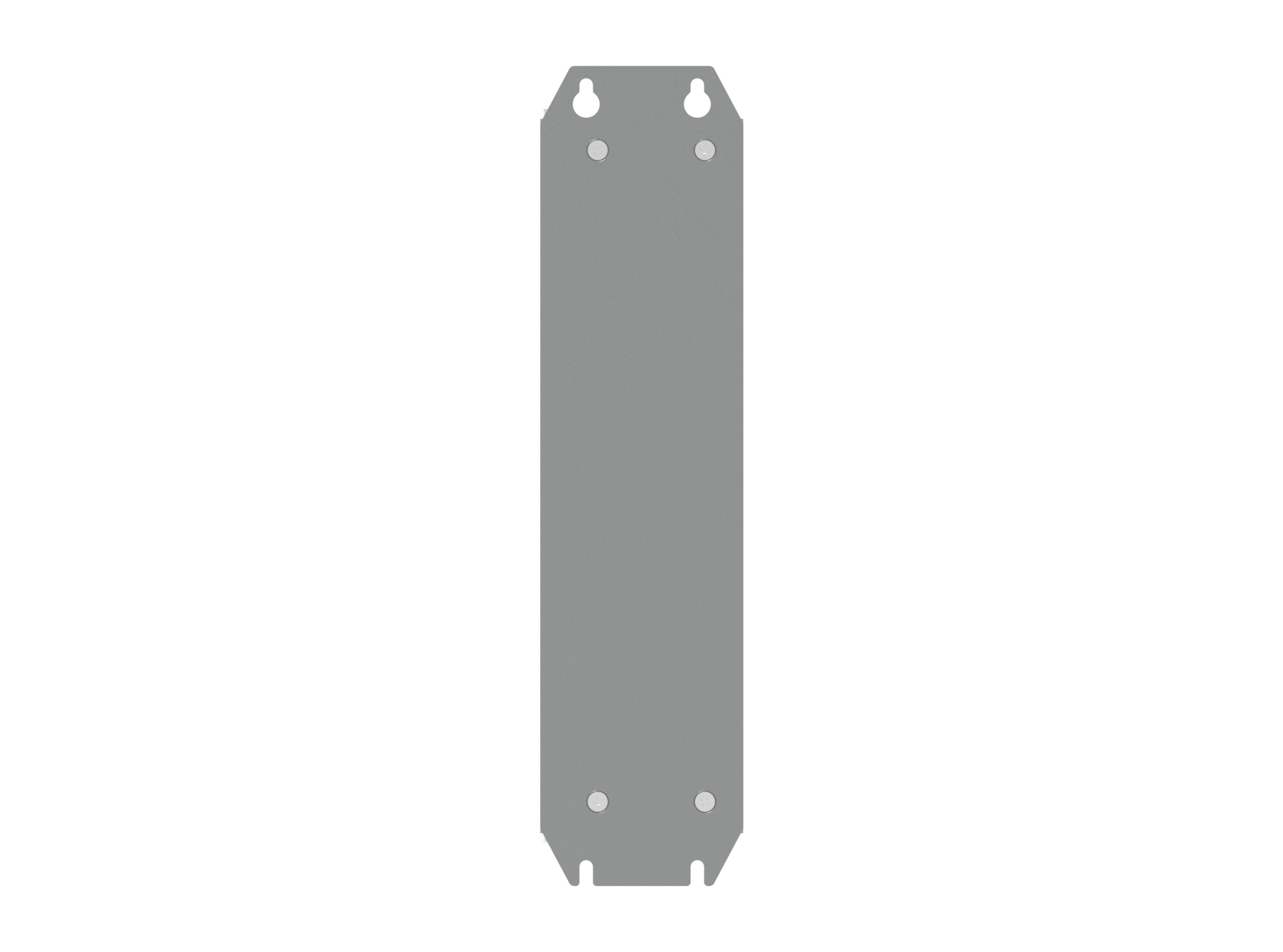

Mounting

Wall mounted, DIN, Desktop

Environment

Heat Dissipation System

PWM Air Cooling

Operating Temperature

-20~60℃

Storage Temperature

-40~80℃

Relative Humidity

5 to 90% RH (non-condensing)

Vibration During Operation

With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)

Shock During Operation

With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
