BOX PC APQ TAC-3000 Pro

Model

TAC-3000 Pro

Processor System

SOM

Orin Nano 4GB

Orin Nano 8GB

Orin NX 8GB

Orin NX 16GB

AI Performance

20 TOPS / 34 TOPS (Super)

40 TOPS / 67 TOPS (Super)

70 TOPS / 117 TOPS (Super)

100 TOPS / 157 TOPS (Super)

Ethernet

Controller

1 * GBE LAN Chip (LAN signal from System-on-Module), 10/100/1000 Mbps

2 * Intel^® i210-AT, 10/100/1000 Mbps

Storage

M.2

1 * M.2 Key-M Slot (NVMe SSD, 2280)

Expansion

Slots

Mini PCIe

1 * Mini PCIe Slot (PCIe x1 + USB 2.0, with 1 * Nano SIM Card Slot)

M.2

1 * M.2 Key-E Slot (PCIe x1 + USB 2.0, 2230)

M.2

1 * M.2 Key-B Slot (USB 5Gbps + USB 2.0, 3052, with 1 * Nano SIM Card Slot)

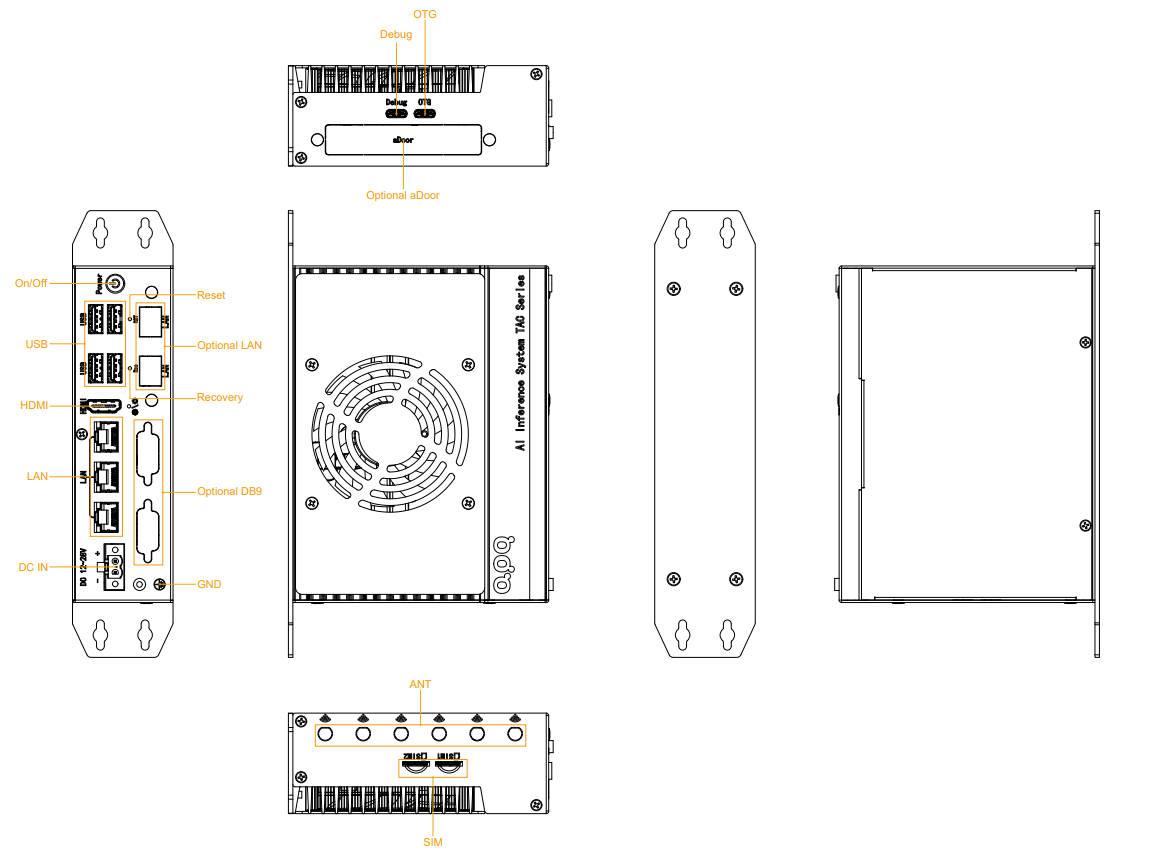

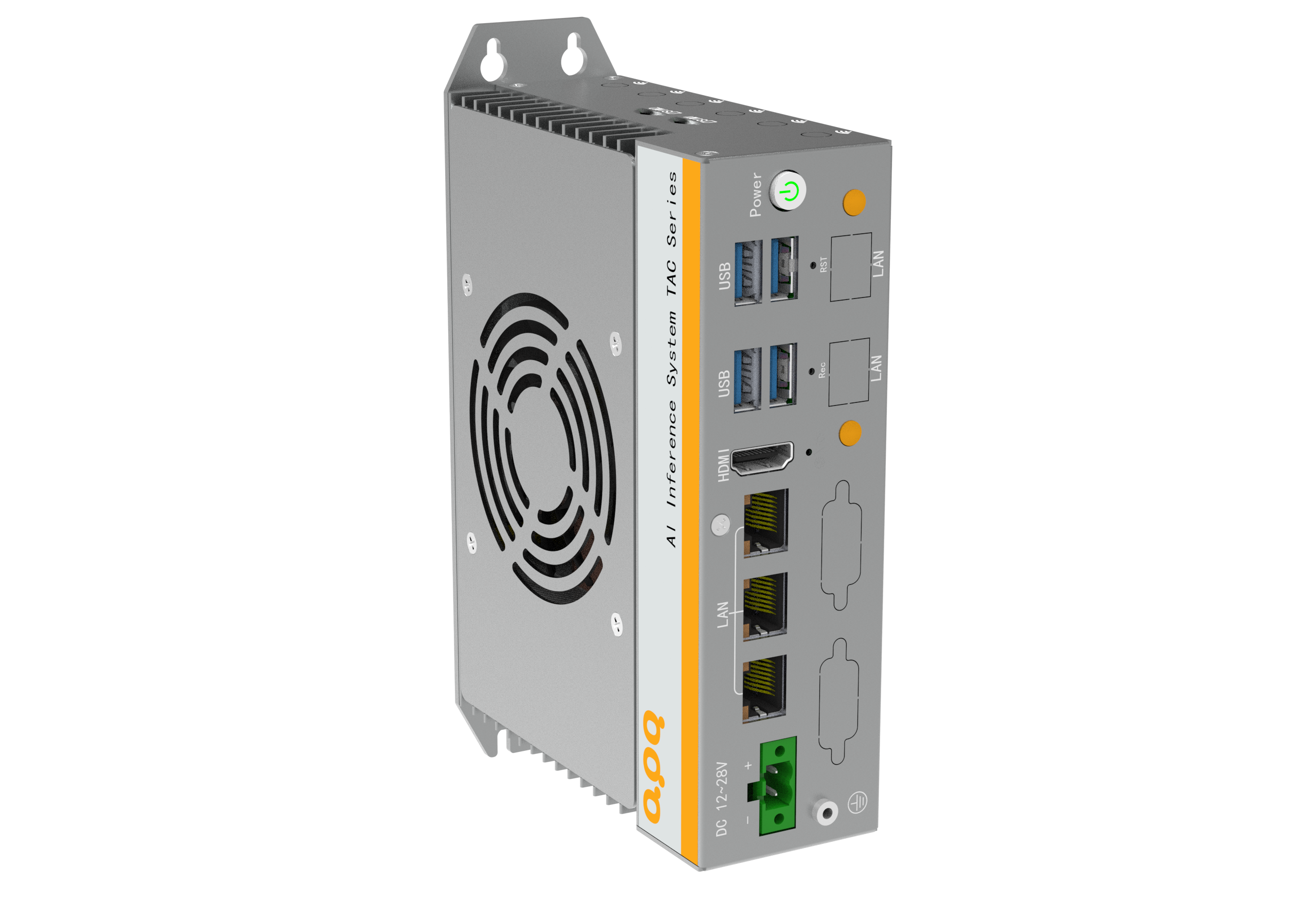

Front I/O

Ethernet

3 * GbE (RJ45)

USB

2 * USB 10Gbps (Type-A)

2 * USB 5Gbps (Type-A)

Display

1 * HDMI, Max resolution up to 4096*2304@30Hz (Type-A)

Button

1 * Power Button + Power LED

1 * System Reset button

1 * System Recovery button

LED

1 * System Status LED

Power Input

1 * Power Input (2P, P=5.00/5.08, Terminal Block)

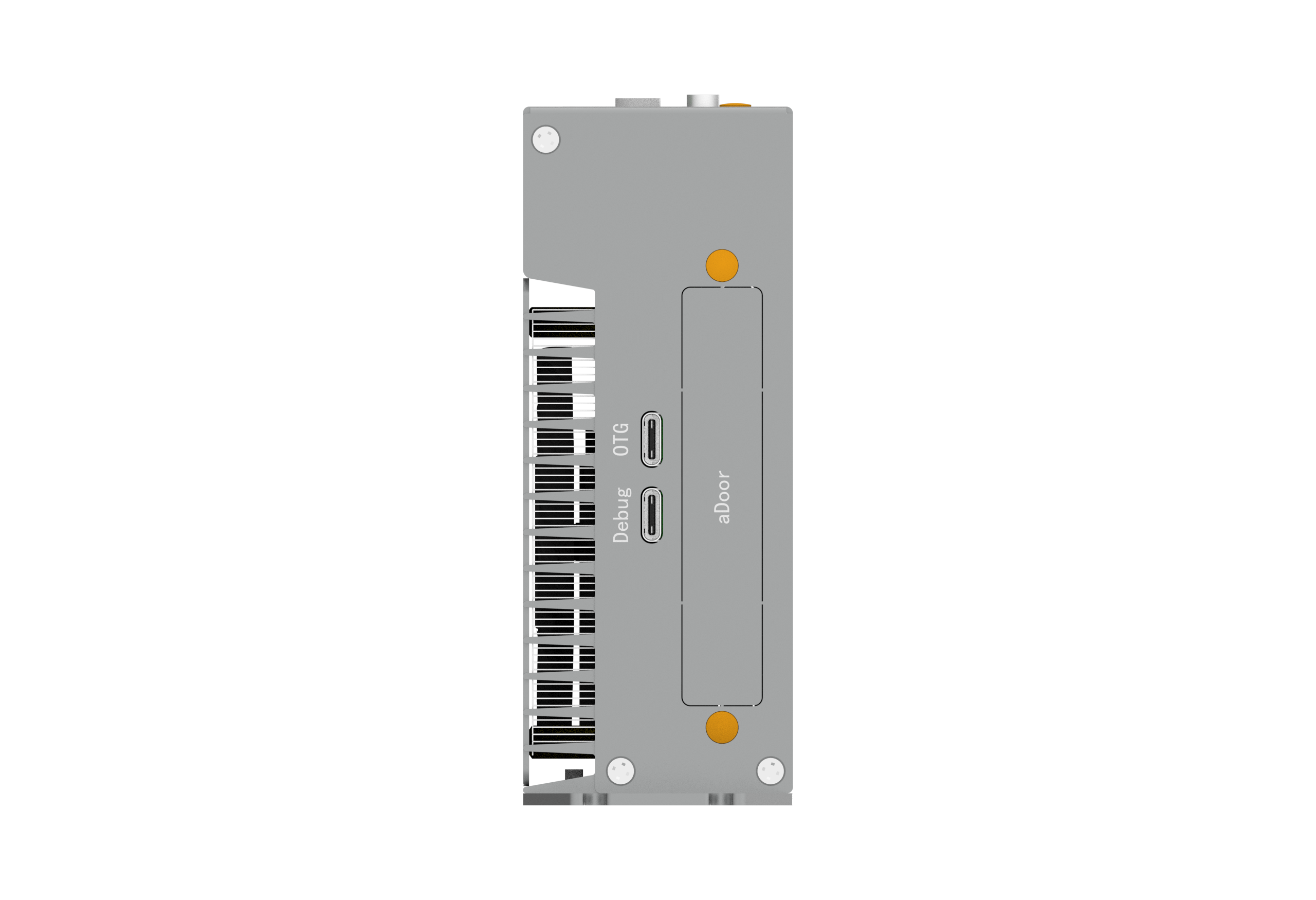

Side I/O

OTG

1 * USB 2.0 (Type-C, Flashing Port)

Debug

1 * USB 2.0 (Type-C, Debug Port)

SIM

2 * Nano SIM

Internal I/O

Serial

4 * RS232/RS485 (wafer, Jumper Switch)

1 * TTL (wafer)

CAN

2 * CAN (wafer)

GPIO

16bit DIO (OS Configurable DI/DO and H/L, wafer)

Audio

1 * Audio (Line-Out + MIC, wafer)

1 * Amplifier, 5-W (per channel) into a 8-Ω Loads (wafer)

USB

2 * USB 2.0 (wafer)

FAN

1 * System Fan (wafer)

BAT

1 * BAT (wafer)

Front Panel

1 * Front Panel (Power + Reset + Recovery, wafer)

Power Supply

Type

AT/ATX

Power Input Voltage

12~28V DC

Connector

1 * Power Input Connector (2P, P=5.08mm, Terminal Block)

RTC Battery

CR2032 Coin Cell

OS Support

Linux

Jetpack 6.2 (Ubuntu 22.04)

Mechanical

Enclosure Material

Radiator: Aluminum alloy

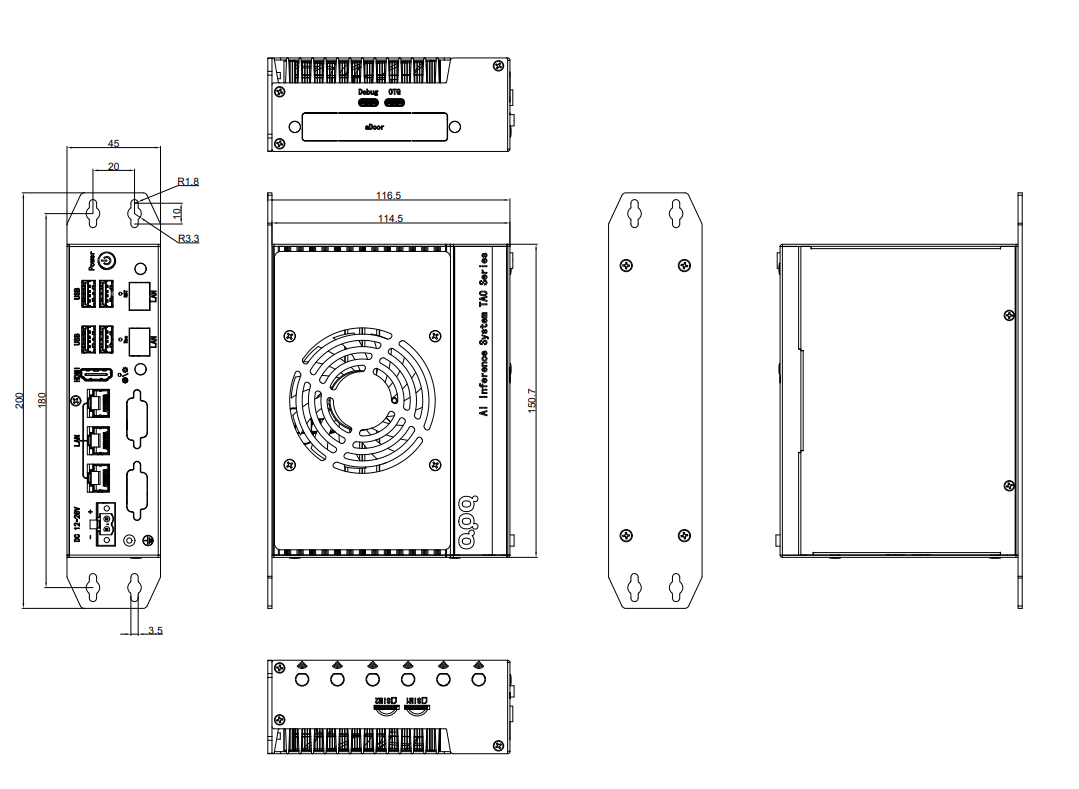

Dimensions

150.7mm(L) * 114.5mm(W) * 45mm(H) (Mounting Hardware Not Included)

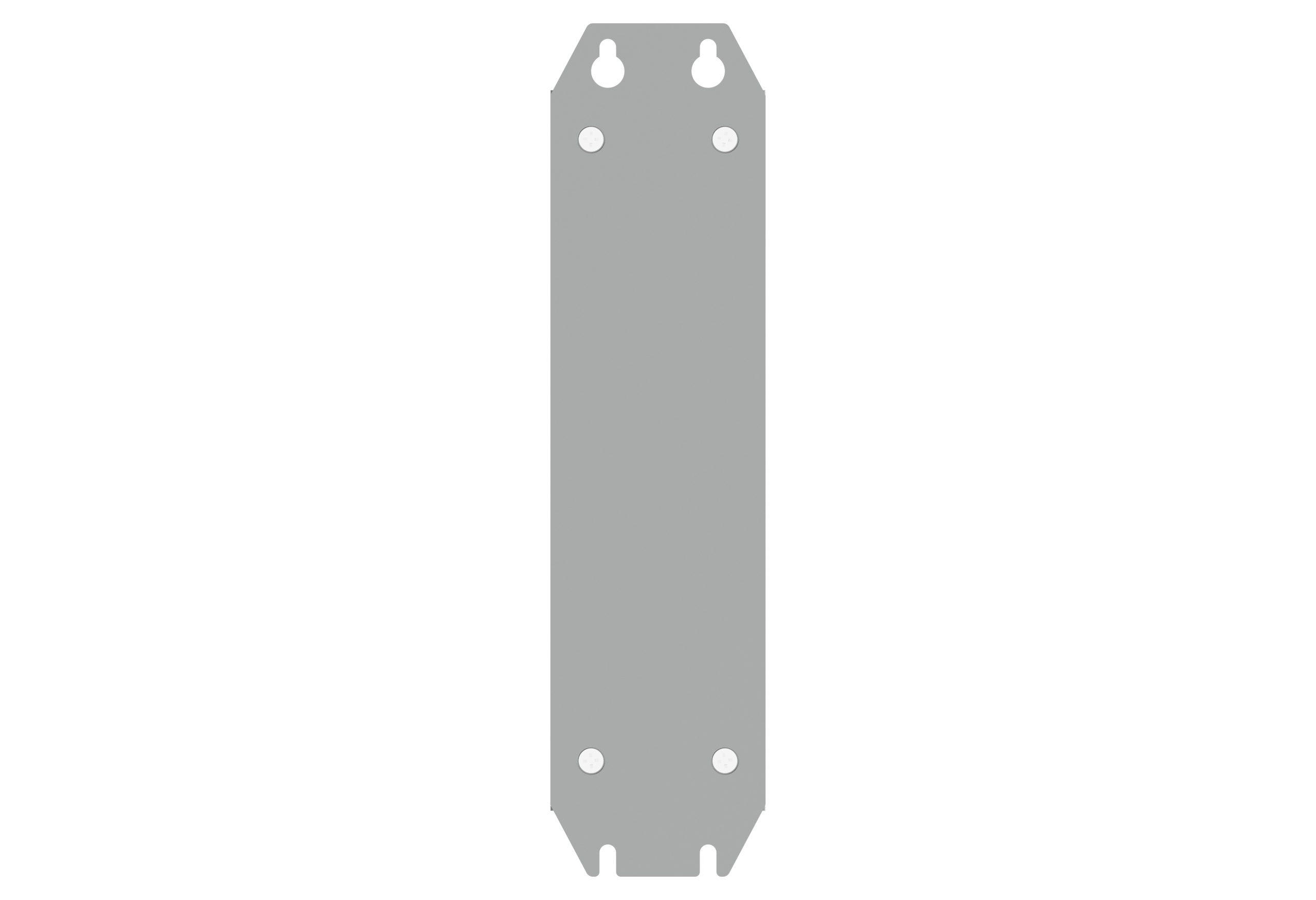

Mounting

Ear Mounting, DIN Rail Mounting (Shipping Option)

Environment

Cooling System

Active Fan Cooling

Operating Temperature

-20~50℃ (Industrial SSD)

Storage Temperature

-40~80℃ (Industrial SSD)

Relative Humidity

10 to 95% (non-condensing)

Vibration

3Grms@5~500Hz, random, 1hr/axis

Shock

15G, half sine, 11ms, ±X/Y/Z, 3 shocks/axis
