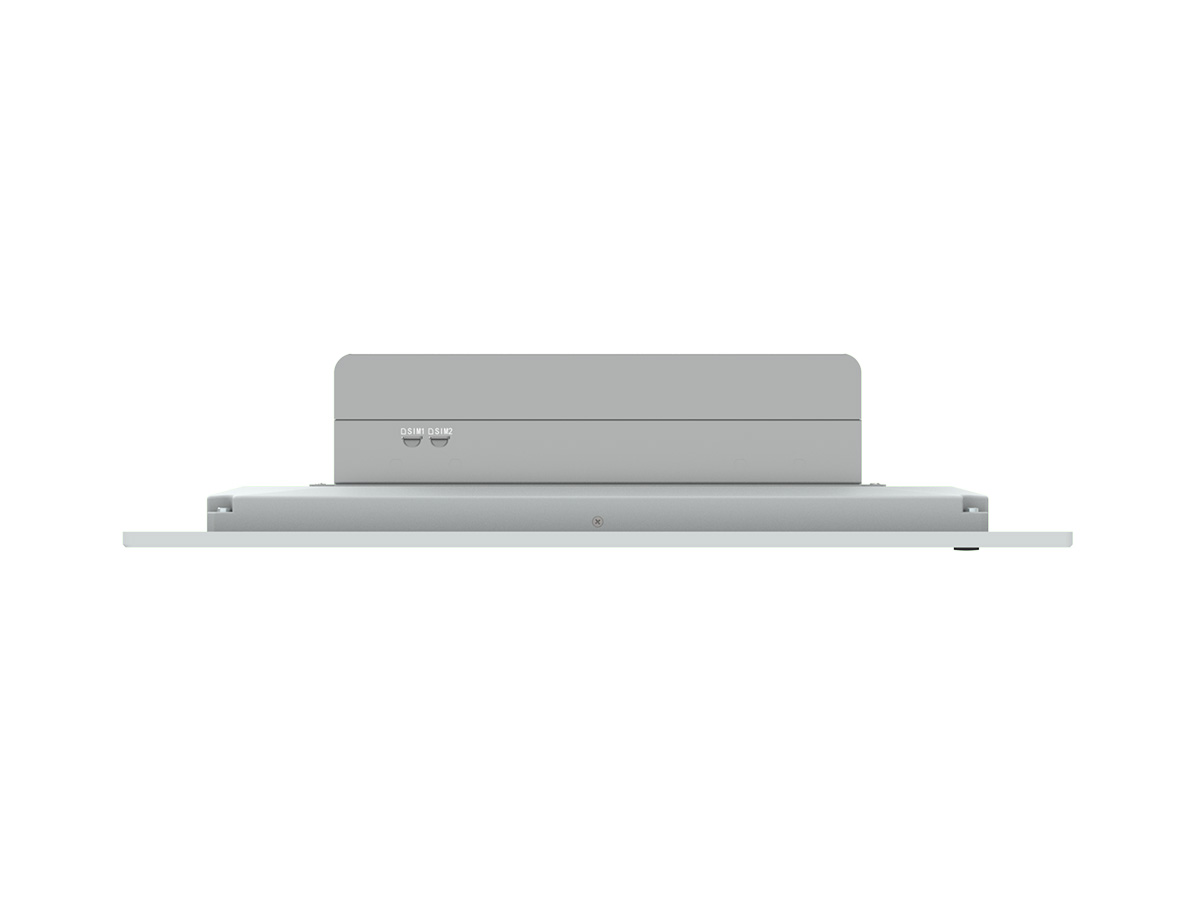

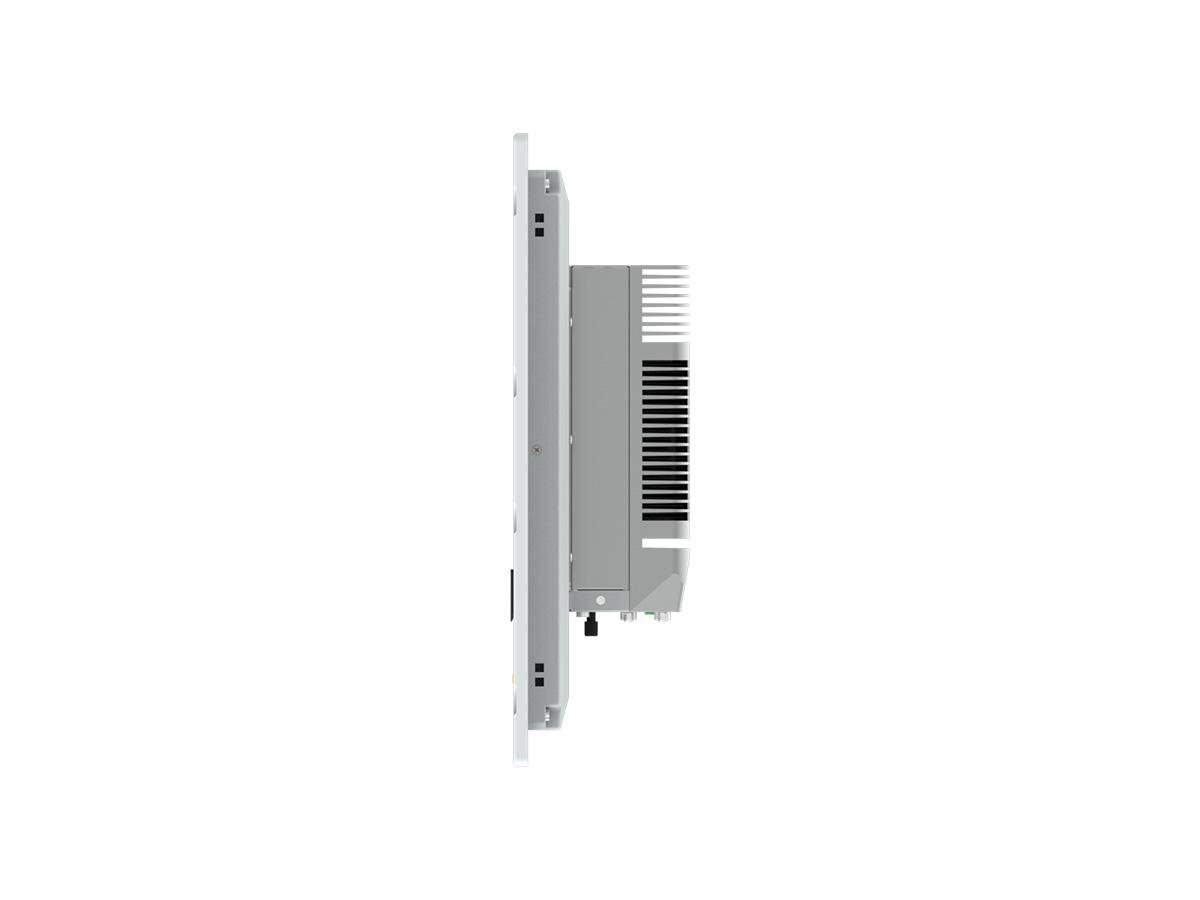

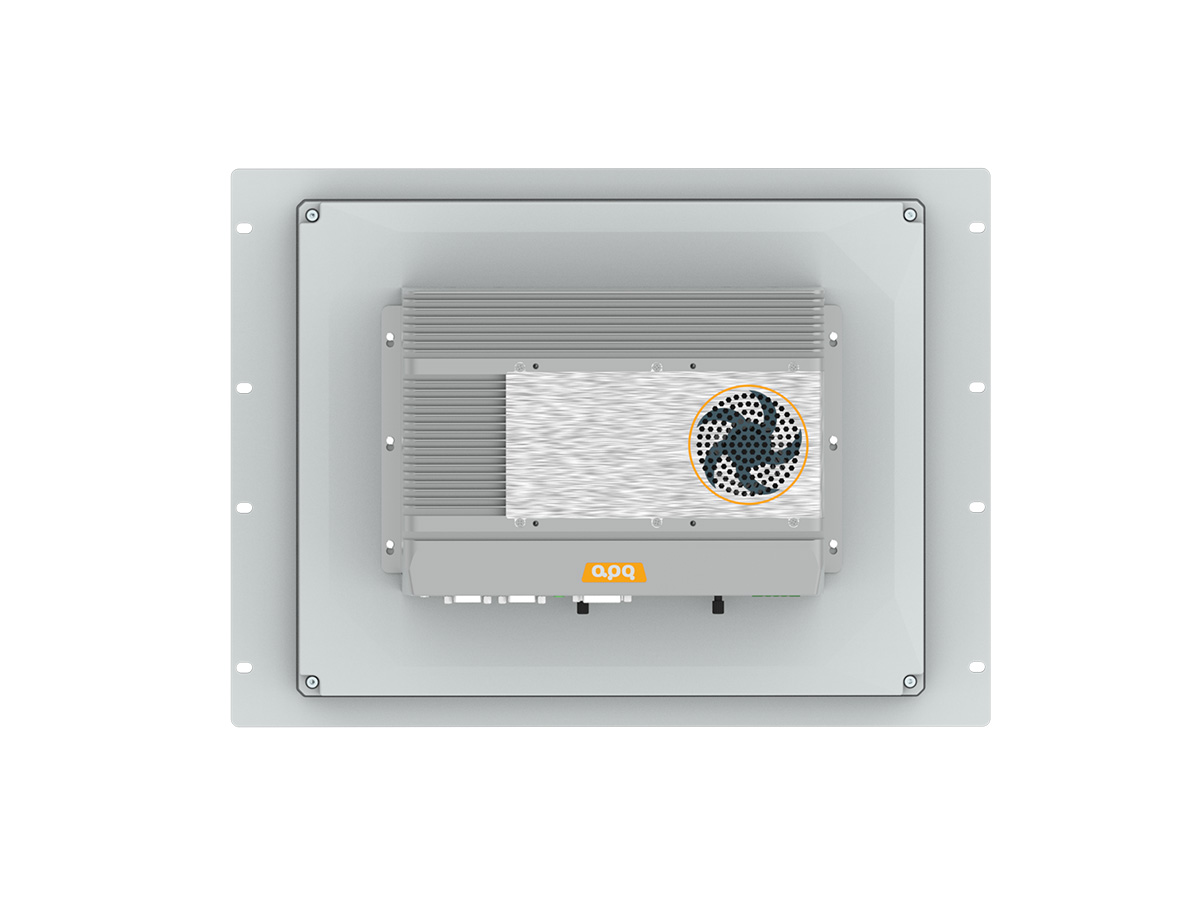

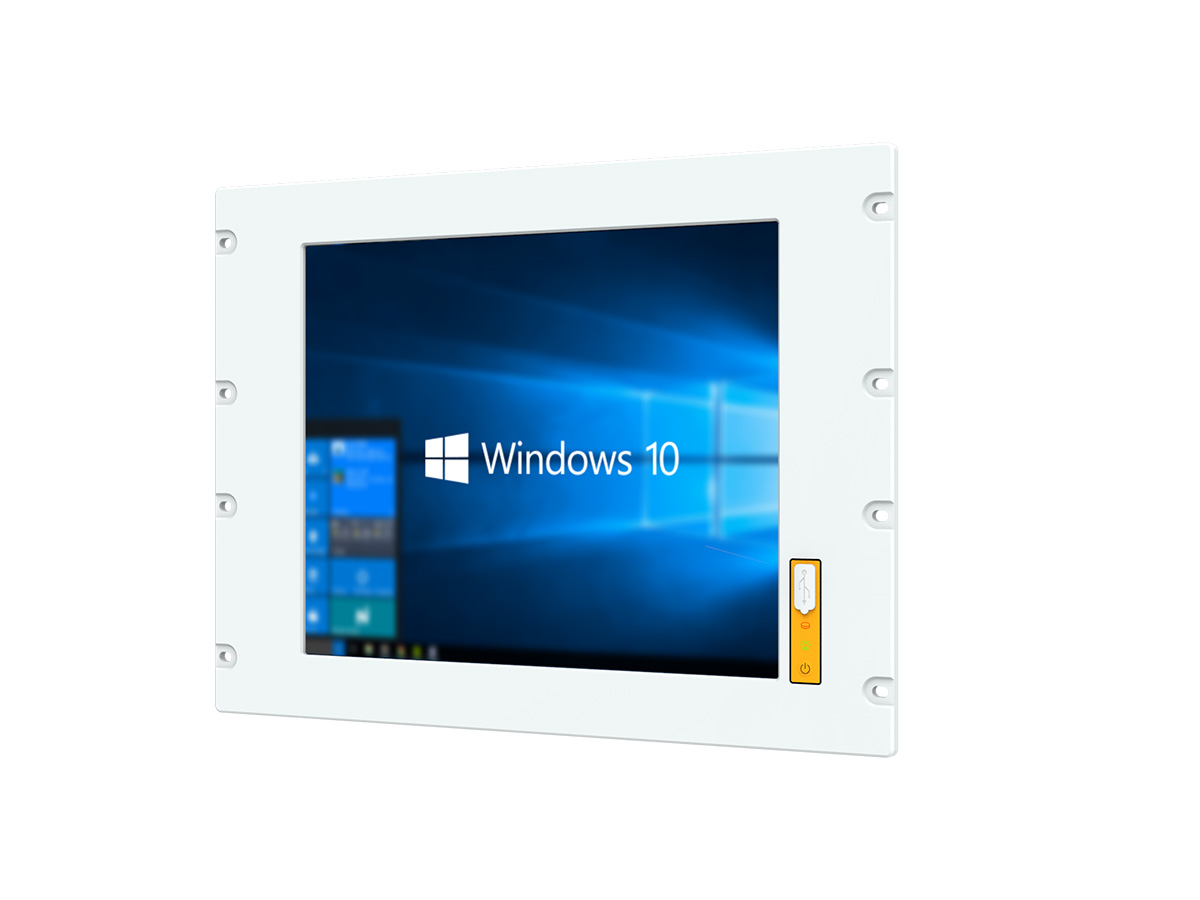

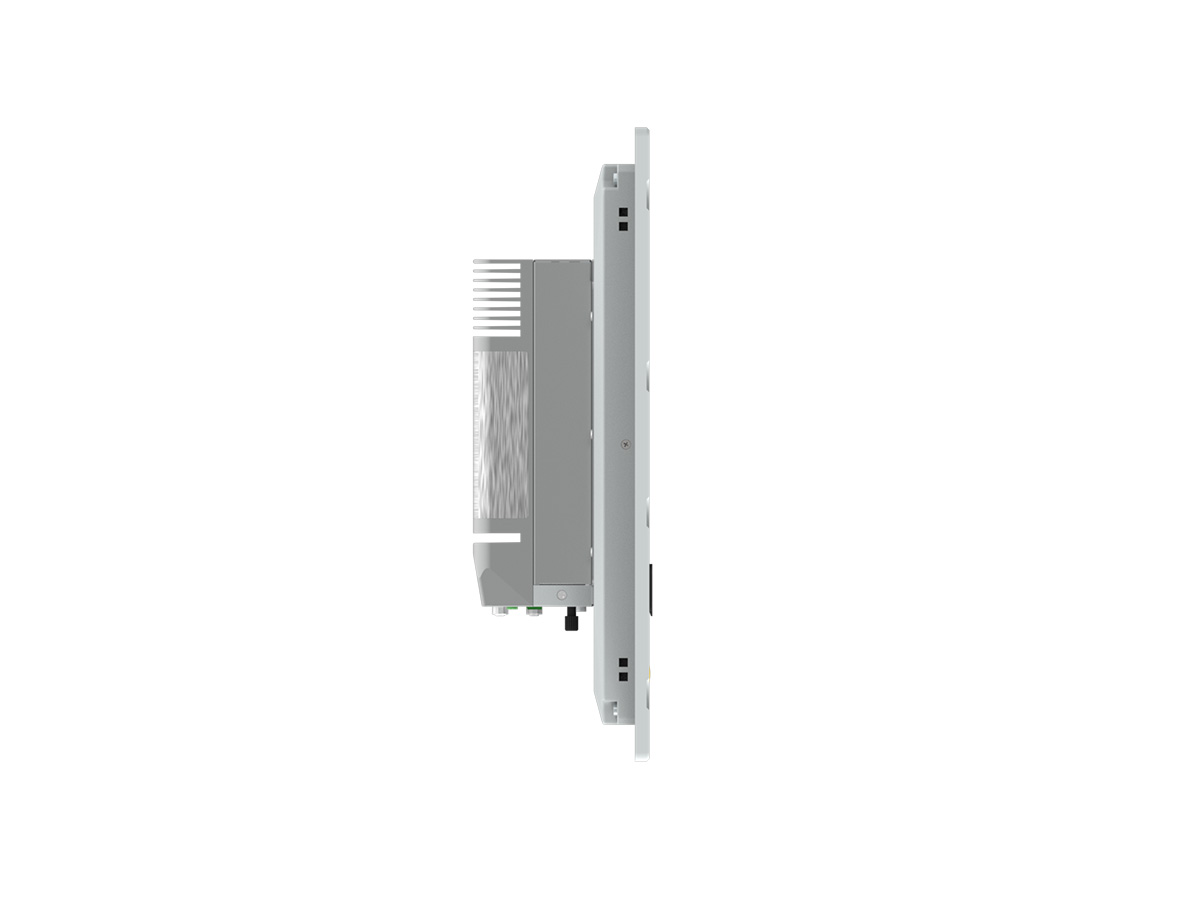

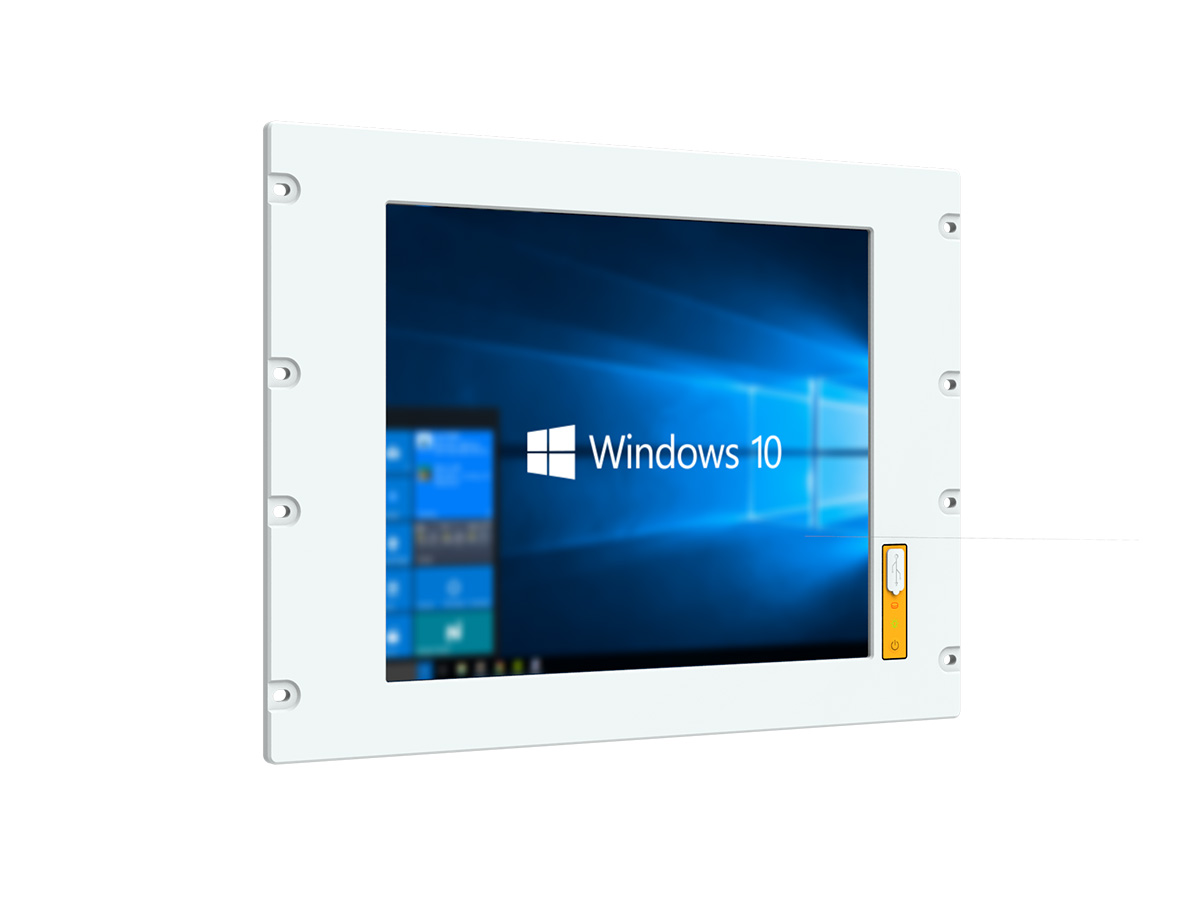

PGRF-E7S Industrial All-in-One PC
Remote management
Condition monitoring
Remote operation and maintenance
Safety Control
CONTACT USProduct Description

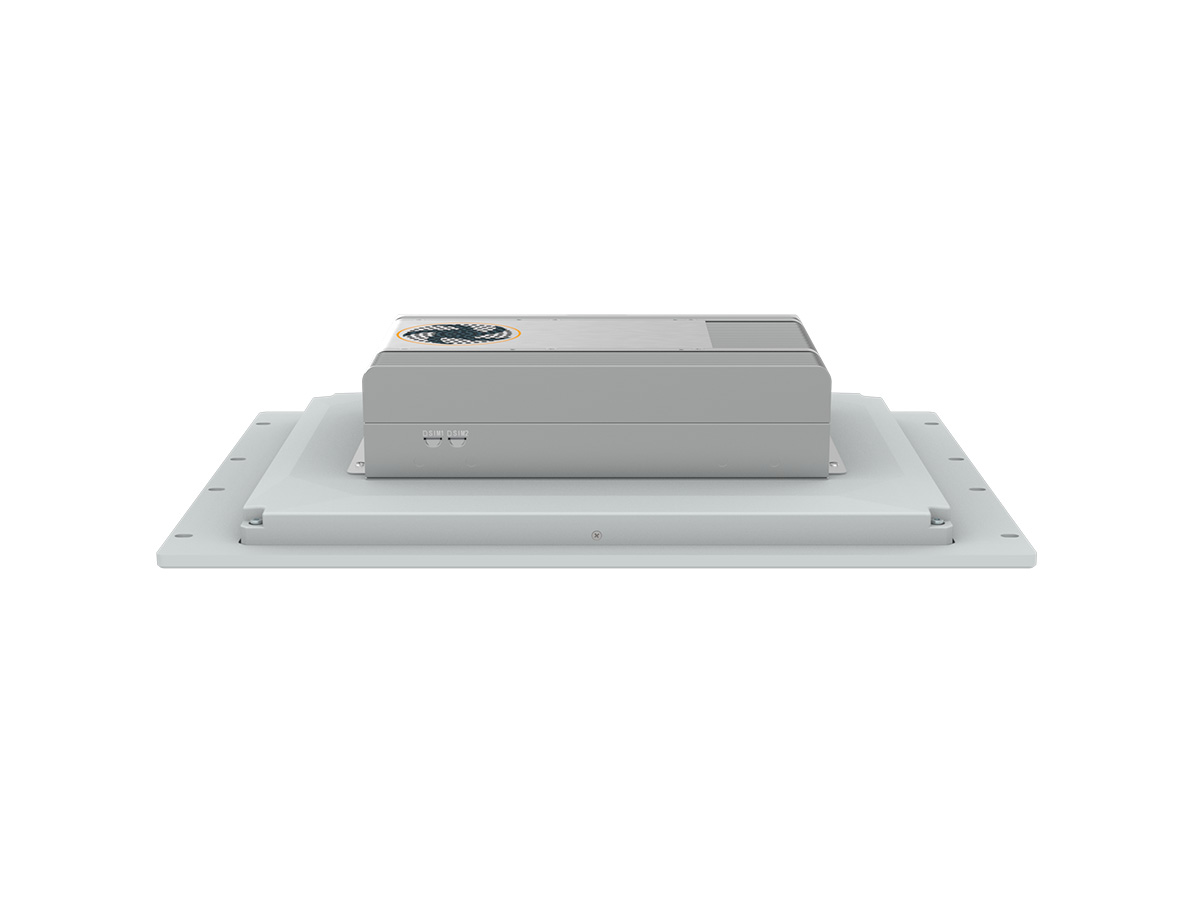

The APQ resistive touchscreen industrial all-in-one PC PGxxxRF-E7S series exemplifies a robust and versatile computing solution designed to meet the demanding requirements of various industrial environments. This series is built on diverse platforms, including H81, H610, Q170, and Q670, each tailored to support a range of Intel® Core, Pentium, and Celeron desktop CPUs across different generations. It offers a choice between 17-inch and 19-inch displays, accommodating both square and widescreen formats, and features a front panel that adheres to IP65 standards for dust and water resistance, ensuring reliability even in harsh conditions.
Key features across the series include dual Intel Gigabit network interfaces, multiple DB9 serial ports for extensive connectivity, and support for dual hard drive storage through M.2 and 2.5-inch drives, providing ample storage options. Display output capabilities include VGA, DVI-D, DP++, and internal LVDS, supporting up to 4K@60Hz resolutions. Additionally, the series is equipped with various USB and serial port expansion interfaces, along with PCIe, mini PCIe, and M.2 expansion slots, offering extensive flexibility for connecting external devices and expanding functionalities.
An intelligent fan-based cooling system ensures stability and reliability under high-load operations. Installation and setup are simplified with rack-mount and VESA mounting options, allowing for easy integration into different industrial settings. Whether deployed for industrial control, automation applications, or as part of a smart terminal setup, the APQ PGxxxRF-E7S series stands out as a reliable, high-performance choice for advancing industrial automation and enhancing operational efficiency across a broad spectrum of industry applications.
| Model | PG170RF-E7S | PG190RF-E7S | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:04 | 5:04 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Input | Finger/Touch pen | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 65W | ||
| Chipset | Intel® H81 | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz | |
| Max Capacity | 16GB, Single Max. 8GB | ||
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) | |
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional) | |
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1 * aDoor Expansion Slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card) | ||

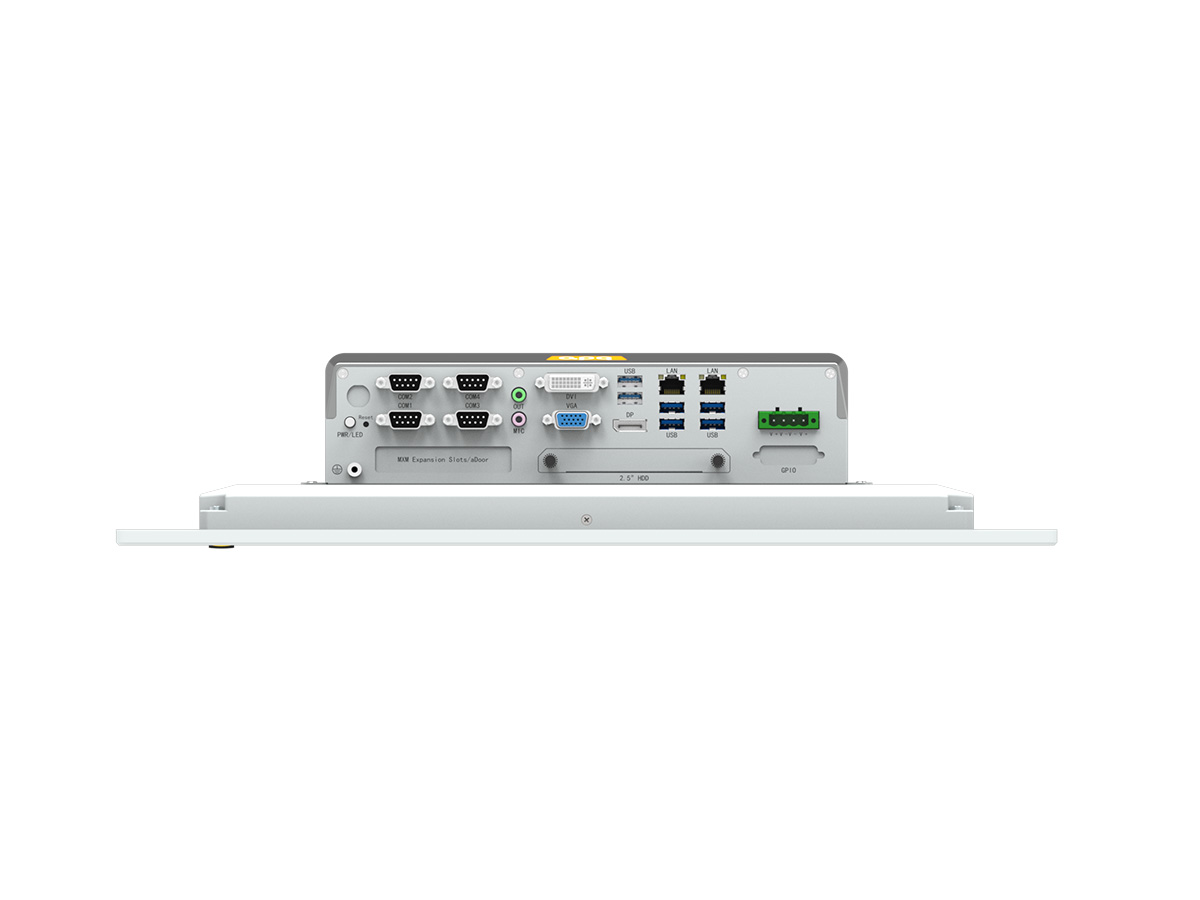

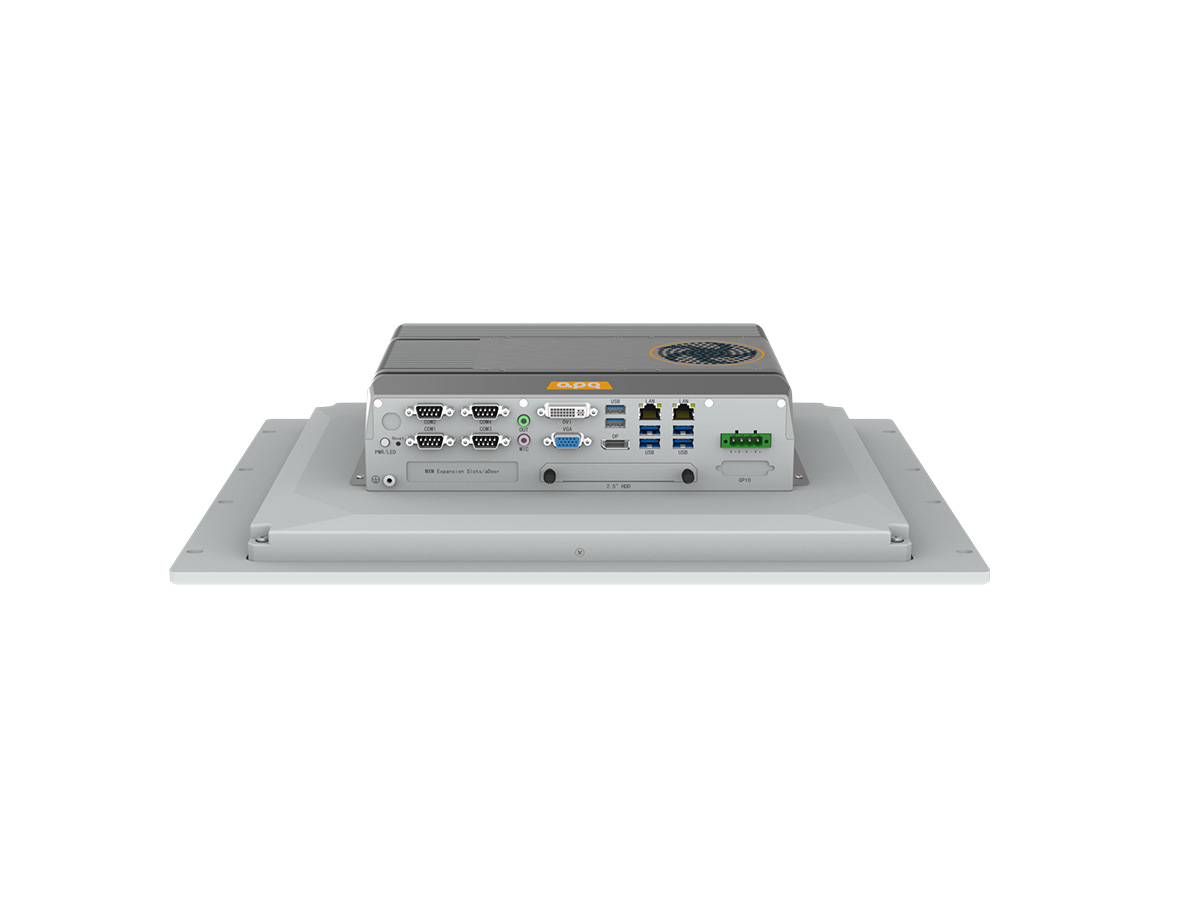

| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.0 (Type-A, 5Gbps)4 * USB2.0 (Type-A) | ||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M) | ||
| Button | 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) | ||
| Power Supply | Power Input Voltage | 9 ~ 36VDC, P≤240W | |
| OS Support | Windows | Windows 7/10/11 | |
| Linux | Linux | ||

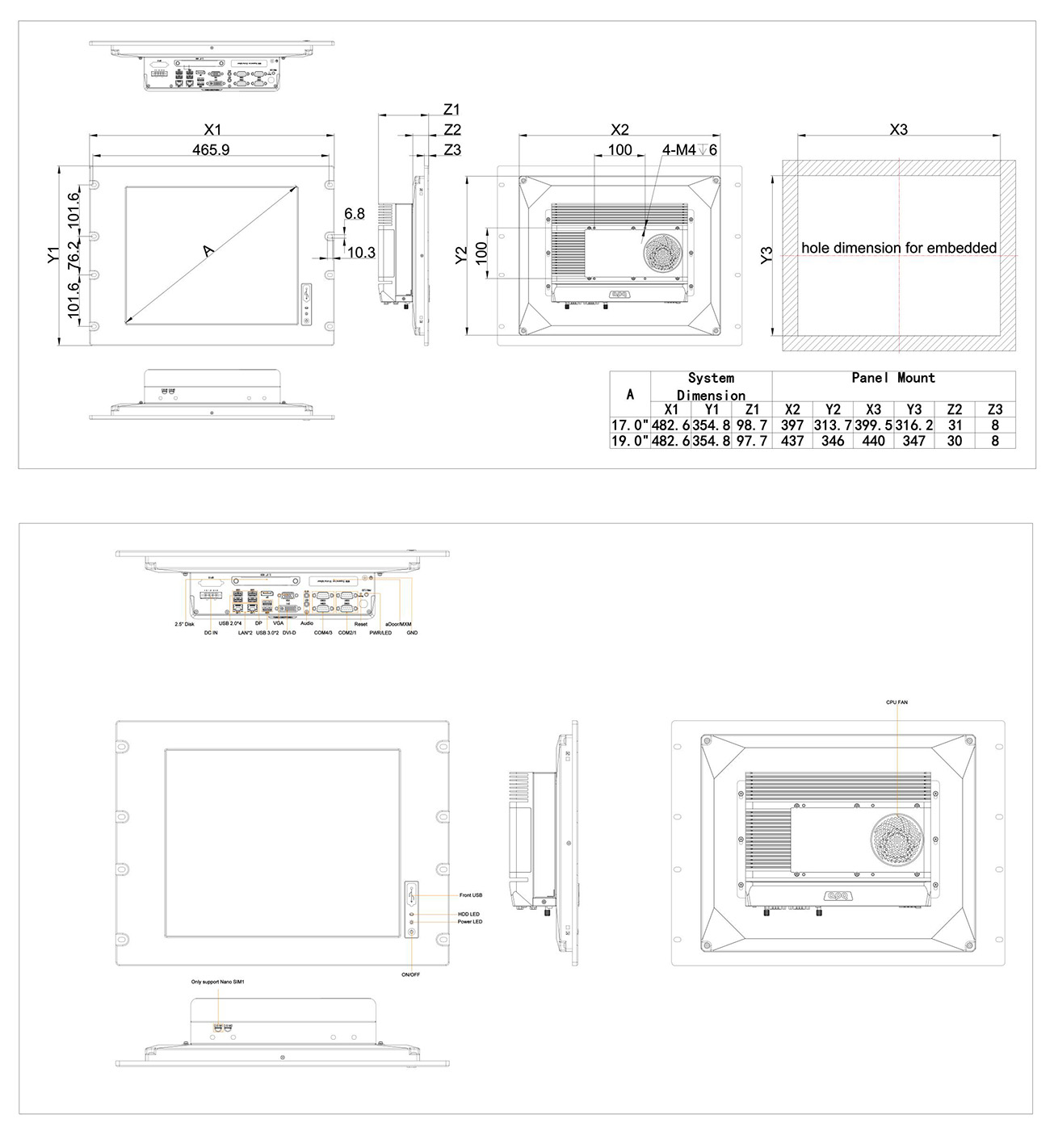

| Mechanical | Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) |
| Environment | Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7S | PG190RF-E7S | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:04 | 5:04 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Input | Finger/Touch pen | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 65W | ||
| Chipset | H610 | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Ethernet | Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) | |
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) | |
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
| Expansion Slots | aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)2 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
2 * USB2.0 (Type-A) |
||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz | ||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes) | ||
| Button | 1 * Power Button + Power LED1 * AT/ATX Button
1 * OS Recover Button 1 * System Reset Button |
||
| Power Supply | Power Input Voltage | 9~36VDC, P≤240W18~60VDC, P≤400W | |
| OS Support | Windows | Windows 10/11 | |
| Linux | Linux | ||
| Mechanical | Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) |
| Environment | Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7S | PG190RF-E7S | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:04 | 5:04 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Input | Finger/Touch pen | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 65W | ||
| Chipset | Q170 | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) | |
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
Support RAID 0, 1 |
|
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | ||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)1 * aDoor Expansion Slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | ||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M) | ||
| Button | 1 * Power Button + Power LED1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) | ||
| Power Supply | Power Input Voltage | 9 ~ 36VDC, P≤240W | |
| OS Support | Windows | 6/7th Core™: Windows 7/10/118/9th Core™: Windows 10/11 | |
| Linux | Linux | ||
| Mechanical | Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) |
| Environment | Operating Temperature | 0~50℃ | 0~50℃ |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
| Model | PG170RF-E7S | PG190RF-E7S | |
| LCD Panel | Display Size | 17.0" (SXGA)a-Si TFT-LCD | 19.0" (SXGA)a-Si TFT-LCD |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | Five-wire Analog Resistive | |
| Input | Finger/Touch Pen | ||
| Hardness | 3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 65W | ||
| Chipset | Q670 | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Ethernet | Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45)1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) | |
| Storage | SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm)1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
Support RAID 0, 1 |
|
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | ||
| Expansion Slots | aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | ||
| M.2 | 1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps)6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) | ||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz | ||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch)2 * RS232 (COM3/4, DB9/M, Full Lanes) | ||
| Button | 1 * Power Button + Power LED1 * AT/ATX Button
1 * OS Recover Button 1 * System Reset Button |
||
| Power Supply | Power Input Voltage | 9~36VDC, P≤240W18~60VDC, P≤400W | |
| OS Support | Windows | Windows 10/11 | |
| Linux | Linux | ||
| Mechanical | Dimensions(L * W * H, Unit: mm) | 482.6*354.8*98.7 | 482.6*354.8*97.7 |
| Environment | Operating Temperature | 0~50°C | 0~50°C |
| Storage Temperature | -20~60°C | -20~60°C | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
