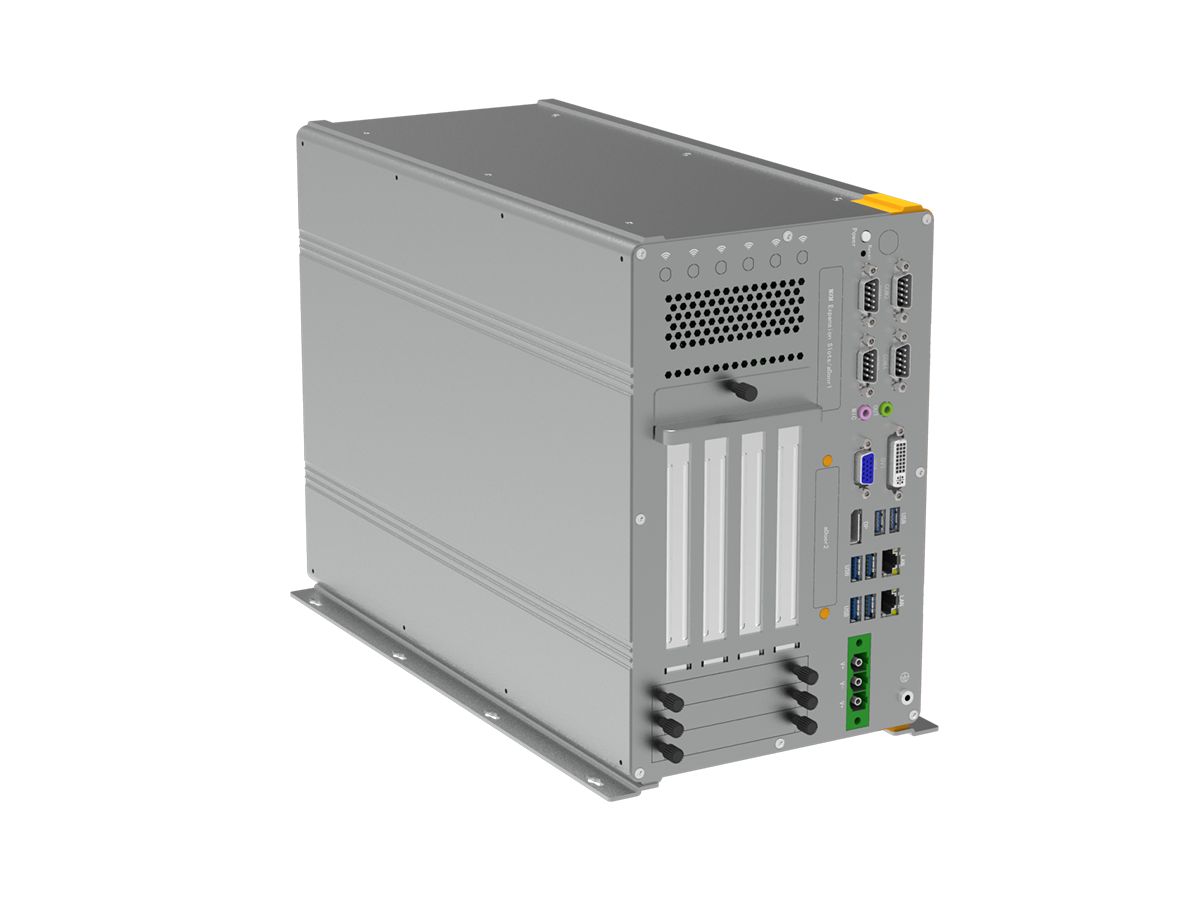

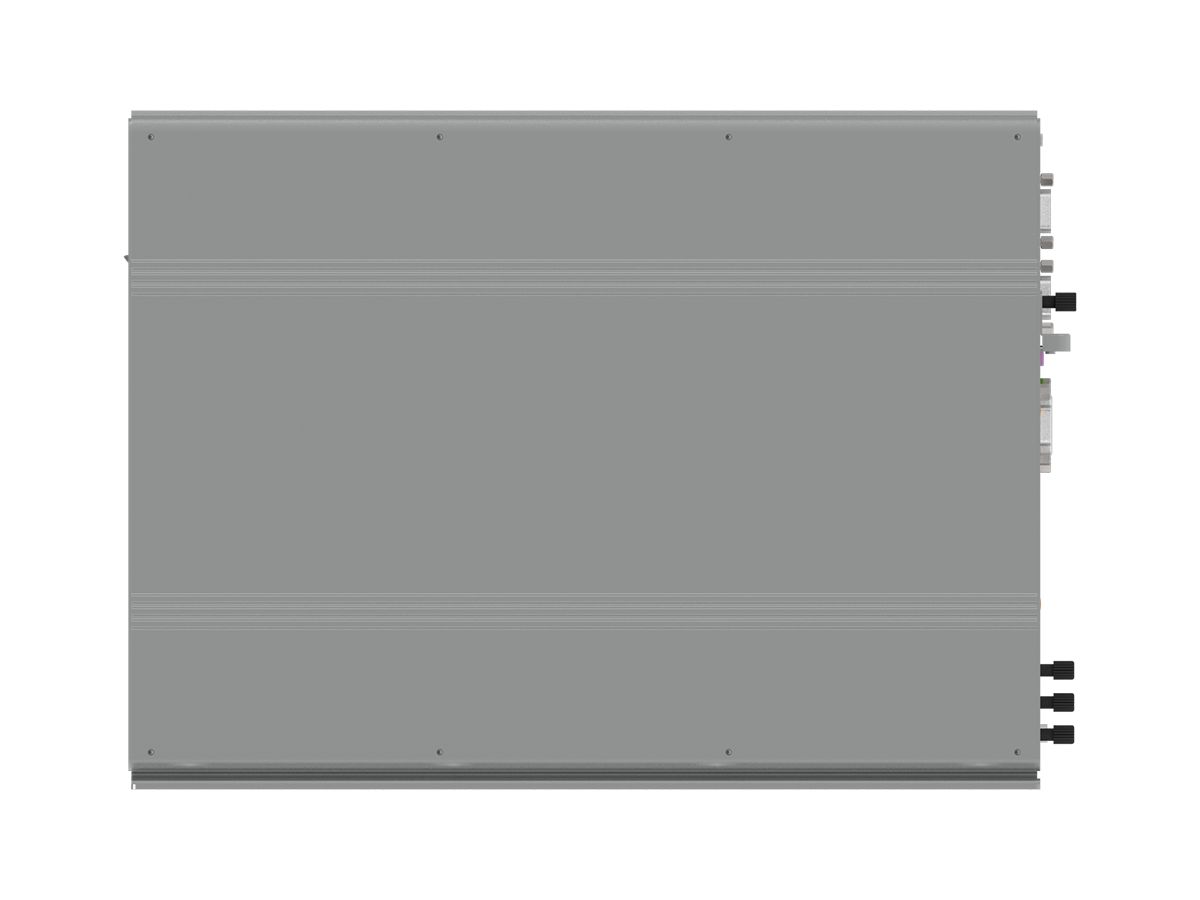

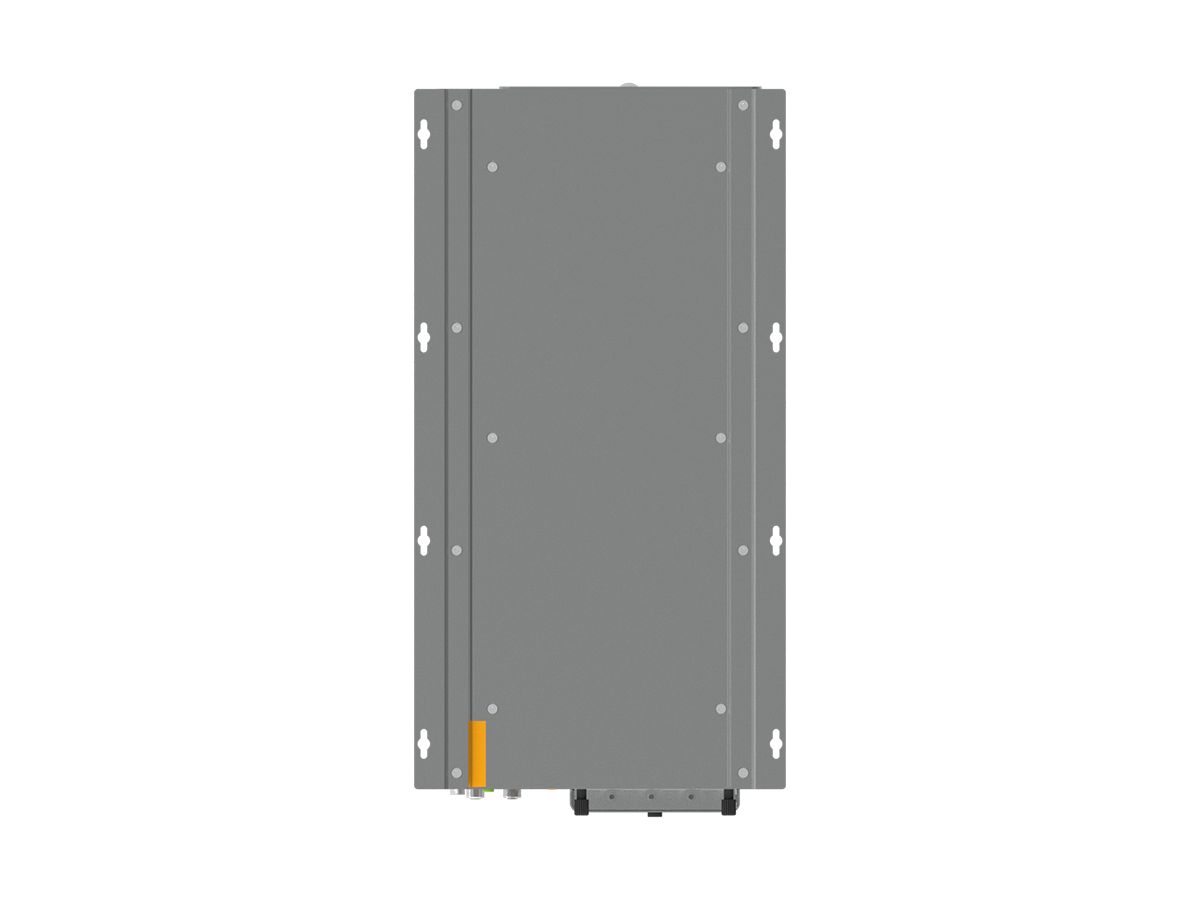

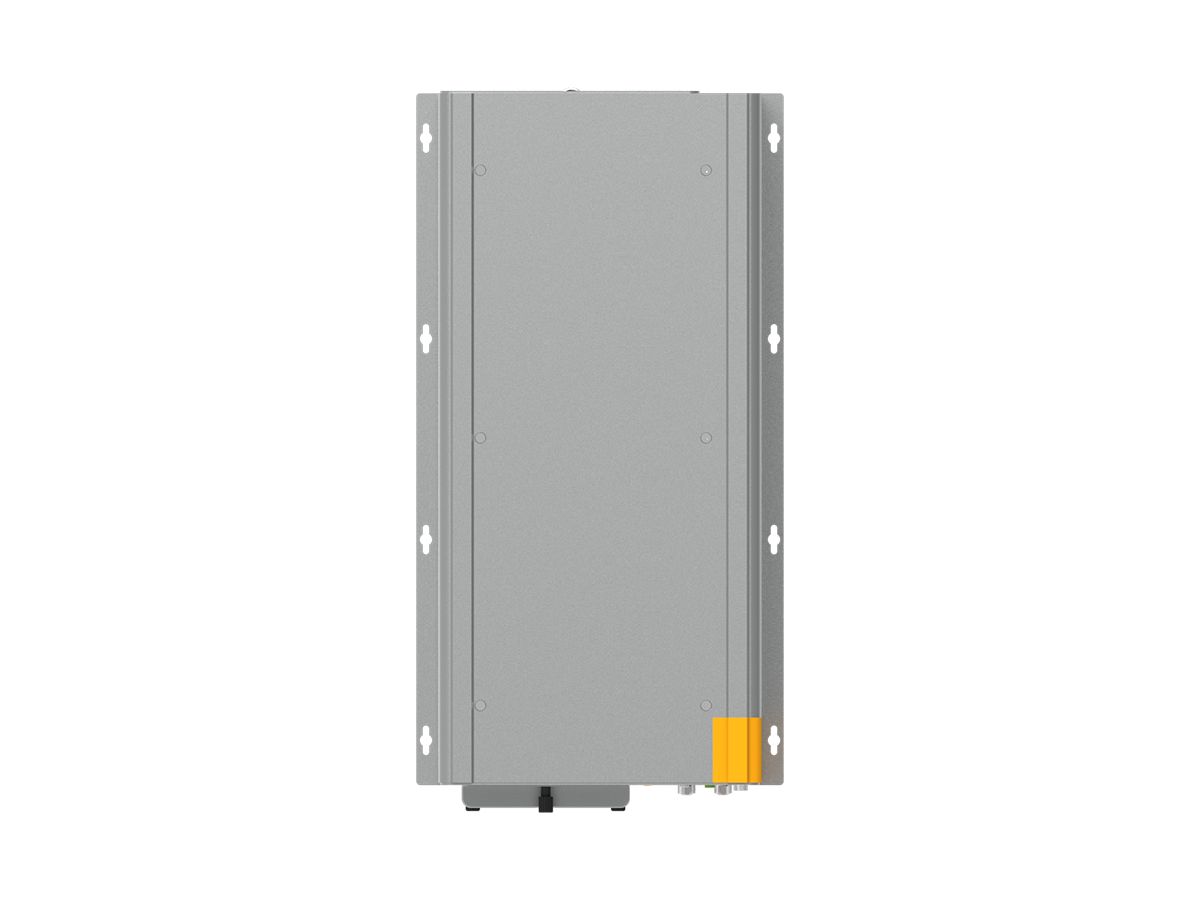

E7 Pro-Q170 Vehicle Road Collaboration Controller

E7 Pro-Q170 Vehicle Road Collaboration Controller


  • Supports Intel® 6th to 9th Gen Core / Pentium / Celeron Desktop CPU, TDP 65W, LGA1700

  • Equipped with Intel® Q170 chipset
  • 2 Intel Gigabit Ethernet interfaces
  • 2 DDR4 SO-DIMM slots, supporting up to 64GB
  • 4 DB9 serial ports (COM1/2 support RS232/RS422/RS485)
  • M.2 and 2.5-inch triple hard drive storage support
  • 3 display outputs VGA, DVI-D, DP, supporting up to 4K@60Hz resolution
  • 4G/5G/WIFI/BT wireless functionality expansion support
  • MXM, aDoor module expansion support
  • Optional PCIe/PCI standard expansion slot support
  • DC18-60V wide voltage input, rated power options of 600/800/1000W

  • Remote management

    Remote management

  • Condition monitoring

    Condition monitoring

  • Remote operation and maintenance

    Remote operation and maintenance

  • Safety Control

    Safety Control

Product Description

The APQ industrial product, the E7 Pro Series Q170 Platform Vehicle-Road Collaboration Controller, is an embedded industrial PC designed specifically for vehicle-road collaboration applications, featuring excellent stability and compatibility. This controller supports Intel® 6th to 9th Gen Core / Pentium / Celeron Desktop CPUs with the LGA1700 package and a TDP of 65W. Paired with the Intel® Q170 chipset, it provides 2 Intel Gigabit Ethernet interfaces for high-speed, stable network connections, meeting the networking transmission needs of vehicle-road collaboration applications. Equipped with 2 DDR4 SO-DIMM slots, it supports up to 64GB of memory, offering ample memory resources for big data processing and multitasking operations. In terms of expandability, the E7 Pro Series Q170 platform offers a wealth of interfaces and expansion capabilities, including 4 DB9 serial ports (COM1/2 support RS232/RS422/RS485) for convenient connection to various devices. It also supports M.2 and 2.5-inch drive bays, providing multiple storage options to meet data storage and backup needs. Wireless functionality expansion support for 4G/5G/WIFI/BT ensures stable wireless communication connections. The optional PCIe/PCI standard expansion slots further enhance the controller’s expandability. For display, the E7 Pro Series Q170 platform features 3 display outputs, including VGA, DVI-D, and DP interfaces, supporting up to 4K@60Hz resolution for a clear, smooth visual experience. It uses a DC18-60V wide voltage input, with rated power options of 600/800/1000W, catering to various power consumption needs.

In summary, the APQ E7 Pro Series Q170 Platform Vehicle-Road Collaboration Controller, with its exceptional performance, strong stability, and ease of assembly, provides reliable, efficient support for users in industrial automation, intelligent manufacturing, intelligent transportation, and smart city sectors. It aids industries in achieving digital transformation and upgrading.


Engineering Drawing

File Download


E7 Pro


CPU Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
Socket LGA1151
Chipset Q170
BIOS AMI UEFI BIOS (Support Watchdog Timer)


Socket 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2133MHz
Max Capacity 64GB, Single Max. 32GB


Controller Intel® HD Graphics


Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)


SATA 3 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm), Support RAID 0, 1, 5
M.2 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)

Expansion Slots

PCIe Slot ①: 2 * PCIe x16 (x8/x8) + 2 * PCI

②: 2 * PCIe x16 (x8/x8) + 1 * PCIe x4 (x4)

PS: ①、② One out of two, Expansion card length ≤ 320mm, TDP ≤ 450W

aDoor/MXM 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)
M.2 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052)

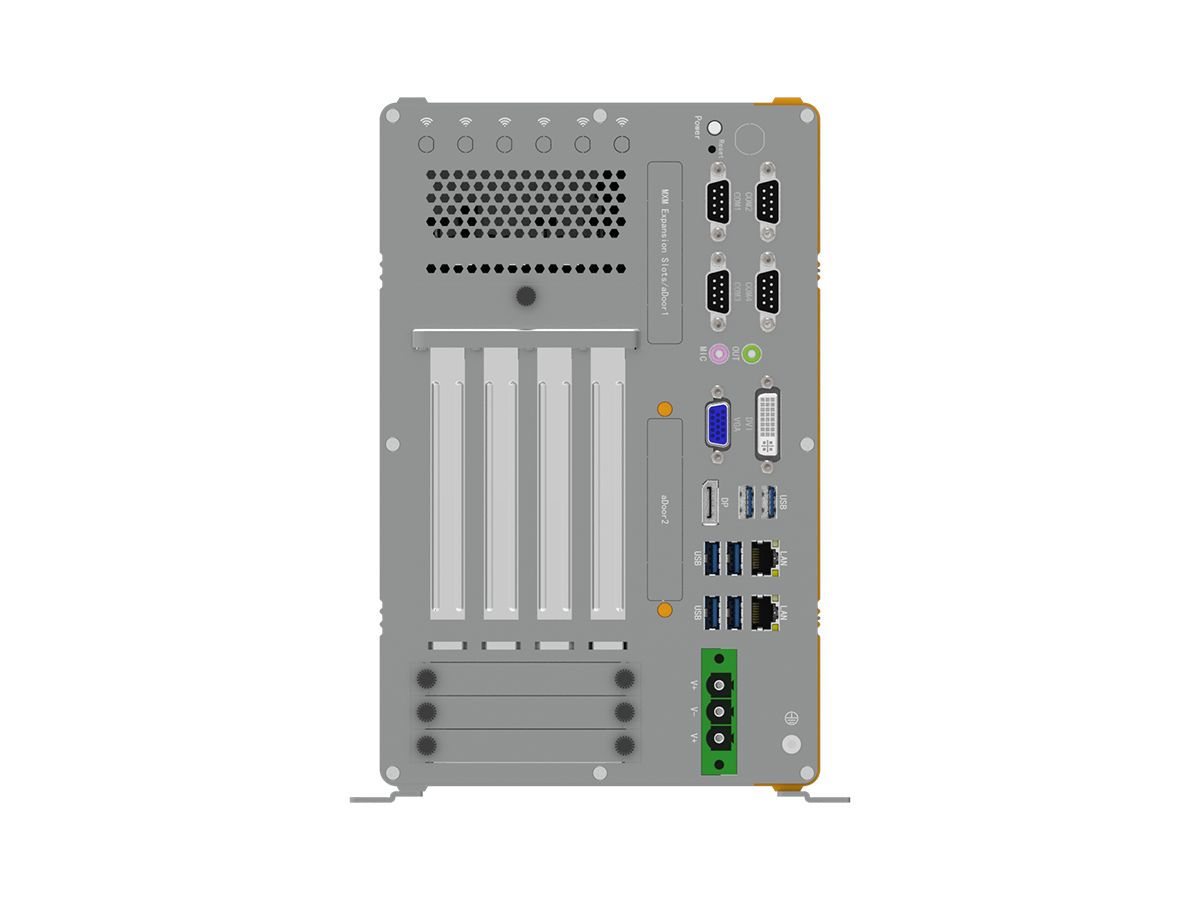

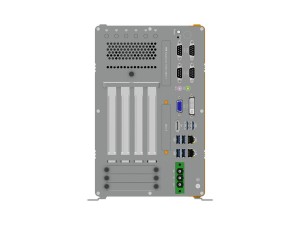

Front I/O

Ethernet 2 * RJ45
USB 6 * USB3.0 (Type-A, 5Gbps)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)

Rear I/O

Antenna 6 * Antenna hole

Internal I/O

USB 2 * USB2.0(wafer, Internal I/O)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * FPanel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0)
GPIO 1 * 16bit GPIO (wafer)
LPC 1 * LPC (wafer)
SATA 3 * SATA3.0 7P Connector
SATA Power 3 * SATA Power (SATA_PWR1/2/3, wafer)
SIM 2 * Nano SIM
FAN 2 * SYS FAN (wafer)

Power Supply

Power Input Voltage 18~60VDC,P=600/800/1000W (Default 800W)
Connector 1 * 3Pin Connector, P=10.16
RTC Battery CR2032 Coin Cell

OS Support

Windows 6/7th Core™: Windows 7/10/11

8/9th Core™: Windows 10/11

Linux Linux


Output System Reset
Interval Programmable 1 ~ 255 sec


Enclosure Material Radiator: Aluminum alloy, Box: SGCC
Dimensions 363mm(L) * 270mm(W) * 169mm(H)
Weight Net: 10.48 kg

Total: 11.38 kg (Include packaging)

Mounting Wall mounted, Desktop


Heat Dissipation System Fanless Passive Cooling (CPU)

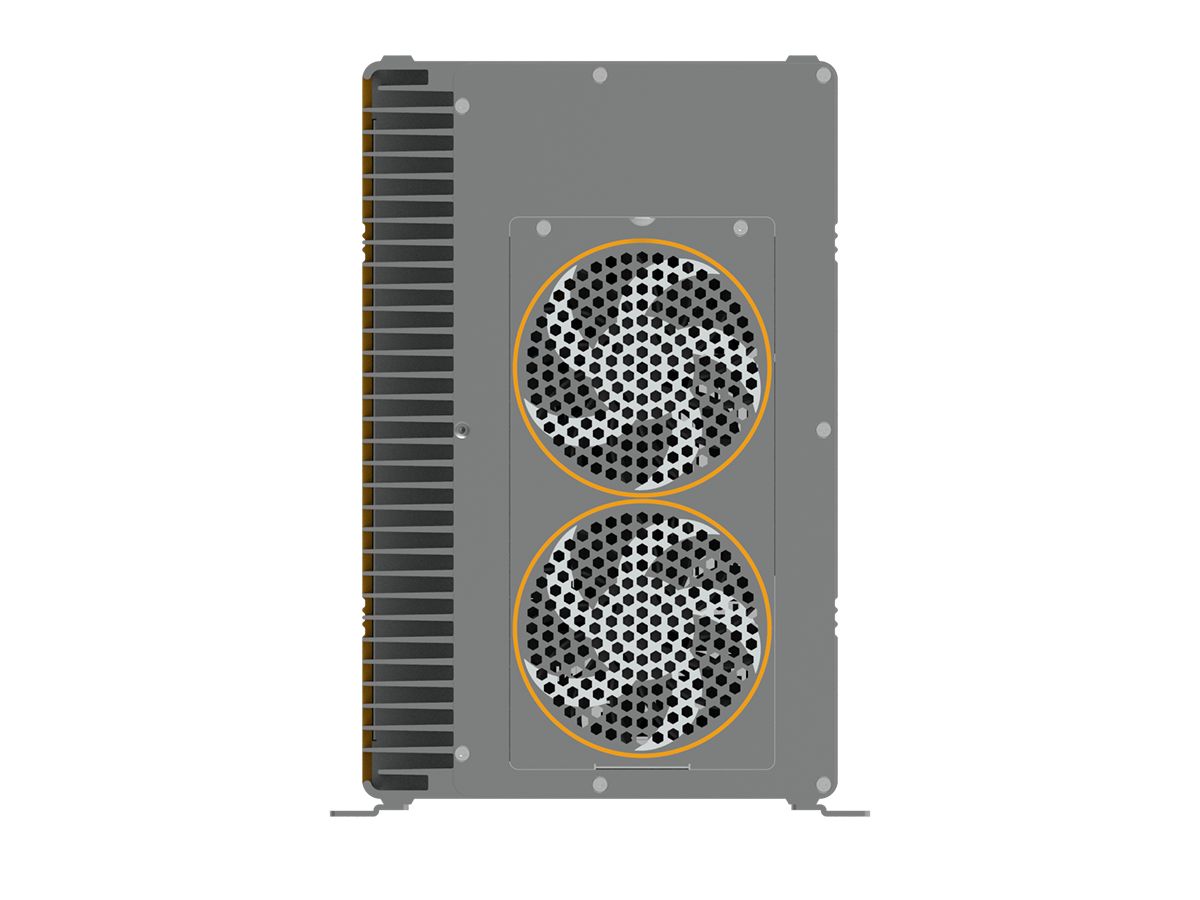

2 * 9cm PWM FAN (Internal)

Operating Temperature -20~60℃ (Industrial SSD)
Storage Temperature -40~80℃ (Industrial SSD)
Relative Humidity 10 to 90% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
Certification CCC, CE/FCC, RoHS

E7 Pro-Q170_SpecSheet_APQ
