Tablet PC APQ TPP-101CQ

Features:

Intel^® Core^® Alder Lake i5/i7 -U mobile CPU
10.1-inch high-resolution and high-brightness LCD screen
Scratch-resistant high-hardness multi-point capacitive touch screen
Front and rear HD cameras, gravity sensor, GPS support
Optional QR code, fingerprint, NFC modules
Supports Wi-Fi, BT, 4G/5G and other wireless and mobile networks
Intelligent fan active cooling, whole machine IP65 design

Remote management
Condition monitoring
Remote operation and maintenance
Safety Control

INTRODUCTION

Engineering Drawing

File Download

Model		TPP-101CQEA
LCD	Display Size	10.1"
	Display Type	TFT-LCD
	Max.Resolution	1920 x 1200
	Luminance	700 cd/m2
	Aspect Ratio	16:10
Touchscreen	Touch Type	10-point PCAP with tempered-glass cover
	Material	G+F+F
	Input	Finger/Capacitive Touch Pen
	Hardness	≥7H
Processor System	CPU	Intel® Core® Alder Lake i5/i7 -U mobile CPU
	TDP	15W
	Chipset	SOC
Memory	Capacity	16GB, DDR4L
Storage	Capacity	128GB, SSD
Storage	TF Card	1 * TF Card slot, Max. 128GB
I/O	USB	1 * USB 5Gbps (Type-A) 1 * USB 5Gbps (Type-C) 1 * USB 2.0 (Type-A, Co-lay with QR-code/LAN/COM, Opt.)
	Ethernet	1 * GbE (RJ45, Co-lay with QR-code/USB 2.0/COM, Def.)
	COM	1 * RS232 (DB9/M, Co-lay with QR-code/USB 2.0/LAN, Opt.)
	Display	1 * HDMI (Mini): max resolution up to 4096x2304@60Hz
	Audio	1 * 3.5mm Jack (MIC+Line-out)
	SIM Card	1 * SIM Card slot
	POGO PIN	1 * 12Pin Pogo Pin
	Power	1 * φ5.5mm Power Input Connector (19VDC)
Function	Camera	1 * Front 2.0 MP 1 * Rear 8.0 MP
	Speaker	1 * Waterproof loudspeaker (8Ω/1W)
	G-sensor	Support
	Wi-Fi	2.4GHz + 5.8GHz dual-band Wi-Fi 6
	Bluetooth	BT5.1 (BLE)
	Mobile Network	4G LTE
	GPS	GPS + Glonass (Opt. BD)
	NFC	NXP NFC 13.56MHz (Opt.)
	QR Code	Honeywell N3680 (Co-lay LAN/USB 2.0/COM, Opt.)
	Fingerprint	Supports Windows Hello login on boot (Def.)
Power Supply	Power Input Voltage	19V DC
	Connector	1 * φ5.5mm Power Input Connector
	Battery	7.4V/860mAh + 7.4V/5000mAh (Hot-swap)
OS Support	Windows	Windows 10/11
Mechanical	Usage Mode	Handheld, Vehicle mount (Opt.)
	Dimensions	289.9(L) * 196.7(W) * 27.4(D)mm
	Weight	1230g (Net.)
Environment	Heat Dissipation System	Fanless passive cooling
	Operating Temperature	-20~60℃
	Storage Temperature	-30~70℃
	Vibration During	1.08Grms@5~500Hz, random, 1hr/axis
	Functional Drop	1.22 m free-fall onto 20 mm plywood over concrete, 26 impacts
	IP Rating	IP65

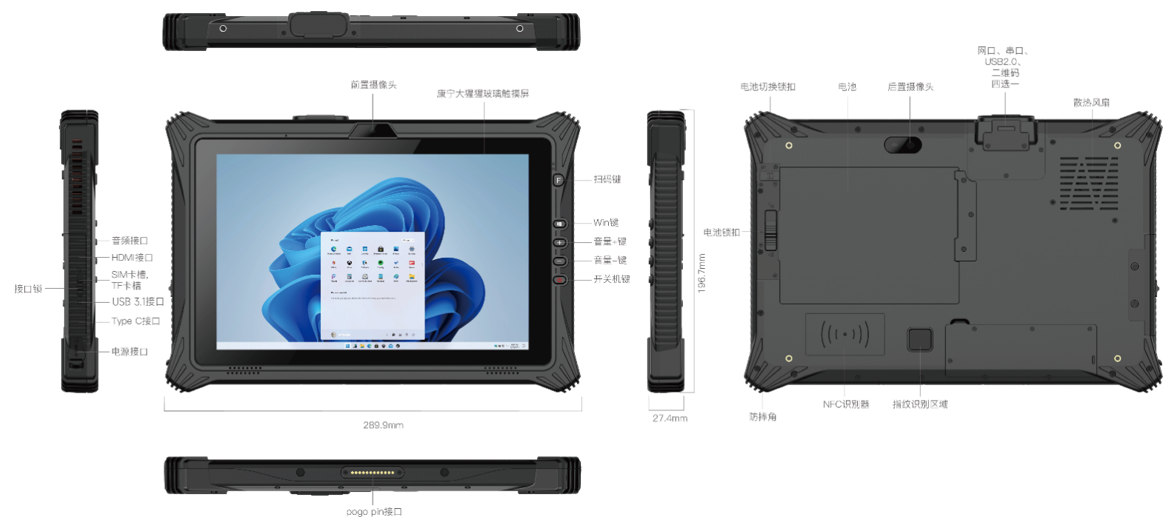

Product I/O
